Cable Tensioning and Reeling Equipment

This cable installation spread was delivered in 2014 for a cable installation project but was never used. System is preserved (hence no actual pictures) and ready for inspection/use. Main specifications as follows:

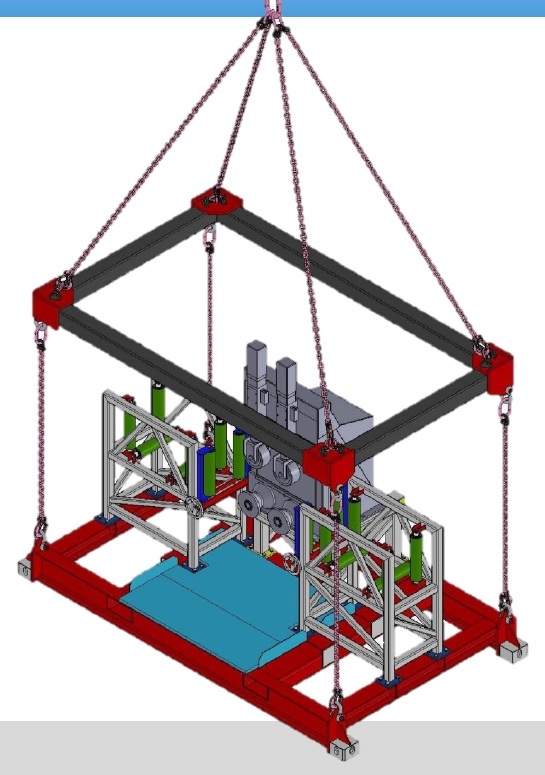

Cable Feeding Device - Feeding/Holding Force: 25 kN;  Max. Feeding speed: 25 m/min (cable diameter: 180 mm); Minimum cable diameter 60mm; Maximum weight 80 kg/m.

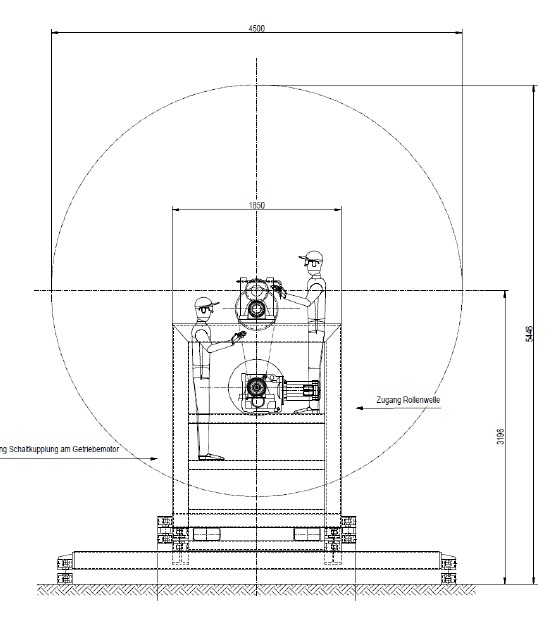

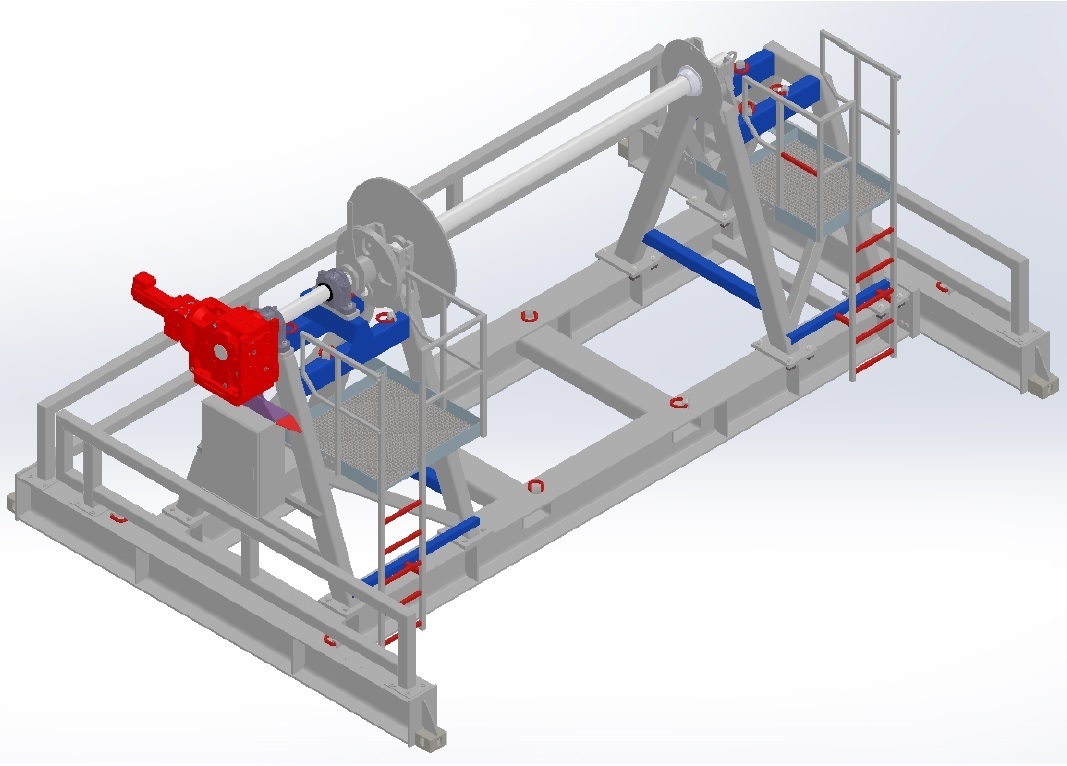

Mobile Reeling unit - Drive: 3 kW; Spooling speed Max. 20 m/min, Min. 2.5 m/min; Max. Diameter: 4.5 m, drum (min.) 1.5 m; Max. weigh of Reeling unit + Cable: 50 Tonnes; Spooling force at max. diameter (4.5m) 40 kN; Breaking force at max. diameter (4.5m) 6 kN/m ; Manual Break; 40ft Sea container.
