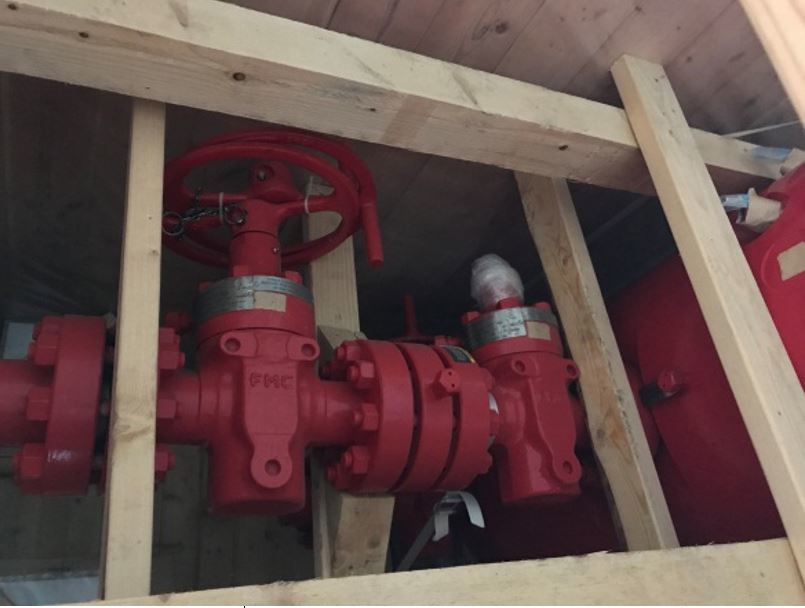

Unihead Wellhead Assembly

• 13-3/8 D-Type down flange BTM
• 13-5/8 5000 PSI WP Studded top
• With 2 nos. fs seals to packoff 13-5/8 '' OD casing
• With 2 nos. o-ring to seal against lading support ring
• With acmel running thread top
• With three nos. 2-1/16'' 5000 psi wp studded outlets prep
• With valve removal thread
• With 2 nos. between seal test port, 2 nos.packoff
• Test port and two nos.tubing hanger seal test port
• Complete with threaded lock ring assembly
• With 2 nos.1/4'' continuous lin complete with terminating sleeve. 1 no.3/8'' chemical line and 1 no.1/4' continuous line complete with blanking plug
• Internal bowl prep to accept 9-5/8'' mandrel hanger and 3-1/2'' tubing hanger including 625 overlay on all sealing areas
• Material class: DD-NL PSL:3, PR2, Temp class: U
