Hydraulic winch 1.5 Te - 800 & 2000m

Hydraulic winch with 1.5 Te Working Load Limit and 800 & 2000m capacity available for sale (Ref.: DS07)

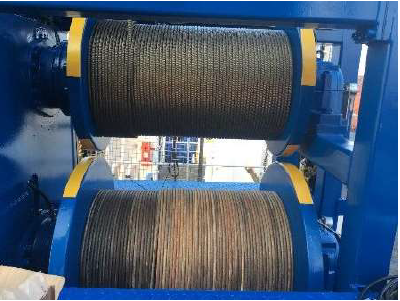

Each winch drum is independent and mounted one above the other and are driven directly from a SAI gearbox, hydraulic motor and load valve combination. The brake, being failsafe, always defaults to on should, for any reason, electrical supply is lost or the control joystick is in its centre position. The non-drive side housings the bearings and the lower drum a slipping.

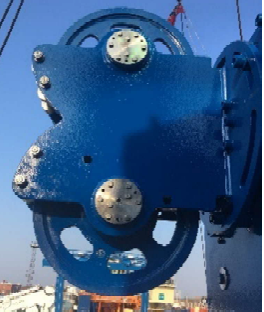

The 90 degree right angled hydraulic driven Level wind is coupled with a dual sheave, PLC controlled and is automatic with a manual override via a local proportional valve. The lower sheave can be swung down to enable easy reconfiguration between the different cable diameters as required. The Level wind is adjusted via the HMI during reconfiguration between the different cable diameters

HMI displays cable/wire tension and line measurement via a load pin within the level wind sheave.
