Seaeye Falcon ROV System

Key parameters are as follows:

• Surface Equipment contained in a single flight case.
• 300M (1,000 ft) depth rating, 14 kg (30,8 lbs) payload
• 1100m length with F2 fiber optic pack (allowing, for instance, tunnel inspection)

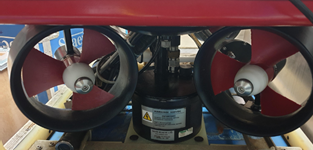

• Magnetically coupled brushless DC thrusters with velocity feedback - 4 vectored and 1 vertical
• 50 kg (110 lbs) of thrust with almost 1:1 power to weight ration, without additional payload
• The distributed intelligence control system
• A high-resolution color camera on 180 degrees tilt platform
• Variable intensity, 6400 lumens of LED lighting
• Auto heading and depth
• Single-phase 100-270 VAC universal auto-sensing power input at 2.8 kW

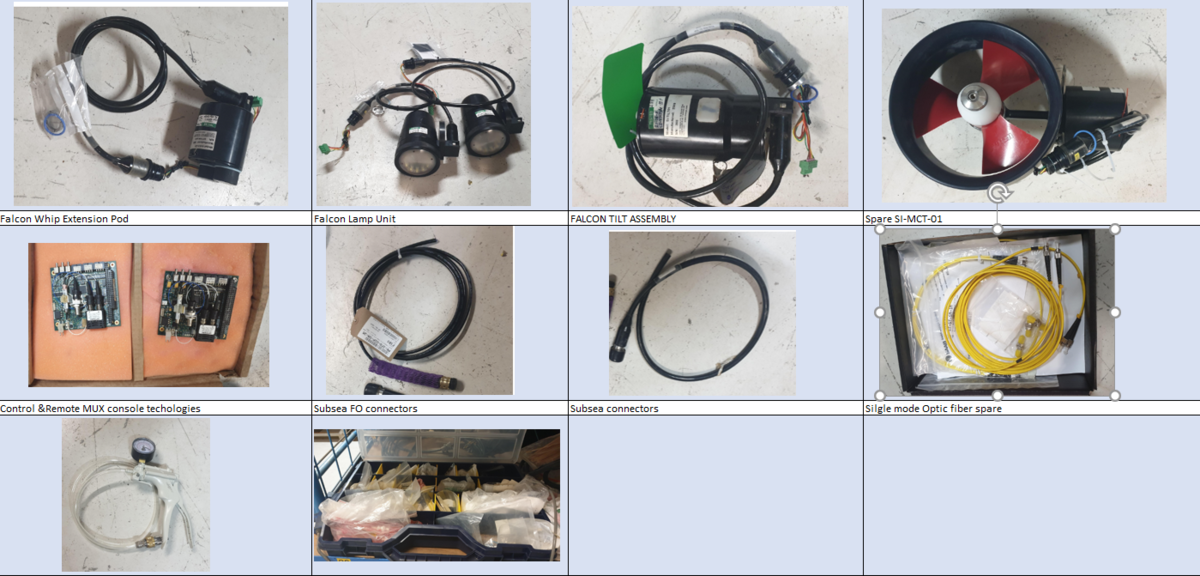

Included accessories

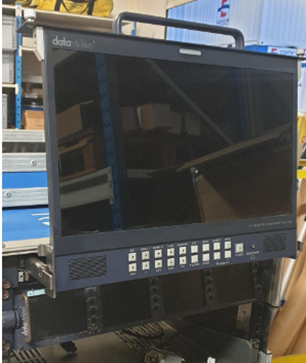

• Video control system
• Hand controller

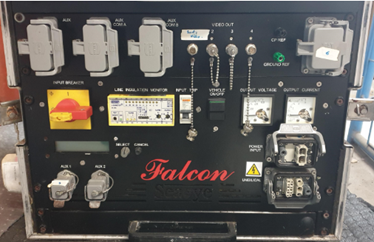

• Power surface unit

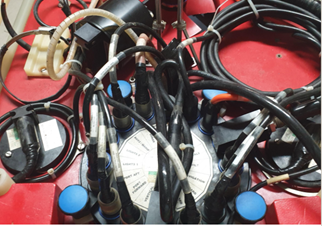

• Umbilical connectors
• Falcon lamp unit
• Falcon tilt assembly
• Falcon whip extension pod
• Subsea FO connector
• Single-mode optic fiber spare
• Vacuum pump
• O-ring kit, Fuse kit
• Control & remote consoles

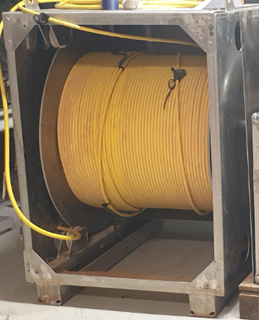

• 1200m umbilical winch

Contact seller for further information.
