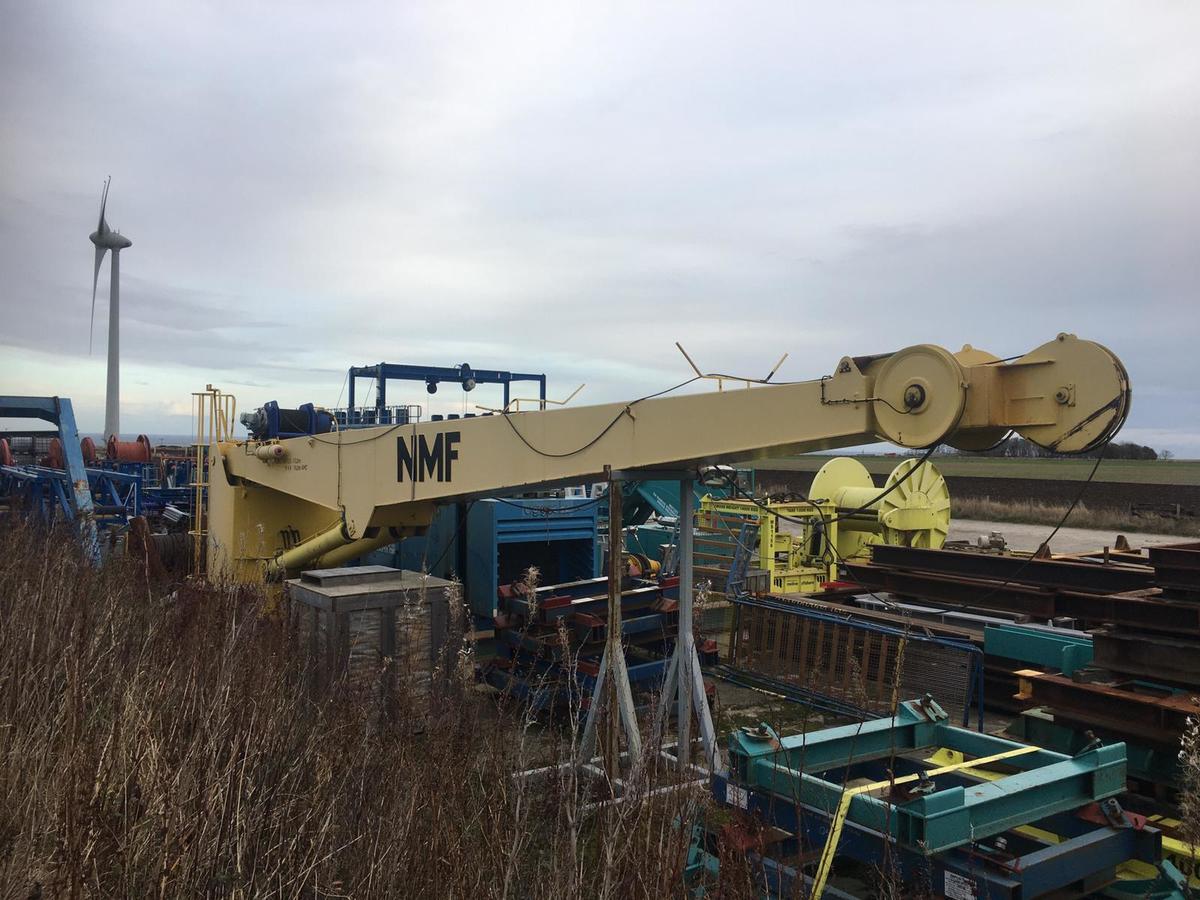

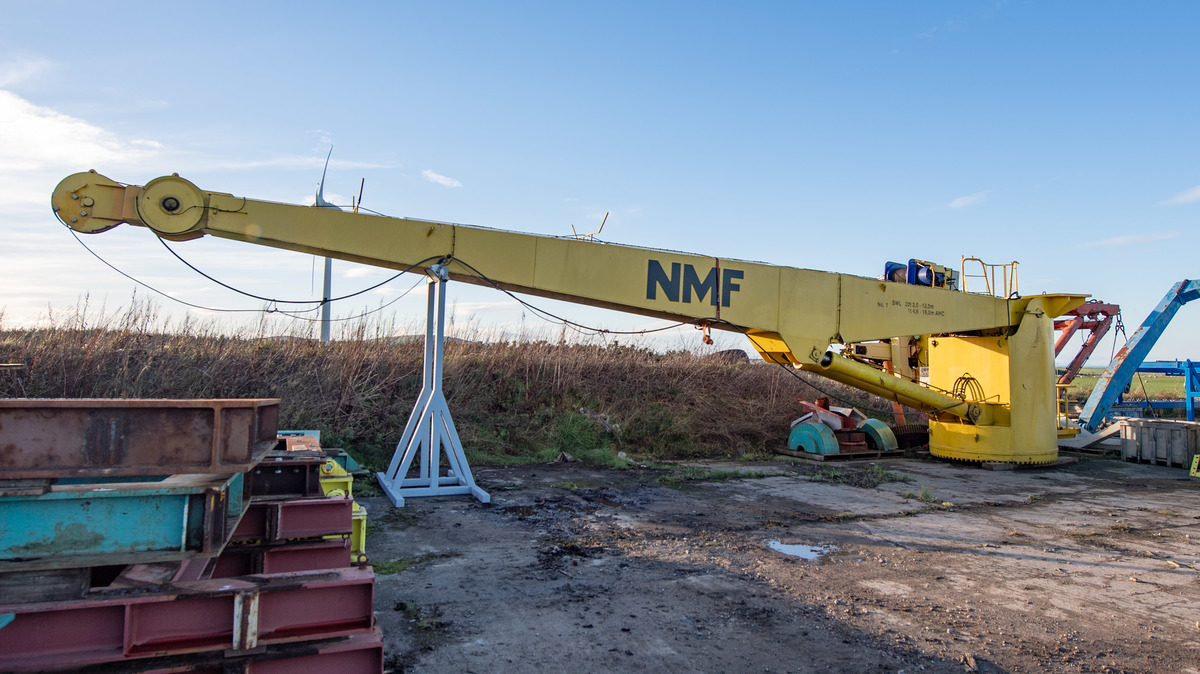

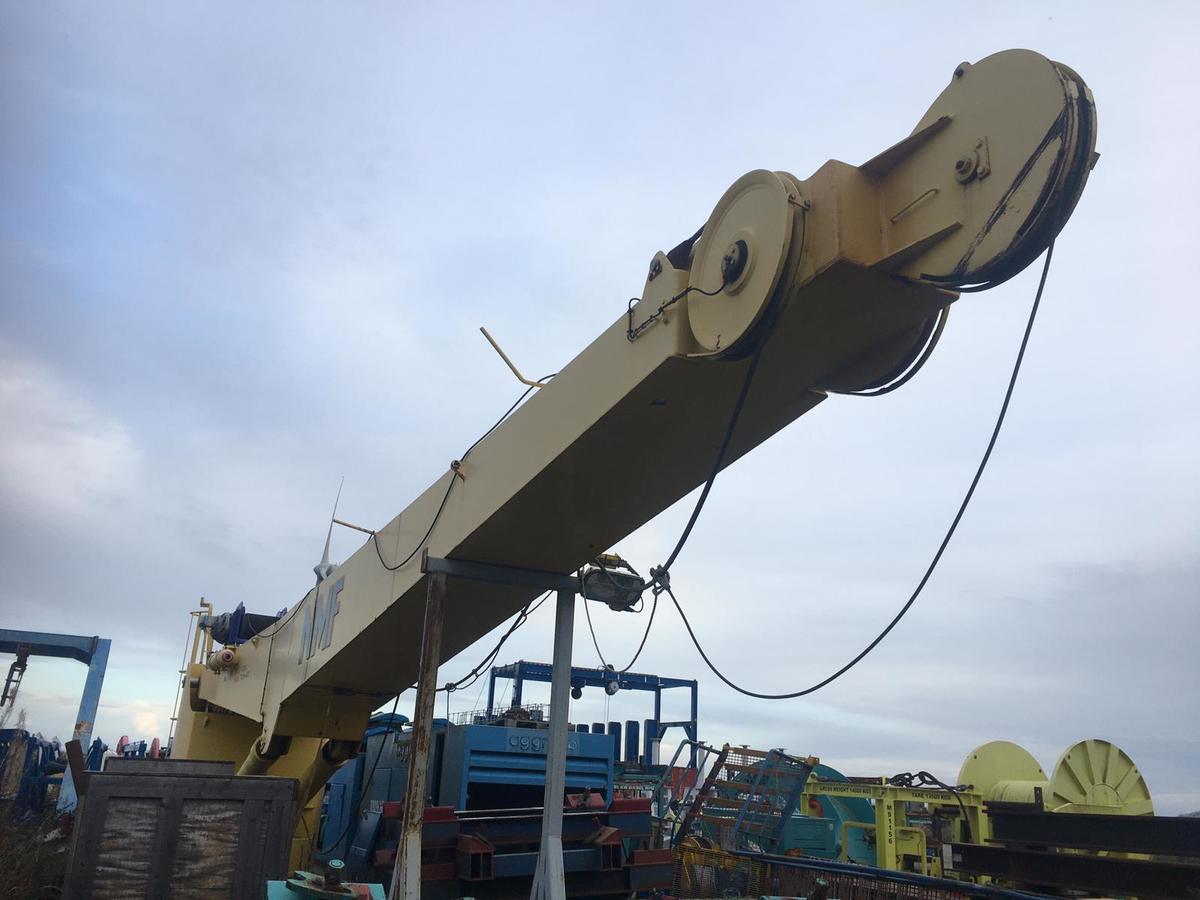

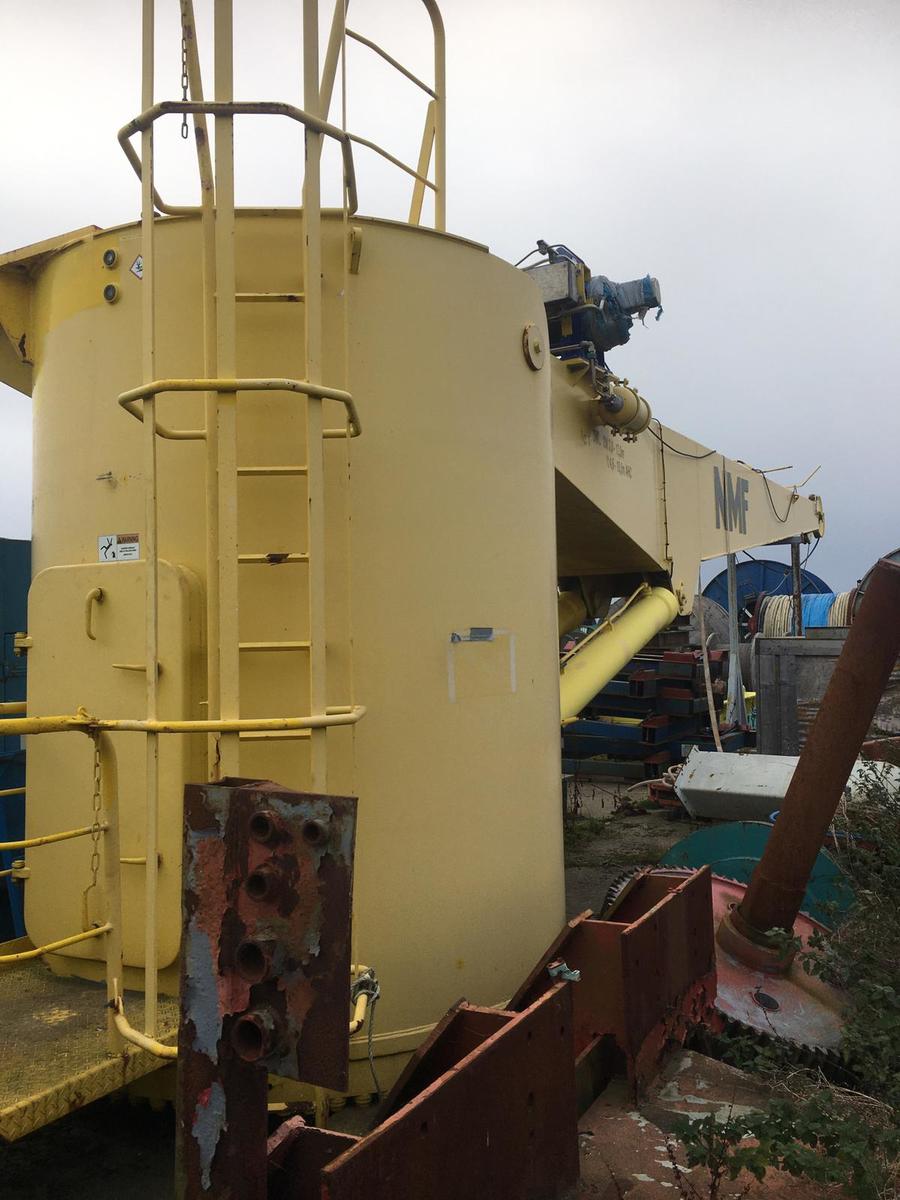

20T AHC NMF Cargo Crane

NMF Marine Crane - PKL 20012/1018 AHC 􀁸 SWL 20t, Outreach: 3,0 – 12,0m 􀁸 SWL 1,0t, Outreach 4,6 – 18m (Fly Jib is removed at the moment) 􀁸 Hook above water level: 28m 􀁸 Slewing range: 360 degree unlimited 􀁸 Heel / Trim: 5dgr / 2dgr 􀁸 Dead weight: approx. 34ton MRU-unit to give the AHC system a signal to keep load at a constant elevation Key facts of MRU: 􀁸 Roll / Pitch 0.03° 􀁸 Heave 5cm or 5% 􀁸 Accelerations / Velocities 􀁸 Velocity input formats, RMC, RMA, VTG, VBV, VHW 􀁸 Heading input formats, NMEA 0183, HDT, HDG 􀁸 Solid state gyros and accelerometers Bureau Veritas certification Above mentioned features can be reached when the crane is assembled on a 5m high pedestal. HPU built into pedestal Radio Control supplied.
