Product Storage Reel System

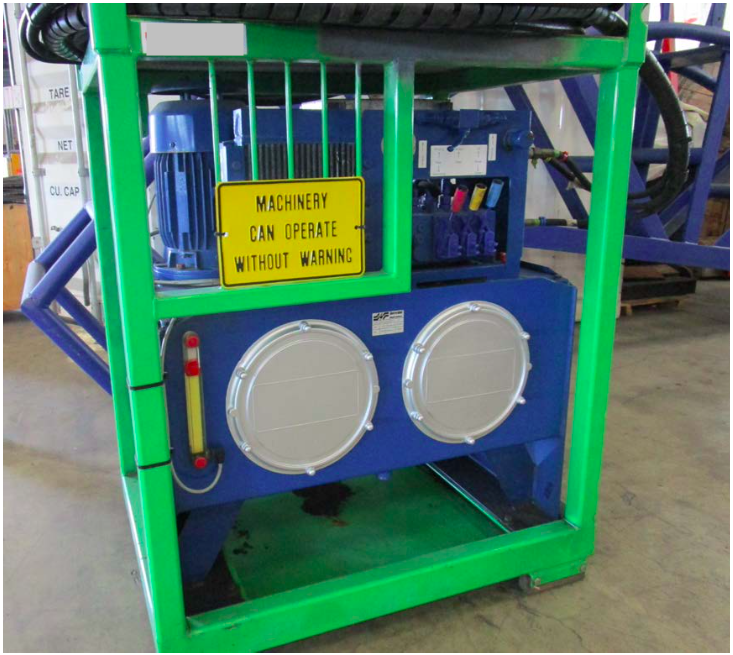

Product Storage Reel System available for rent. System comprises Reel Drive Tower, Hydraulic Power Unit (HPU) and 4.2m Reel. See below for further details or contact owner for availability.

Details

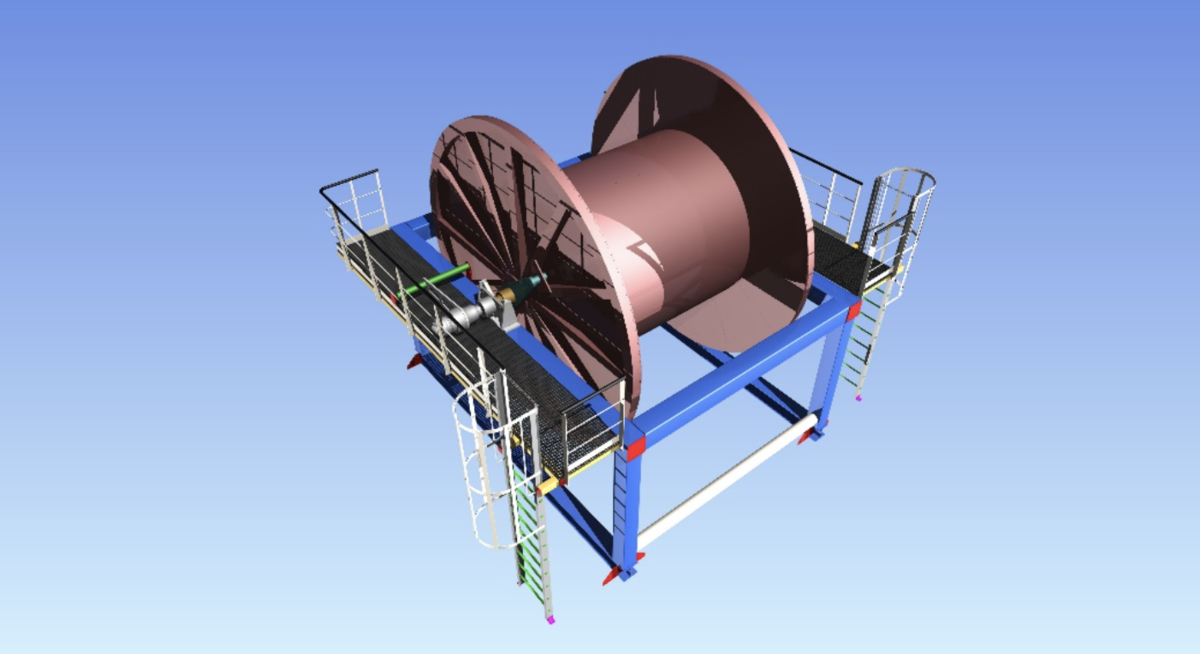

The Reel drive tower is fitted with a hydraulic drive motor/gearbox assembly, which is designed to interface with a 4.2m diameter reel. 25m long hydraulic hoses are supplied to connect the drive unit to the HPU.

The Reel drive tower is also designed so that it can used for both onshore storage, and offshore for product installation.

Drive

  • Right – Angle planetary gear reducer specification 31 = 210:
  • Output Torque: + 12,500Nm nominal Max = 20,000 Nm 12,500 Nm @ 110 bar Spline shaft insert with flange

Hydraulic Motor

  • Axial Duffel motor, 30cc type hydraulic Brevini
  • 70Nm @ 100 bar
Show more
Show less
MAIN DETAILS
Manufacturer
tbc/unknown
Rental Price
Contact seller
LISTING ID
2625
Year built
Not known
Location
Europe
