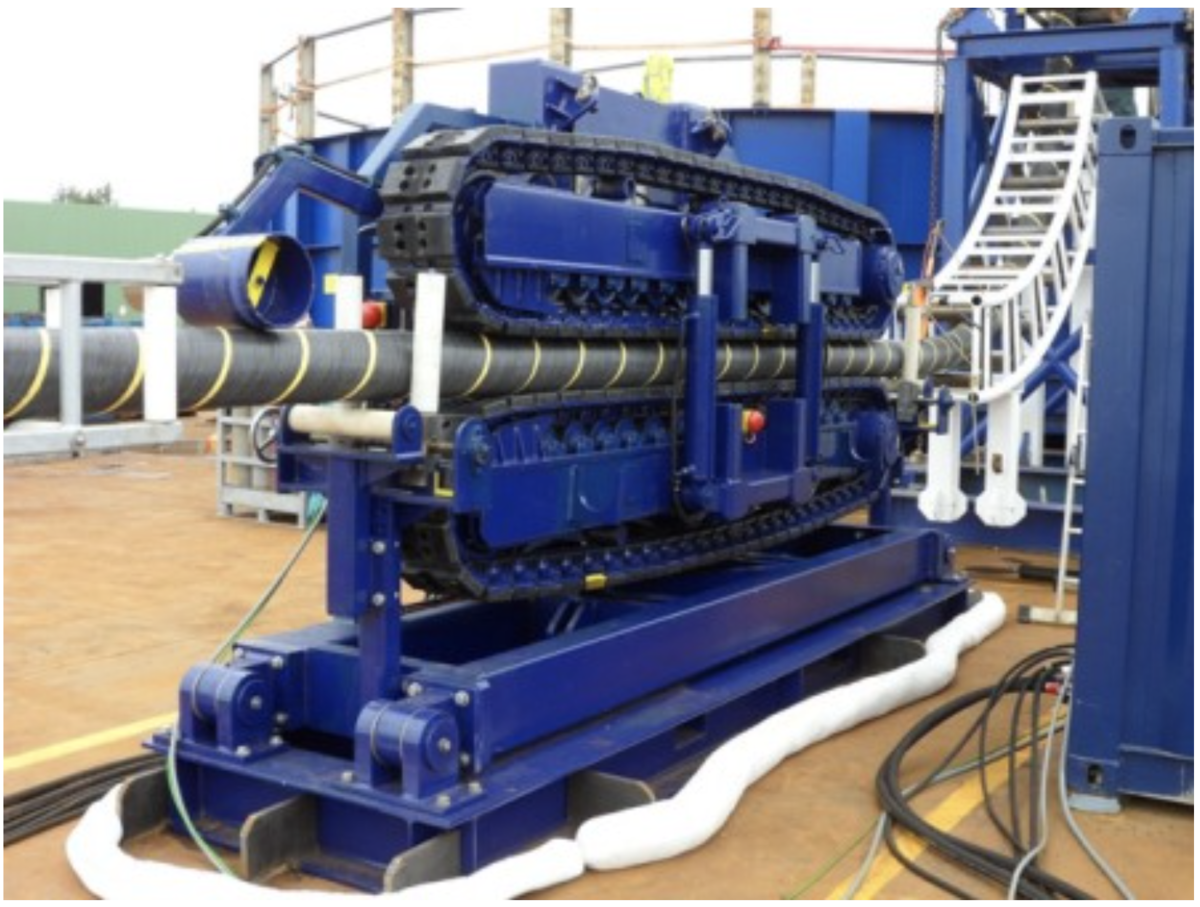

10te Tracked Tensioner

Tensioner Specifications

• Pull Force - 10 Te. Outboard from idler end
• Pull Force - 4.0 Te. Outboard from gearbox end
• Track Contact Length - 3.185 m
• Coefficient of Friction (assumed) - 0.25
• Track Grip Force @ assumed μ value - 20 Te
• Max Track Grip Force – nominal (2 cylinders) - 20.00Te @ 250bar
• Max Cable Grip Force/metre nominal (2 cylinders) -  6.6 Te/m
• Max Track Grip Force – nominal (4 cylinders)  - 40.00Te @ 250bar
• Max Cable Grip Force/metre nominal (4 cylinders) - 13.3 Te/m
• Maximum Designed Speed - 1800m/hour
• Minimum Designed Speed - 100m /hour
• Height - Floor to Centre of Tracks - 1300 mm
• Track Opening - 500 mm
• Maximum cable diameter - 300 mm
• Minimum cable diameter - 40 mm
• Maximum Operating Pressure - 250 bar
• Required Flow- 140L/min
