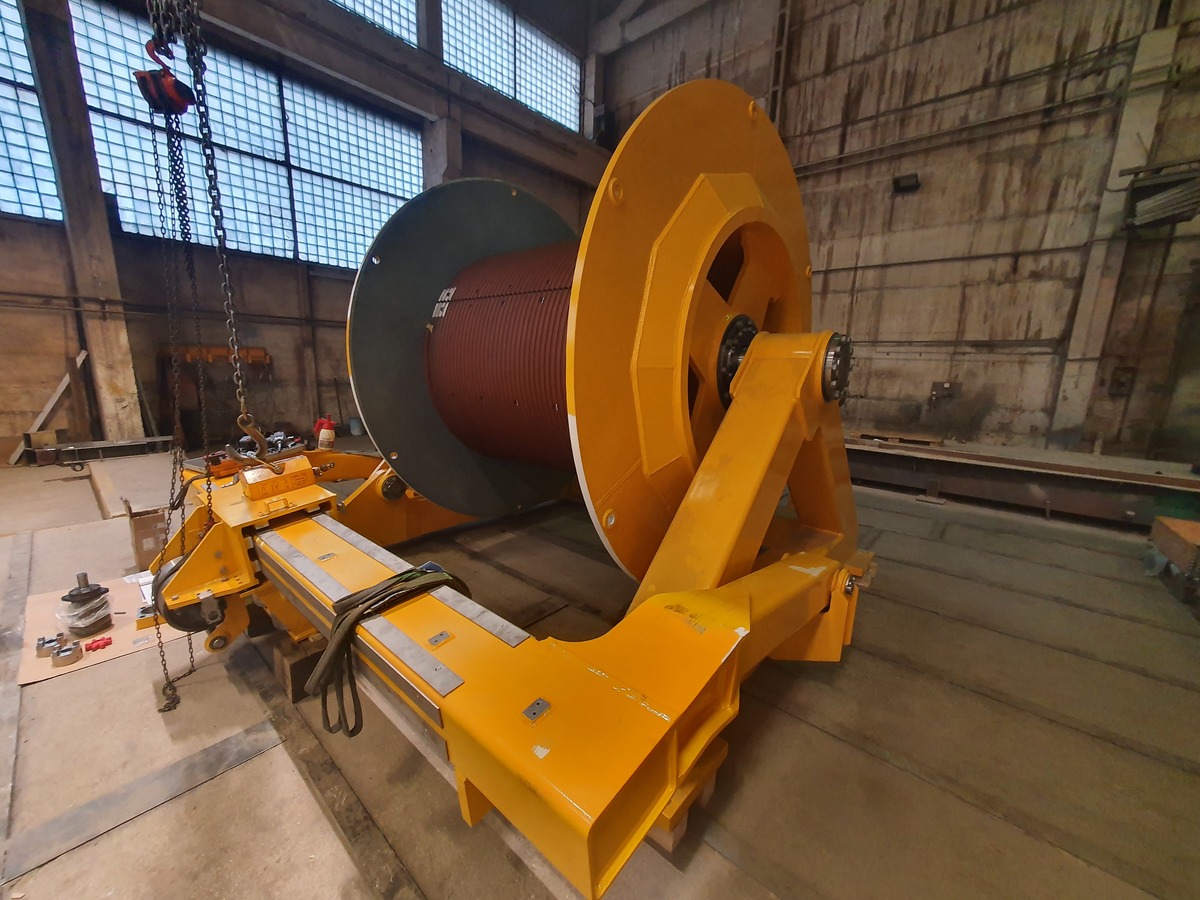

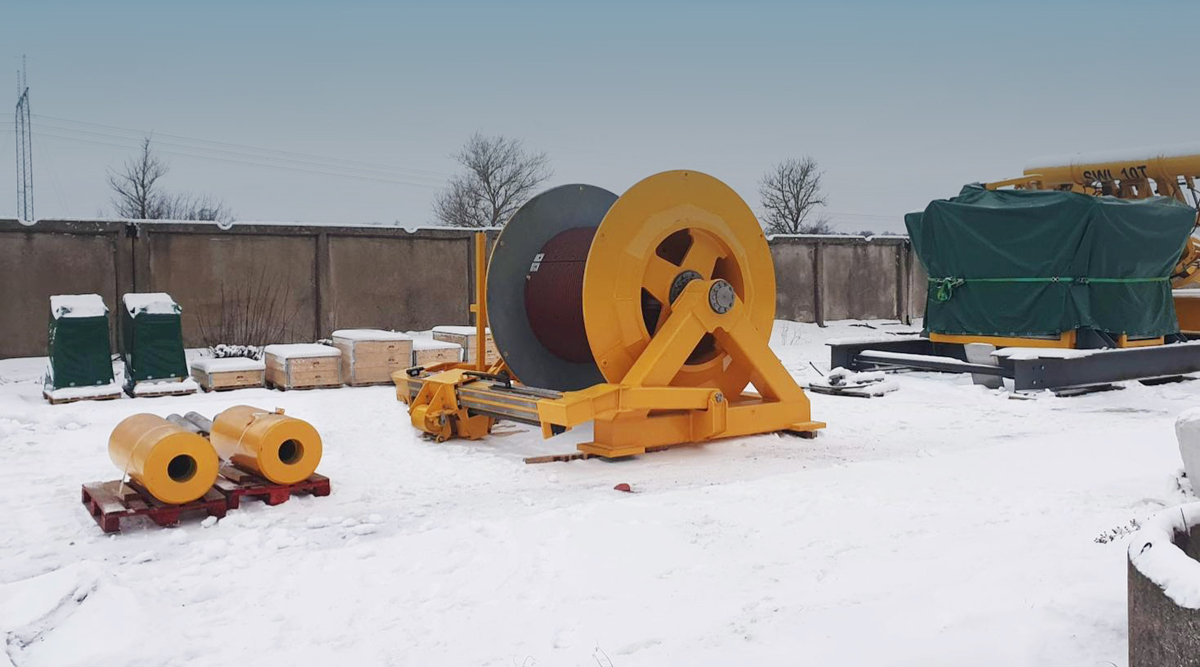

60Te Towing Winch

Technical specifications:

• Classification: Safe Area
• Type: Hydraulically driven Towing winch
• Certification/standard: Designed in accordance with DNVGL-ST-0378
• Dynamic Amplification Factor: 2.5
• Safe Working Load: 30 t for lifting
• Towing: max. 60 t
• Dimensions: Length 3905 mm, Width 3740 mm, Height 2800 mm
• Weight: 20 000 kg (without wire rope)
• Operating temperature: -10°C up to +45°C
• Drum Storage capacity: 1650 m (based on 40 mm diameter wire rope)
• Drum configuration: Parallel-groove drum shells (LEBUS)
• Speed: 30 m/min (Layer 1)
• Level-wind: Automatic (for 40 mm diameter wire rope)
• Controls: Local, remote

Note: Requires control system to be finalised plus HPU and final commissioning/FAT.  Stern sheave which has been designed specifically to be used with this winch is included.

See attached GA and specification sheet or contact seller for further information.
