2.25 Te 3000m Electric Winch
PLEASE NOTE: this is a new product which is built to order. Price will depend on actual agreed specification and lead time will be 14 - 18 weeks from order.
Details

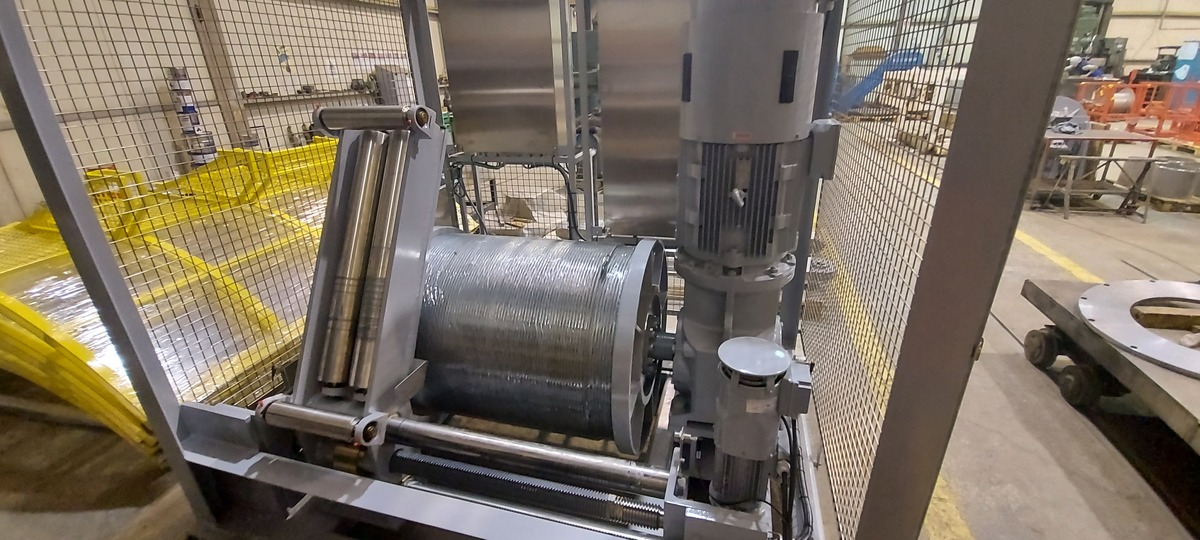

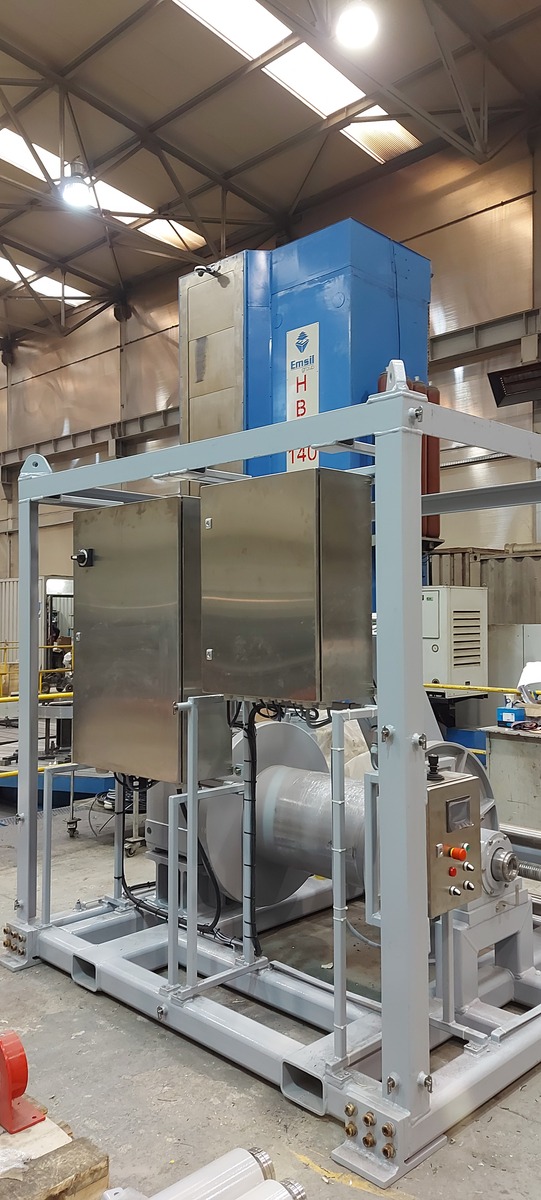

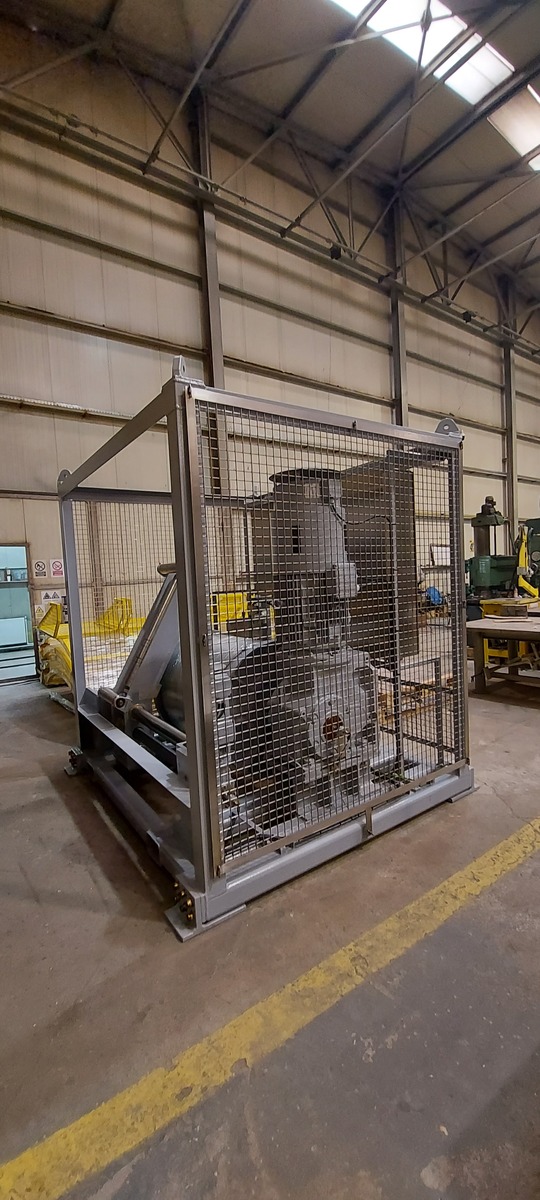

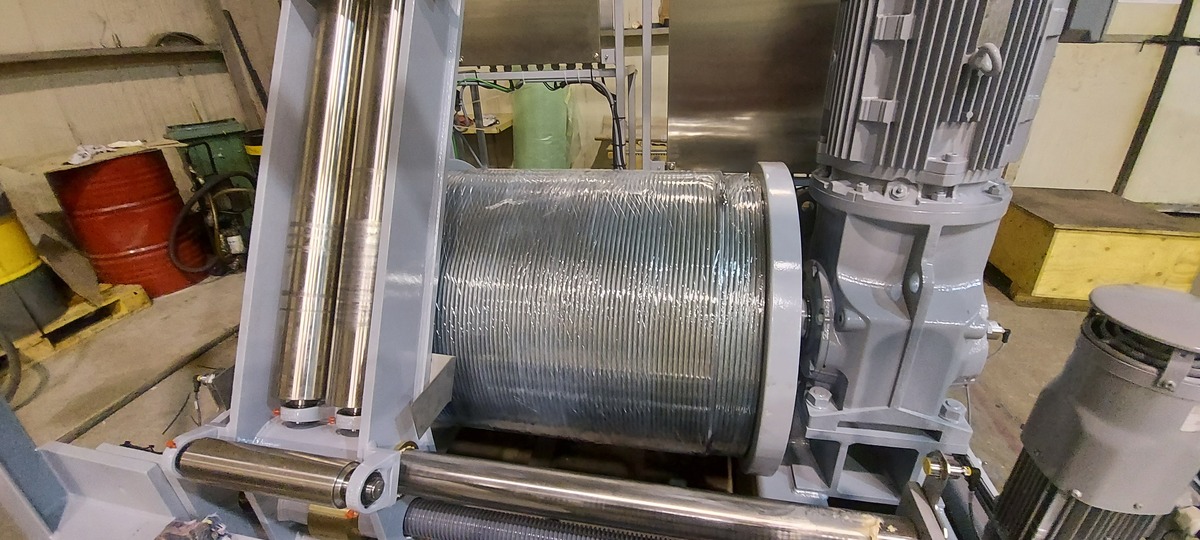

37kW 2.25 Te 3000m Electric Winch used for the deployment of Oceanographic sensors such as side-scan sonar. See below for further information or contact seller.
The drum motor Variable Speed Drive drives the electrical motor of the Drum with variable speed according to the control signals and rpm setpoint of the potentiometer.
The SEW Electric Motor combination is fitted with a failsafe brake unit. The brake, being failsafe, always defaults to on should, for any reason, the electrical supply is lost or the joystick is in its centre (neutral) position.
The level wind electrically driven from the 0.75 kW SEW Electric gearmotor. The level wind is PLC controlled, is automatic with a manual override. The Level wind can be adjusted to accept a variety of cable diameters if required.
The winch is controlled via a joystick and speed potentiometer which are mounted locally on the Electric SSS Winch Enclosure and are duplicated on the remote control console.
