Hydraulic Winch, HPU & Umbilical

Hydraulic Winch offered for sale with following main details:

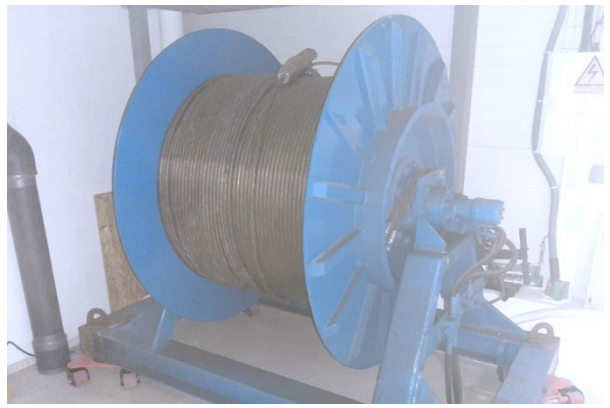

• 1x Hydraulic Winch
• 1x Focal Slipring

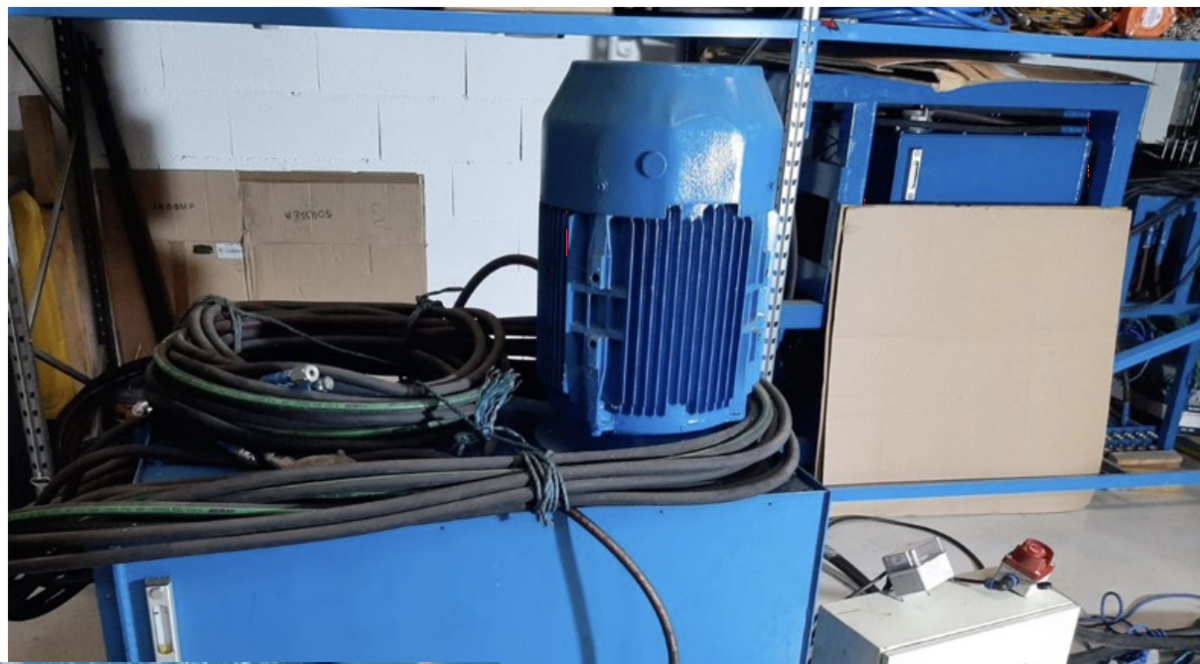

• 1x HPU (including one spare)
• 1,000M Electro-Optical Armoured Umbilical (< 10days offshore use)

Specifications

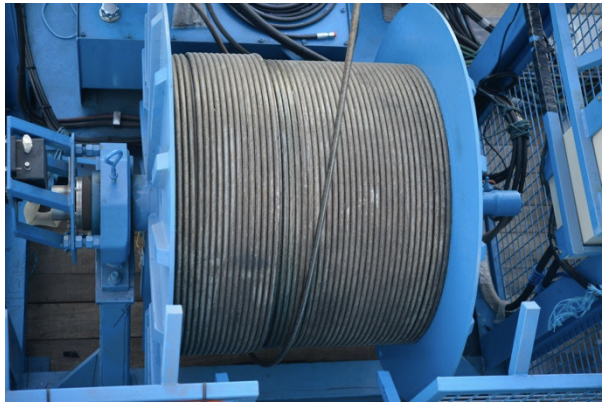

• Drum: 812.8 Core Dia. x 934.72 Core length x 1524 Flange Dia. (mm).
• Power: 440V 3 Phase 60Hz 60A; HPU: 30kW.
• Line speed: 60MPM
• Line pull: 4T @ 1000M umbilical max length
• Drive system: 30KW electric motor, hydraulic gear pump, geroter type motor, coupled thru a planetary reducer attached directly to the drum.
• Braking system: Failsafe Multiple disc actuated at centre position of control lever or in the event of hydraulic pressure loss.
• Control system: 5 bank hydraulic spool valve.

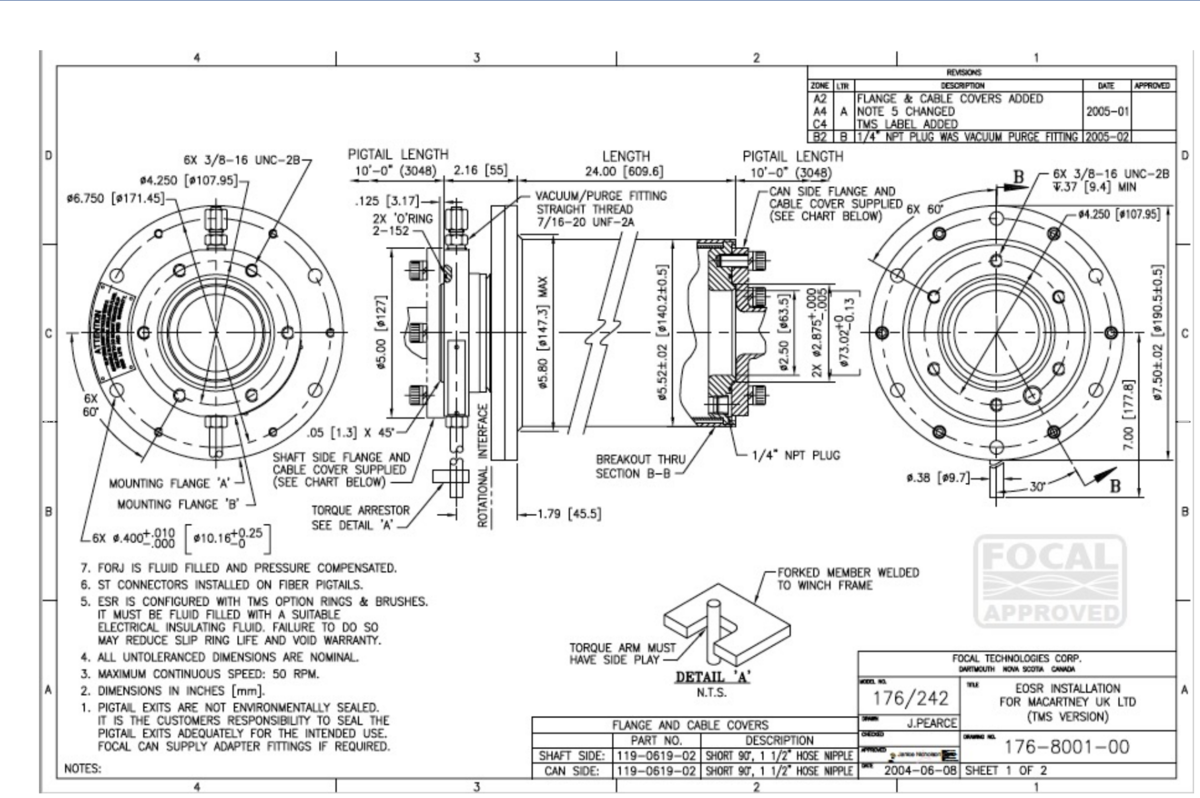

• Slipring: Opto-mechanical oil filled type Focal176 c/w 10 pass 3000V 20A and 2 SM FORJ

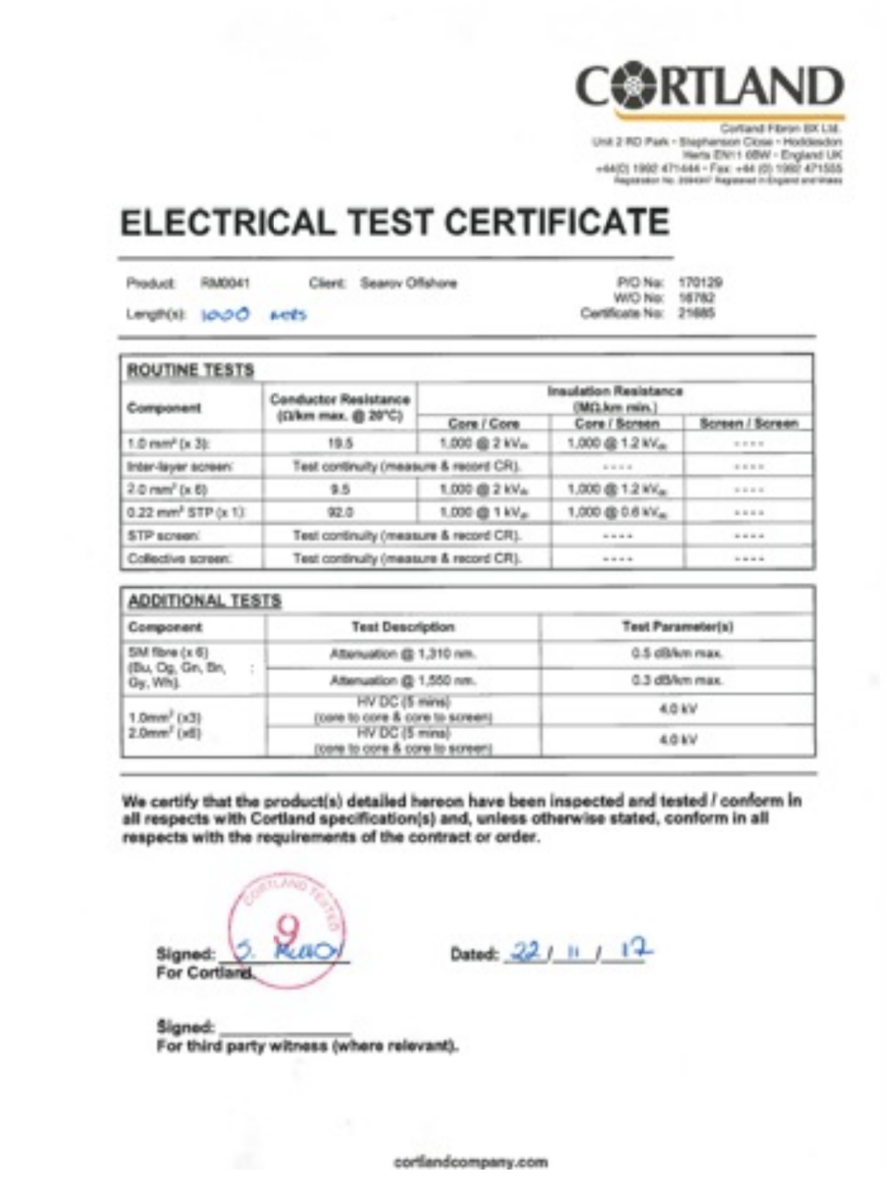

• Umbilical: 20.2 Dia (mm); 3x 1mm2 copper conductors; 6x 2mm2 copper conductors; 1x TSP; 6x SM-FO
• Winch spares include 30kW main hydraulic motor
• Dimensions:
  • Winch: L = 230 ; W = 150 ; H = 180
  • HPU: L = 120 ; W = 70 ; H = 160

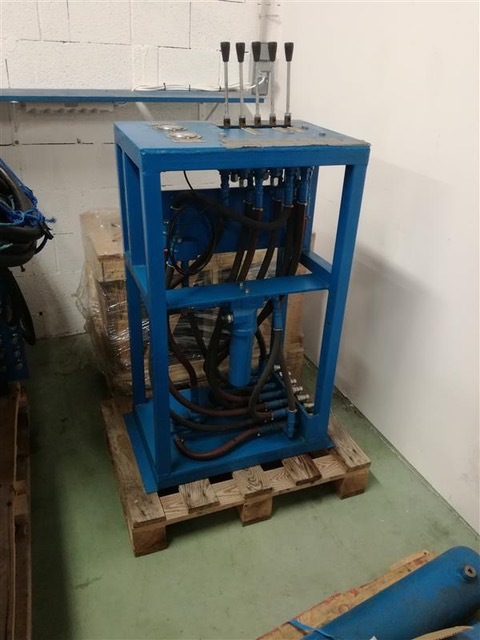

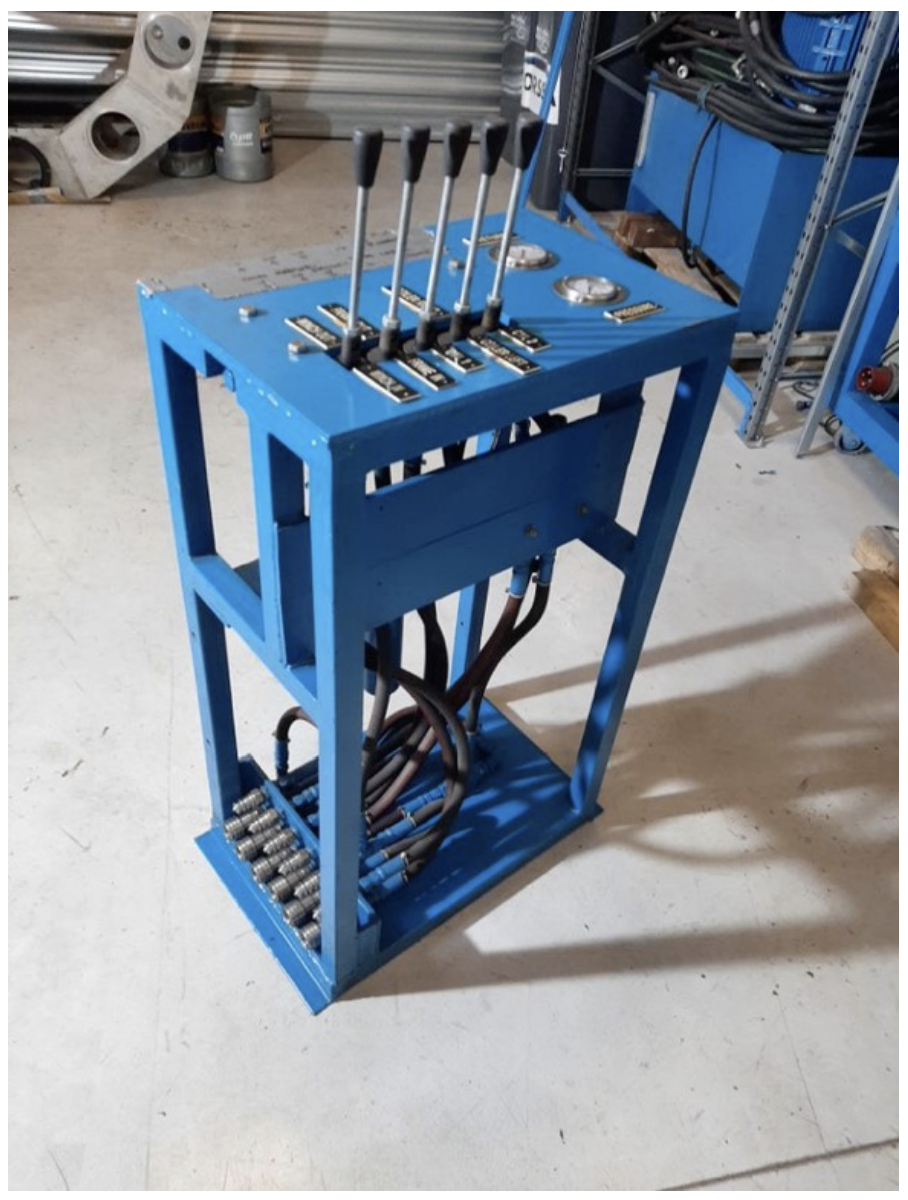

  • Control Unit: L = 70 ; W = 40 ; H = 140

Contact us for further information.
