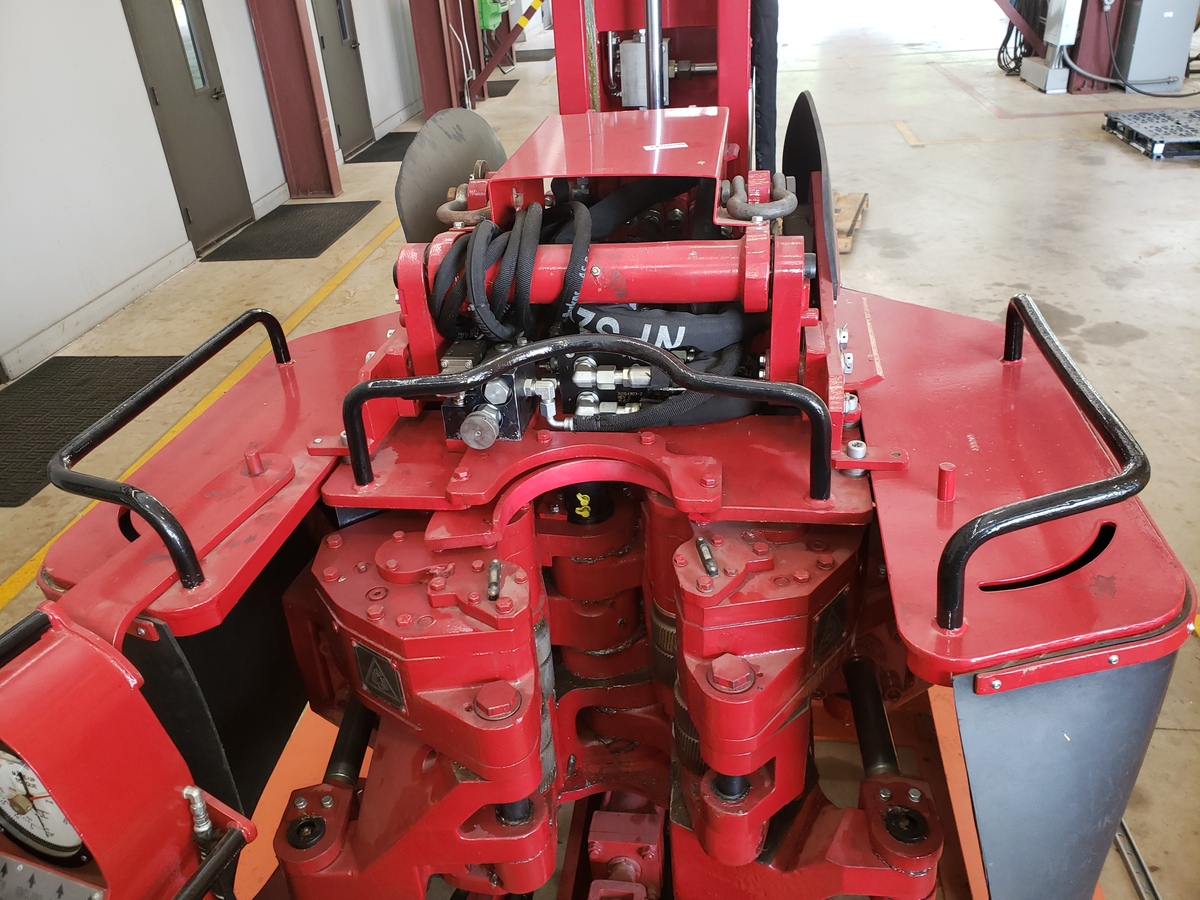

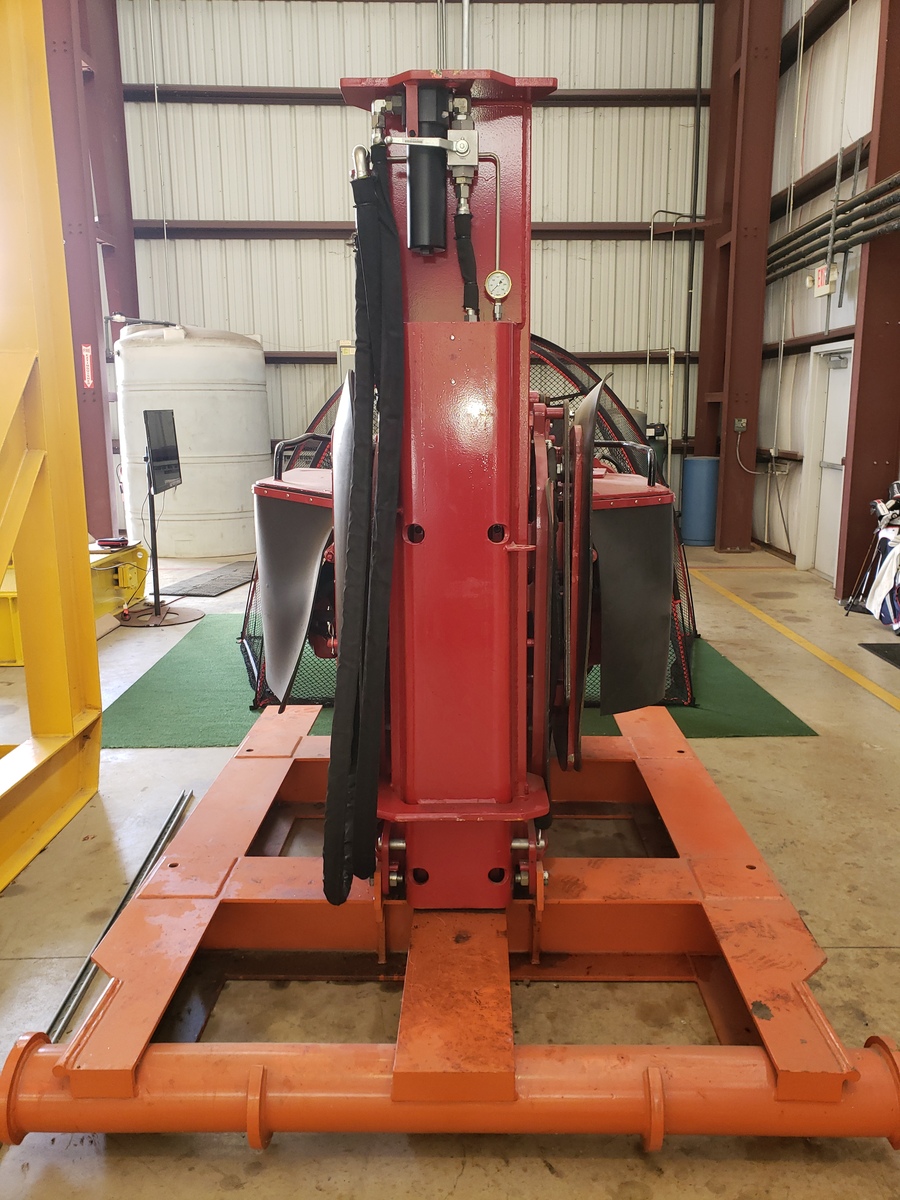

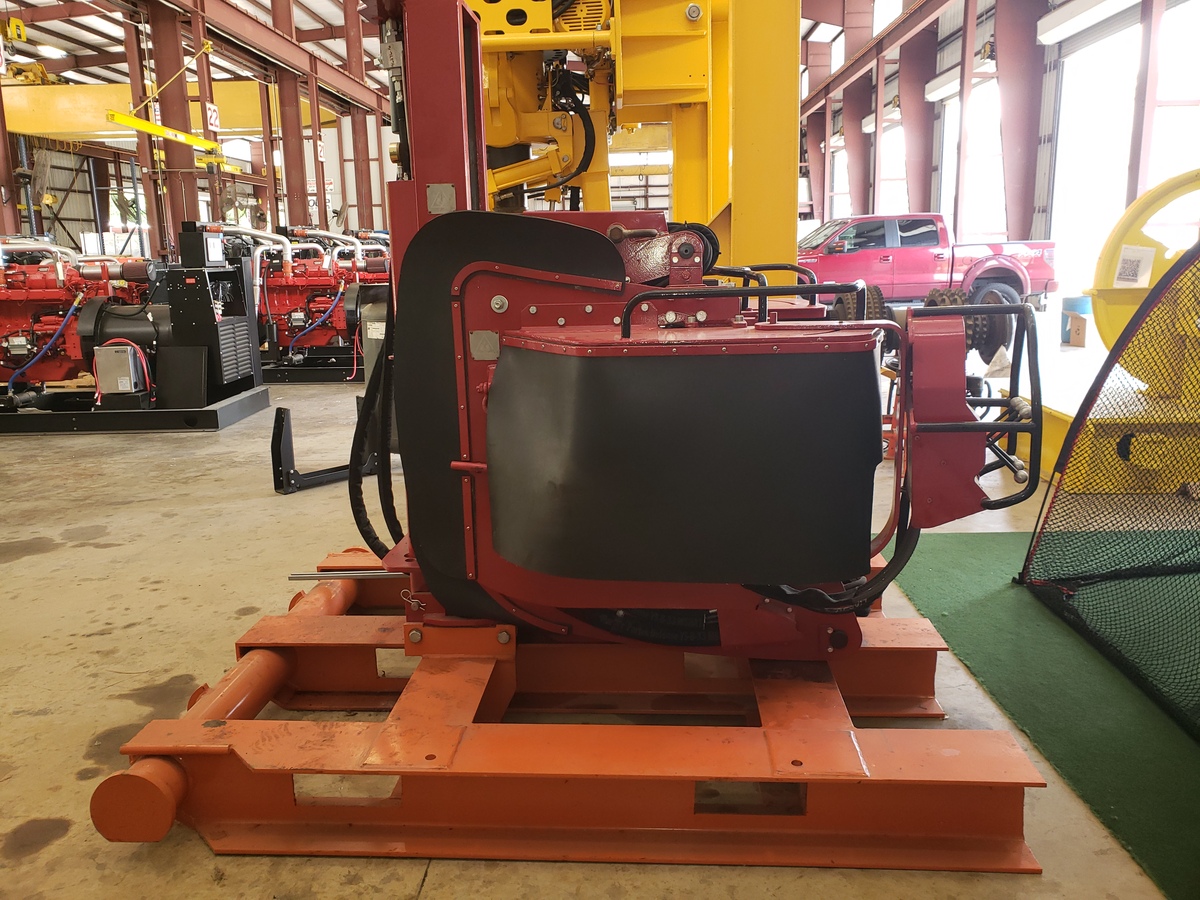

ST-80C Iron Roughneck

SPECIFICATIONS

• TOOL JOINT OD RANGE:  4 1/8” TO 8.5”
• PEDESTAL ROTATION: PLUS OR MINUS 90 DEGWEIGHT: 9,400LBS
• CONNECTION HEIGHT: 23” TO 65”
• TRAVEL:  HORZ. 100” / VERT. 42”
• TORQUE WRENCH ANGLE: 30 DEG

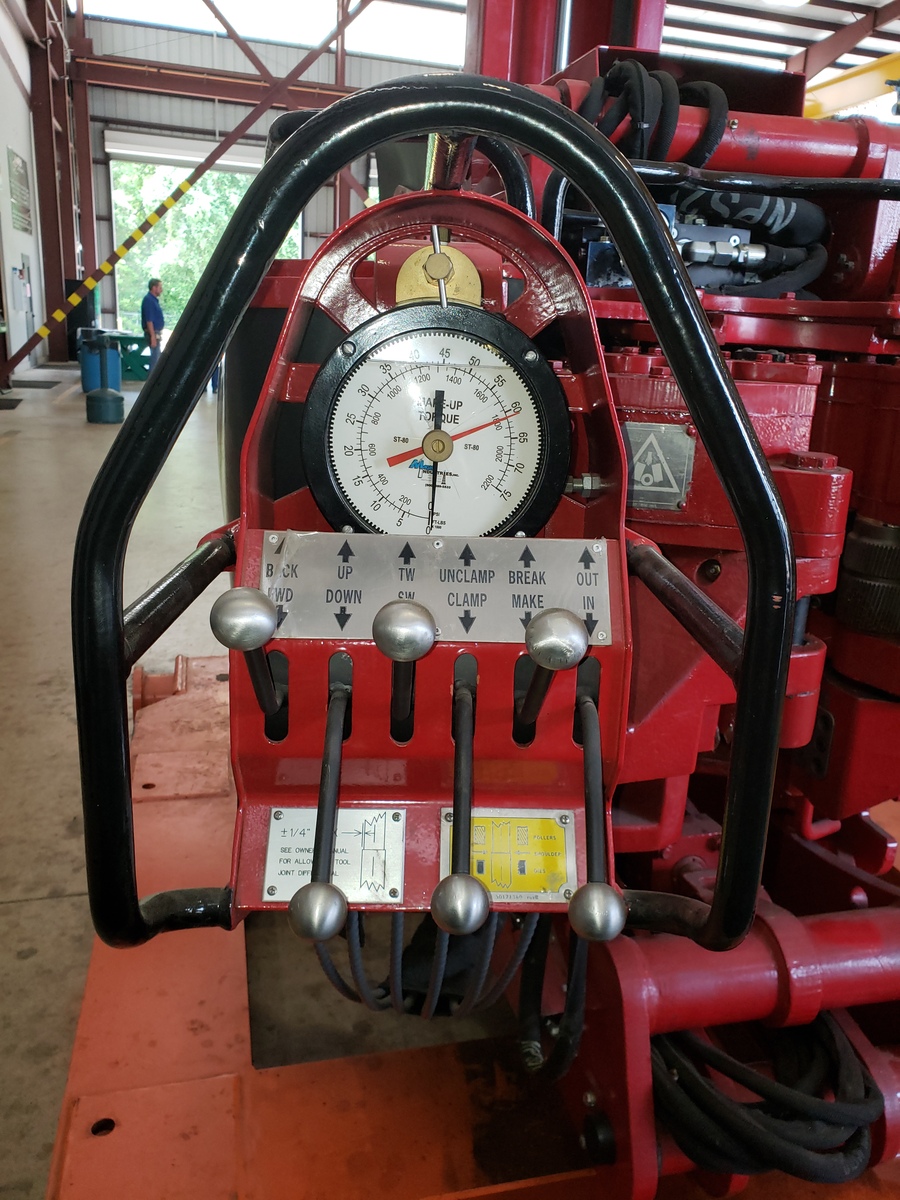

• CONTROL: LOCAL ONLY
• SPIN SPEED: 75RPM W/ 5” DP 35GPM
• SPIN TORQUE: 1750 FT/LBS
• MAX BREAK-OUT TORQUE: 80,000 FT/LBS
• MAXIMUM MAKE-UP TORQUE: 60,000 FT/LBS
• HYD REQUIREMENTS: MAX: 28GPM@2100PSI , MIN: 40GPM@3000PSI

INCLUDES

• CARRIAGE FRAME P/N 30180757
• PEDESTAL P/N 30181236
• L/H JAW P/N 30160353
• R/H JAW P/N 30160354
• R/H JAW P/N 30160354
• UPPER JAW L/H P/N 30174105
• UPPER JAW R/H P/N 30174260
• ARM SUPPORT P/N 30171604
• LIFT CARRIAGE P/N 30171603
• TRAVELING SKID

NOT INCLUDED:

• HYDRAULIC POWER UNIT
• REMOTE CONTOL CONSOLE & SOFTWARE
