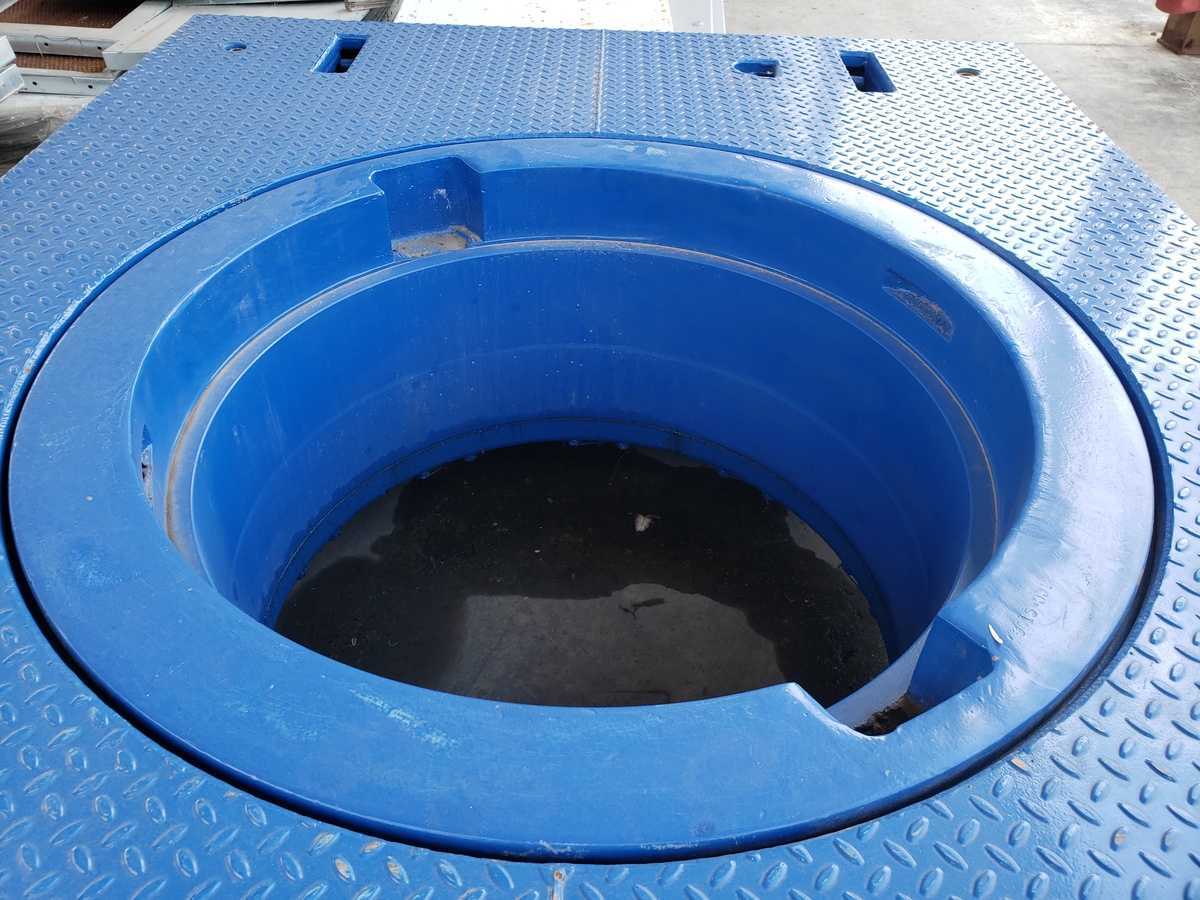

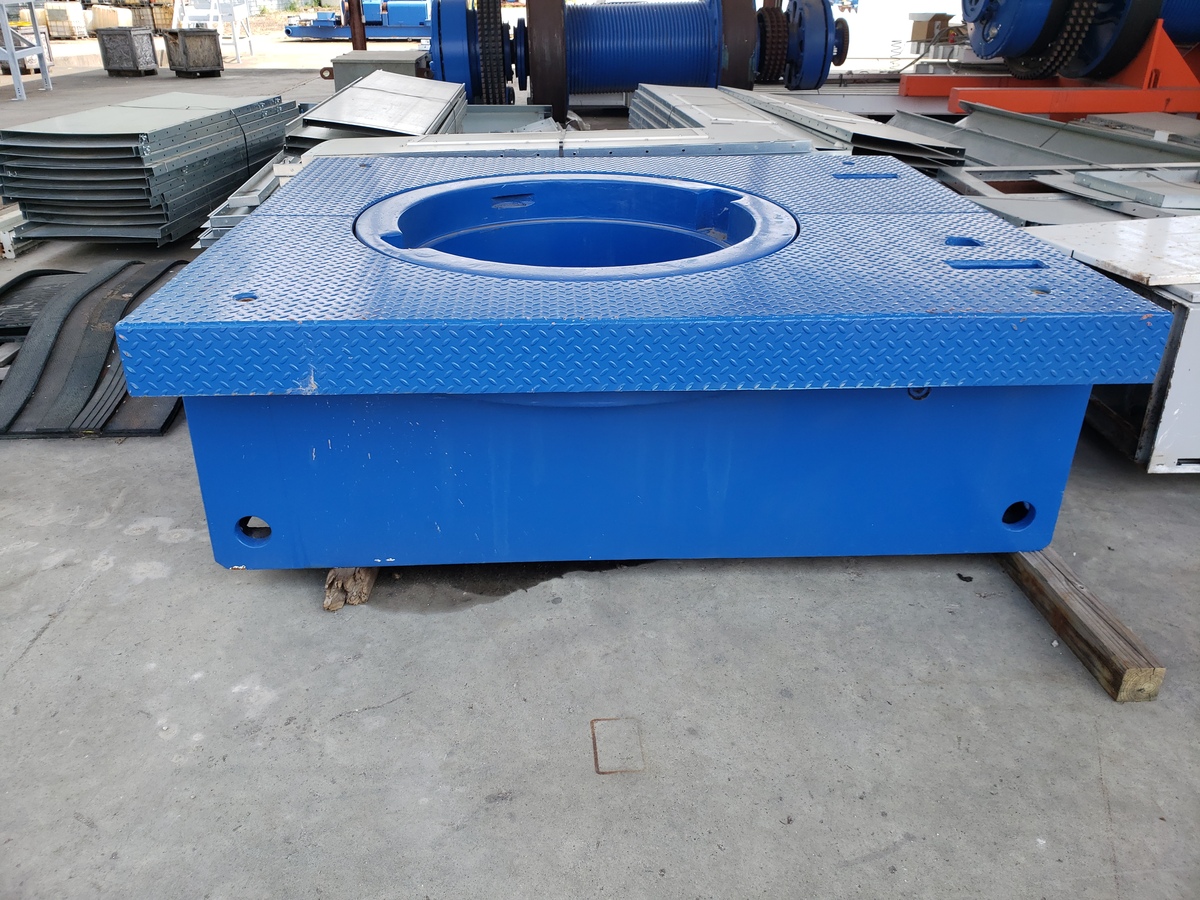

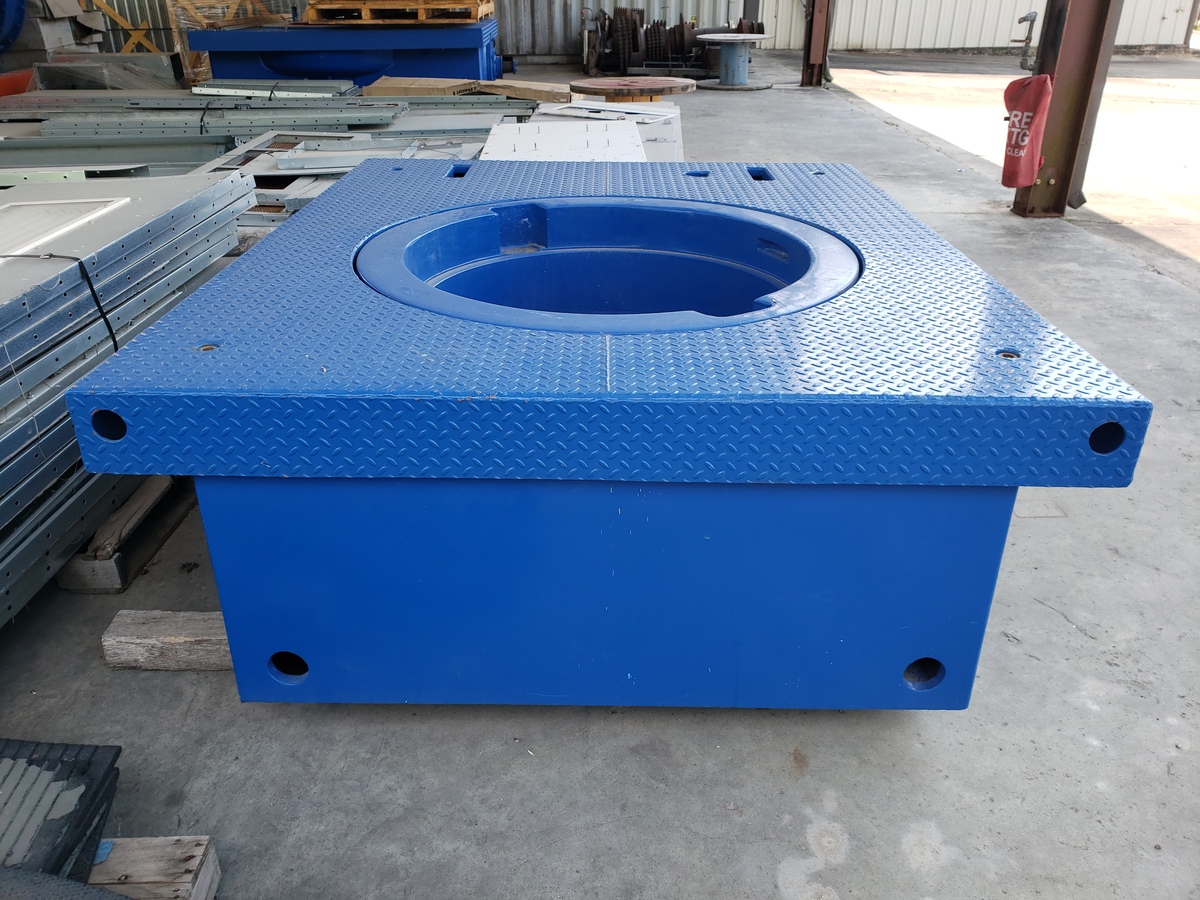

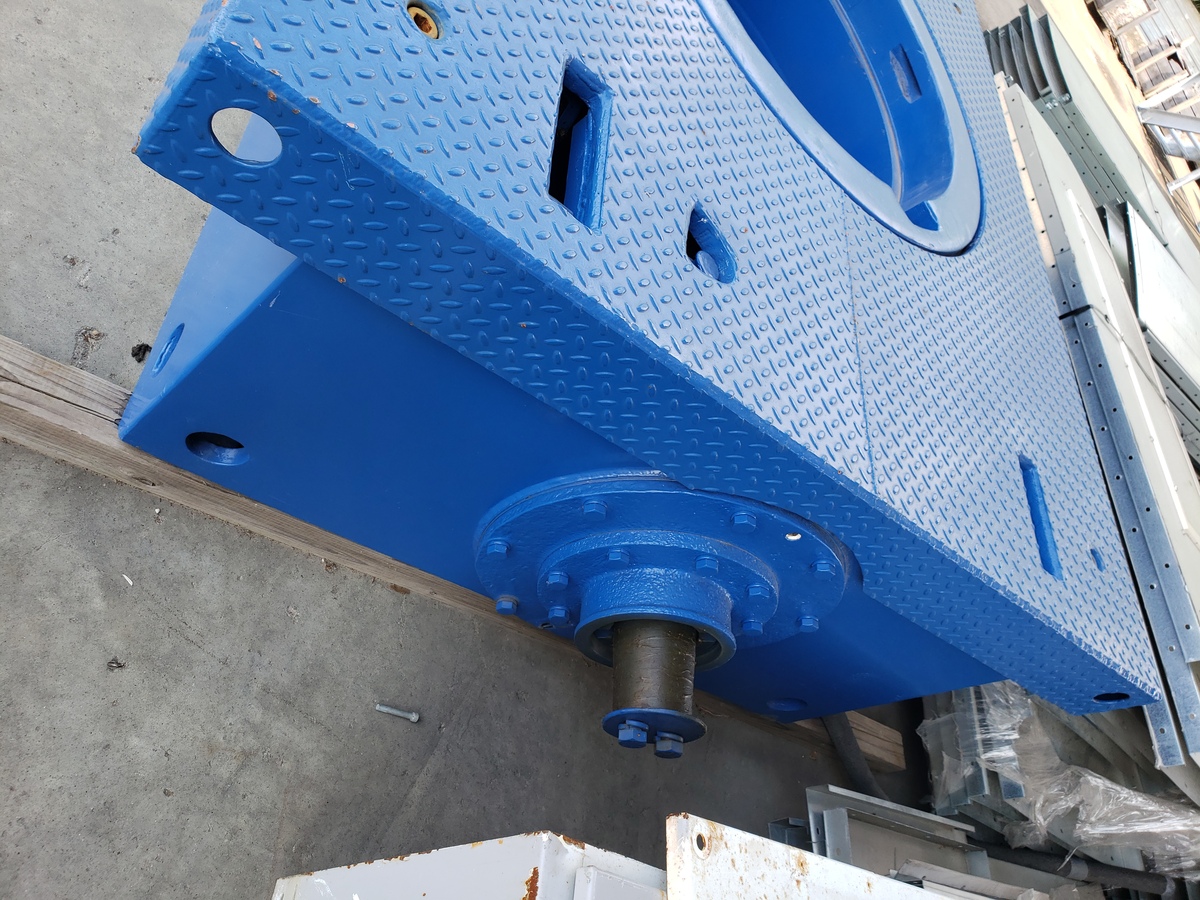

D375 Rotary Table

DESCRIPTION

This table has been disassembled, blasted, and subjected to Magnetic Particle inspection.

The gears are in exceptional condition backlash is perfect.

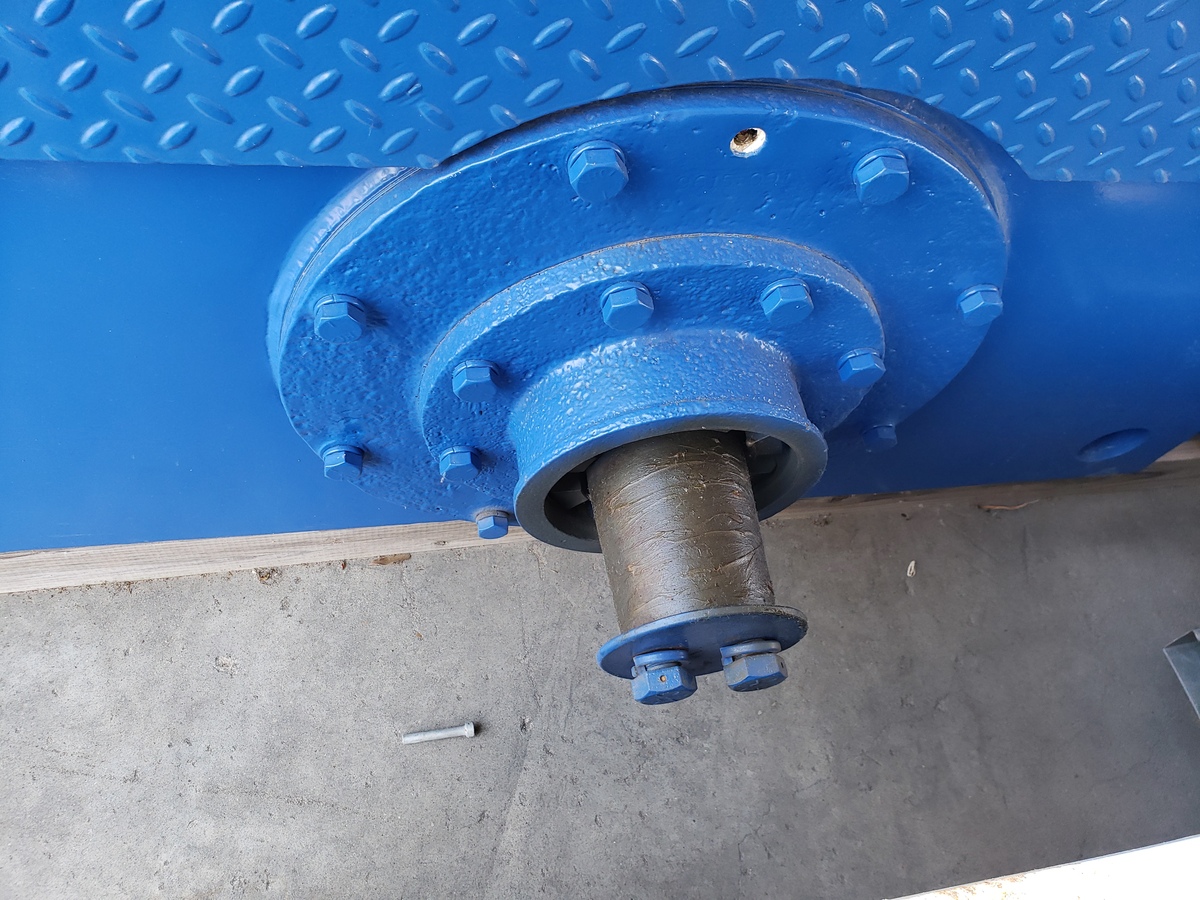

The Main Bearing is in excellent condition we have replaced the pinion bearings and seals.

A full documentation package is furnished with purchase.

D375 SPECIFICATIONS

• Distance from centerline to sprocket: 53-¼″
• Static Load Rating: 650 US Tons
• Max. torque 23,870 ft·lbs
• Max. Rotating Speed: 350 RPM
• Gear Ratio: 3.60
• Height overall: 28″ X Width: 71″ X Length: 97″ Weight 13,140 Lbs.
