Engine/Generator Controller Parts

600VAC ENG/GEN CONTROLLER

 · Analog Engine/Generator load sharing control modules for each 600VAC 3-Phase, 60 Hz Prime Movers

· Adjustable kW and KVA max. limits & RPM for each Prime Mover

· Plug-In, Door-Mounted, Interchangeable Modules in AC Cardrack Assembly

METERING MODULE, P/N: 13-1981

Drives metering and Protective Alarms, & Display Genset and Alarms Status

GOVERNOR MODULE, P/N: 13-1026

Controls and Maintains Prime Mover engine rated speed (RPM) under all loading conditions.

VOLTAGE REGULATOR MODULE, P/N: 13-1037

Maintains Prime Mover generator voltage (600VAC) by controlling the PWM under all loading conditions.

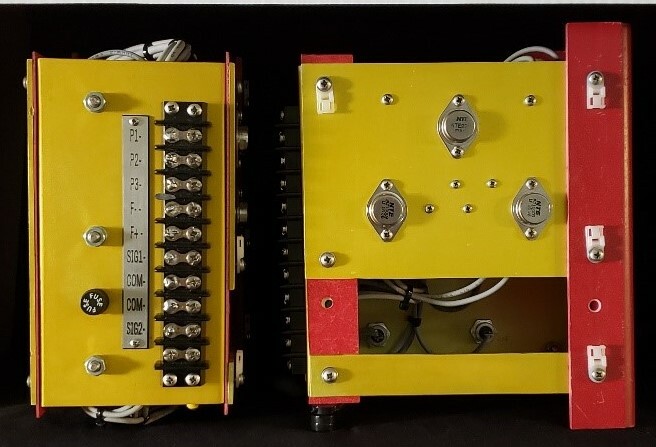

PWM MODULE, P/N: 13-1038

Excites the Prime-Mover Generator as controlled by Voltage Regulator Module

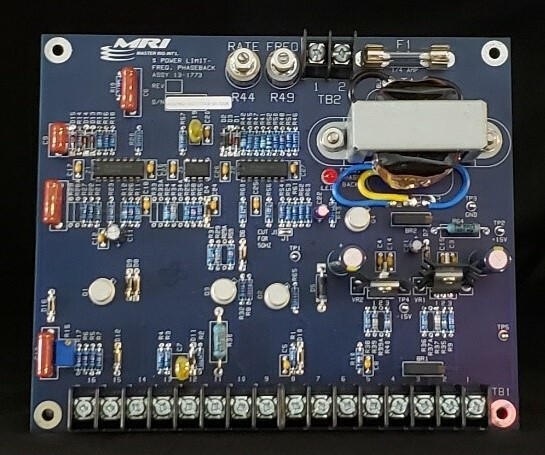

PERCENT POWER & FREQUENCY LIMIT PCB, P/N: 13-1773

Drives % Power Meter and Alarms

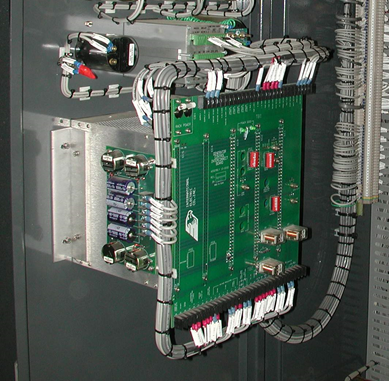

AC CARD RACK ASSEMBLY, P/N: 13-0032

Cardrack contains the plug-in Engine/Generator Control modules, Sub-assemblies: AC CARD RACK MOTHER PCB, P/N: 14-0032, POWER FILTER BOARD PCB, P/N: 13-4037, & 600V MIP BOARD ASSEMBLY, P/N: 13-3743
