TDS-11S Top Drive

Refurbished TDS-11S Top Drive including VFD house and control console available for sale. See below for further details.

Details

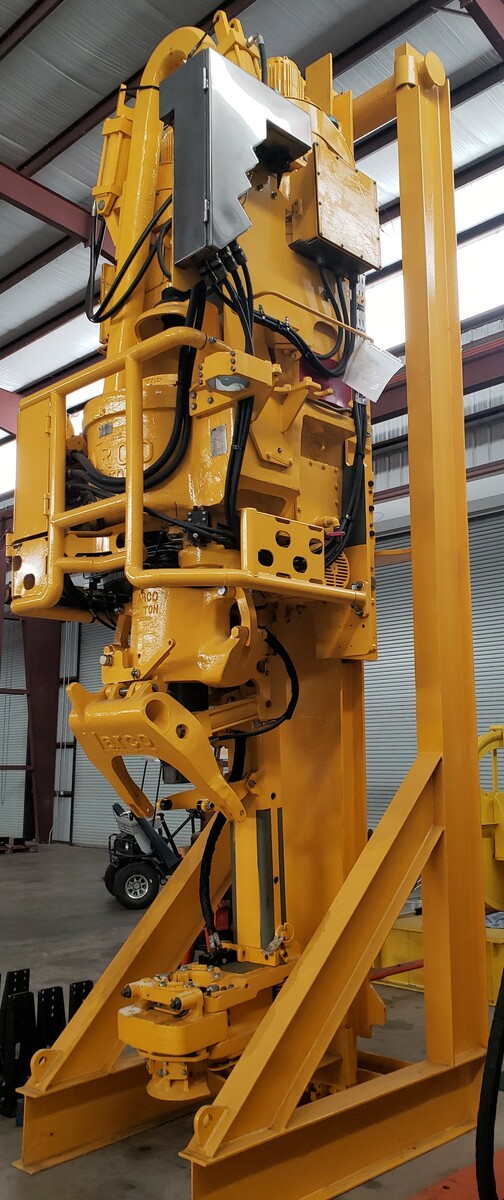

 TDS-11S Top Drive Drilling Unit, 500 Ton with 5K PSI Mud Path

  • 0-RPM, 55,000 (Ft-LBF) Torque, Intermittent Operation
  • 110-RPM, 37,500 (Ft-LBF) Torque, Continuous Operations
  • 225-RPM, 18,250 (Ft-LBF) Torque Continuous Operations

Condition: Refurbished by MRI, Mostly Complete, includes test result documents and rebuild documentation

Location: MRI Facility in Houston, Texas 77086

Delivery: Ready to Ship

As-Is / Where-Is Price: Will consider any serious offer.

Scope of supply includes:

  • MOTOR HOUSING AND SWIVEL ASSEMBLY: Main body, transmission & Counter-Balance System, Drilling motors, Motor pinions and brakes, Bull gear–102T & Compound gears–63T/18T, Integrated Swivel & Bail Assembly & Lubrication system. NOT INCLUDED: S-PIPE PACKAGE
  • DRILL STEM ASSEMBLY: Torque Arrestor Frame, BOP actuator yoke clamp, & Cylinder gate assembly. NOT INCLUDED: PIPE HANDLER ASSEMBLY.
  • HYDRAULIC PACKAGE (Complete)
  • ELECTRICAL PACKAGE: Includes all electrical components mounted on the top drive motor housing assembly, and 2 Each 400 HP AC DRILLING MOTOR WITH COOLING SYSTEM. NOT INCLUDED: DRILLER CONSOLE CABLE ASSY, DERRICK TERMINATION KIT SERVICE LOOP, CABLE KIT JUMPER, INCOMING POWER, & DERRICK LEG CABLE KIT.
  • CARRIAGE PACKAGE - 30” AND SHIPPING PACKAGE (SKID)

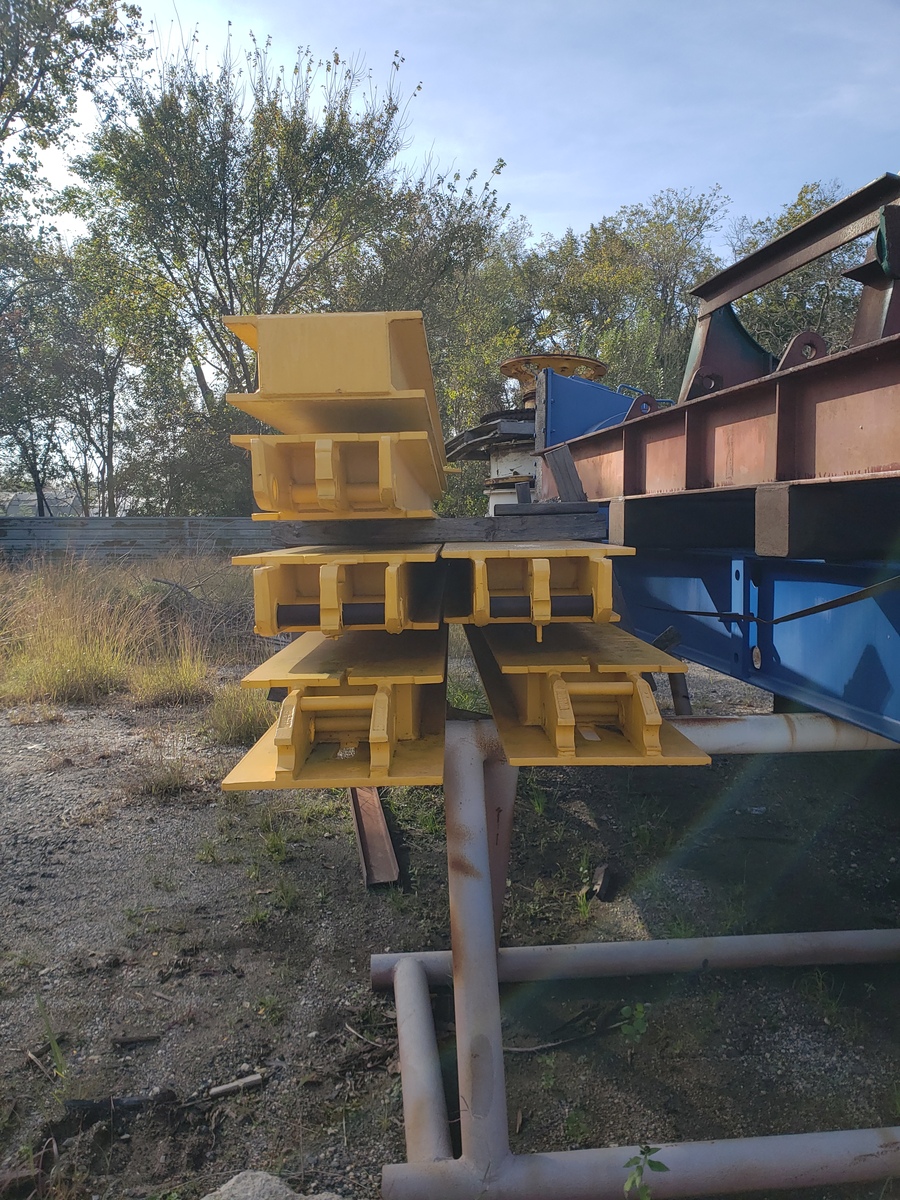

  • TDS-11 GUIDE BEAM KIT – INCOMPLETE (6-PIECES = 125 FT – NO TRAVEL SKID)

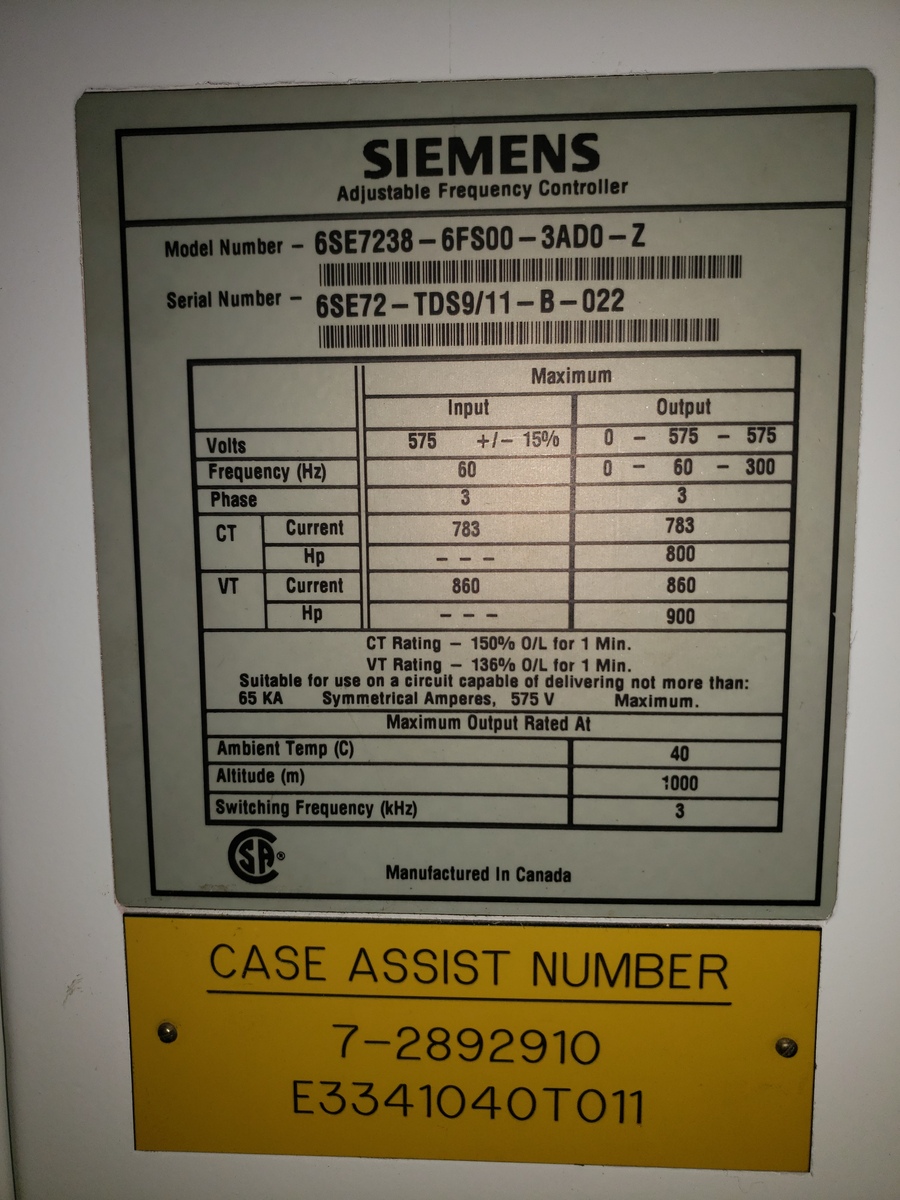

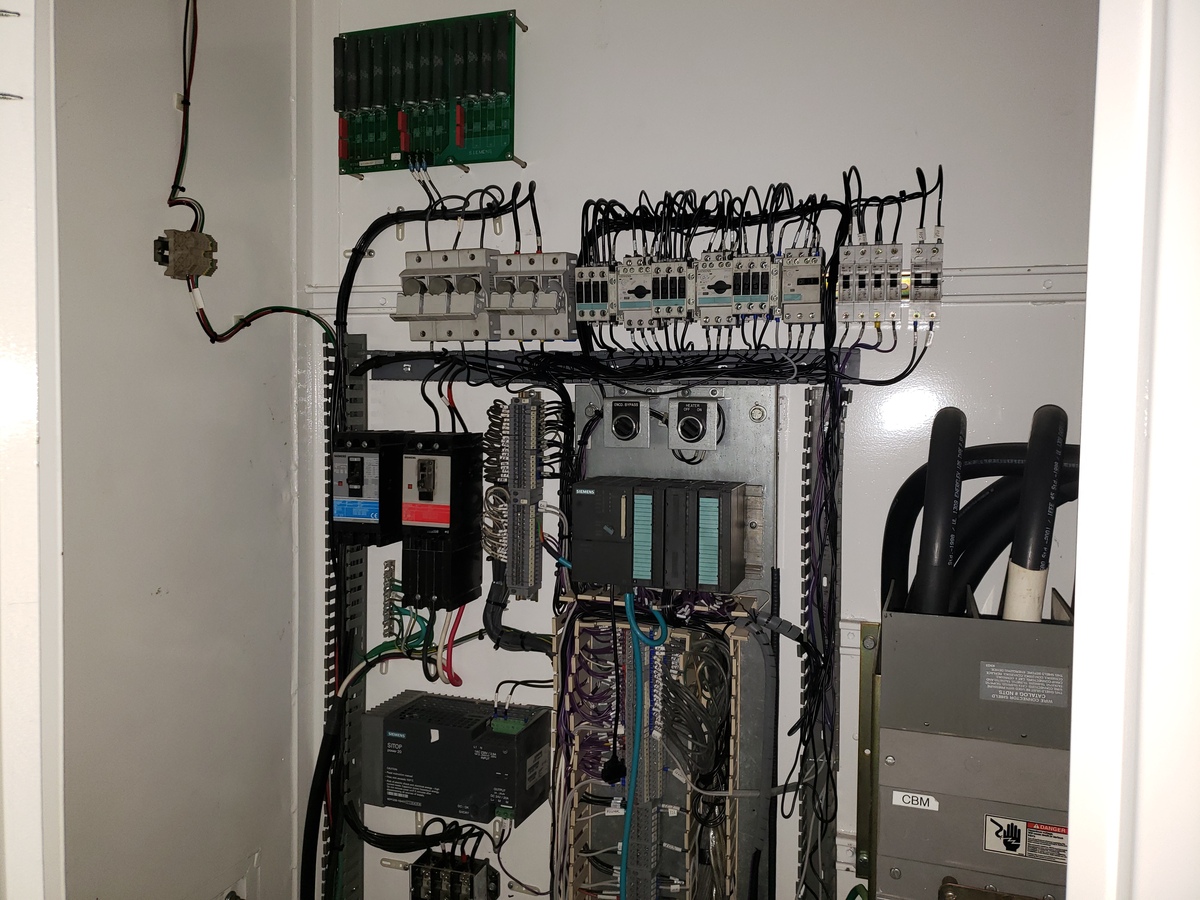

  • TDS-11 VFD CONTROL HOUSE  & DRILLERS CONSOLE
