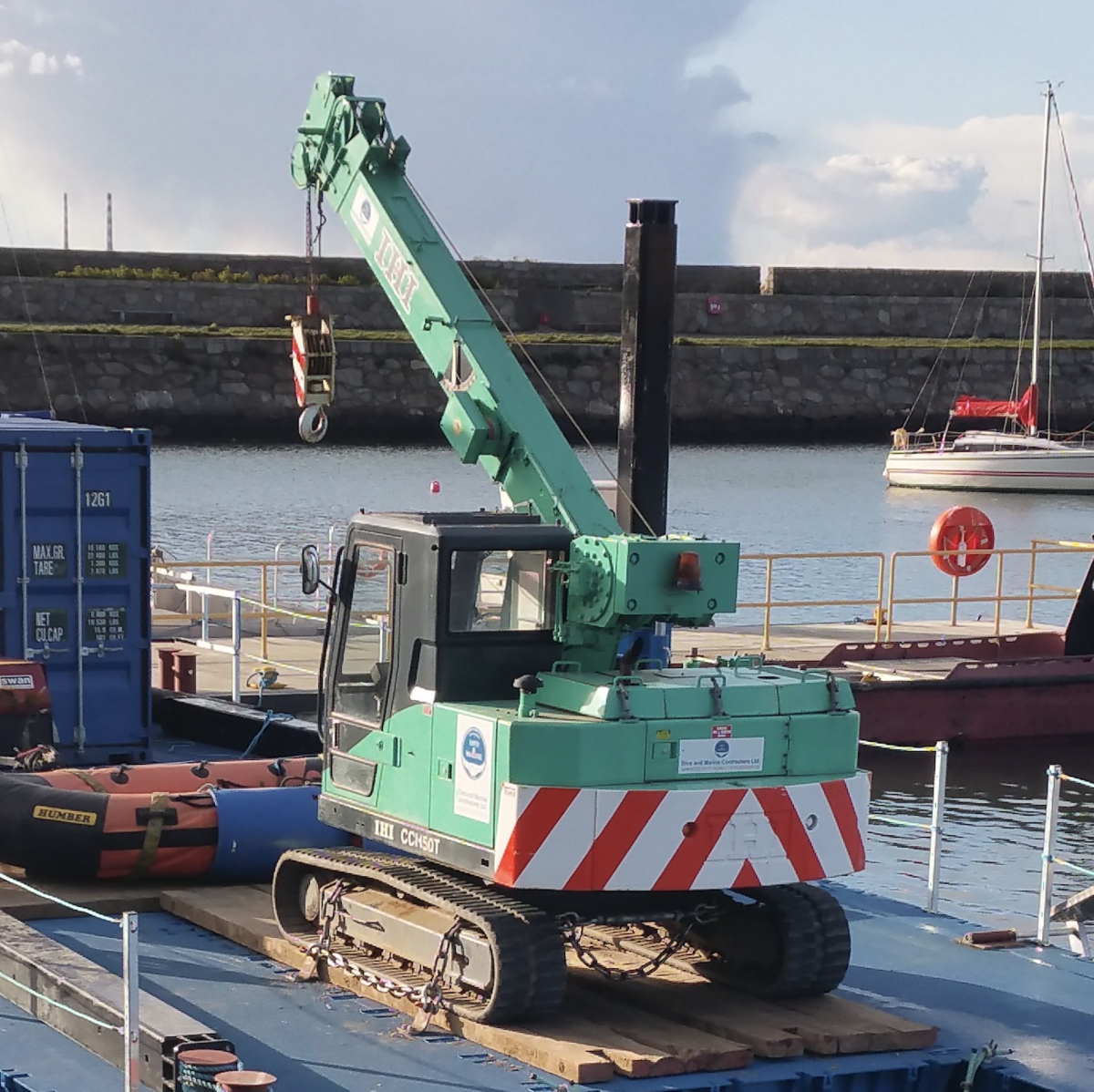

5 Ton IHI Compact telescopic crawler crane

5 Ton IHI Compact telescopic crawler crane available for sale immediatelly.

Details

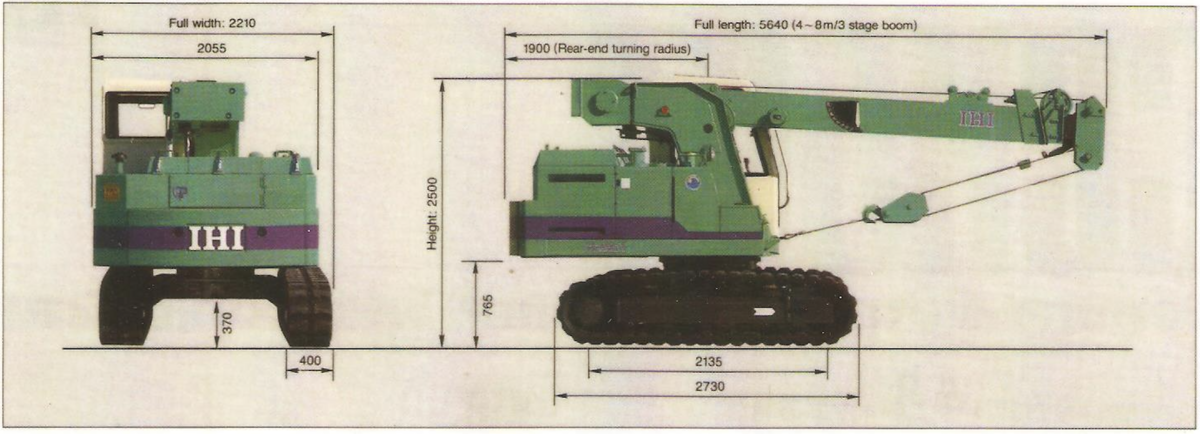

Detailed specifications

Performance
  • Max. Lifing load x Working radius : 4.8 ton x 2.0 mts
  • Max. total lifting height (4 Pt lines) : 12.2m (with wireroap of 80mts) and 22.2m (with wirerope of 120m)
  • Boom hoist speed: 14.5 Sec (2.5 -73 degrees)
  • Boom extension speed: 11.5 sec./ 4m to 8m
  • Swing speed: 2.6 rpm
  • Gradeability: 40% (22 degrees)
  • Travel speed: 2.7kmph
  • Total weight (with 4-8m boom) - 7970kg
  • Average ground bearng pressure: approx - 0.47kg/cm2
  • Load hoising/lowering rope speed - 56m/min (3rd layer on drum)
Engine
  • Model: ISUZU 4BDI Diesel engine
  • Rated output: 77PS/2200 rpm
  • Max. Torque: 25.0kg*m/1400rpm
  • Fuel tank capacity: 110 lts
Show more
Show less
MAIN DETAILS
Manufacturer
IHI crane
Price
Contact seller
LISTING ID
2964
Year built
Not known
Location
Europe
