Super Zipjet Pump kit

Specific details

Hydraulic Motor Input:

• Pressure 150 to 220 Bar (2200 to 3200 psi)
• Flow 40 to 60 litres per minute (11 to 16 USgpm)

Actuator:

• Minimum pressure 110 Bar (1595 psi)
• Maximum pressure 240 Bar (3480 psi)

Hydraulic Fittings:

• Motor A & B JIC 12 male
• Motor case drain JIC 6 male
• Actuator connection JIC 4 male

Output:

• Jetting performance 1000 litres per minute @ 2 Bar (270 USgpm)
• Suction flow 500 - 1000 litres per minute (135 to 270 USgpm)
• Solids removal rate 5 - 10 tonnes per hour (184 - 368 lb per minute)

Hose Dimensions (internal diameter):

• Jetting 25.4mm ID (1in)
• Discharge 100mm ID (4in)
• Suction 75mm ID (3in)
• Clean Water Inlet 100mm ID (4in)

Weight and Materials:

• Weight in air 25kg (55lb)
• Weight in water 11kg (24lb)
• Materials Nylacast, UHMWPE

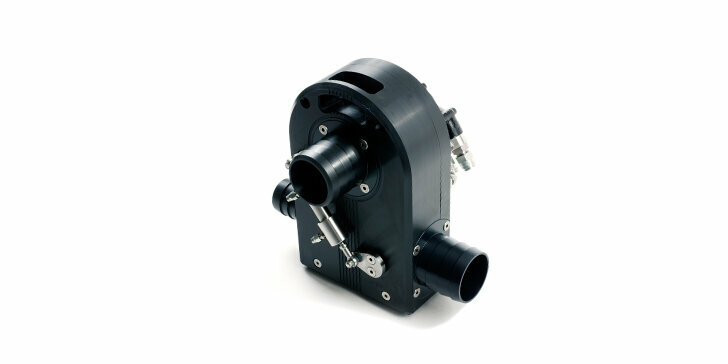

The Tritech Super ZipJet ROV Dredge Pump is designed for both Dredging, Suction and Jetting.

The pump can be delivered as a pump alone, or as a kit with all hoses and equipment needed for both Suction and jetting.
