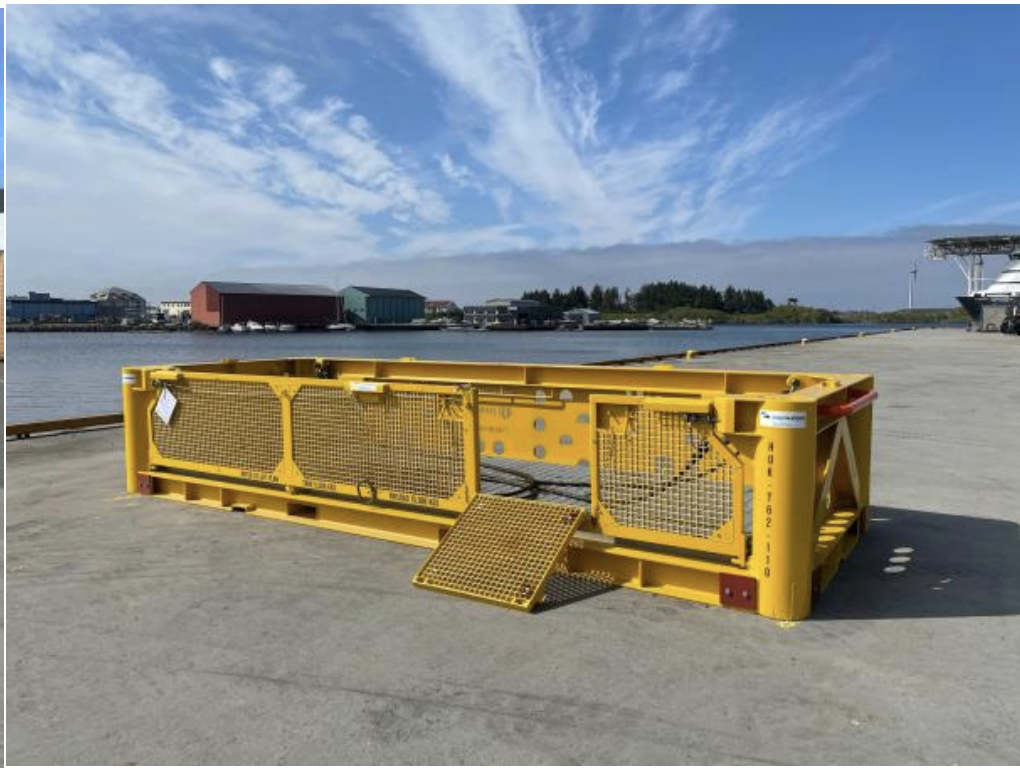

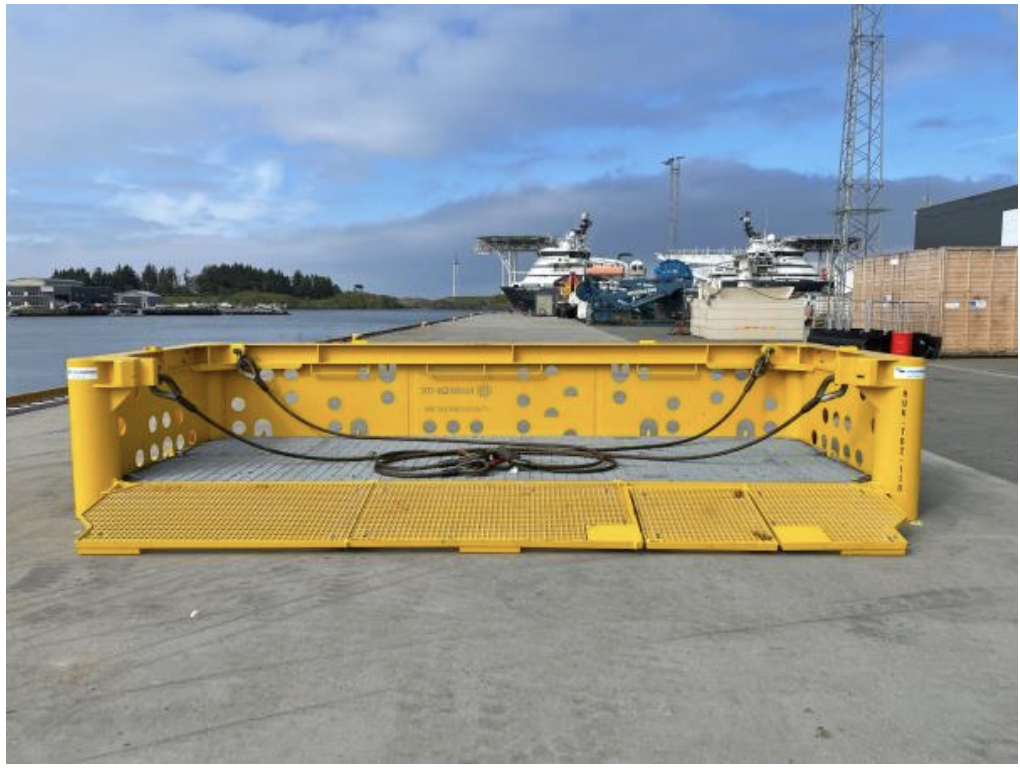

20FT Subsea basket

Detailed information

• Drop Down Door with ROV friendly latch system and safety lock for easy access in the Basket. Both ROV & Crane operable.
• Manually operated access hatch allow safe entering on deck.
• 2pcs 2-part wire rope slings for lifting.
• 9.6Te seafastening eyes for securing of loads accessable from both inside and outside the Basket.
• Galvansied Heavy Duty Mesh Floor.
• Stackable for transportation and storage.
• Optional Sacrificial Plates for Deck Fastening.
• External Tie Down Points 6.5Te Shackle (Unit can be used as a Clump Weight)

Technical information

• Payload: 15000kg
• Tare weight: 5500 kg
• Total: 20500 kg
• External footprint (LxWxH): 6491 x 2436 x 1235
• Internal dimensions (LxWxH): 6044 x 1989 x 1018
• DNV 2-7.3 Type A R45-S30 Approved (For offshore transportation and lifting in air and subsea)
