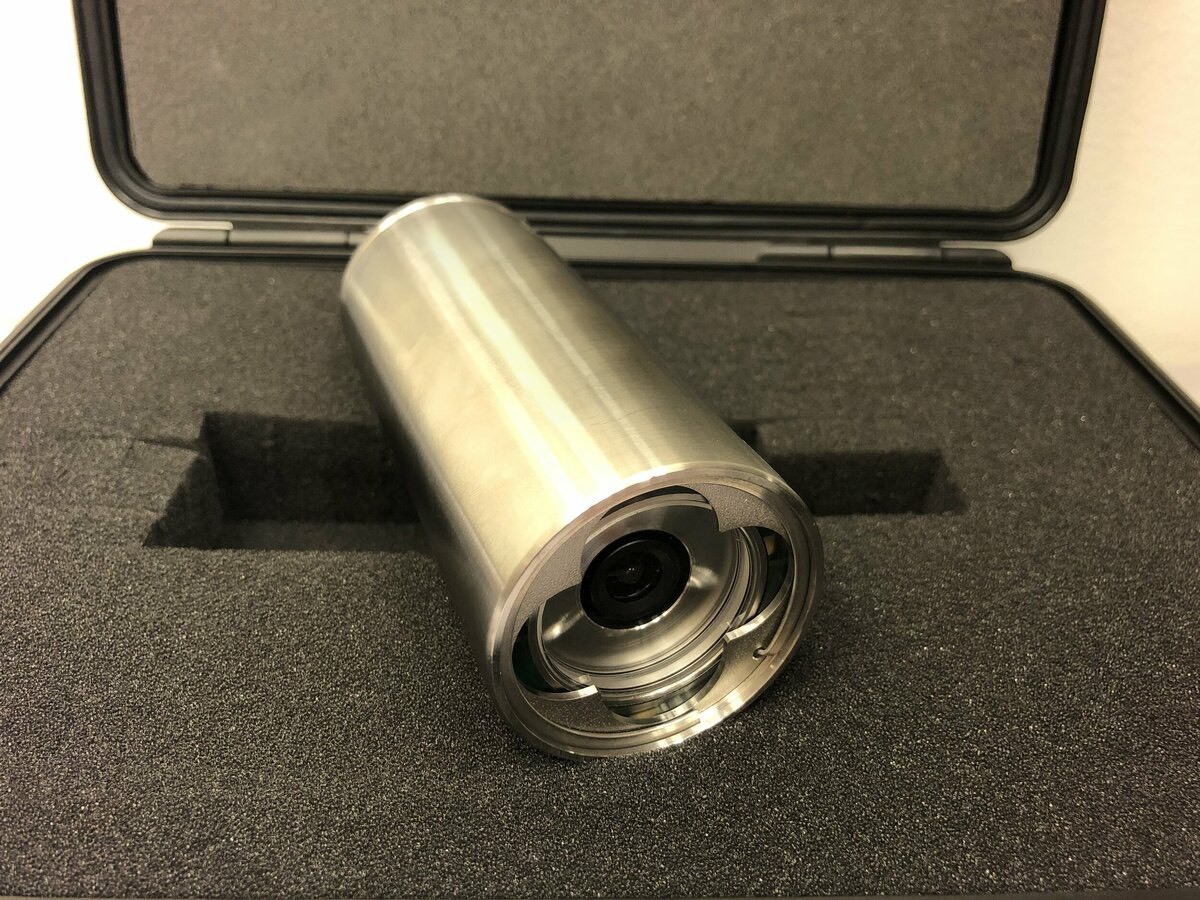

Silvertip shark camera

The Silvertip camera is a small camrea with integrated LED lights and has a wide angle of view. The camera is depth rated to 6,000 msw.

The camera is easily fitted in our camera lance for inspection in narrow Spaces and behind valve panels etc.

Technical specifications

• Main dimensions: (ex conn.) Ø 50 x 117 (102 short version)
• Resolution: 750 TVL
• Sensitivity: 0.1 Lux
• View angle in water: 64°dia / 53° hor
• Lens system Sapphire
• LED light output: Max 500 Lumen
• Housing: Duplex Stainless Steel
• Depth rating: 6.000 MSW
• Standard connector: 5507-1508
• Light output control: Bi-polar
• Power requirements: 24VDC (12 – 36)  8w
• Mass in air: 0,5 kg
• Mass in water: 0,4 kg
