Seaeye Falcon ROV for Rent

Compact Inspection ROV System

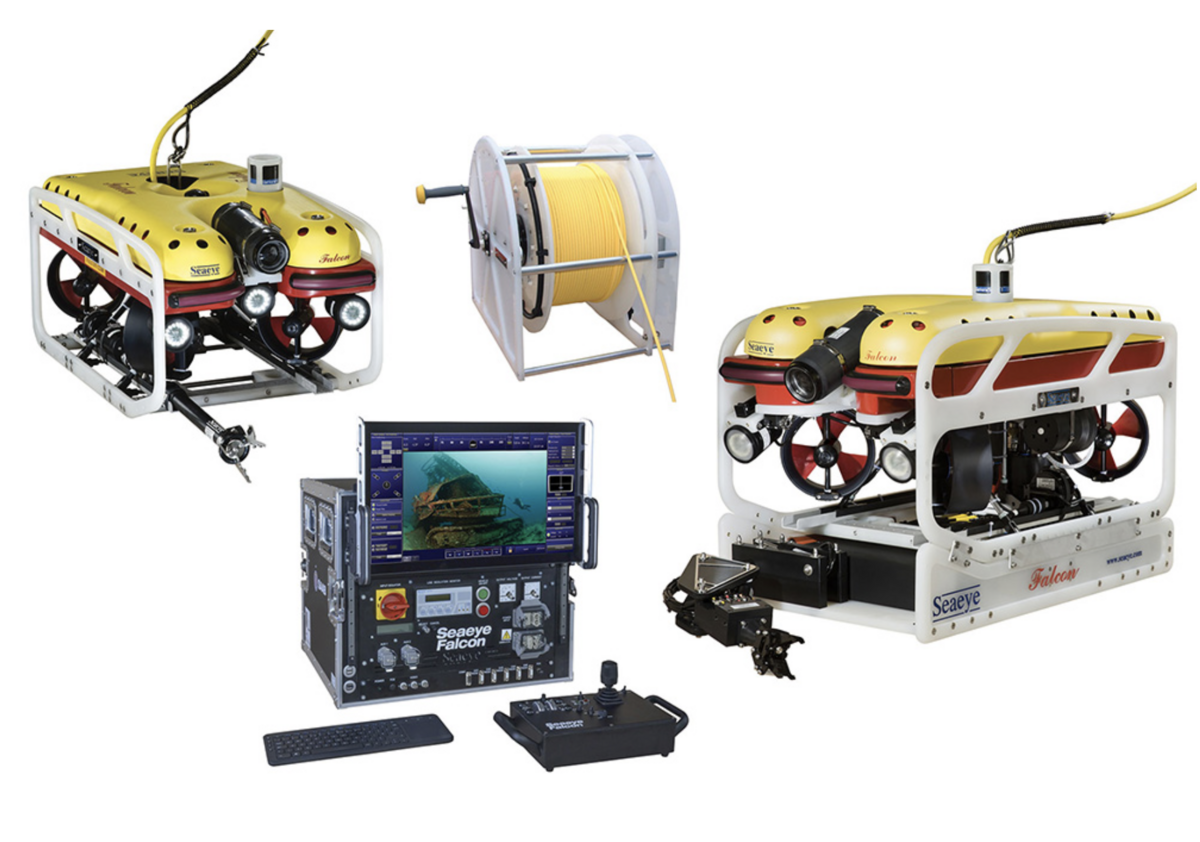

• Surface Equipment contained in a single flight case.
• Includes a power supply unit, hand control unit, touch screen monitor, and wireless keyboard.
• Provides power and telemetry control through customizable screen layouts.
• Fibre Optic or Twisted Pair options for data and video transmission.
• Optional hand power cable spools and electric winches for vehicle deploym.

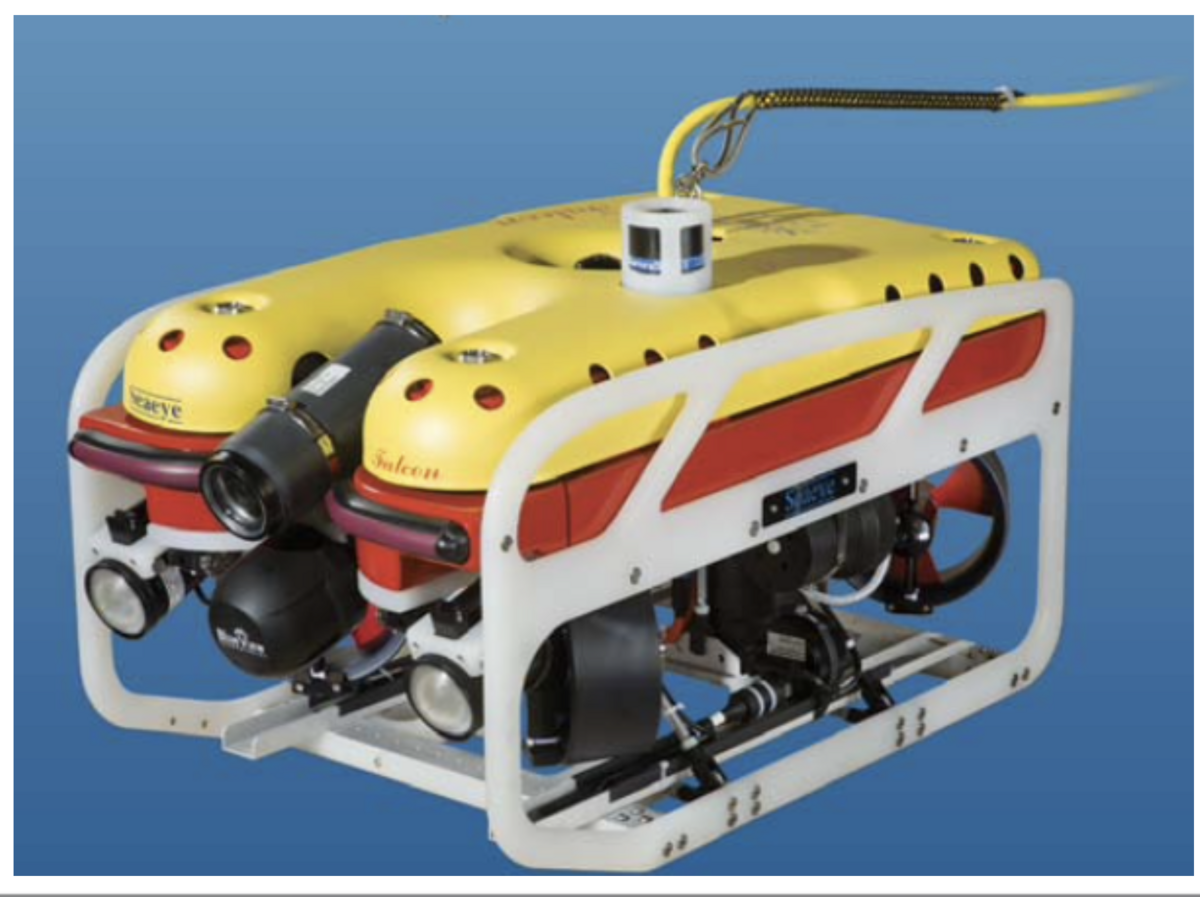

• Standard (300m) ROV fitted with five thrusters, vehicle junction box, two LED lights, high resolution color camera and a navigation pod providing vehicle auto depth and auto heading.
• Requires a single phase 110/230 VAC supply.

Vehicle Dimensions & Performance

• Length: 1000 mm
• Width: 600 mm
• Height: 500 mm
• Weight: 60 kg
• Payload: 14 kg
• Forward Speed: >3 knots
• Thrust forward: 50 kgf
• Thrust lateral: 28 kgf
• Thrust vertical: 13 kgf
• Auto Functions: Depth & Heading

Camera

• 480 TVL, 0.2 LUX (F1.4)
• 1/2” CCD Image Sensor
• 1/2” 3.8mm, wide angle, fixed focus
• Field of View: Horiz. 91°, Tilt ±90°

Launch & Recovery System

• Launch By Hand or by Whizzy Wheel

Video Overlay (15” monitor)

• Time / Date / Qwerty input
• Depth / Heading / Camera Tilt
• Autopilotfunctionstatus
• Umbilical turns counter
• Lat. & long.
• CP reading

Equipment & Tooling

• Multiple options available, please enquire.
• Control VAN / Shipping Cont.
