Geomil Manta 100DW

Equipment details

Geotechnical surveys are moving towards very deep waters. To provide operators with the best possible Cone Penetration Testing (CPT) equipment for these unique challenges, Geomil Equipment have developed the Manta-100 series. The Manta-100DW  is suitable for any project in Deep Water (DW), up to 1,500 m

Main characteristics of the Manta-100:

• Operated with a single umbilical for hoisting, power transmission and communication
• Modular system weight 3,5 - 12 tons
• Variable penetration speed 0 - 45 mm/s
• Variable retraction speed 0 - 80 mm/s
• Thrust capacity 0 - 100 kN
• Real-time CPT data at surface
• Basic setup transportable in a 20 ft sea container

The standard turn-key Manta-100 package consists of the following components:

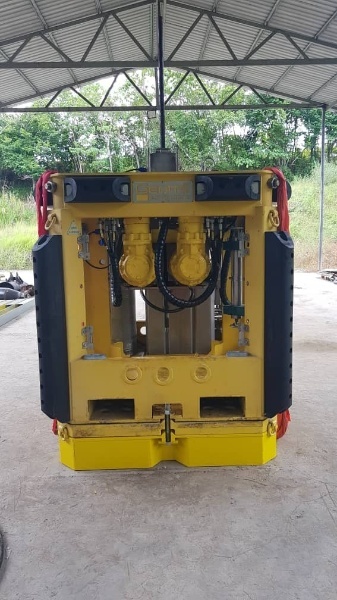

• Seabed base frame with continuous drive system (CDS)

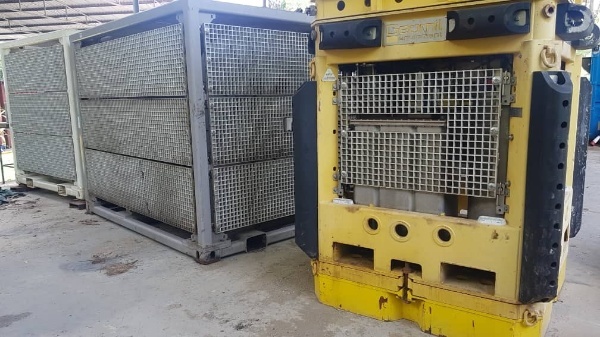

• Submersible power pack with PTO function
  • standard skirt

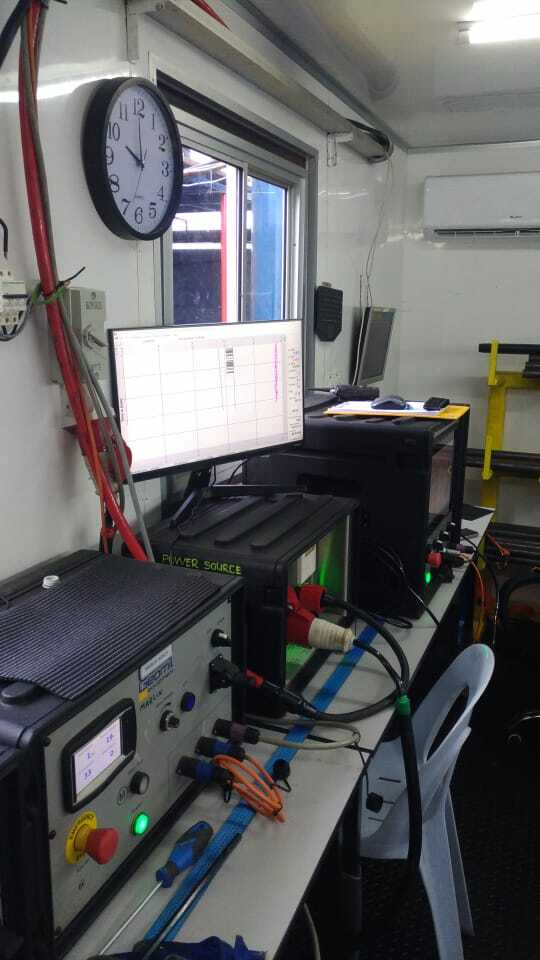

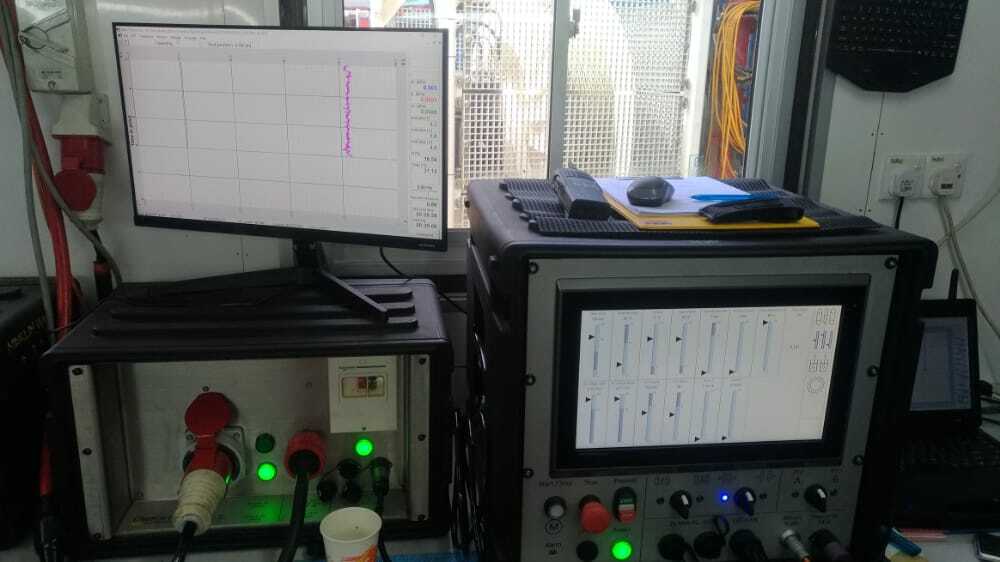

• Surface control and data acquisition unit

The Manta-100 is also by far the most compact system in its class, measuring just 1,500 x 1,500 x 1,600 mm (L x W x H) when being transported.

Optional supporting items:

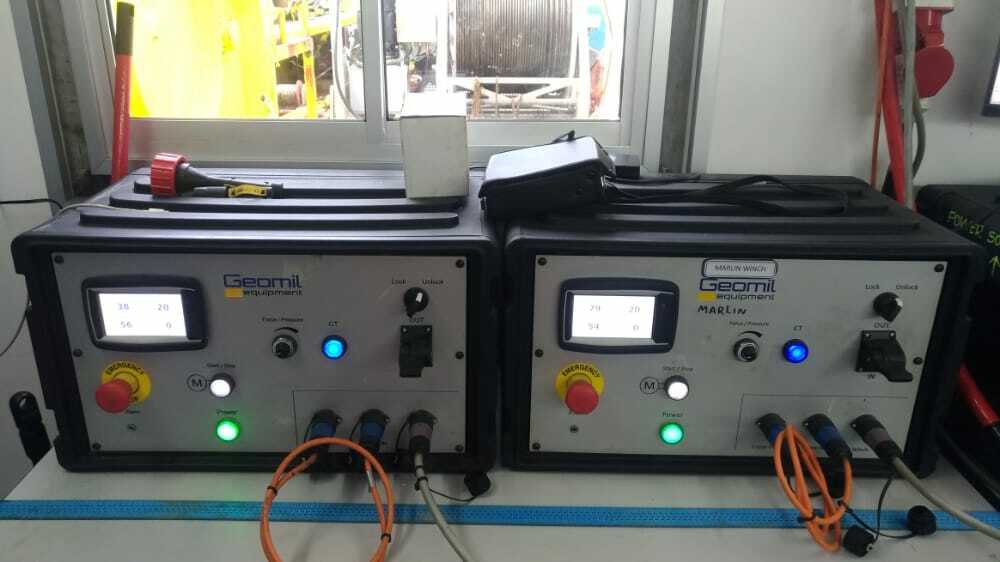

• Main hoisting winch (constant tension)
• Classic hoisting frame
• Line tensioner
• Various (leveling) skirt sizes and models
• Echo sounder
• Seismic source extension
• Seabed sampling
• Seabed plate load test (SPLT)
• Lights and camera

See attached GA and pictures. Contact us for further information.
