400ft heavy deck cargo barge

400ft heavy deck cargo barge available for charter. See below for further details or contact us directly.

Details

Main details

  • DWT 19,900
  • 2 x 1000m3  pump capacity
  • 25T/m2  uniform deck strength
  • Class: ABS +1A1

Dimensions:

  • Lenght overall: 121,920 m ( 400`)
  • Breadth overall: 36,576 m ( 120`)
  • Depth: 7,620 m ( 25`)
  • Min. draft: 1,5 m
  • Loaded draft: 5,782 m

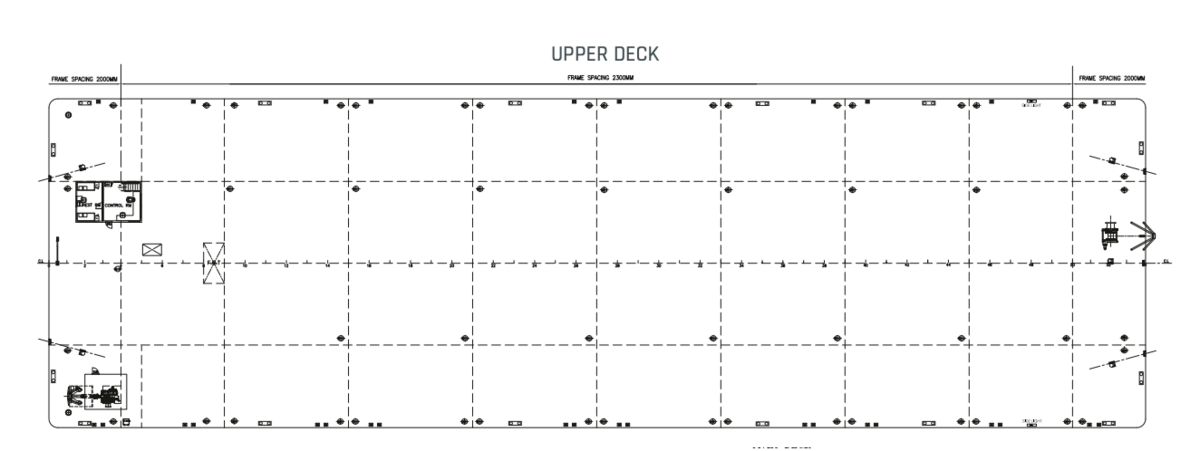

  • Frame Spacing: 2.000 mm, frame 1-4 & 50-54 2.300 mm, frame 4-50
  • Deck plate thickness: 20 mm

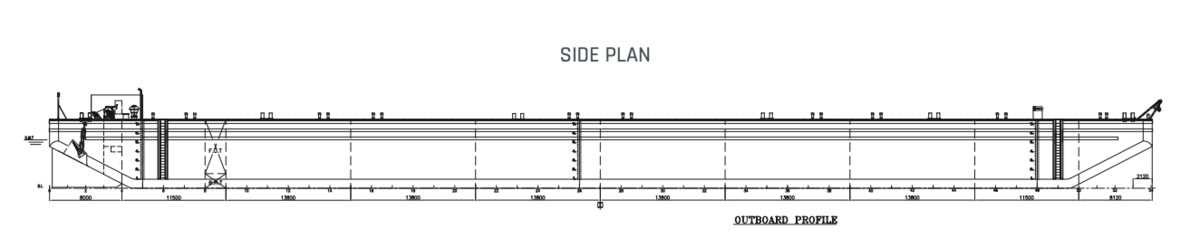

Arrangement and form:

  • Bulkheads: 3 longitudinal, 9 transverse pumproom bulkhead.
  • Double bottom: In pumproom

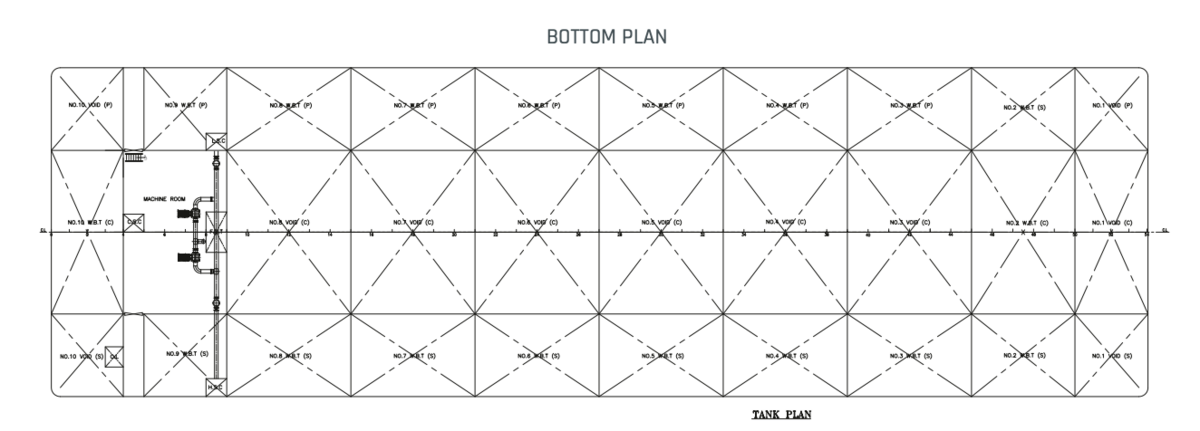

  • Ballast tanks: 18
  • Bow: Raked-sloped bottom plate
  • Stern: Raked-sloped bottom plate

Capacities:

  • Deadweight: abt. 20 000 tonnes
  • Lightship weight: 4900 mt
  • Reg. Tonnage: 9.408 GRT / 2.822 NRT
  • Deck area: 4450 m2
  • Uniform deck load: 25 tonnes per m2

Machinery and ballasting equipment:

  • Generator: 2 x VP diesel 195kW 2 x diesel for ballast pumps
  • Ballast pumps: 2 x 1.000 m3 /hour
  • Tank Sounding: Kockum Sonics Levelmaster
  • Valve actuators: hydraulic, Rongde

Towing arrangement:

  • General SWL of 110T
  • Maximum BP ACC to DNVGL-ST-N001 : 212 mt.

Emergency towing arrangement:

  • 140 meters steel wire rope (MBL 425mt) connected to messenger line, pick-up line and floating buoy.

Mooring-/ Anchor arrangement:

  • Emergency anchor: 1 x Stockless Bower anchor 5610kg.
  • A-frame for bridle recovery
  • 2 x hydraulic operated Capstan`s, 10 tons pull.
  • 4 double bollards each side

Navigational equipment:

  • Daylight signals, LED solar driven navigational lights Misc. ballast control and work desk in deck house

Point loads:

  • Longitudinal bulkheads / sideshell and transverse bulkheads: 435T
  • Longitudinal bulkheads / sideshell and transverse webs: 260T
  • Midspan on transverse webs : 160T
  • Uniform deck load: 25t/m2

Contact us for further information and pricing.

Show more
Show less
MAIN DETAILS
Manufacturer
tbc/unknown
Rental Price
Contact seller
LISTING ID
3178
Year built
2014
Location
Europe
