Baker Hughes Horizontal Xmas Tree

Name: Baker Hughes Horizontal Xmas Tree
Brand: Baker Hughes
Availability: InStock

HT-2 18-3/4 Horizontal 5” x 2” XT - preserved and available now. See attached specification document for further information or below for principle details.

3179-baker-hughes-horizontal-xmas-tree_1

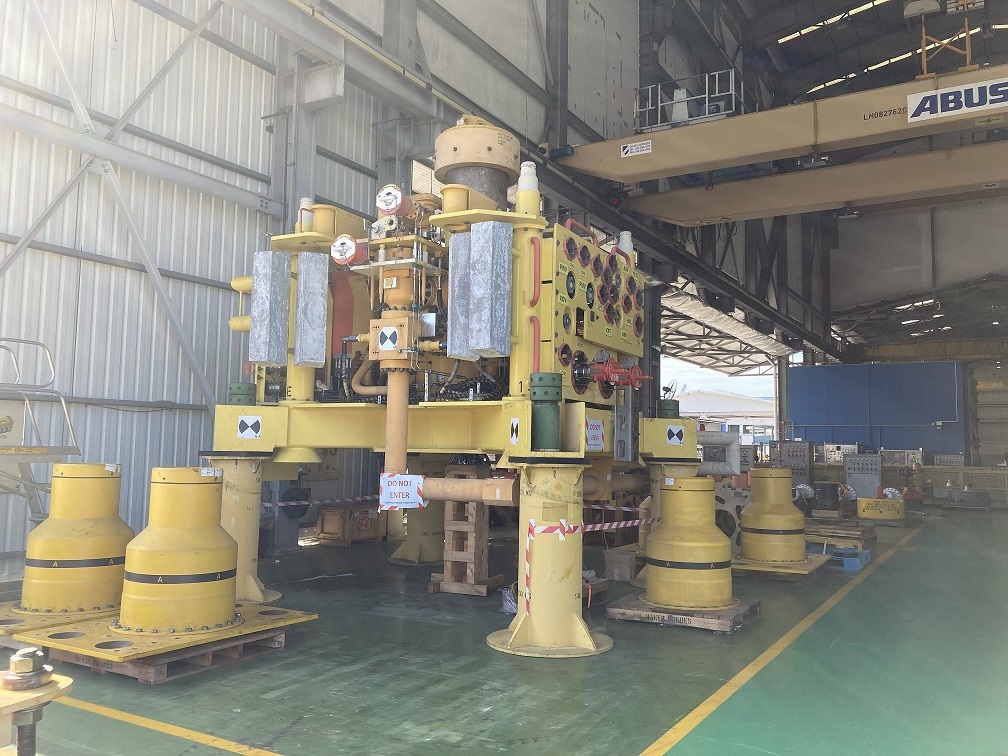

3179-baker-hughes-horizontal-xmas-tree_2

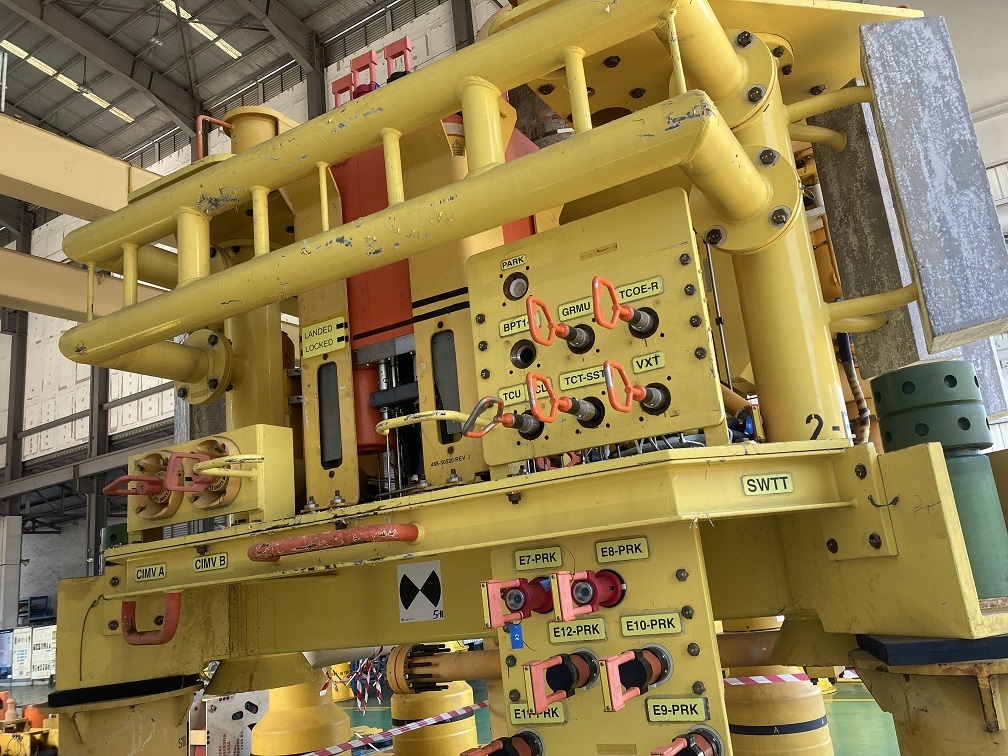

3179-baker-hughes-horizontal-xmas-tree_3

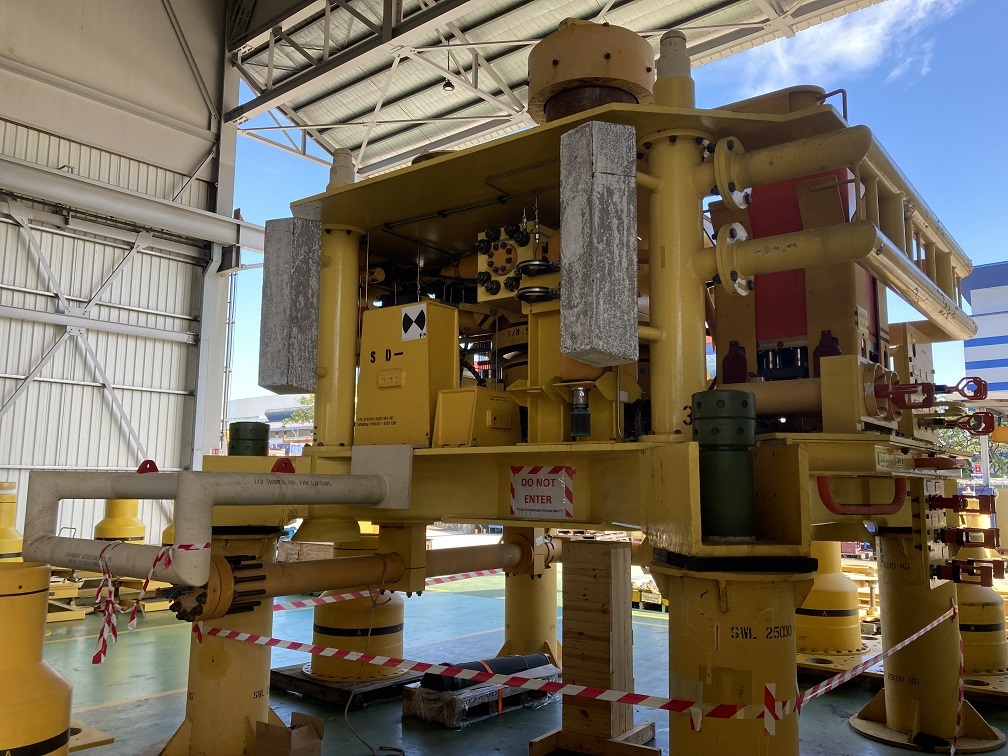

3179-baker-hughes-horizontal-xmas-tree_4

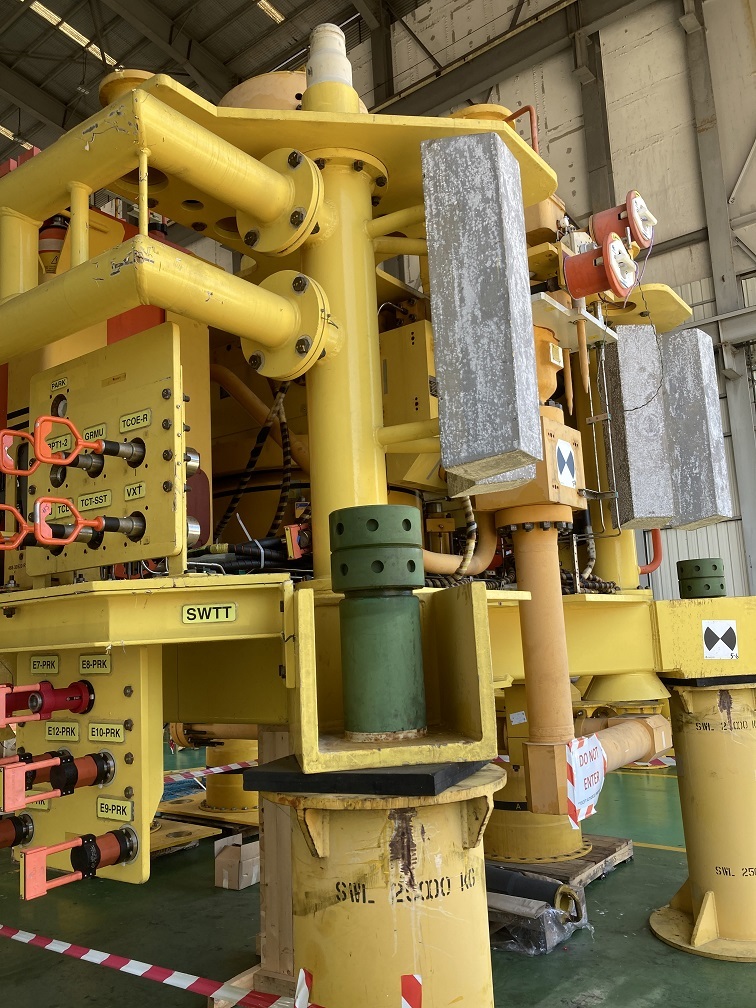

3179-baker-hughes-horizontal-xmas-tree_5

Details

Principle XT details as follows:

Configuration - Horizontal
Design Pressure - 10K PSI
Design Temperature - Class U (0°F TO 250°F / -18°C TO 121°C) Upstream of Choke, Class P-U (-20°F TO 250°F / -29°C TO 121°C) Downstream including Choke
Water Depth Rating - 650m (limited by 2” Actuator)
Design Code - API 6A / 17D
Material Class - HH Production – EE Annulus

For further information, see attached specification document or contact us directly.

Show less

MAIN DETAILS

Manufacturer

Baker Hughes

Price

Contact seller

LISTING ID

3179

Year built

2020

Location
