300ft cargo barge (#4)

Main details

Class: DNV +1A1

Dimensions:

• Lenght overall: 91,440 m ( 300`)
• Breadth overall: 27,432 m ( 90`)
• Depth: 6,096 m ( 20`)
• Draft forward: 1,308 m
• Draft aft: 0,894 m
• Loaded draft: 4,840 m

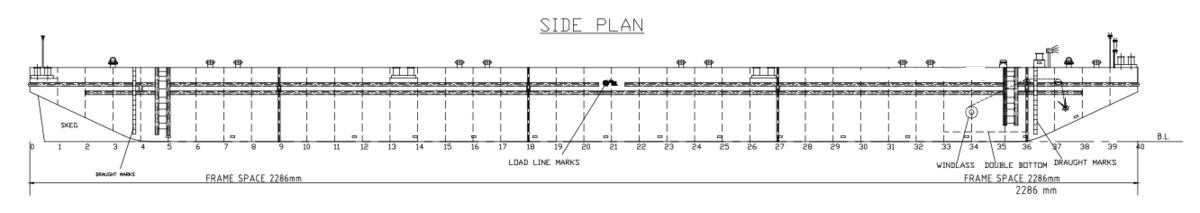

• Frame Spacing: 2286 mm

Arrangement and form:

• Bulkheads: 3 longitudinal, 4 transverse pumproom bulkhead.

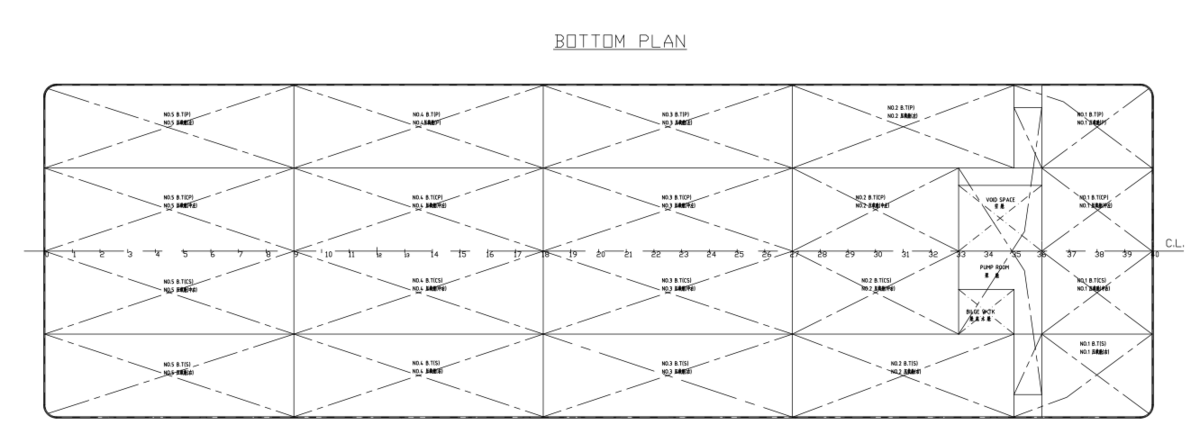

• Double bottom: In pumproom
• Ballast tanks: 20

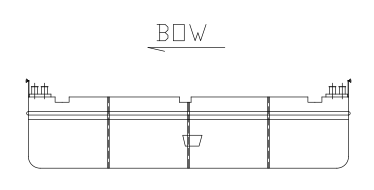

• Bow: Raked -sloped bottom plate

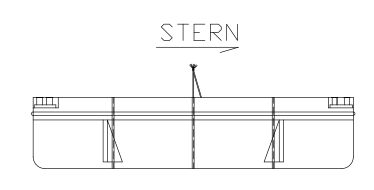

• Stern: Raked -sloped bottom plate

Capacities:

• Deadweight: 9025 tonnes
• Lightship weight: 2361 tonnes
• Reg. Tonnage: 4050 GRT / 1215 NRT

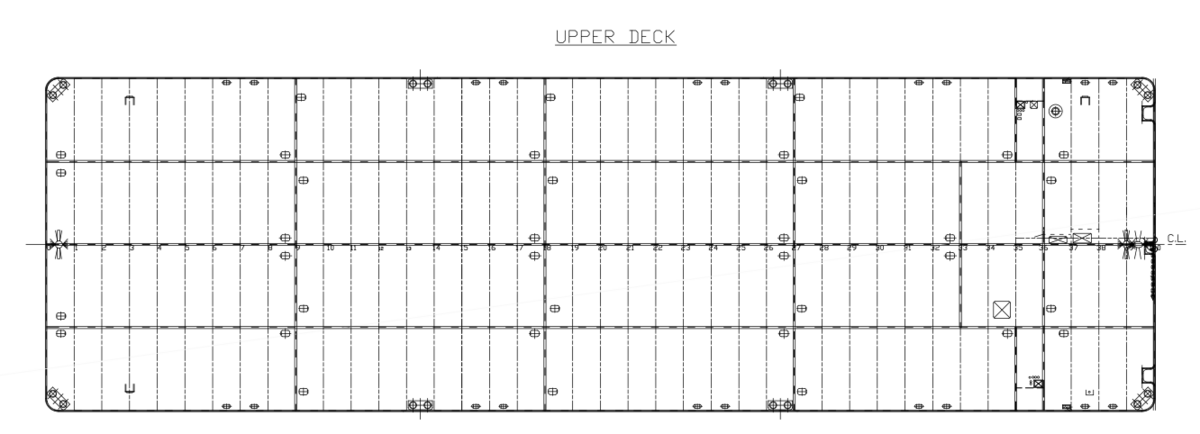

• Deck area: 2508 m2
• Uniform deck load: 25 tonnes per m

Machinery and ballasting equipment:

• Generator: Caterpillar 200kw
• Ballast pumps: 2 x 600 m3/hour
• Tank Sounding: Kockum Sonics Levelmaster
• Valve actuators: Eltorque QT800/QT250

BWTS: Capacity: 600m3/hour

Navigational equipment: Daylight signals, LED solar driven navigational lights.

Contact us for further information and pricing
