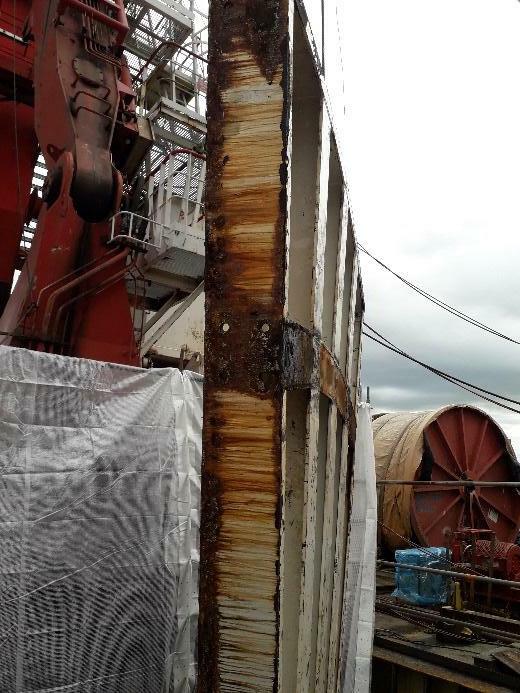

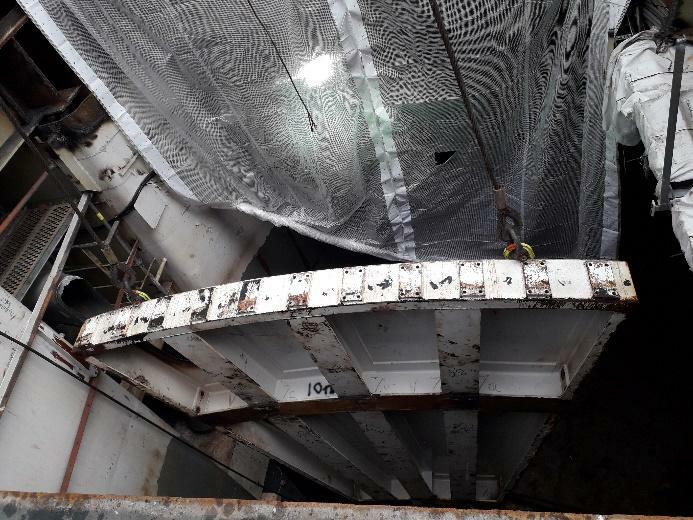

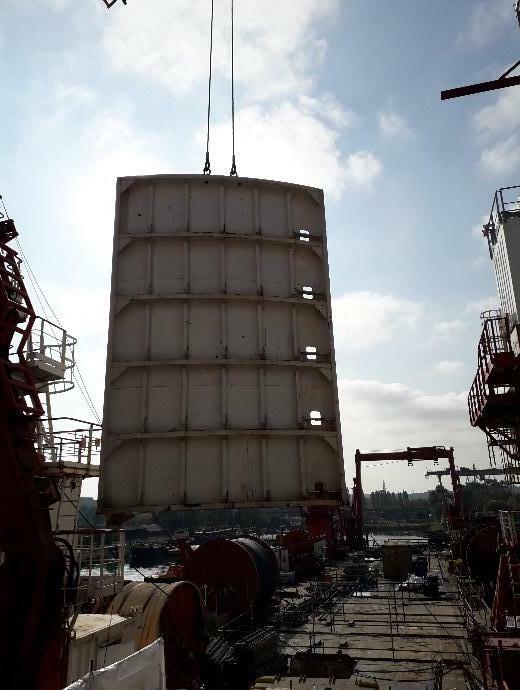

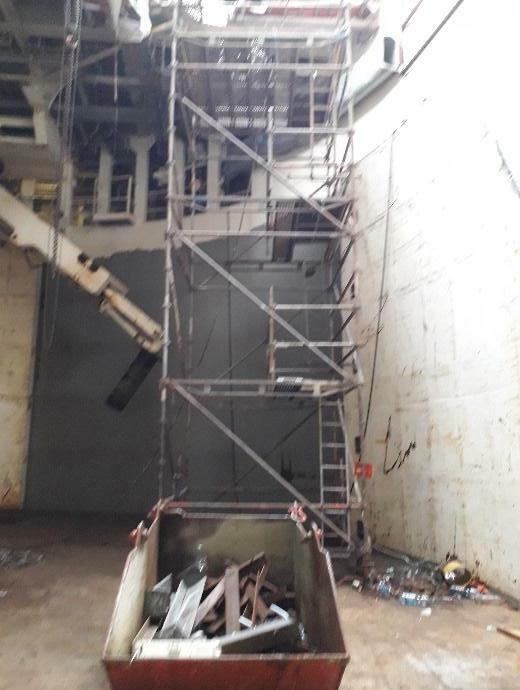

1200T cable / flexible carousel

Main particulars

• Carousel outside diameter:- 15440mm
• Carousel inside diameter:- 14900mm
• Carousel height from tank top to base:- 1100mm
• Carousel wall height:- 4450mm
• Carousel centre core diameter:- 4000mm
• Carousel centre core height:- 4450mm
• Carousel rotational speed:- 1.25 r.p.m
• Carousel linear speed (average):- 2200m/hour
• Carousel linear speed at centre core:- 940m/hour
• For electrical and water supplies 1.2

PERFORMANCE & TECHNICAL SPECIFICATIONS

CHUTE/LOAD ARMS GENERAL

• Maximum pipe overall diameter:- 550 mm
• Minimum pipe overall diameter:- 100 inm
• Minimum bend radius:- 4 metres (outside ship) 3 metres (inside ship).
• Pipe joint end flange maximum diameter:- 1500 mm
• Minimum design temperature - 0 degrees C.
• For hydraulic and electric supplies see Customer interfaces section 2.2.

CHUTE

• Angle of slew:- 60 degrees. (+5 to +65 from ships longitudinal axis).
• Chute inside diameter:- 1600mm.
• Slew ring hydraulic motor:- HIC 90-LM2 Fixed displacement axial piston type.
• Slew ring gearbox:- RPR 3150/70.57 Planetary 3 stage,
• Braking system:- FL250 Multiplate disc type.
• System working pressure:- 175bar (max).

LOAD ARM (FRONT)

• Maximum outreach:- 5000mm. (Approx).
• Safe working load at full outreach (arm pushing down) :- 2000kg.
• Safe working load at full outreach (arm pushing up) :- 3000kg Safe working load at full outreach sideways force (Either side):- 2000kg.
• All cylinder working pressures:- 175bar (max).
• Angle of slew - +30 degrees.
• End roller diameter:- 250mm.
• End roller width:- 380mm (inside flanges).
• Roller material:- Devlon/HDP.

LOAD ARM (REAR)

• Safe working load upwards - 2000kg.
• Safe working load downwards - 1000kg.
• All cylinder working pressures - 175bar (max).
• Angle of slew - None.
• End roller diameter:- 250nm.
• End roller width:- 380mm (inside flanges).
• Roller material:- Devlon/HDP.
