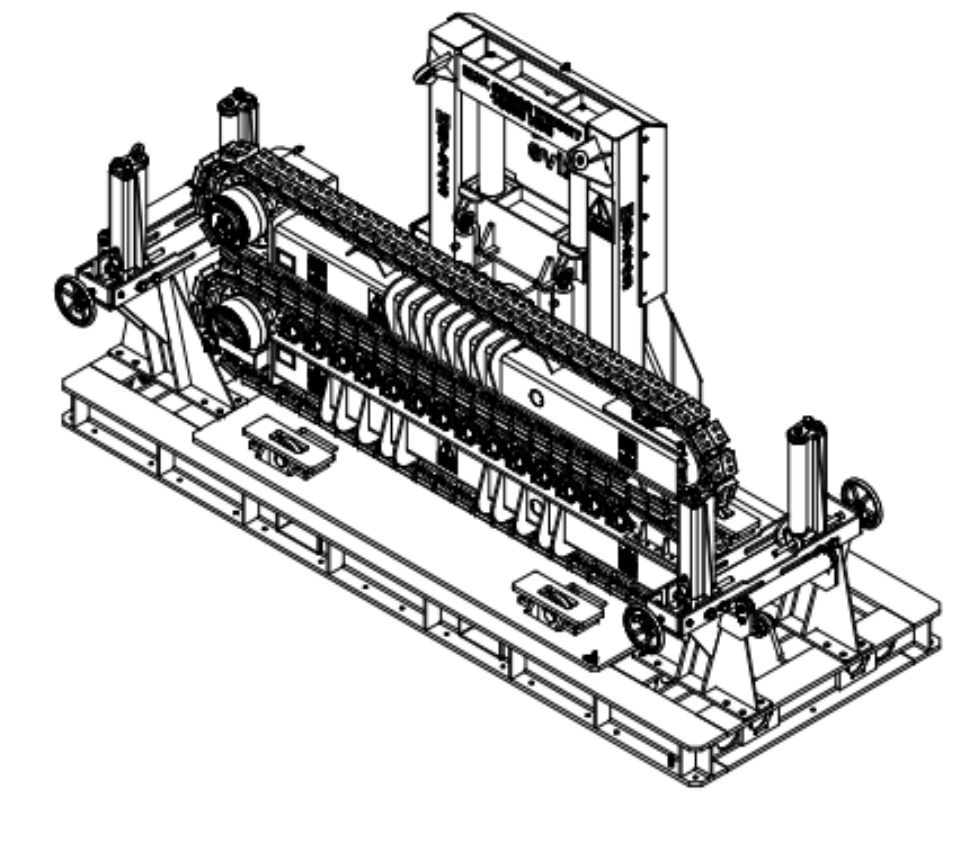

15T Vertical Two Track Tensioner

Main particulars

Weight, Dimensions & Lifting

• Weight Approx. 15 Tonnes
• Length Approx. 5261mm (base) Approx. 5368mm (Overall)
  • Height Approx. 3114mm
• Width Approx. 2061 (base) Approx. 2313mm (Overall)
  • Slings 2 point lifting sling fitted
• Base frame Included with fork lift pockets

Drive Units

• Motors Rexroth bent axis piston motor
• Gearboxes Track drive hub planetary gearboxes

Performance

• Line pull 15 Te Overboarding
• Track grip force 50 Te
• Maximum lay speed 800m/hour
• Product capacity (including 160 Deg. Pad) 50mm – 500mm
• Track opening limits (including 160 Deg. Pad) 0mm – 625mm
• Hydraulic supply required 140 L/min @ 250 bar maximum
• Operating modes Manual (haul in / pay out – 15 Te)
• Render (holdback 5 – 15 Te)
• Contact Length Approx. 2698mm
• Both ends of tensioner to be fitted with adjustable vertical guide rollers.
• Vertical rollers on tensioner opening side are removable for loading.
• Both ends of the tensioner to be fitted with a horizontal roller.
