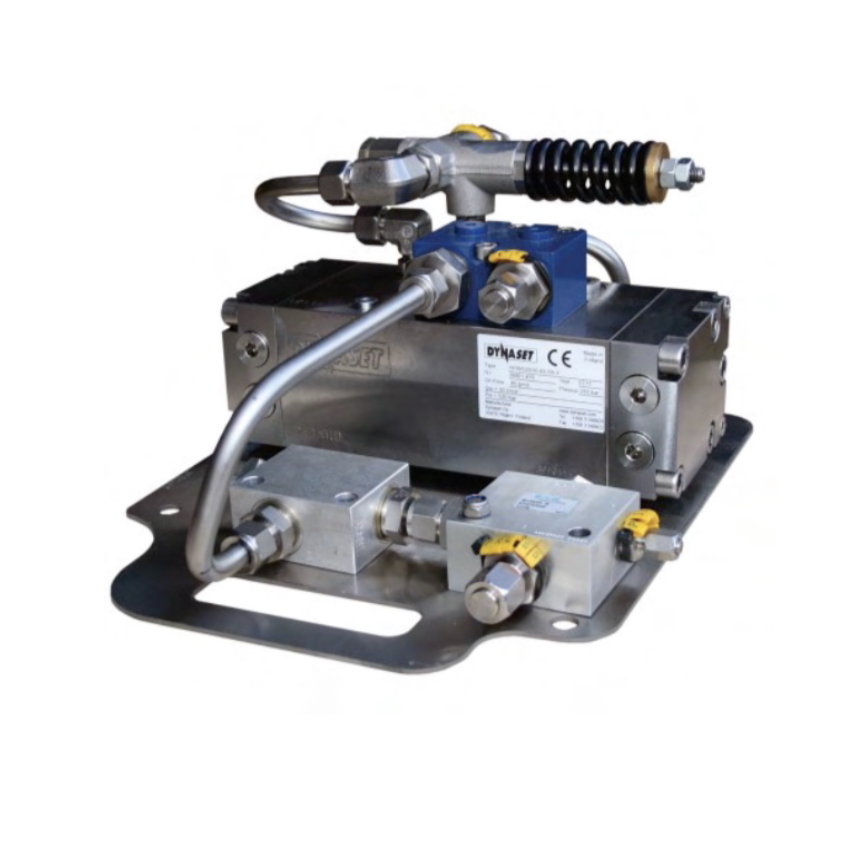

HP Water Jet System

For RENTAL: 520Bar High pressure water jetting system used for light subsea cleaning operations, pumping and injection operations. See below for further information, or open the attached detailed specification sheet.

Details

Features

  • Numerous nozzles available
  • Mountedon ROV friendly plate PO checkvalve
  • Flow control valve
  • Integral relief valve (0.5-520bar)

Specifications

  • Hydraulic input pressure : 180-210bar/ 2610-3045psi
  • Hydraulic input flow : 30-60plm / 8-16épm
  • Hydraulic output pressure : 0.5-520bar/ 7.25-7500psi
  • Hydraulic output flow : 15-3/0lpm 4-8gpm
  • Maximum jetting : 400bar / 5801psi (Standard nozzle)
  • Dimensions : 431m × 345mmx 23mm / 17x 13.5x 9.1 i n
  • Weight in air : 27kg / 59.5lbs
  • Fluids : Water, sea water, hydraulic oil and glycol

Contact us for more information

Show more
Show less
MAIN DETAILS
Manufacturer
tbc/unknown
Rental Price
Contact seller
LISTING ID
3431
Year built
2023
Location
Europe
