3000 HP Drilling Rig

Equipment details

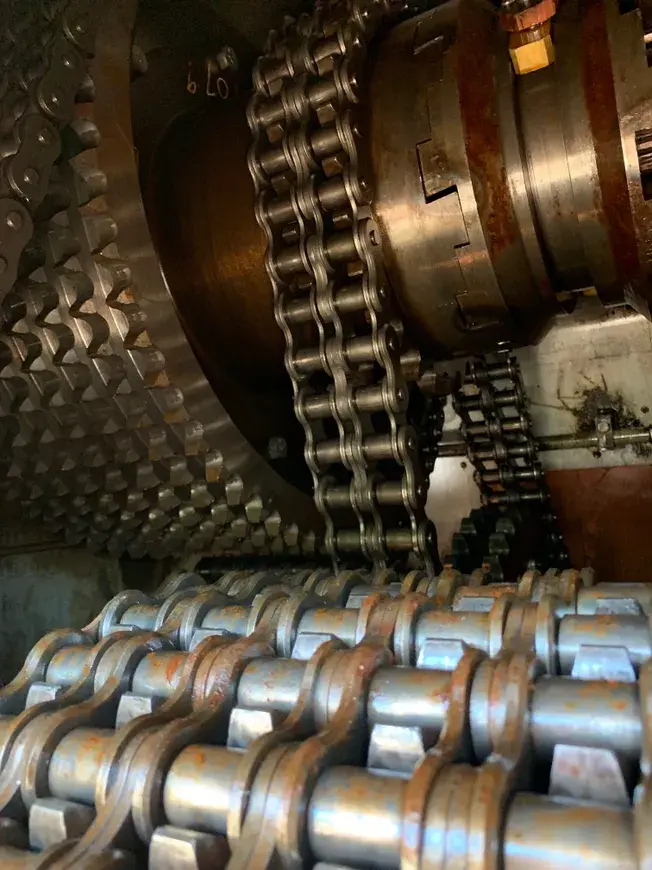

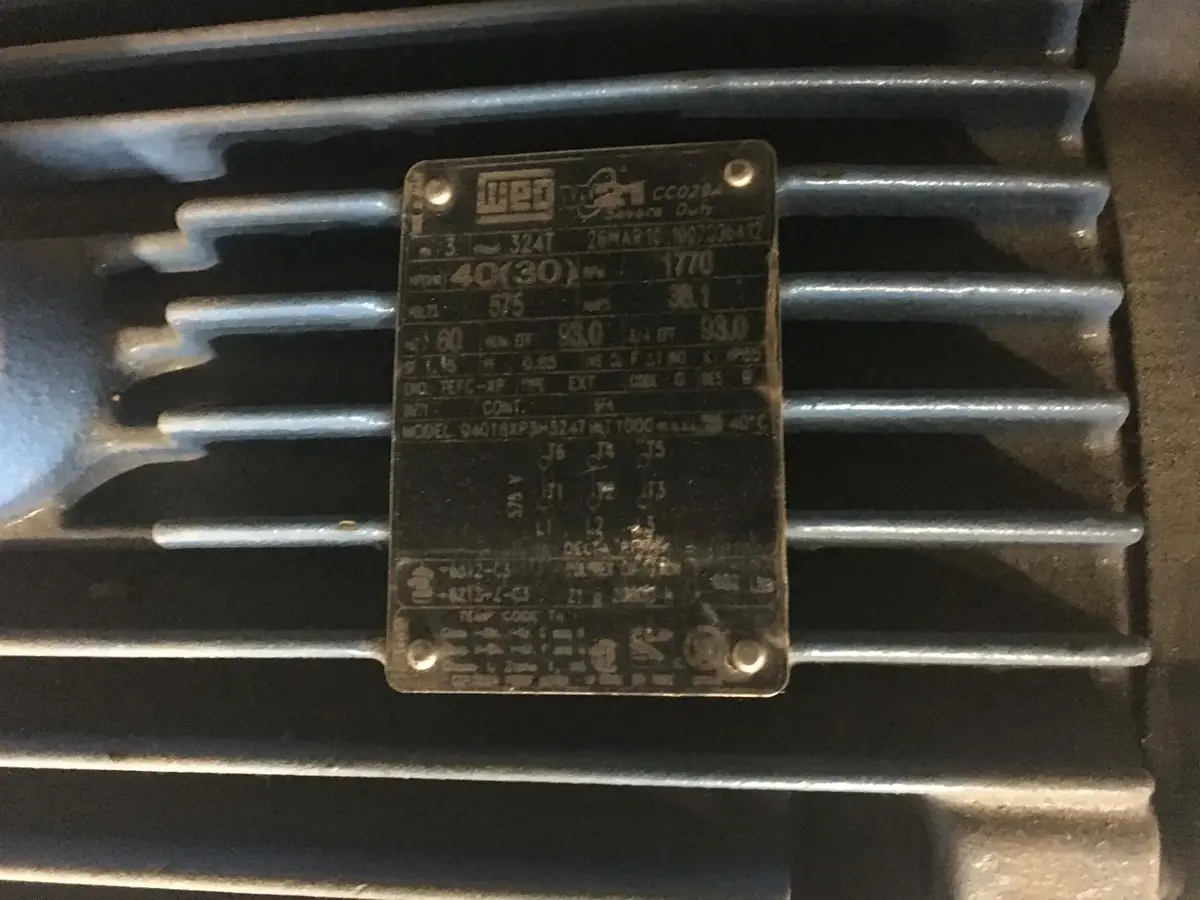

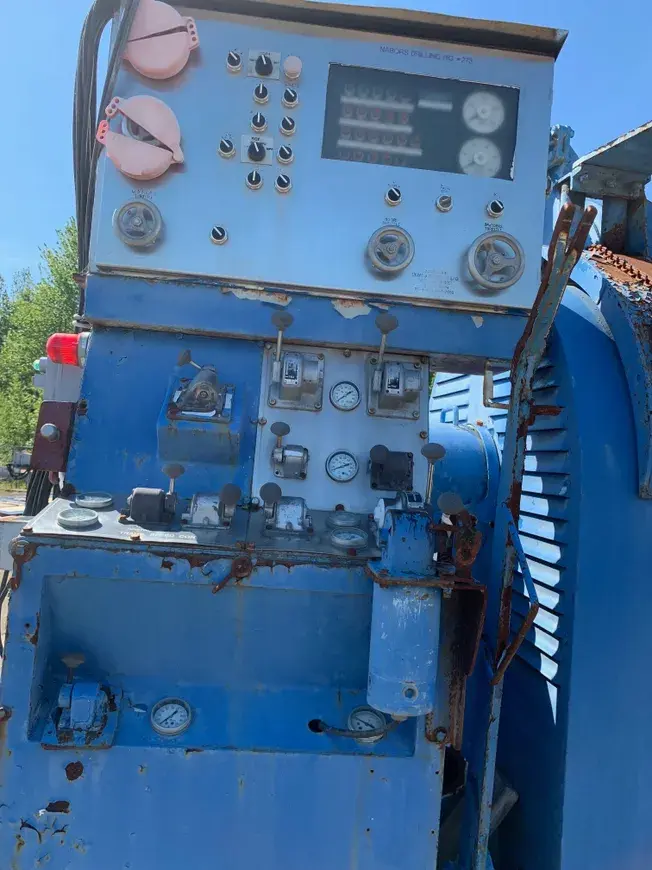

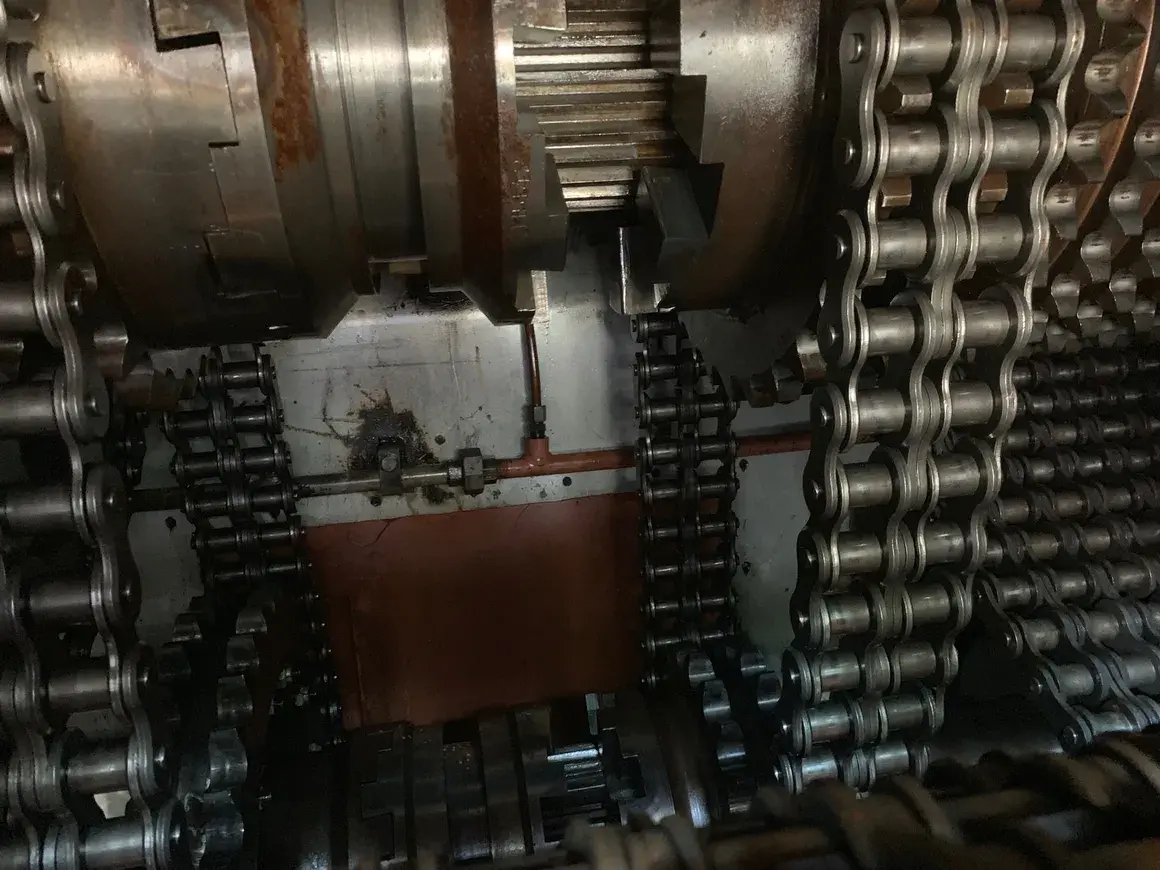

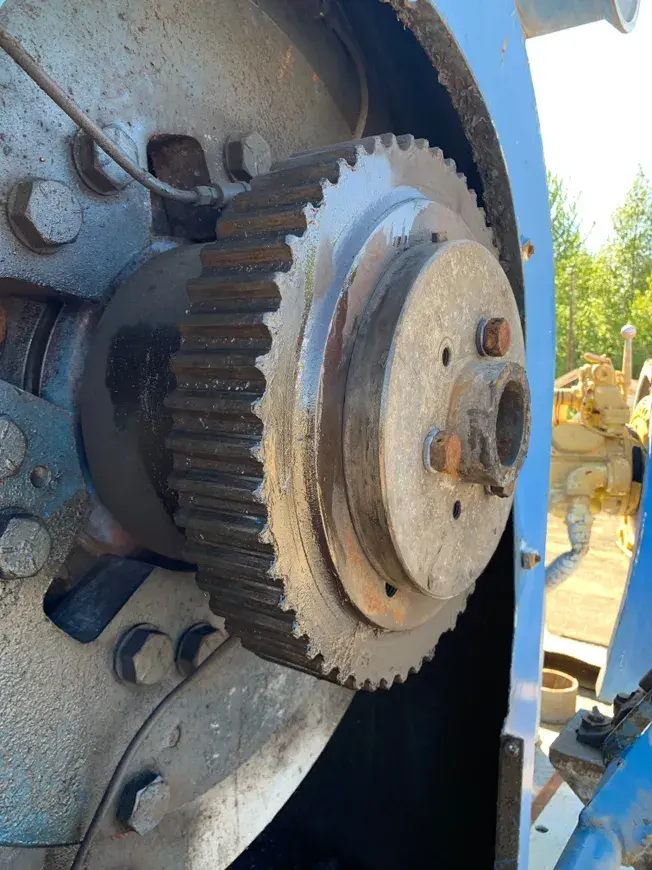

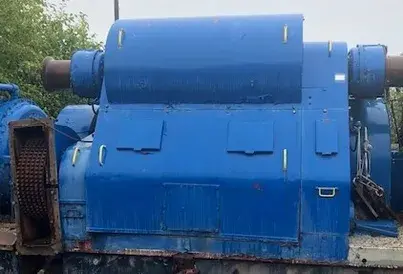

• 3000 HP Drawworks with an input rating of 3000 hp driven by 3 units of GE752 - 1000 HP electric motors.
• Drum is lebus grooved for a 1-5/8 inch drilling line.
• S/N # 21
• Master Pyramid 152 ft. cantilever, 152 ft. clear height x 30ft. base at floor.
• API static hook load of 1,600,000 lbs. w/14 lines strung.
• Substructure is a Pyramid box on box, with a 30ft. floor height and 24ft. clear height under the rotary beams.
• Substructure is designed for 1,600,000 lb. casing load simultaneous with a setback load of 800,000 lbs.
• The Auxiliary Braking system is a Baylor 7838 Elmagco brake.
• 3 units of Tuggers

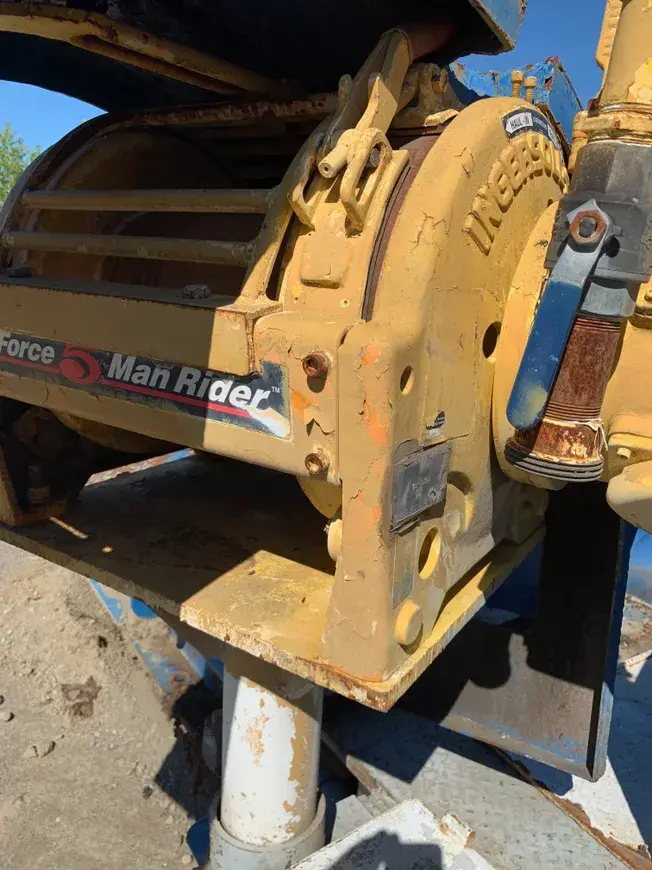

  • Ingersoll Rand Force 5 Manrider model FA2A-GMR-MMK1 2500#
  • Ingersoll Rand Force 5 Manrider model FA2-5A-LXK1 5000#
  • Ingersoll Rand Force 5 Air winch model FA5AMR-LMK1G 6250#

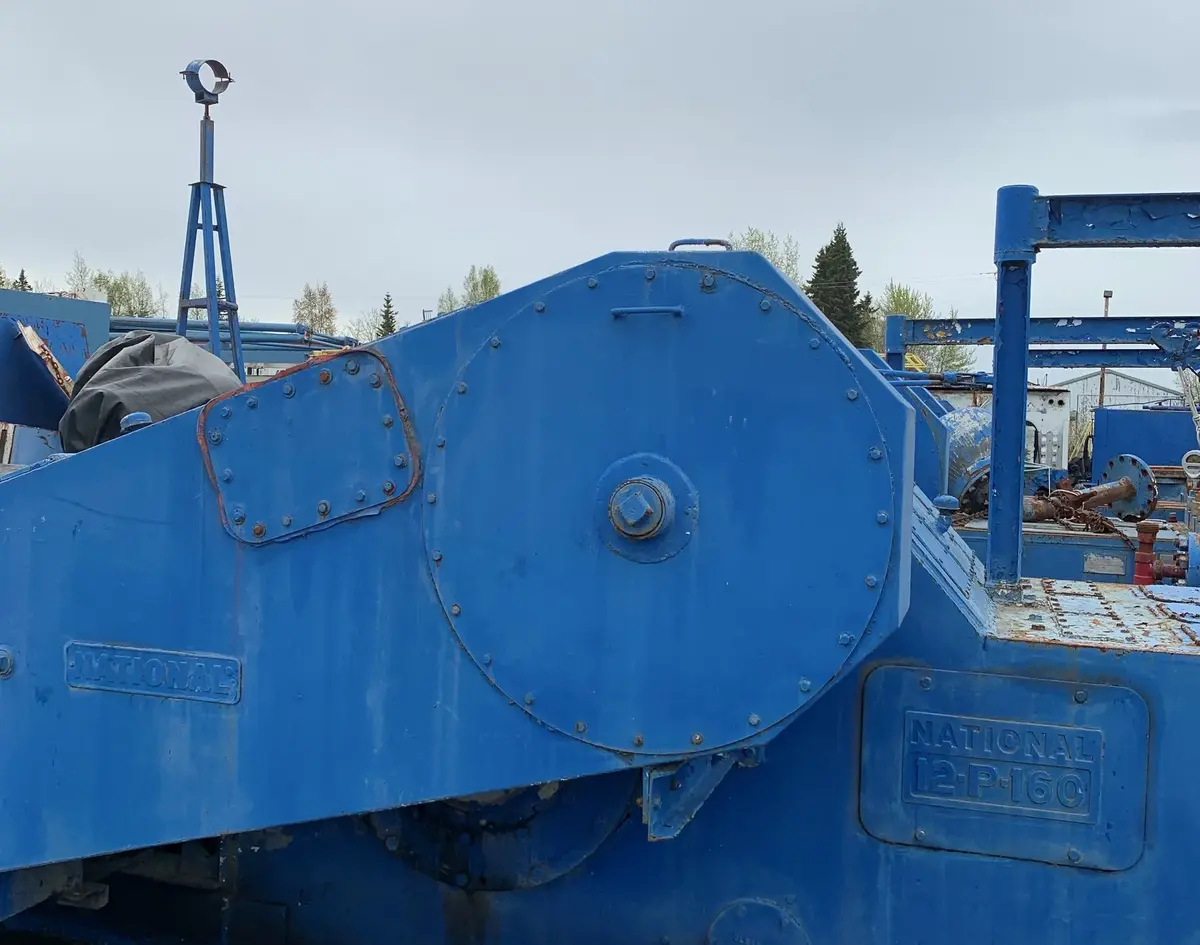

• 3 units of National 12-P-160 chain driven triplex main mud pumps rated at 1600 horsepower, each driven by 2 units of GE752 - 1000HP electric motors.

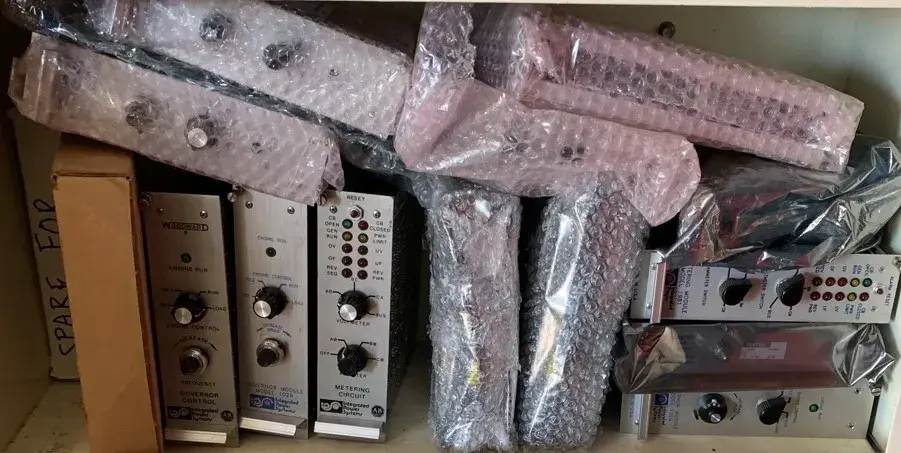

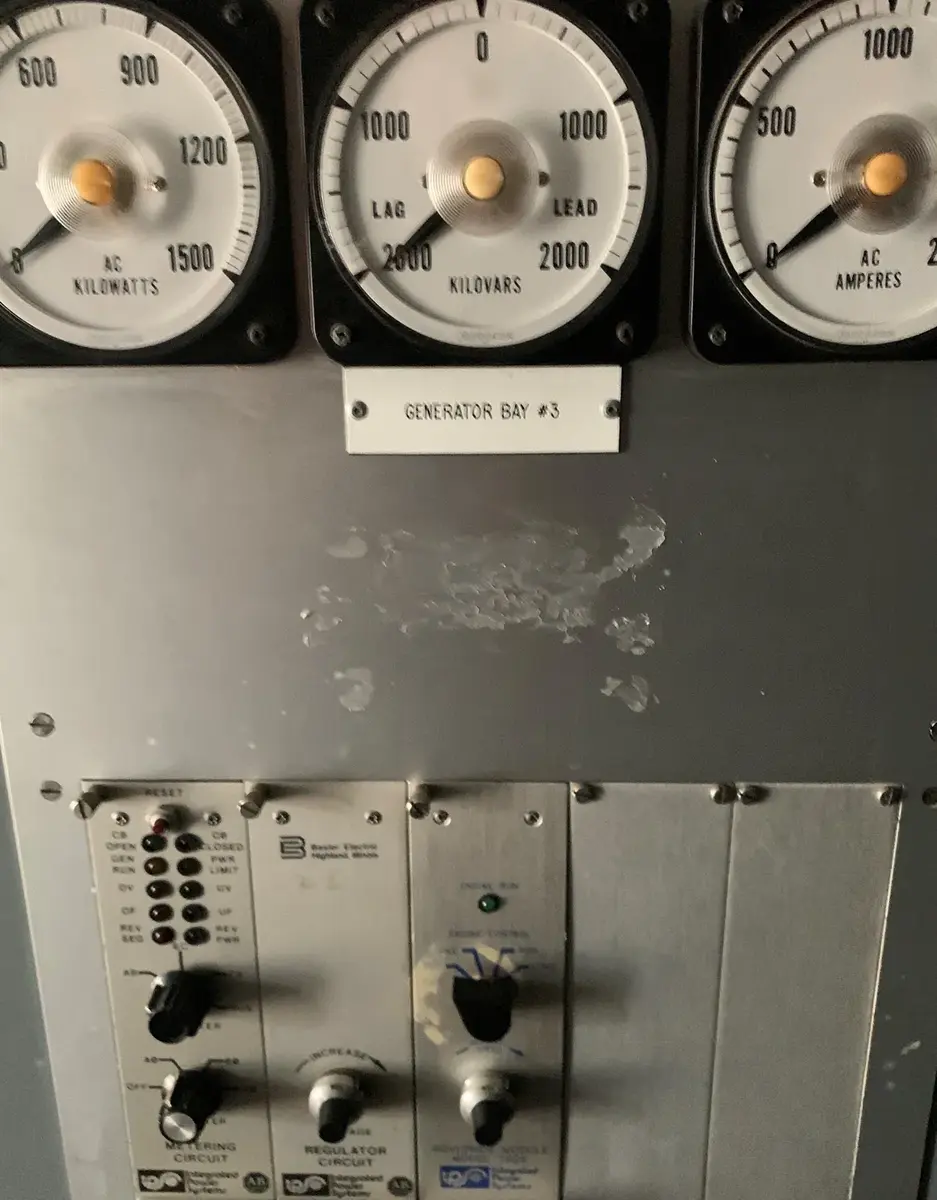

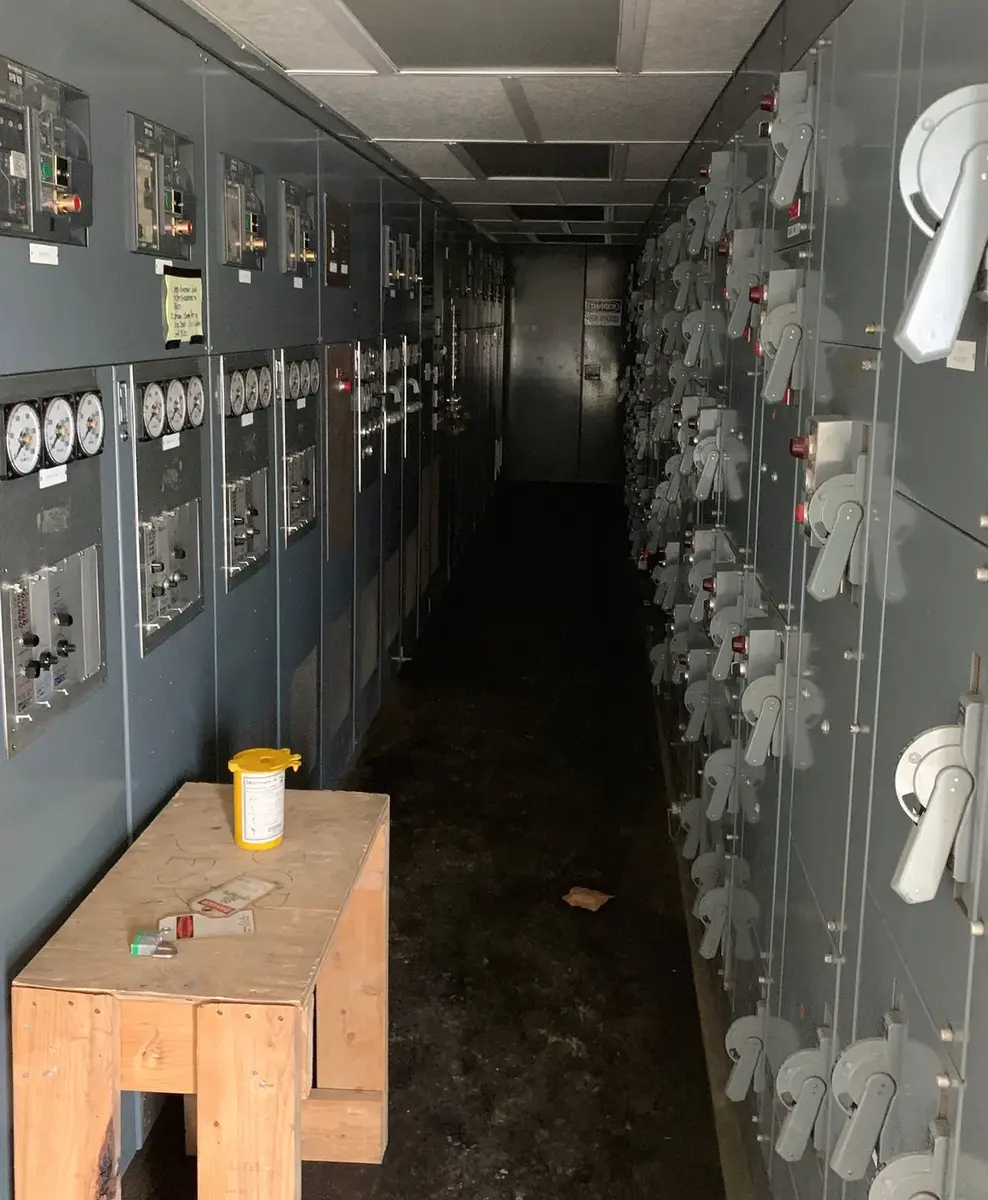

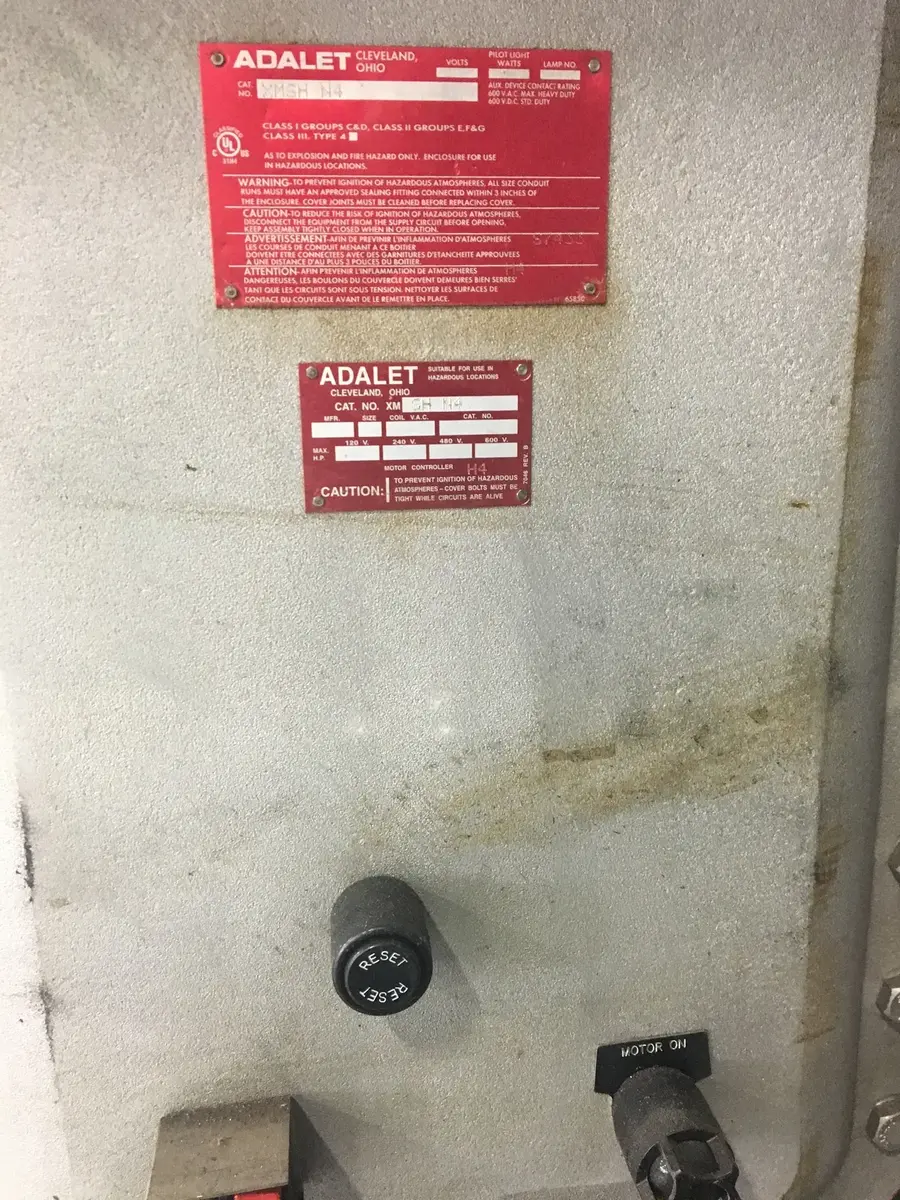

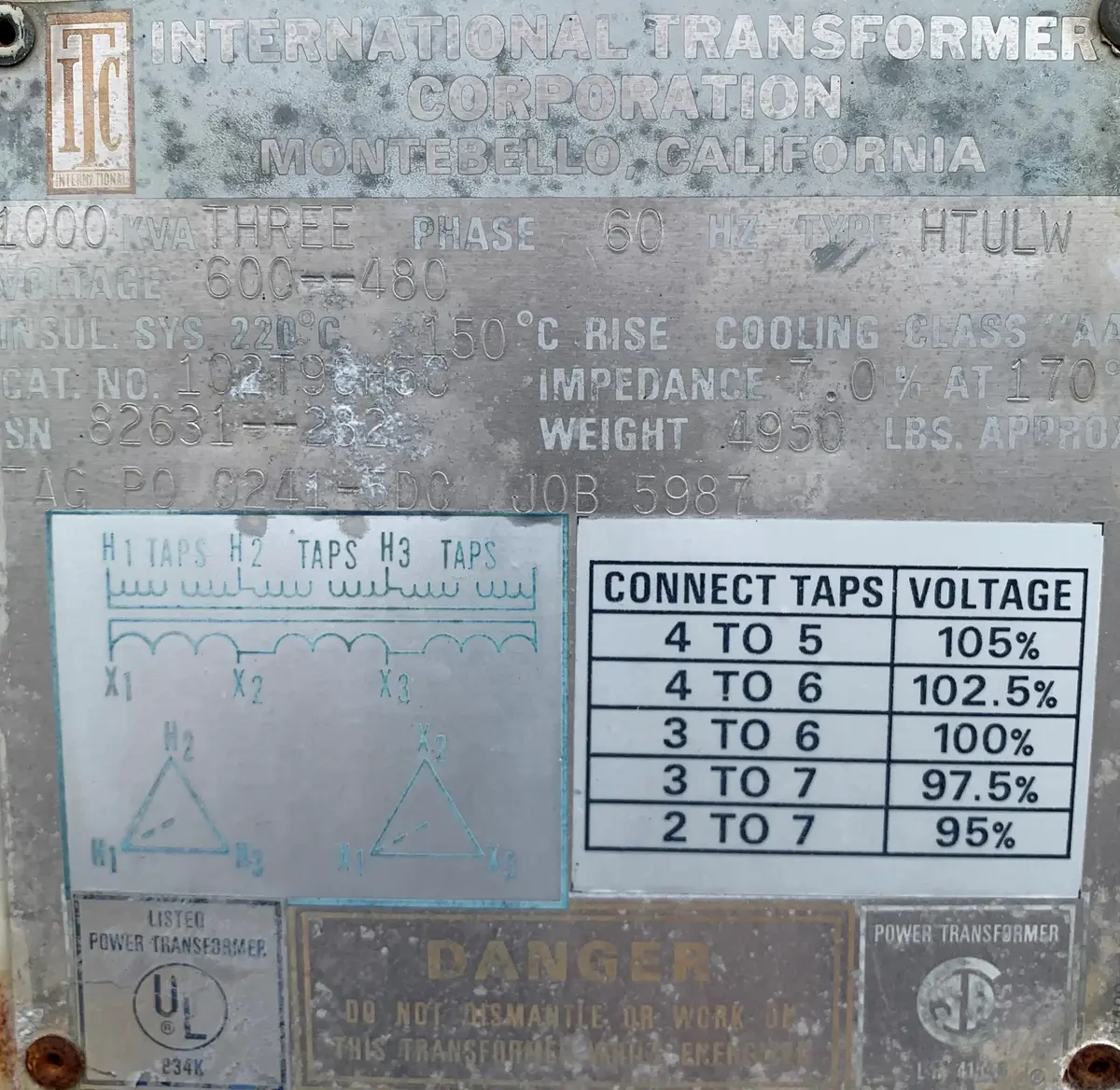

• Shunt 5 Bay SCR System.
• 3 units of Caterpillar 399  Generators

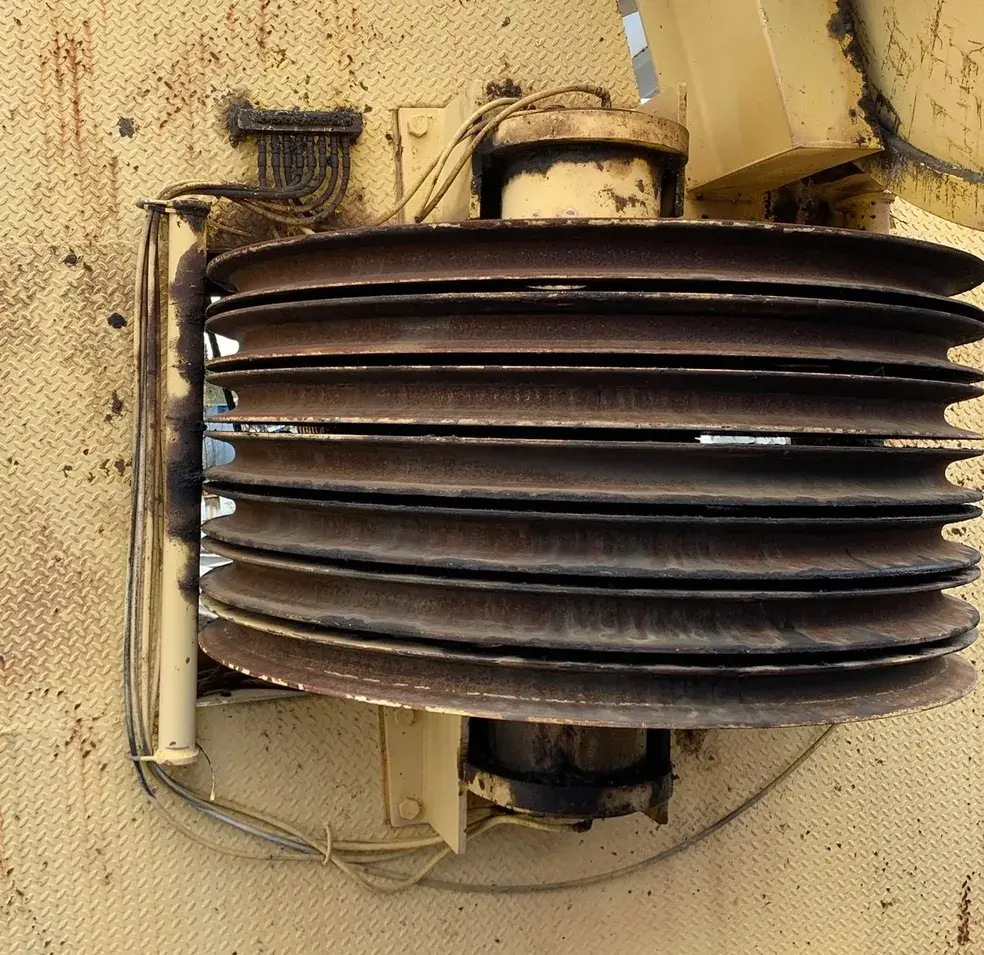

• Traveling Block/Hook National 650 Ton hook/block combination.
• National P-650 tons swivel.

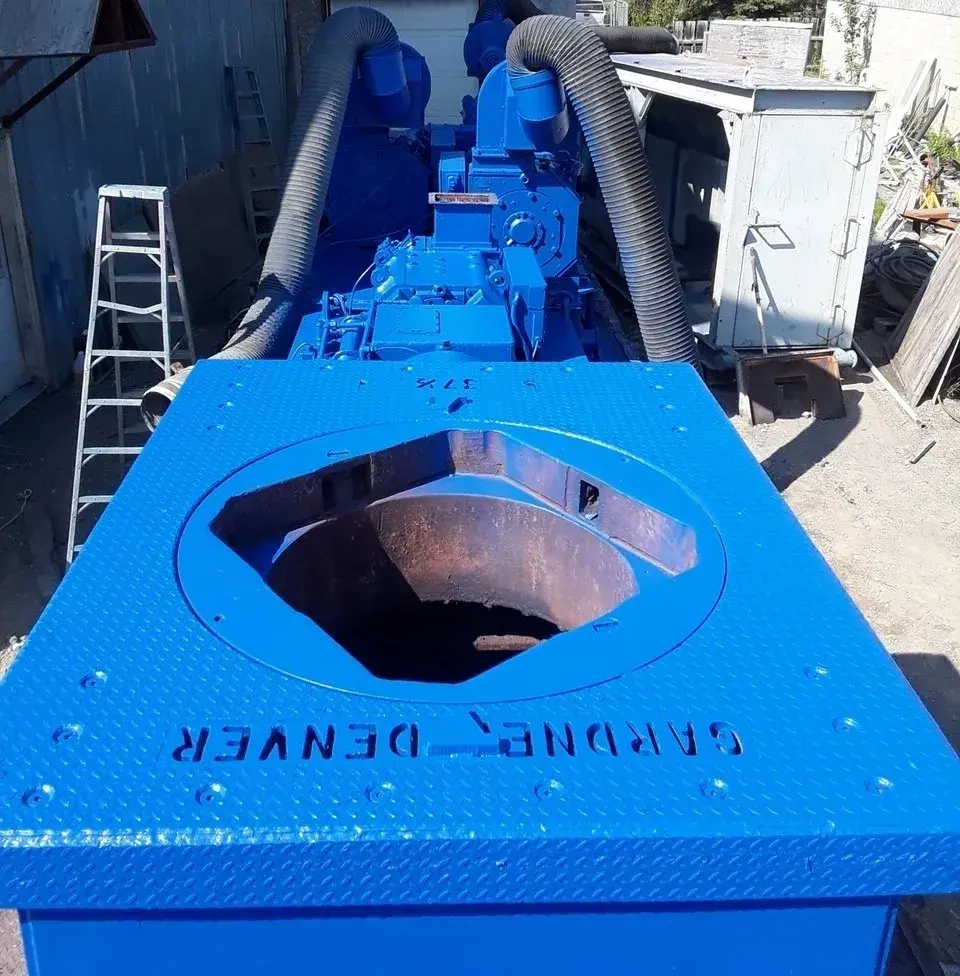

• Gardner Denver 37 ½ inch Rotary Table driven independently by 2 speed transmission and GE752 - 1000 HP DC Motor.

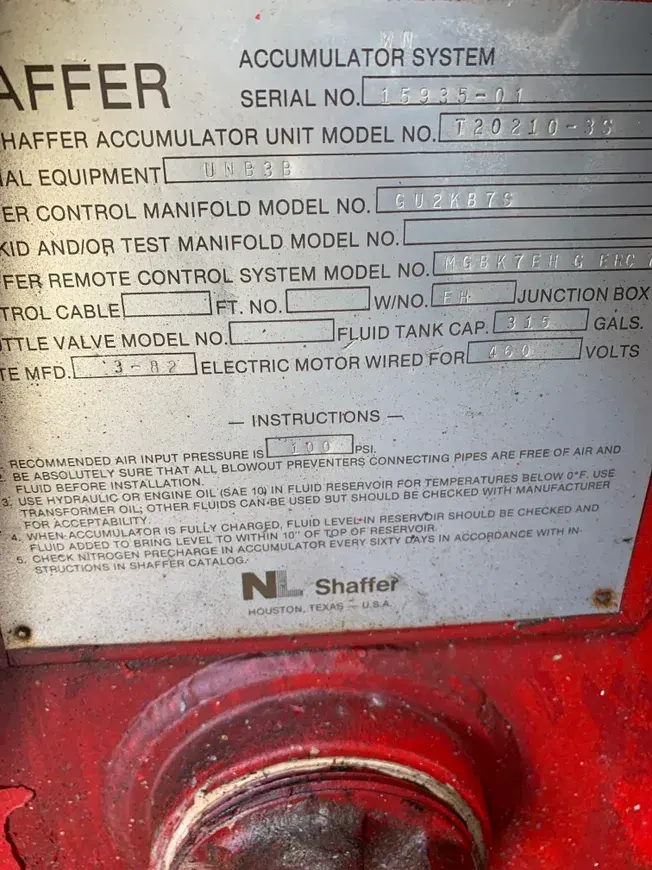

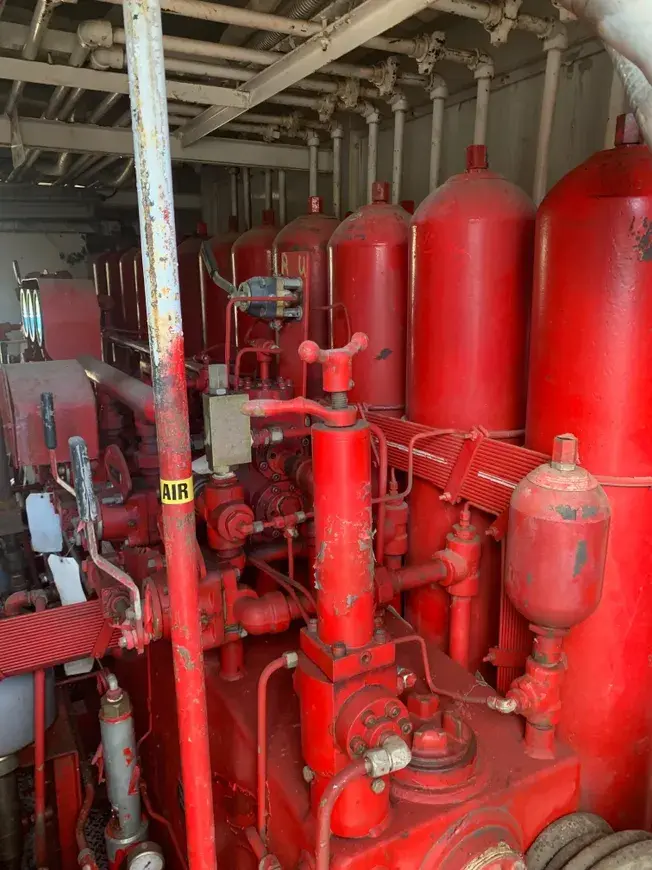

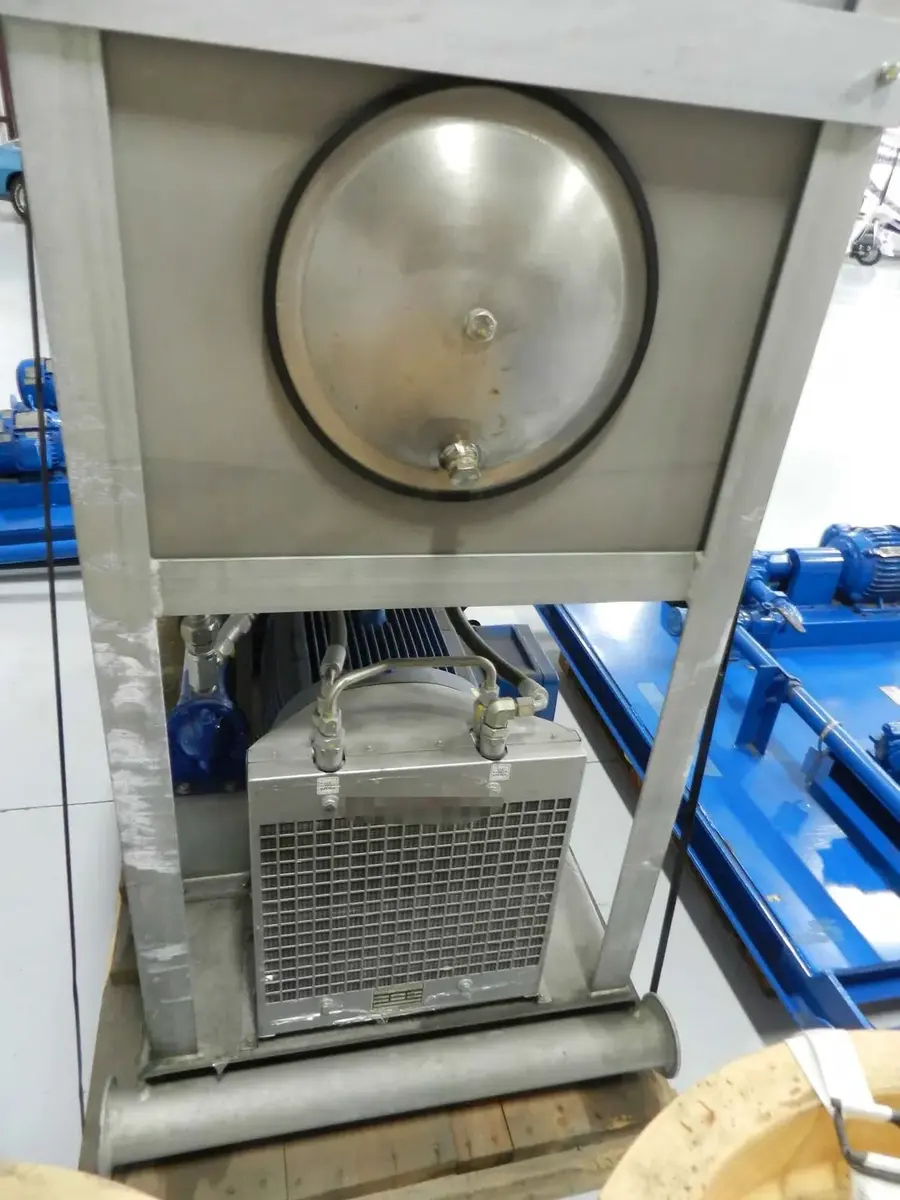

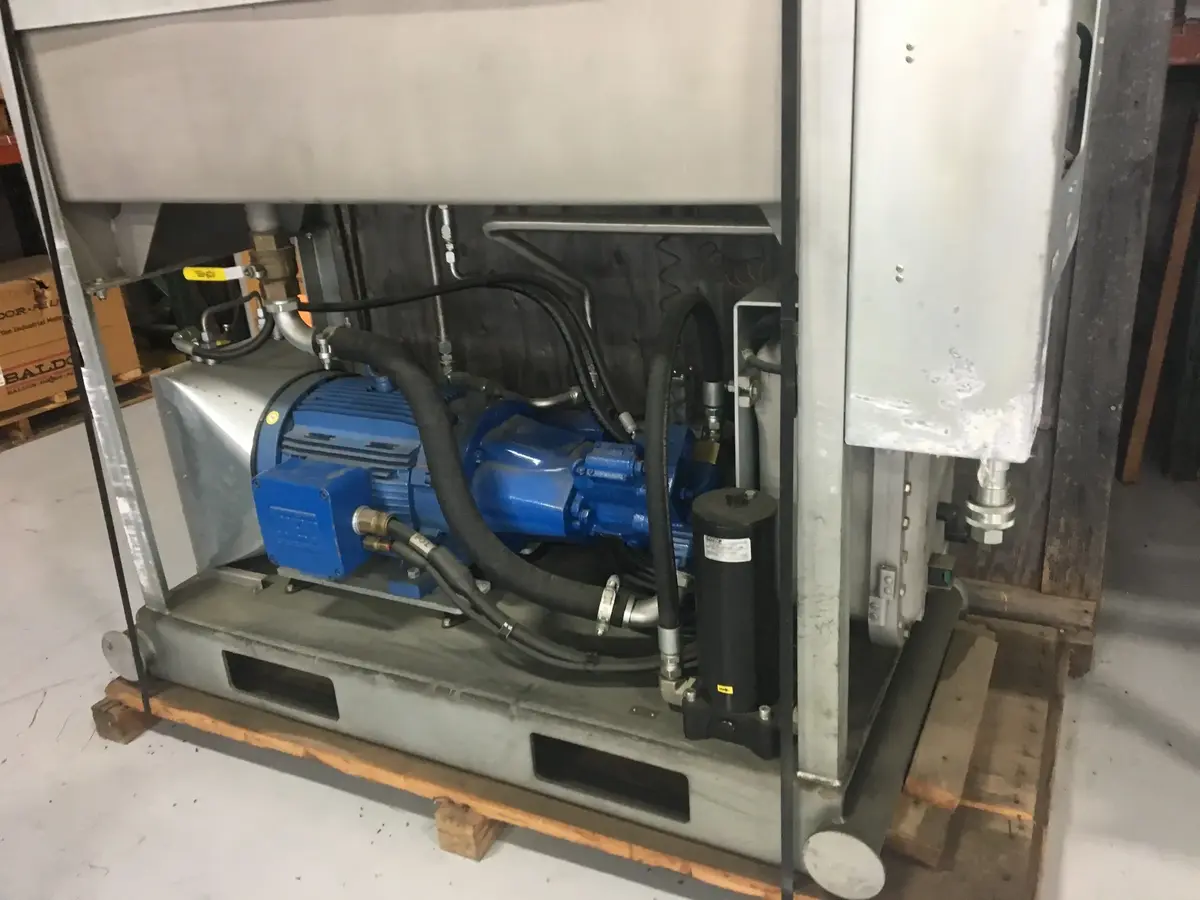

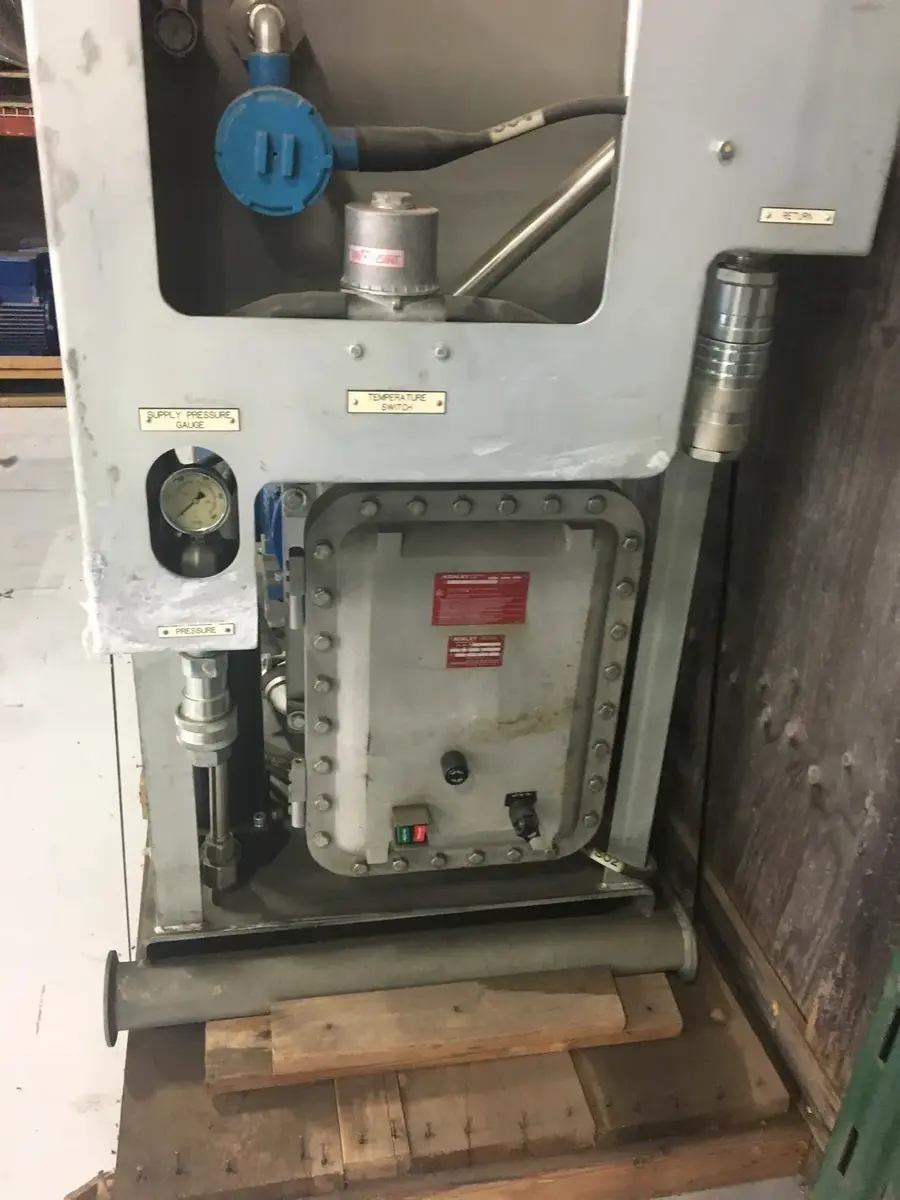

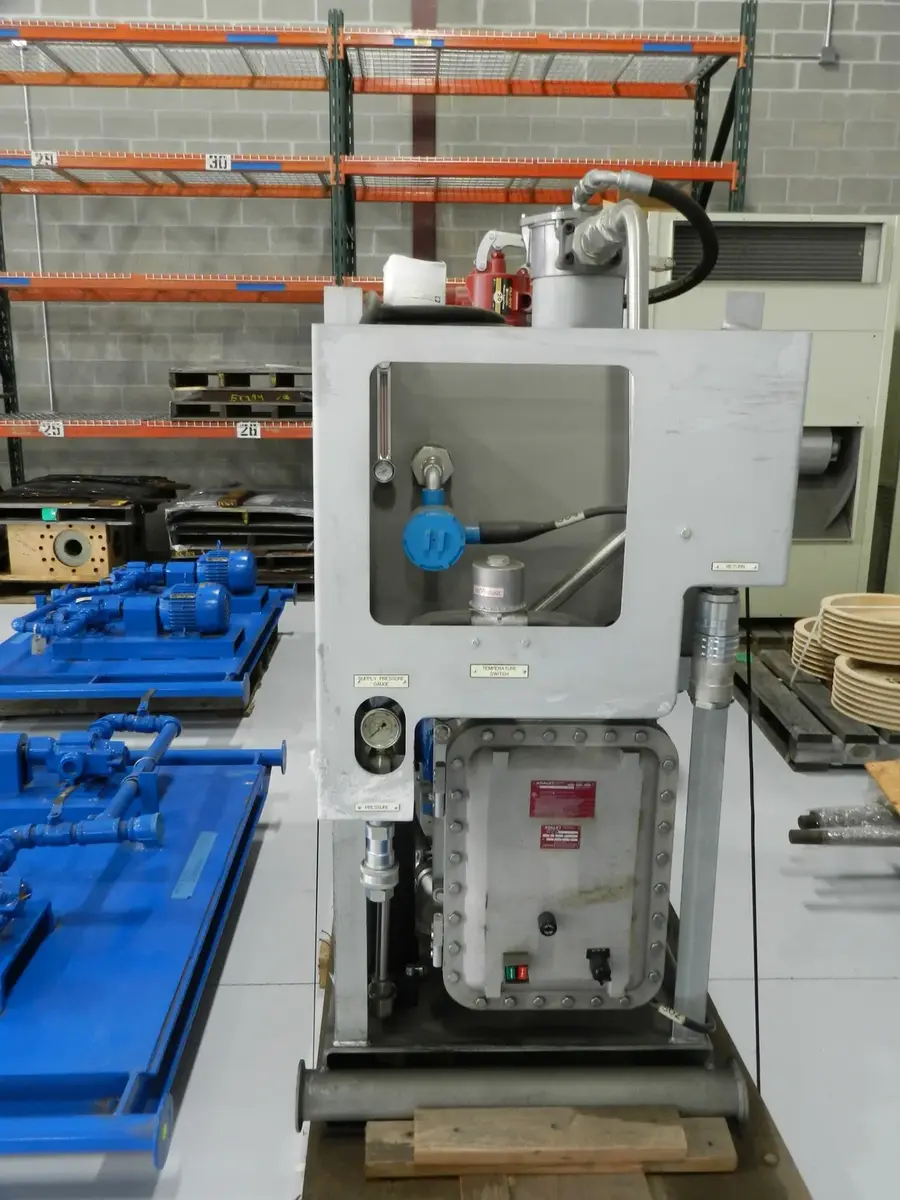

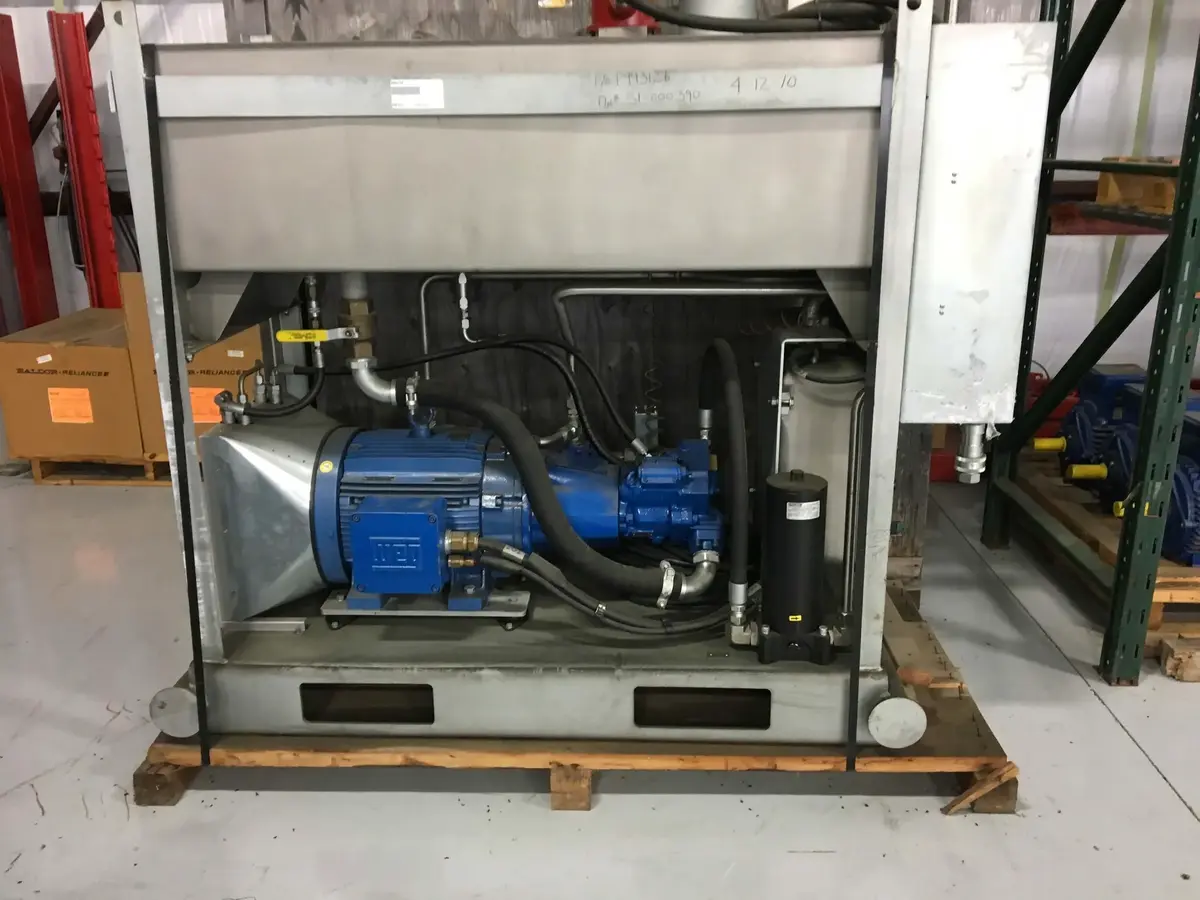

• Accumulator Shaffer, 230 gallon seven station, with an electric powered triplex pump, two air operated pumps, regulating valves and seven remote controls.
• Choke manifold
  • Desilter 12-4 inch cone, 800 gpm capacity desilter
  • Desander/Mud cleaner 2-12 inch cone, 1000 gpm capacity desander
• 4 units of 7.5 HP mud agitators
• 3 units of Mud pits of 1635 barrel system with a 65 barrel slugging compartment in the suction tank.
  • Mud system is equipped with clean out gates.
• Water storage 527 barrels and 16,000 gal fuel tank.
• 2 units of air compressor quincy model #QSI235, 150#WP
• Air Dryer Sullair SAR-630

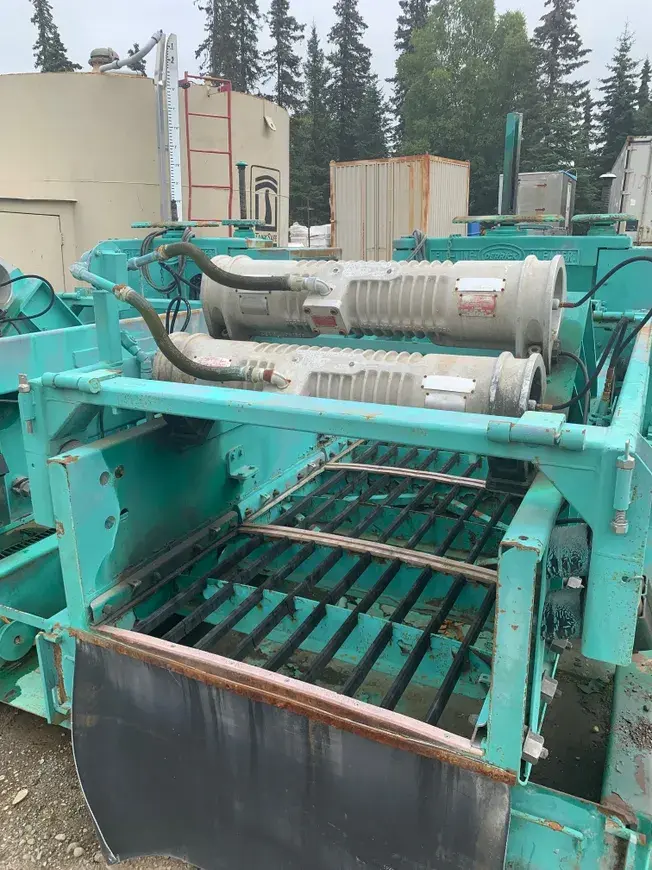

• 3 units of shale shakers model 48 Derrick flow line cleaners linear motion shale shakers.
• Mix Pump 5” x 6” Centrifugal driven by one 60 horsepower motor.

NOTE: TDS Topdrive is not included in the system but available upon request.
