SAAB SeaEye Falcon

Seaeye Falcon ROV system specification

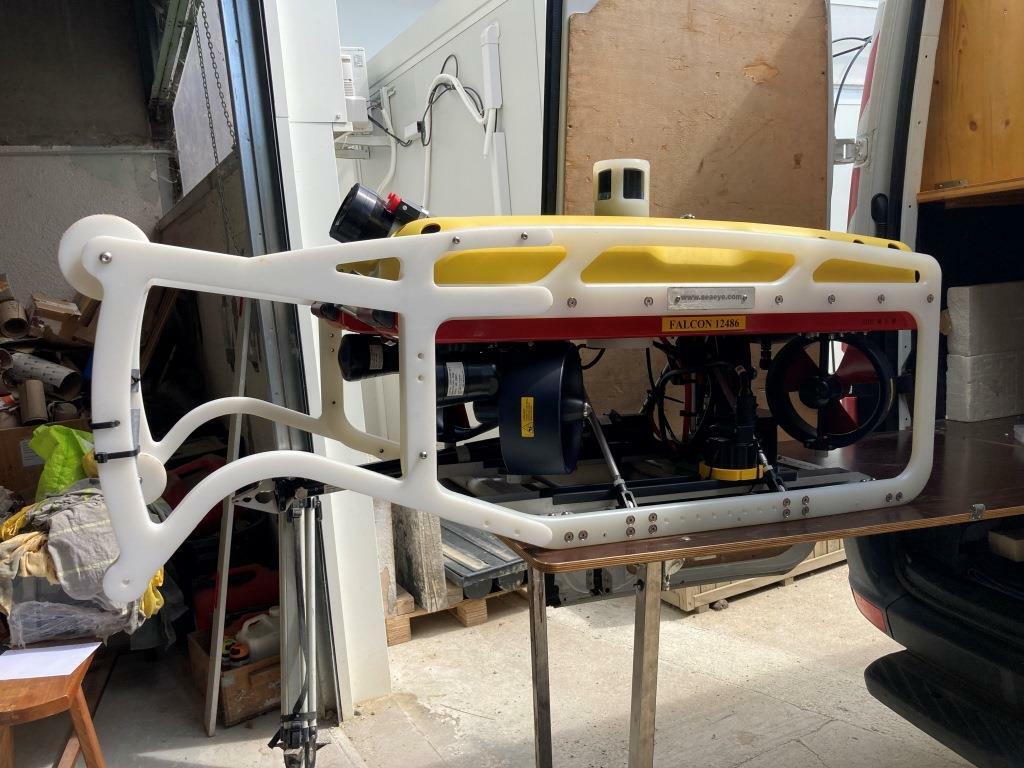

• Falcon vehicle with 14kg payload and comprising:
  • five SI-MCT01 brushless DC thrusters (4 vectored horizontals and 1 vertical);
  • Seaeye Colour video camera, tilt platform and tilt feedback system;
  • Automatic heading & depth;
  • Navigational solid state compass and integral solid state rate sensor ;
  • Two dimmable LED lamps.
• Surface Control system including:

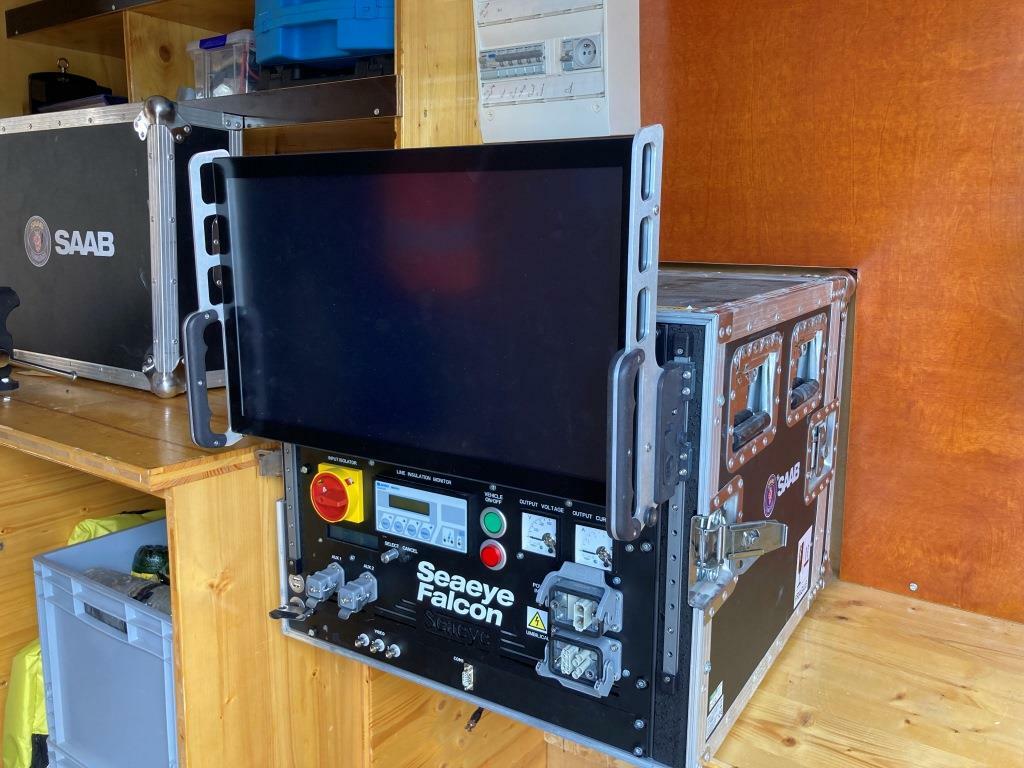

  • Surface control unit c/w a 22" colour High Brightness Removable Monitor;
  • Surface power supply unit;
  • Hand Control Unit;
  • iCoN Configurable Video Overlay system;
  • NMEA Input/Output (data export) feature.

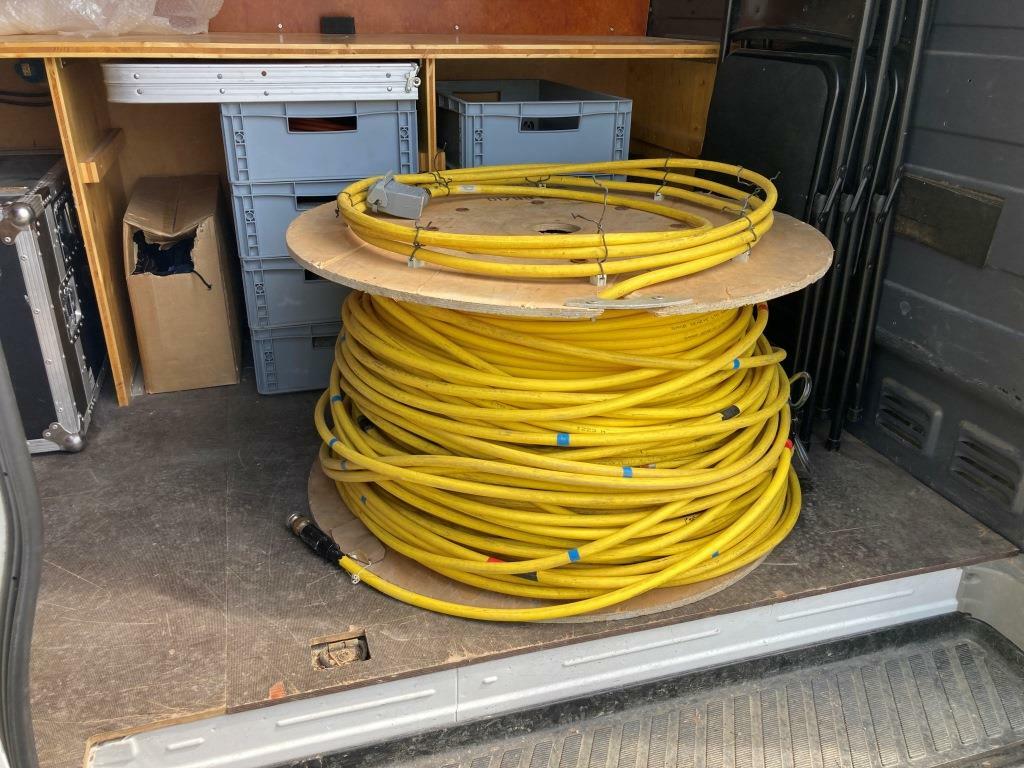

• 450m (approx) 16mm diameter umbilical cable (includes additional twisted pair for additional equipment);
• TRITECH Super Seaprince DST Sonar:
  • Super Seaprince DST 675kHz Sonar Head;
  • Super Seaprince Sonar Integration Kit;
  • Tritech Seahub Interface Module;
• Dual Laser system for Video Survey and Measurements (includes whip and bracketry);
• Single function 3-jaw manipulator, incl. soft rope cutter;
• Falcon spares package;
• Falcon Technical Manual;

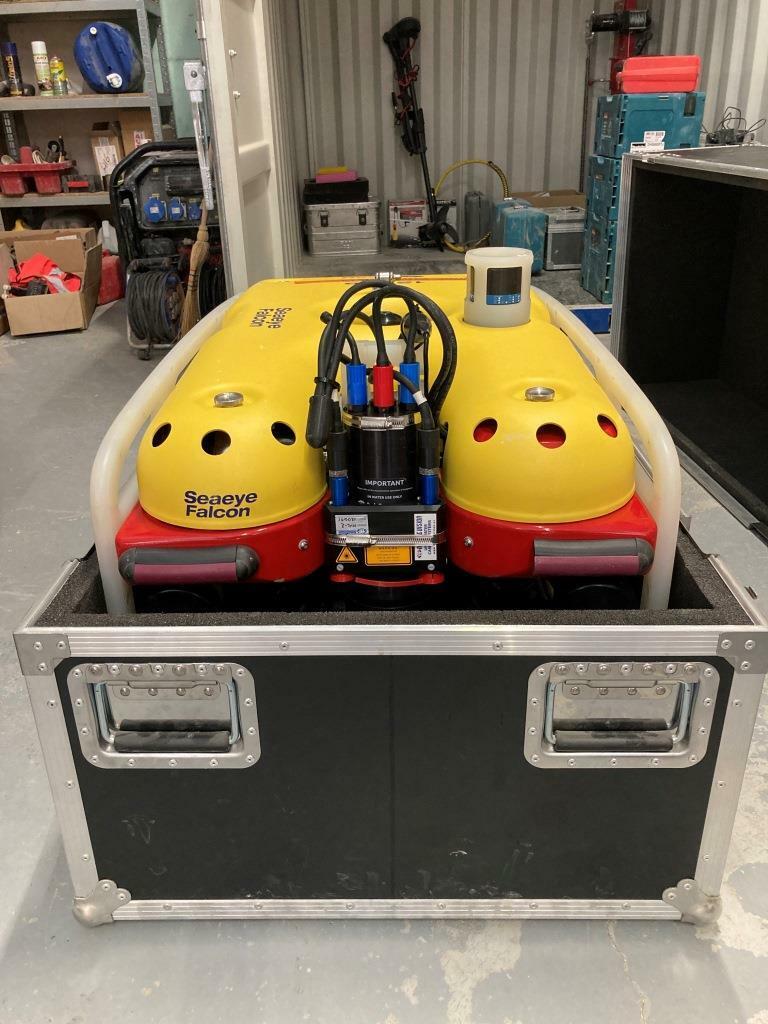

• Transport case for vehicle.

Additional 3rd party equipment Included:

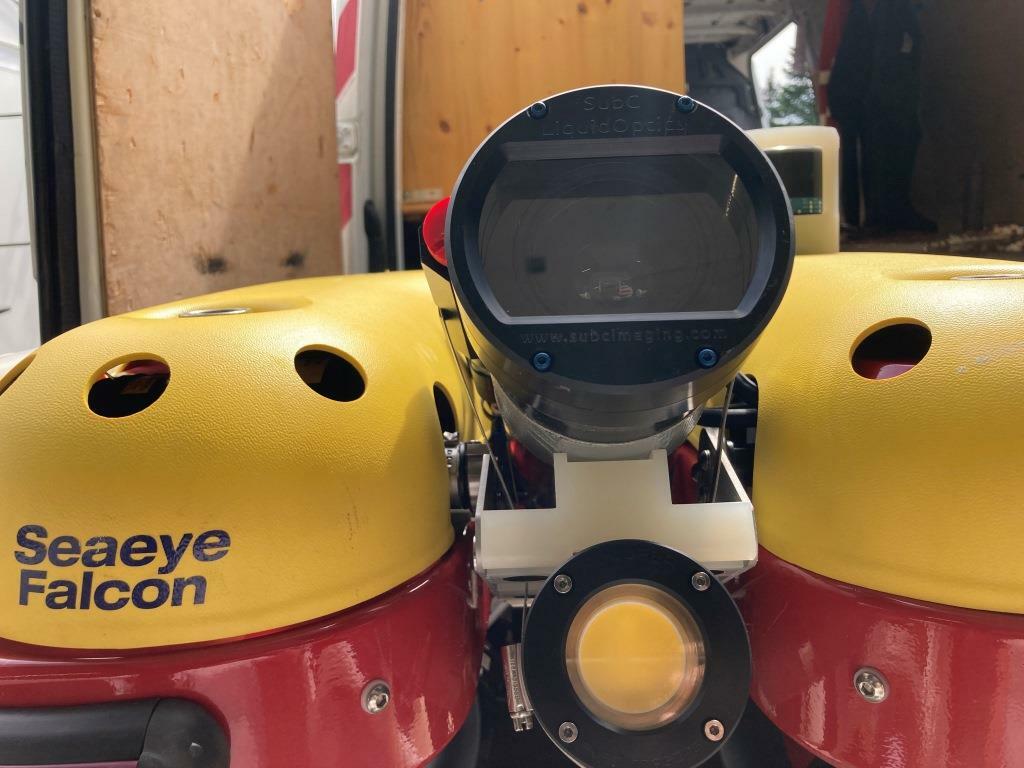

• HD & 4K Camera: SubCimaging Rayfin coastal camera including BPC unit to power the camera. Unit is interfaced to the ROV.
• Led Light & Strobe Aquorea MK3 Led White including cables. This unit is synchronised with the camera.
• Auxiliary pod (SI-AUXOP02-1: 24Vdc @150W, RS485/232, BH6FS, 300m) to allow connection of other devices/sensors (for example: Qlink with IP Camera and Gemini Sonar - NOT INCLUDED) and transfer ethernet data to the unit control surface (converter required).

Optional items:

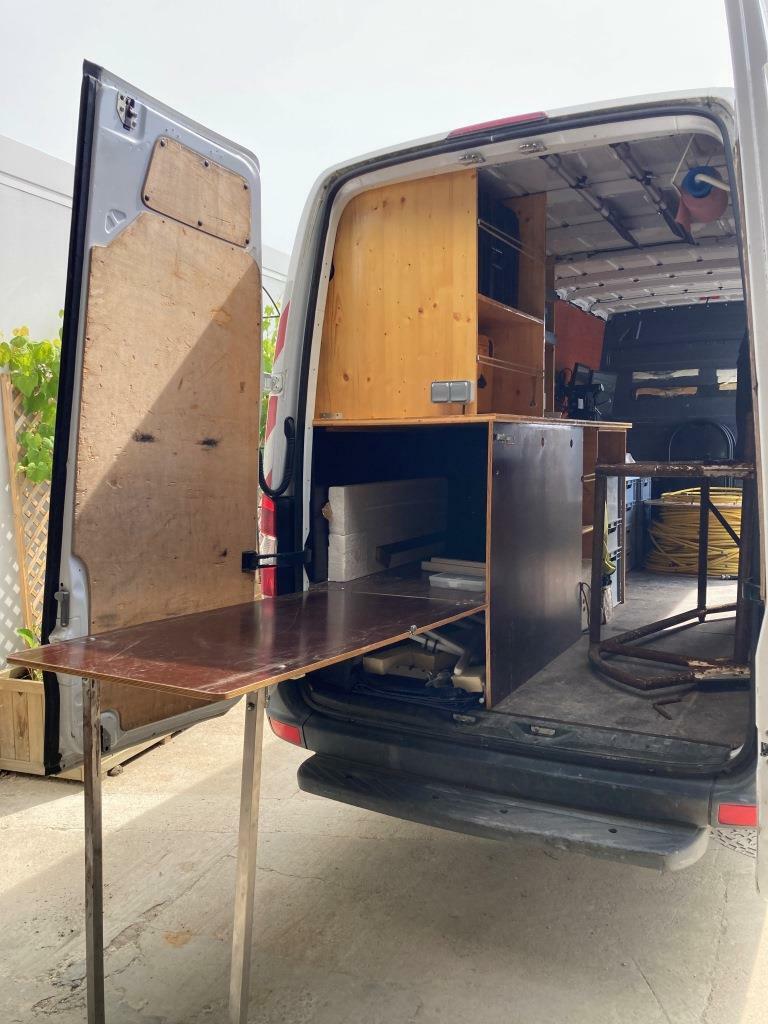

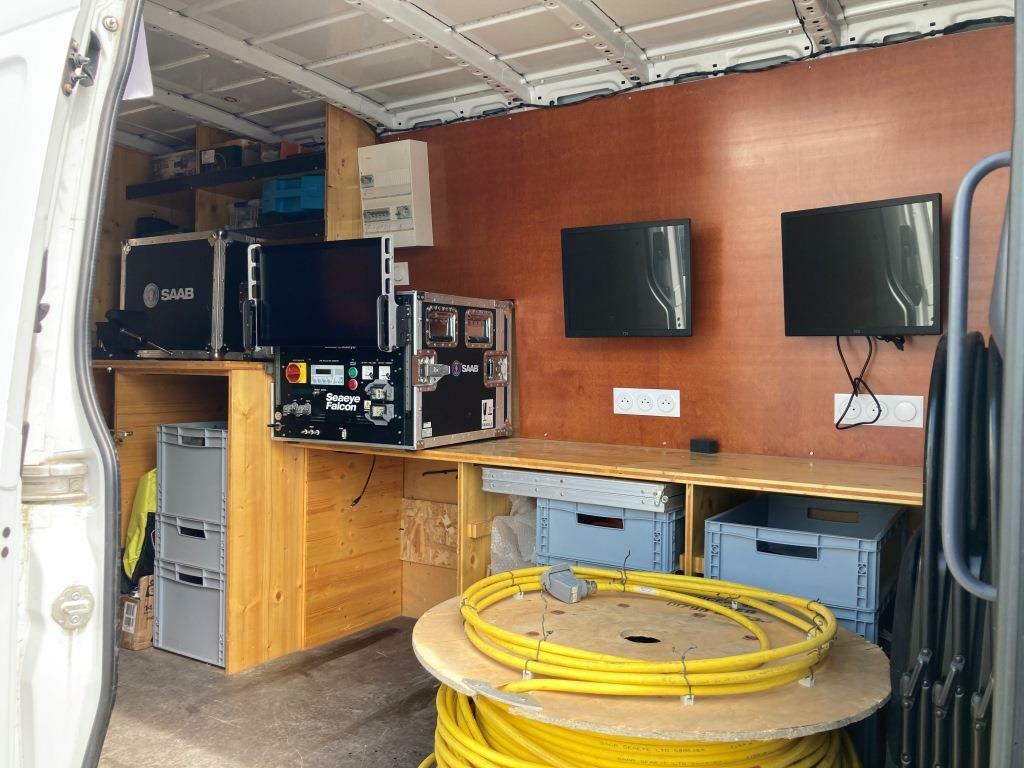

• ROV is partly integrated to a Mercedes Sprinter 313 hi-top van (2013, 122,000 km) - see pictures.

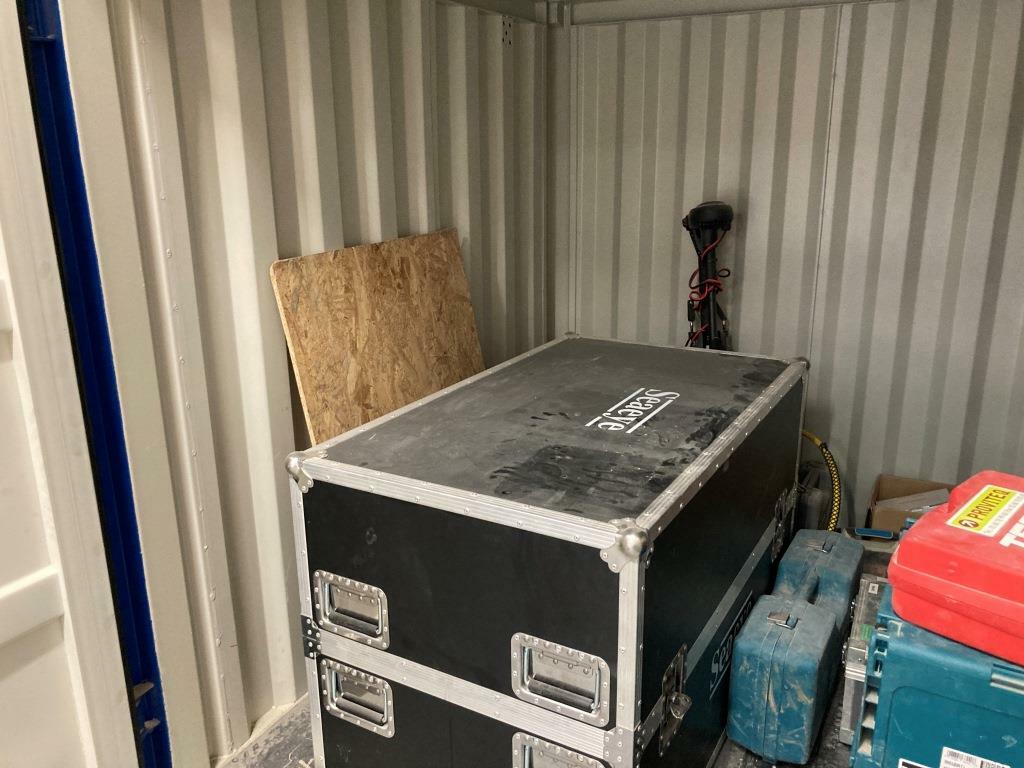

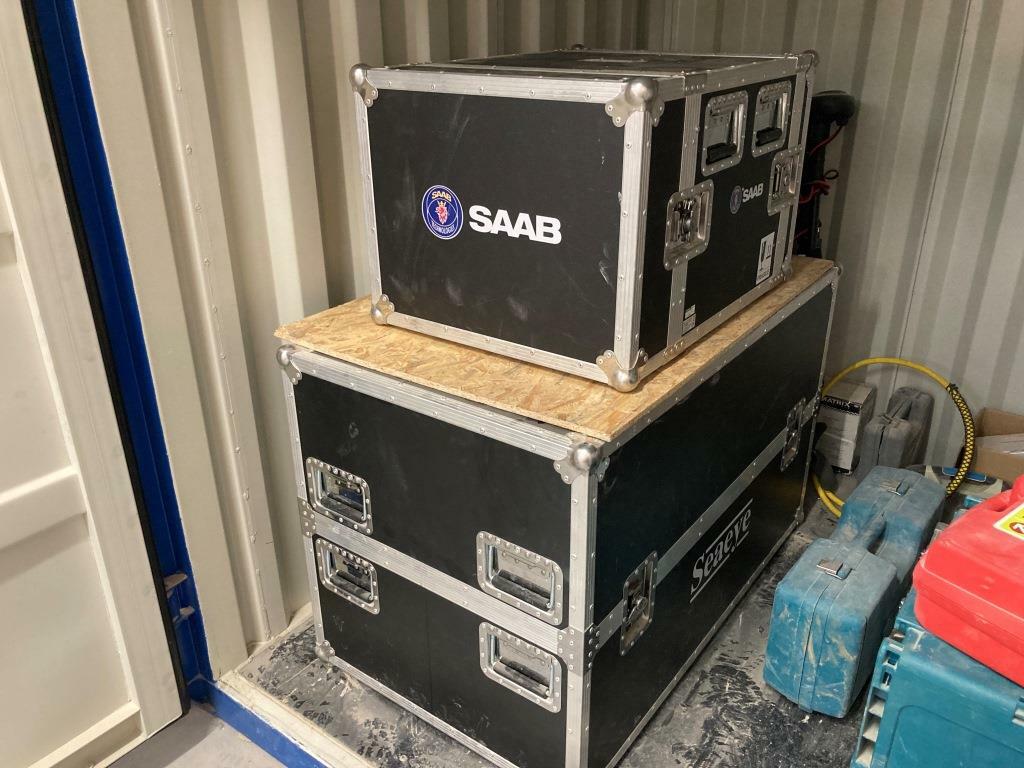

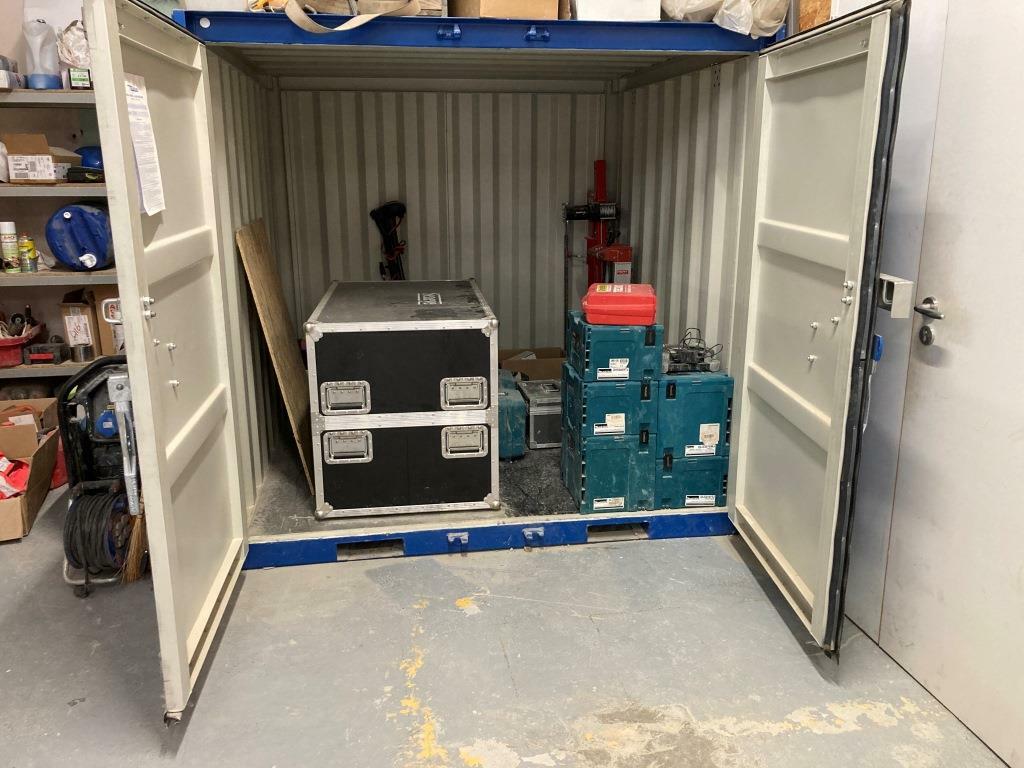

• Storage container (see pictures).

This ROV is in excellent condition and ready to operate immediately. Contact us for further details.
