Forum Triton XLS 37 ROV

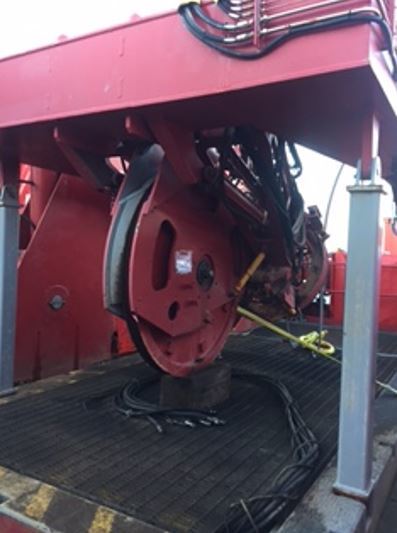

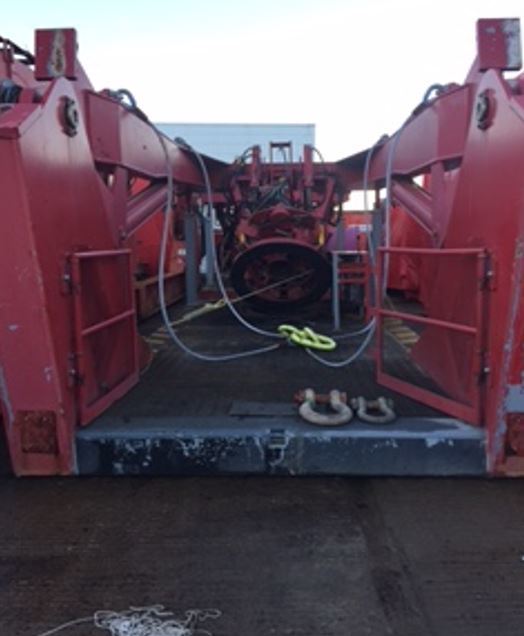

This ROV system is one of Subsea 7’s work-class ROVs manufactured by Forum. It is a 150hp, 3000m rated system and includes a Mk5 Perry TMS, winch and A-frame. Contact seller for further information.
Details
Key specifications:
- Heavy Duty Work Class ROV, depth rating: 3000/4000m, Power: 150HP
- Through frame lift: 3000kg
- Control system: Single Mode, Fiber Optic PC Based
- Payload capacity: 300 kg
- Length 3000mm, Width: 1850mm, Height: 1890/4000mm
- Weight in Air: 4400 kg
- Power Pack: 100/150 Shaft HP
- Bollard Pull (Nominal); Forward: 1100 kgf, Lateral: 1100 kgf, Vertical (up): 1130 kgf.
- Sensors: Gyro/Fluxgate Compass; Pitch/Roll Sensor; Digiquartz Depth Gauge; Auto Functions (Heading/Depth/Altitude/Position); General Function Valve Pack (10 Function); Lighting System (3000 watts total); Velocity Logger-ROV DP.
- Interfaces for: Manipulator (Left/Right), Sonar and Hydraulic Tool Interfaces
