Seabat 8125h Multibeam Echosounder

Teledyne Reson Seabat 8125h Multibeam Echosounder. Operational and ready for immediate sale on an 'as-is' basis. See below for further details or contact us directly.

Details

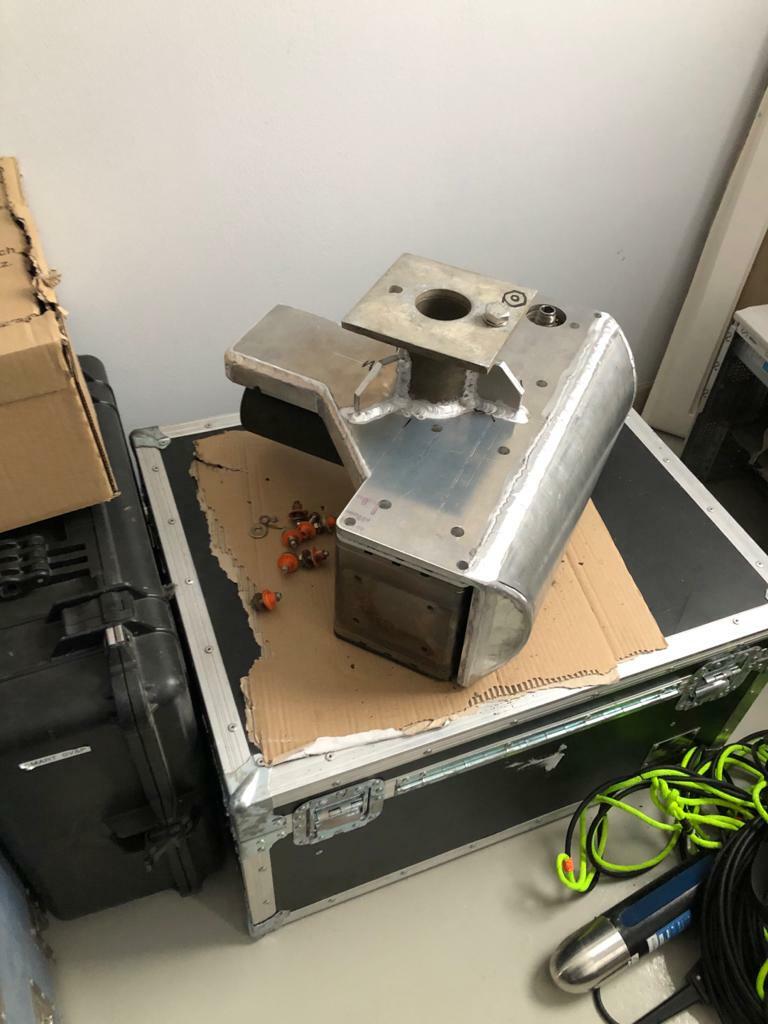

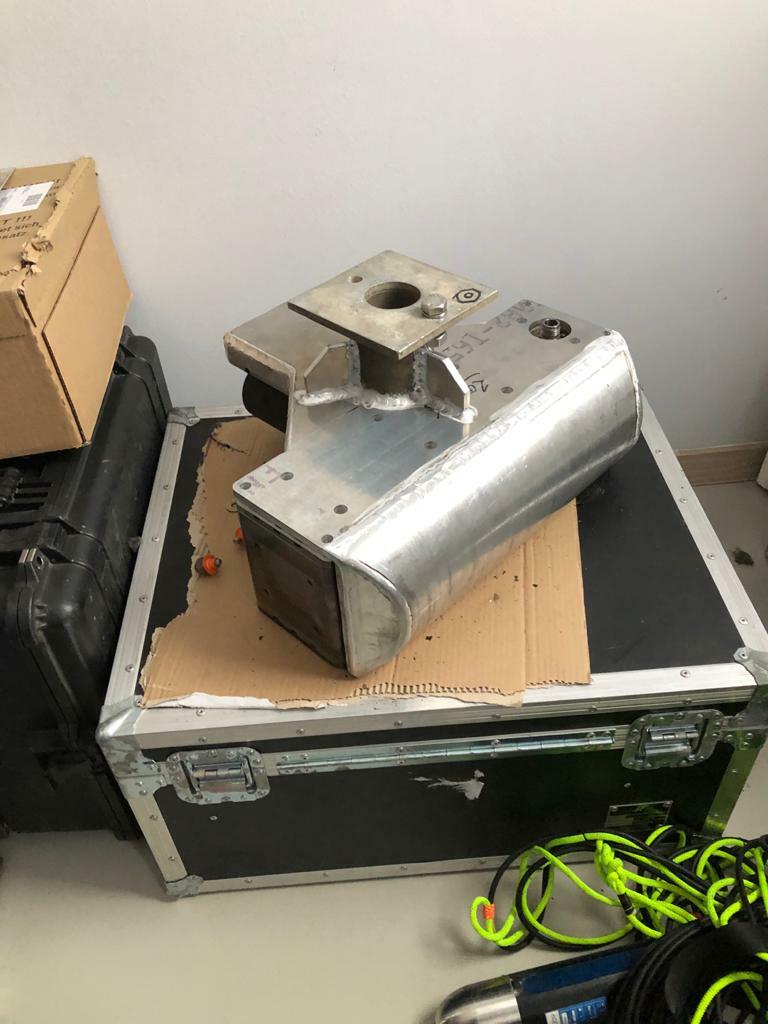

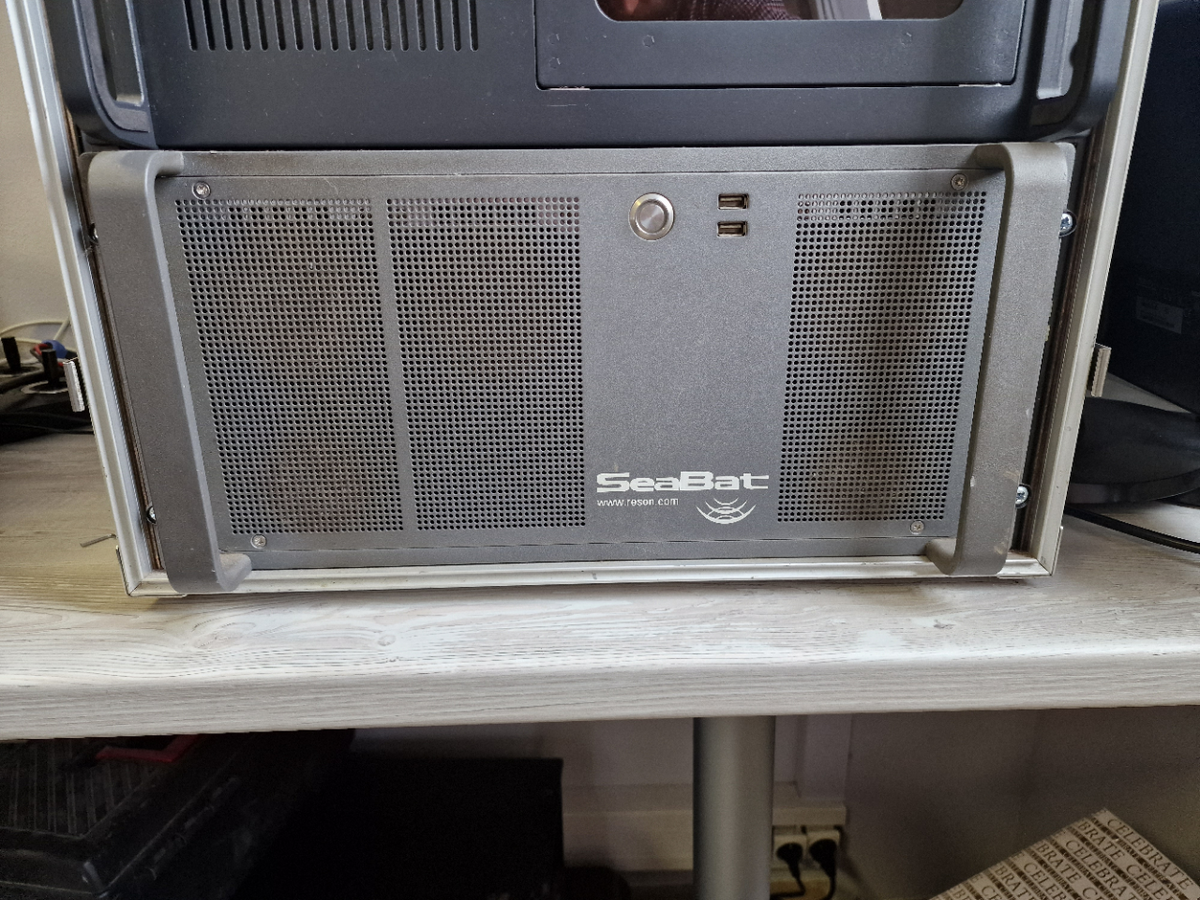

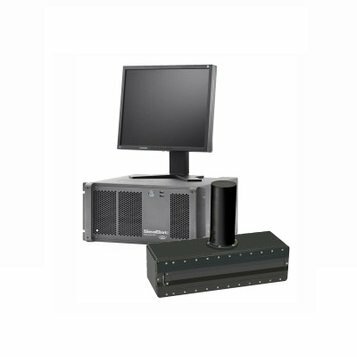

 Teledyne Reson Seabat 8125h Multibeam Echosounder with the following main specifications:

  • Frequency: 455kHz
  • Along-track transmit beam width:  1.0°
  • Across-track receive beam width:  0.5° (at nadir)
  • Max ping rate: 40Hz
  • Pulse length: 10 μsec to 300 μsec
  • No. of beams:  Up to 512 beams in selectable modes
  • Max swath angle: 120°
  • Depth resolution: 6 mm
  • Data interface: Bathymetry, sidescan & snippets, 7K data format, Gigabit Ethernet
  • Power requirement: 110/220 VAC, 50/60 Hz, 500W max
  • Weight (Titanium)  40kg (air), 18kg (water)
  • Real-time roll stabilization

Very good condition. Regularly used.

Show more
Show less
MAIN DETAILS
Manufacturer
Reson
Price
Contact seller
LISTING ID
3644
Year built
Not known
Location
Europe
