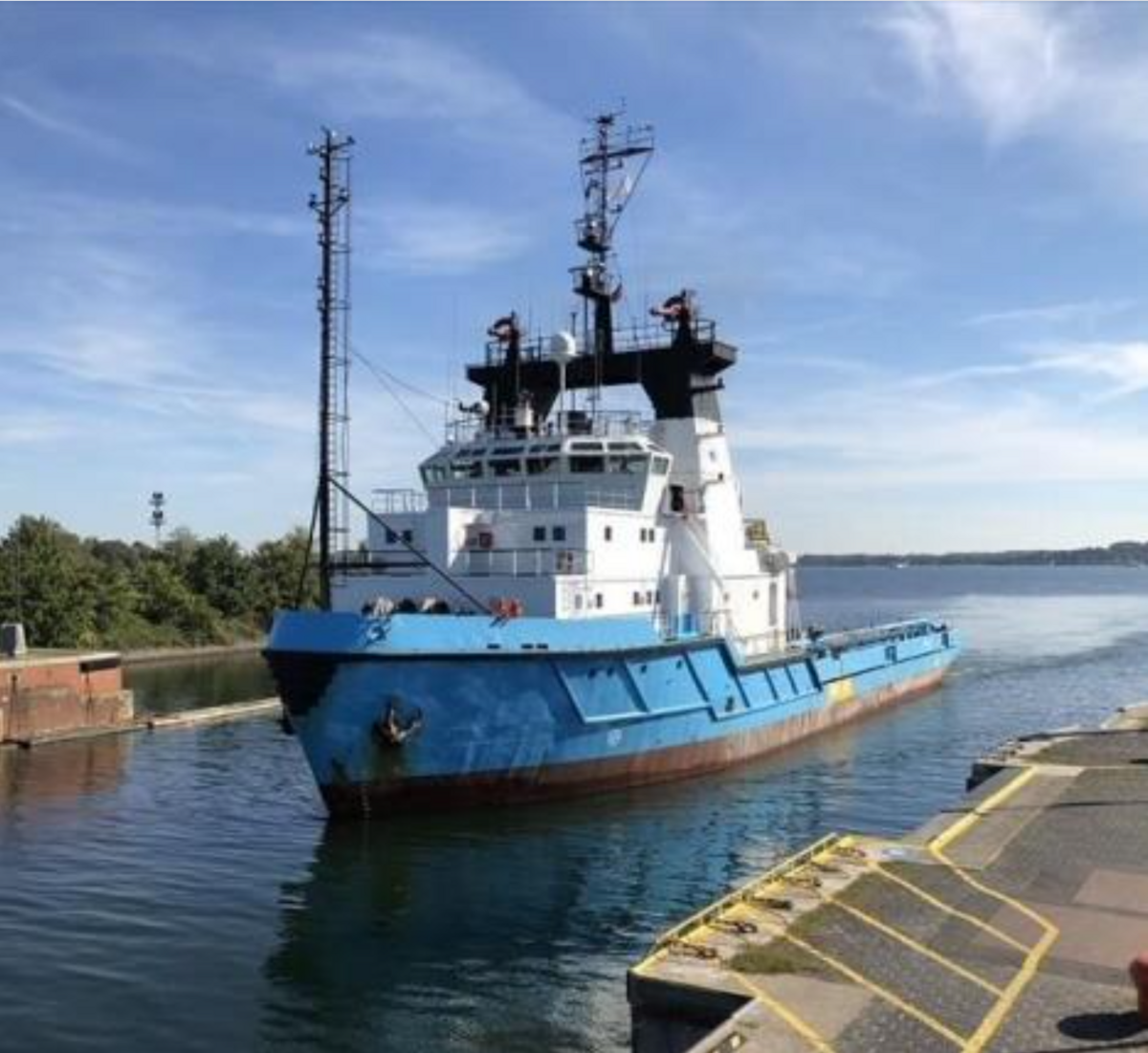

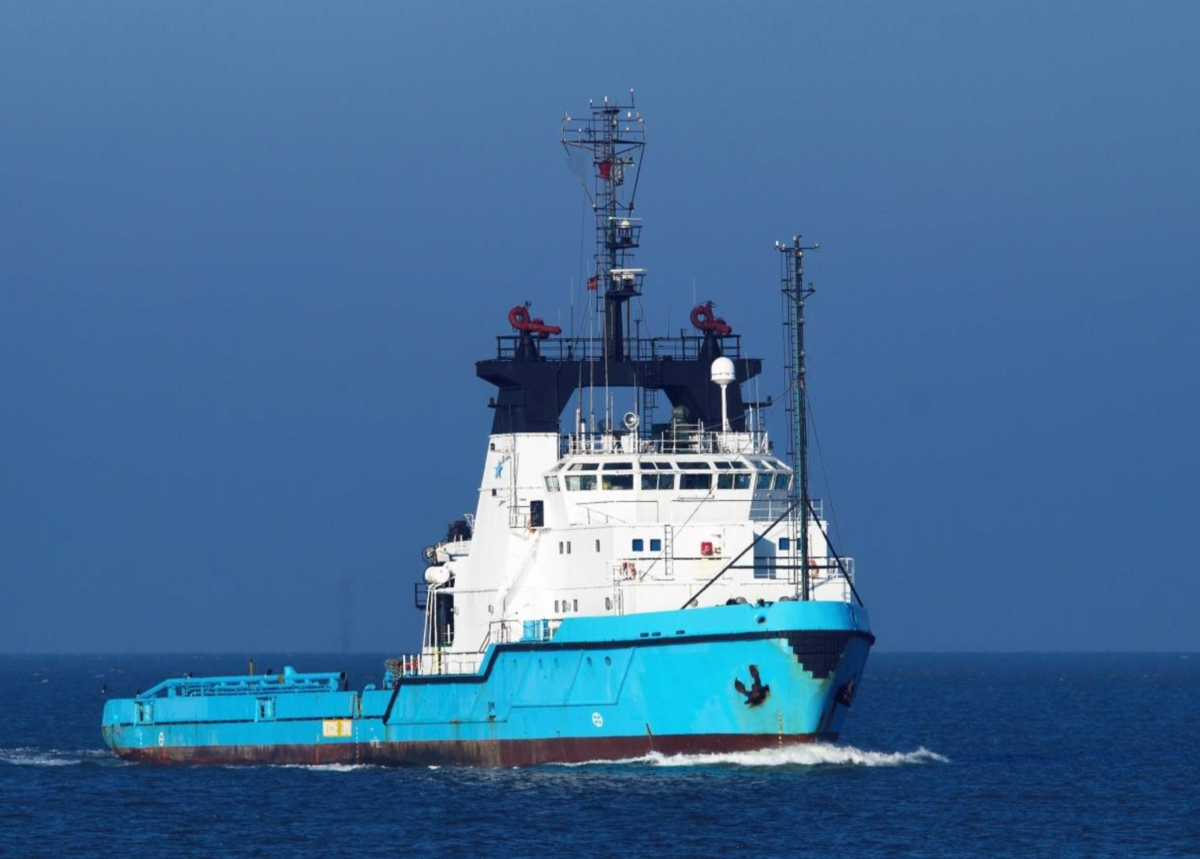

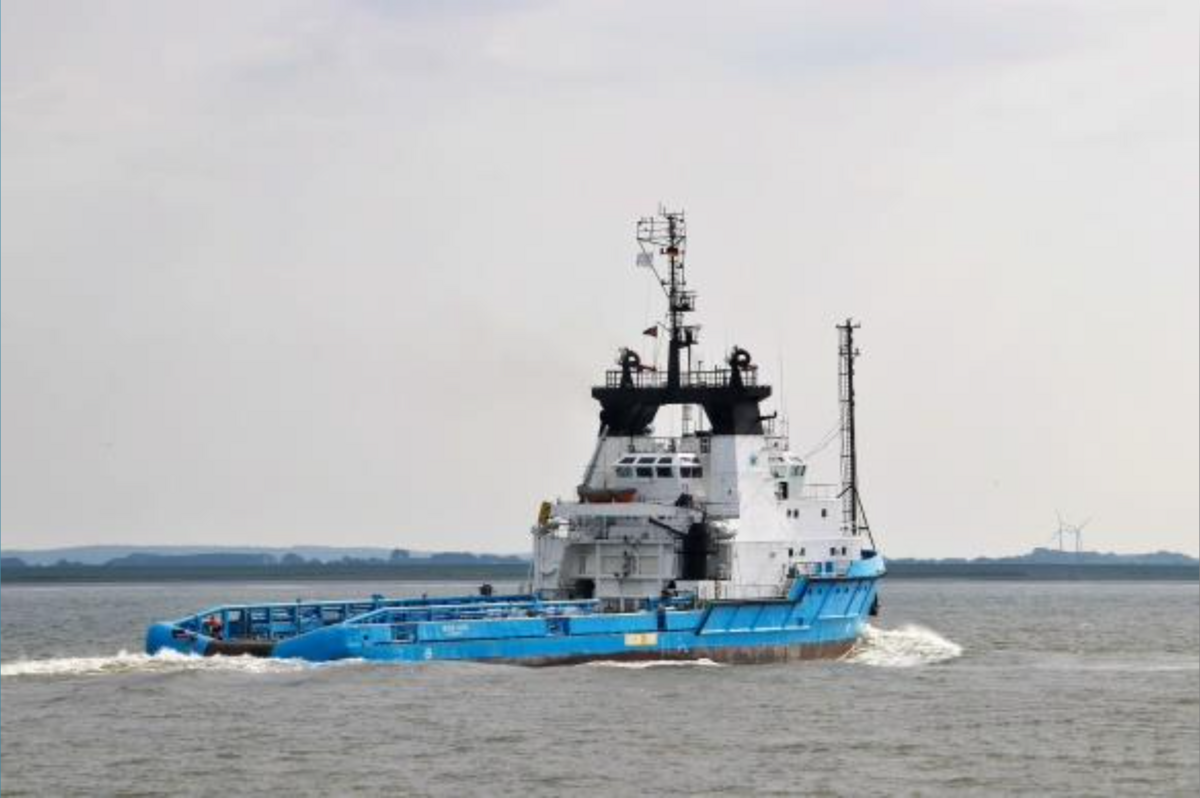

Anchor Handling Tug Supply Vessel

Equipment details

VESSEL PARTICULARS

• Year of rebuild : 2015
• Intl tonnage : 1.887 GT
• Deadweight : 2.160 t

ELECTRICAL PLANT

• Total electric power : 1.968 kW
• Electrical generation : 380 V / 50 Hz
• Electric plant : 3 x B&W 6T73M
• Emergency generator : 1 x Scania DS11

CLASSIFICATION SOCIETY

• Class: RINA
• Main Class symbol : C
• Main Class notation : Supply vessel, Tug
• Navigation notation : Unrestricted navigation
• Additional notations : AUT-UMS DYNAPOS AM/AT FFQ-1 IAQ-1

ACCOMODATION

• Vessel is fully conditioned for hot and cold climate
• Officers: 6 single cabins with toilet and shower
• Crew: 8 single cabins with toilet and shower
• Passengers: 12  /2 x 2 pax single cabin with toilet and shower /2 x 4 pax single cabin with toilet and shower

HOSPITAL

• Hospital capacity 1 x 1 bed

DECK EQUIPMENT

• 1 psc. Triple drum winch waterfall type 260 t pull
• 400 t static holding force
• 2 psc. Towing winches each with 1.000 m 76 mm wire and fitted with wildcats for 3” rig chain
• 1 psc. Anchor handling winch for 1.000 m 76 mm wire
• 1 psc. Pennant view reel 1.000 m 70 mm wire capacity
• 1 set Shark
• 1 set Hydraulic guide pins of Acta type
• 1 psc. Stern roller ∅2,0 m breadth 5,0 m
• 2 psc. Hydraulic capstan 8,5 t
• 1 psc. Hydraulic tugger winch 10,0 t
• 1 psc. Deck crane 16tx4m, 5tx16,5m

VESSEL DIMENSIONS

• Hull: Steel
• Length overall : 65,60 m
• Breadth : 15m
• Depth : 7m
• Maximum Draft : 5.98 m

PERFORMANCE

• Maximum speed : 13 knots
• Service speed : 10 knots

CONSUMPTION

• Maximum speed : 31 cbm per day
• Economical speed : 15 cbm per day
• Working offshore : 7 cbm per day

TOWING CAPACITY

• Bollard pull : 100t

CARGO CAPACITY

• Clear deck area : 422 m2
• Clear deck length : 35,20 m
• Clear deck breadth : 12m
• Deck cargo capacity : 1.000 t
• Fuel Oil : 737 cbm
• Drill water : 740 cbm
• Potable water : 283 cbm
• Liquid mud (Rec oil) : 301 cbm
• Cement : 273 cbm
• Rig chain lockers : 4 x 45 cbm

PROPULSION

• Main engines : 2 x MAK 12M 453 AK
• Total engine power : 6.620 kW
• Propellers : 2 x Controllable Pitch
• Bow thruster : 600 hp
• Stern thruster : 600 hp

CARGO PUMPS

• Fuel Oil : 1 x 95 m3/h, 70m head
• Drill water : 1 x 100 m3/h, 70m head
• Potable water : 1 x 100 m3/h, 70m head
• Liquid mud : 2 x 45 m3/h, 70m head
• Cement : 1 x 100 m3/h

FIRE FIGHTING EQUIPMENT

• Certified FFQ-1 x 2 monitors 1.250 m3/h each

NAVIGATION AND COMMUNICATION EQUIPMENT

• 3 x Radars
• 1 x Gyrocompass
• 1 x Ecosounder
• 1 x Autopilot
• 2 x GPS
• 1 x GMDSS station
• 1 x ECDIS sea chart
• 1 x KaMeWa joystick port side
• 1 x KaMeWa joystick starboard side
• 1 x ECDIS sea chart
