300T Linear Winch

Main features

• Built 2008, fully refurbished 2016

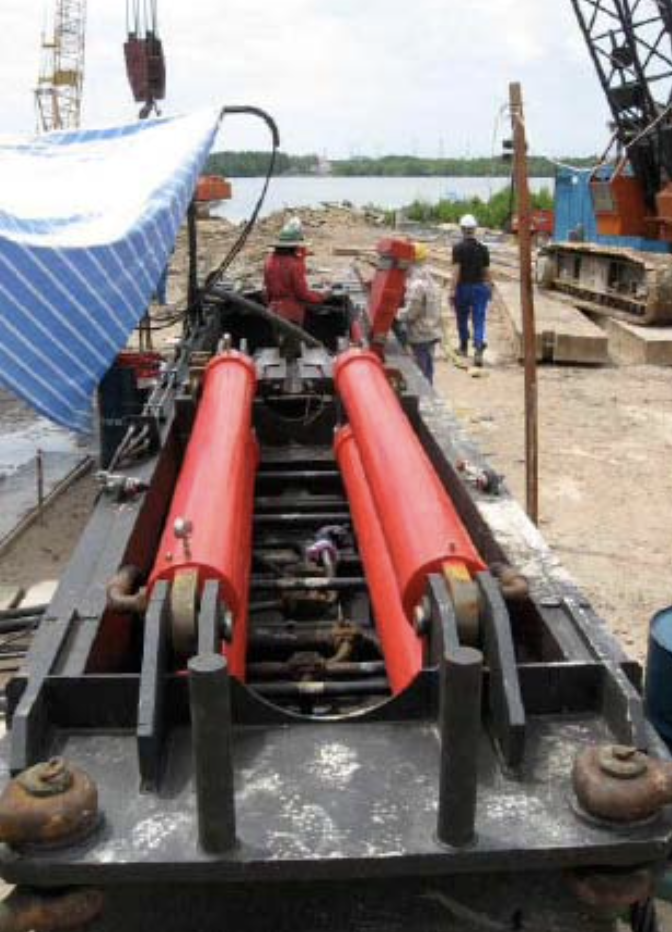

• Pull rating up to 300ton by means of 4 pulling cylinders.
• Slow pull (0.025m/s @ 300ton to 0.05m/s @ 150 ton).
• Fast extend up to 0.075m/s.
• Manual hand control valve (plus pilot operated valve) with proportional flow control capability on all cylinders.
• Modular 100 kW semi close loop hydraulic diesel driven power unit, mounted in 6 m container.
• Horse power controlled axial piston pump for pulling cylinder operation.
• 4 off locking cylinders powered by auxiliary axial piston pump (cylinders to be client
  supply).
• 1 off 50 ton cable lifting cylinder powered by auxiliary axial piston pump.

Contact us for further information on pricing
