Blue ROV2 with Accessories

Refurbished BlueROV2 in excellent condition (as-new) available for sale (<5 hours operation). This ROV comes with all the necessary spares and accessories and . See below for further information. See attached document or text below for further information.

Details

Technical Specifications:

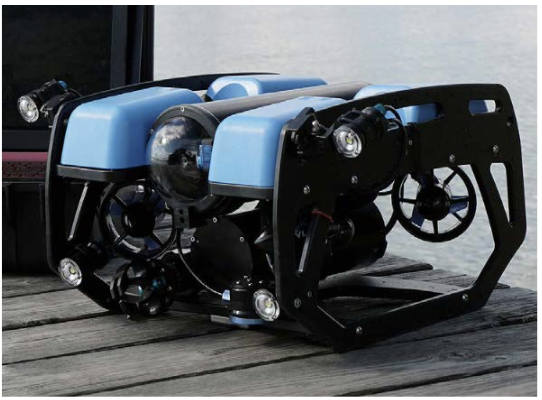

  • BlueROV2 HDPE frame (used)
  • Waterproof housing made of aluminium tube - 300 m depth rated
  • Live low light HD video camera (200 ms latency). Resolution 1080p, field of view 110 degrees horizontally and +/- 90 degree camera tilt.
  • 6 Thrusters - Highly manoeuvrable vectored thruster configuration
  • Expandable with free cable penetrators and a 3-pol cobalt bulkhead plug (e.g. for a gripper)
  • Battery powered with quick-swappable batteries for long missions
  • Main switch on the battery container for switching the ROV on and off without opening the battery compartment (otherwise there is a risk of the battery discharging completely)
  • Operation with Raspberry 3 and Pixhawk autopilot
  • 3-DOF gyroscope, accelerometer & magnetometer
  • 2 x leak detection
  • External 30 bar pressure depth sensor
  • External temperature sensor
  • Current and voltage sensing
  • Compass
  • Buoyancy foam R-3318 Urethane foam, coated to improve depth rating to 300 m
  • Maximum forward Speed 1.5 m/s 3 knots
  • Vertical forward bollard thrust (45°) 9 kgf / vertical thrust 7 kgf / lateral thrust (45°) 9kgf
  • BlueROV2 size (LxWxH): 457 x 338 x 254 mm
  • Weight in air (with ballast and battery) 11-12 kg
  • Payload capacity up to 1.2 kg

Accessories Included

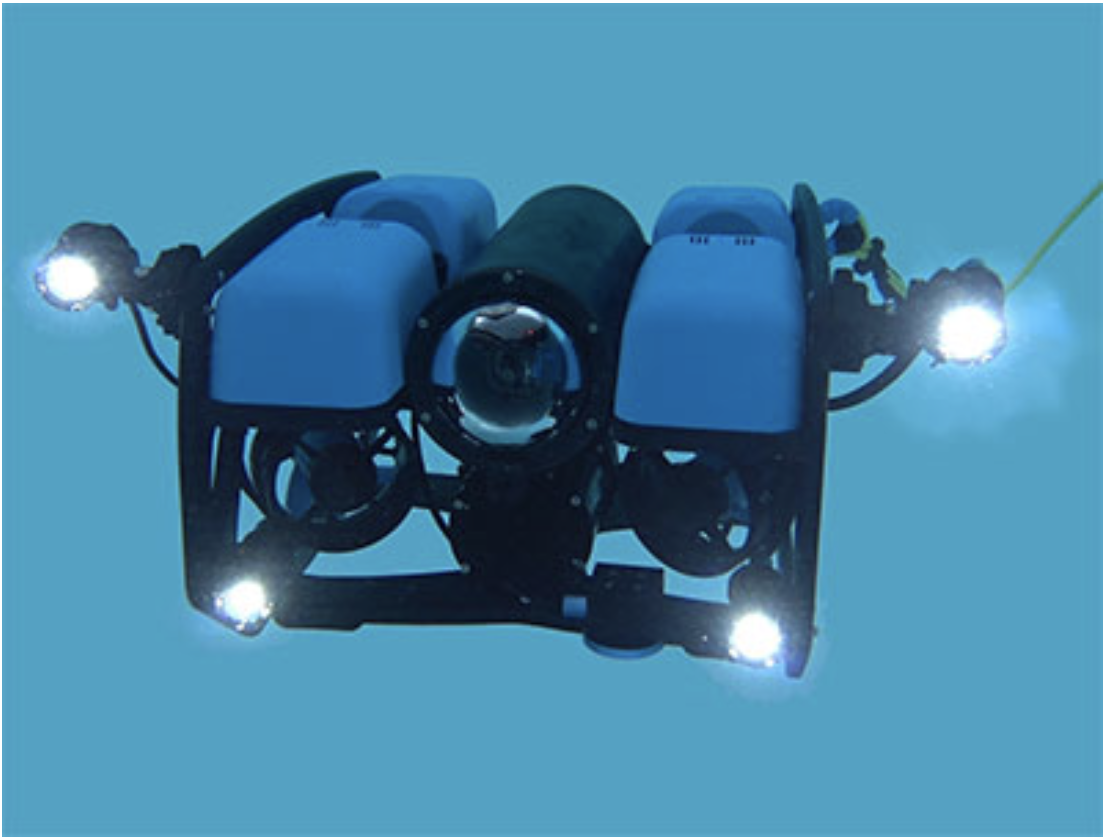

  • Lumen lights 4 x 1500 lumens brightness each with dimming control (new)
  • Ping sonar altimeter (new)
  • Lithium-ion battery, 14.8V, 18Ah, connector XT90
  • Ballast: 2 x 200 g stainless steel weights (VA)
  • BlueROV2 Newton Gripper with Cobalt plug for quick connection (new )
  • Replacement dome port (new)

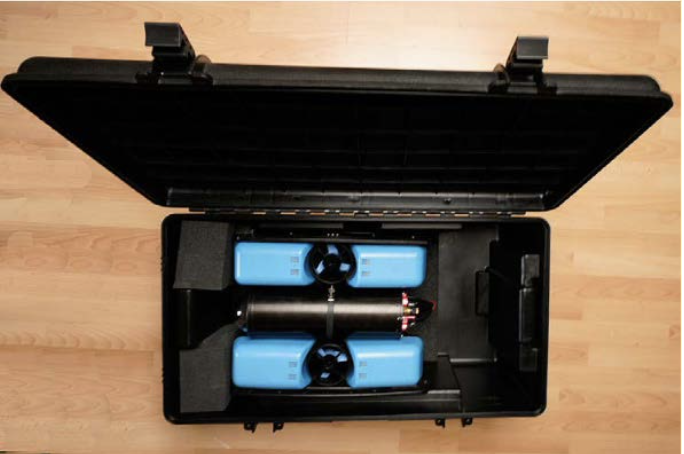

  • Transport box for BlueROV2 (new). Lightweight, injection-moulded polypropylene box with high capacity for heavy-duty use. Water and shock resistant construction and corrosion resistant. With wheels. Internal dimensions LxWxH 780x410x310mm, weight 6.3 kg.

Contact us for further details on pricing

Show more
Show less
MAIN DETAILS
Manufacturer
Bluerobotics
Price
Contact seller
LISTING ID
3777
Year built
2018
Location
Europe
