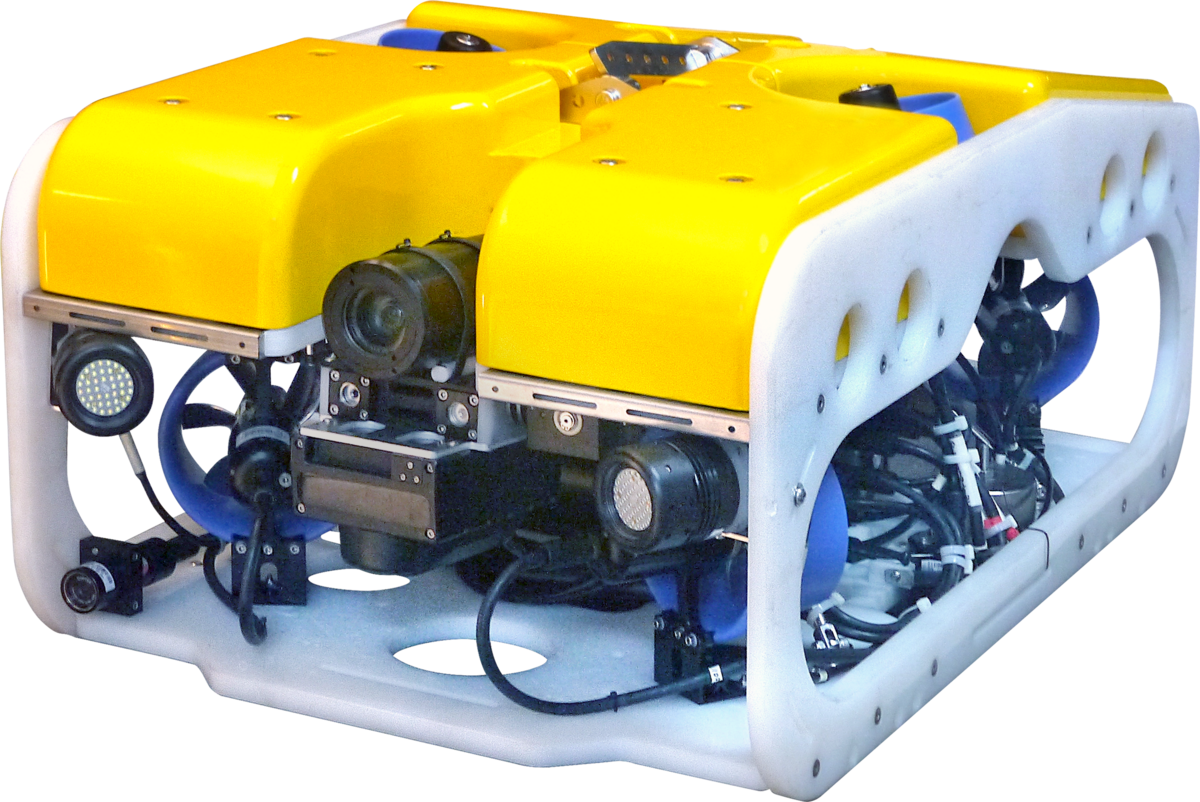

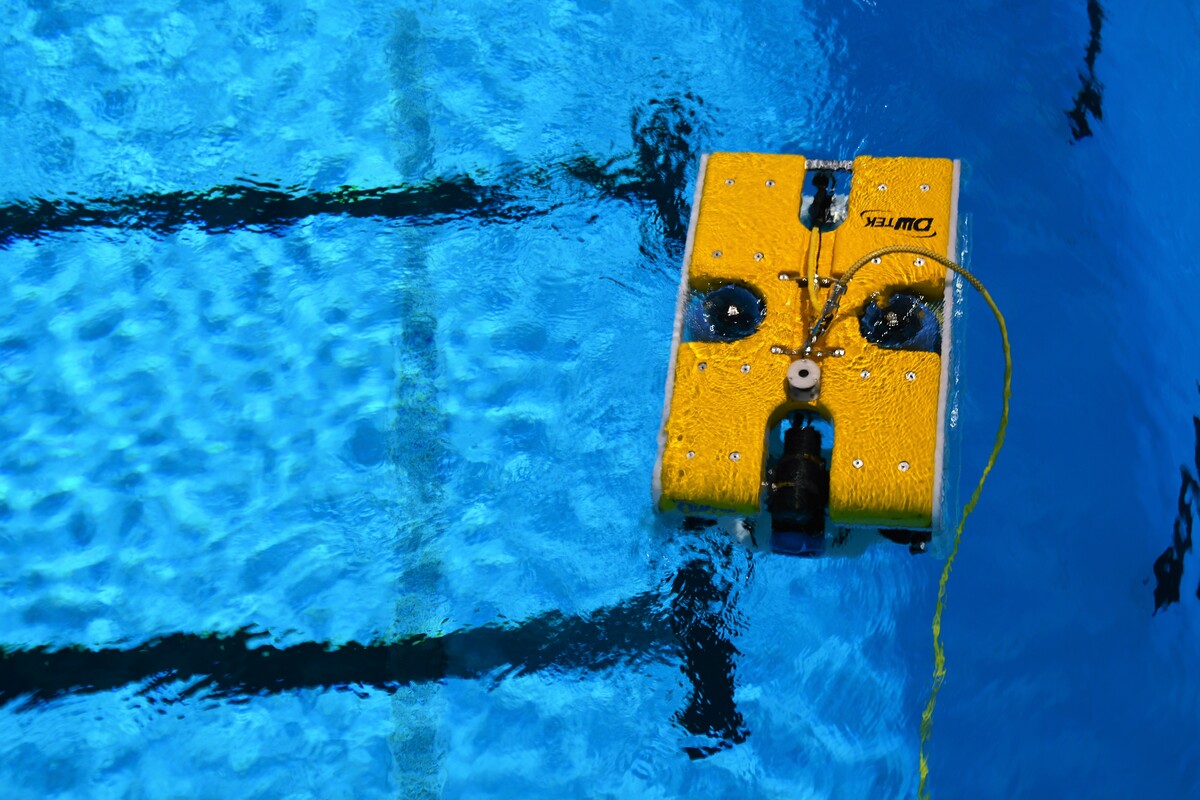

New DWTEK Observation Class i90+ ROV

Product details:

• A powerful type of observation class ROV, equipped with DWTEK powerful thrusters DWT8537, can withstand open sea strong current.
• Open configuration, customizable interior, and be able to add functional components, to execute more complex underwater missions.

Equipment specifications

• Dimensions (L x W x H): 1100 x 700 x 530 mm
• Weight in air : 130 kg
• Depth rating : 500 m (standard)1,000 m (optional)
• Payload: 25 kg

Vehicle Power and Performance

• Propulsion:
  • Horizontal thruster: DWT8537 x 4
  • Vertical thruster: DWT8537 x 2
• Thrust
  • Forward/reverse: 70 kgf
  • Lateral: 60 kgf
  • Vertical: 48 kgf

Vehicle Manipulators and Tooling

• Manipulator : Up to  5 axis manipulator x1(Optional)
• Wrist camera assembly: SD Camera x1 (Optional)
• Laser: Optional
• CP Probe: Optional

Vehicle Camera and Lighting

• Camera
  • HD x1 (Standard)
  • Up to SD x4  (optional)
• Lighting
  • 150W x2  (standard)

Vehicle Control and Navigation

• Automatic control: Optional
• Heading and altitude sensors
  • Heading (standard)
  • Altitude (optional)
• Depth sensor: Standard
• Obstacle avoidance sonar: Optional
• DVL: Optional
• INS: Optional
• USBL: Optional
• Cable tracking system: Optional

Vehicle optional Power and Data Interfaces

• Data links: Optical fiber
• Power
  • Input (VAC): 220V - Phase 50/60Hz
  • Output (VDC): 300V(6kW)

Tether Management System (TMS)

• Type: Cage
• Electro-optical tether : 150 m
• Cameras:
  • SD x2 (standard)
  • Up to SD x2 (optional)
• Lighting
  • 23W x2 (standard)
  • Up to 23W x4 (optional)
• Optional USBL/Current meter/Sonar/Depth

Launch and Recovery Systems (LARS)

• Optional
