350T Reel Drive System c/w 20T Tensioner

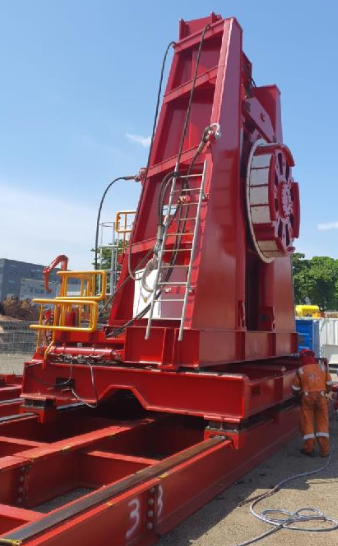

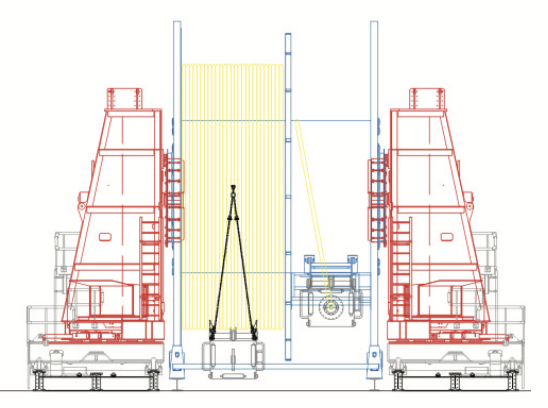

The 350Te reel drive system allows for transverse adjustments on each tower, moving them inward or outward to engage and disengage into the reel hub. The unit can be set to operate in manual speed mode, in automatic speed and torque mode.

The RDS comprises the following main items:

• 350T Reel Drive Towers (incl. HPUs);
• 20T Tensioner (Incl. HPU & Distribution Unit);
• Control Container (20ft);
• Skidding Tracks (incl. spare units);
• Inlet and Overboarding Chutes (5.5m MBR);
• Product Conveyors;
• Vertical Product Supports
• Workshop Container (20ft)
• Spares Container (20ft)

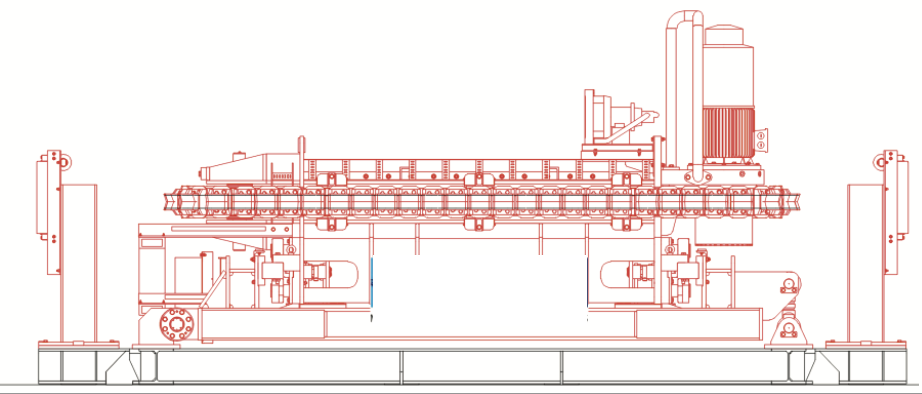

The 20Te horizontal tensioner is a caterpillar track system capable of handling umbilical, flexibles or steel pipe. The system is designed to prevent loss of product tension with fail safe brakes, nitrogen accumulators, fail safe clamping system, etc. The tracks can be driven in constant speed, constant torque, constant tension, and manual speed mode. The tensioner unit has the following main specifications:

• Line Pull: up to 20T;
• Pay-Out Speed: 0 - 1200m/hr;
• Track Contact Length 2.38m;
• Max. Track Opening: 860mm;
• Max. Track Squeeze: 460kN/m @ 287 bar;
• Product Diameter: 50 – 620mm

Contact us for further details.
