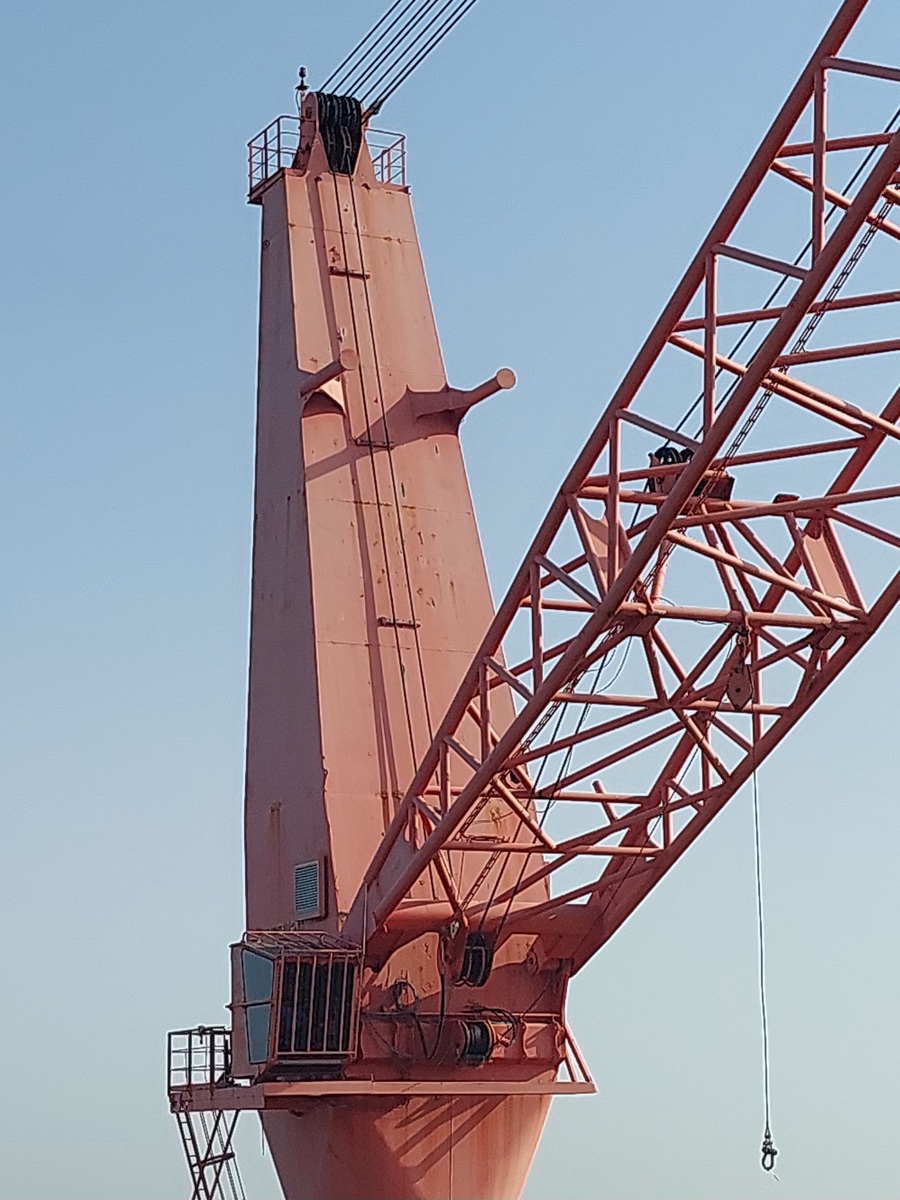

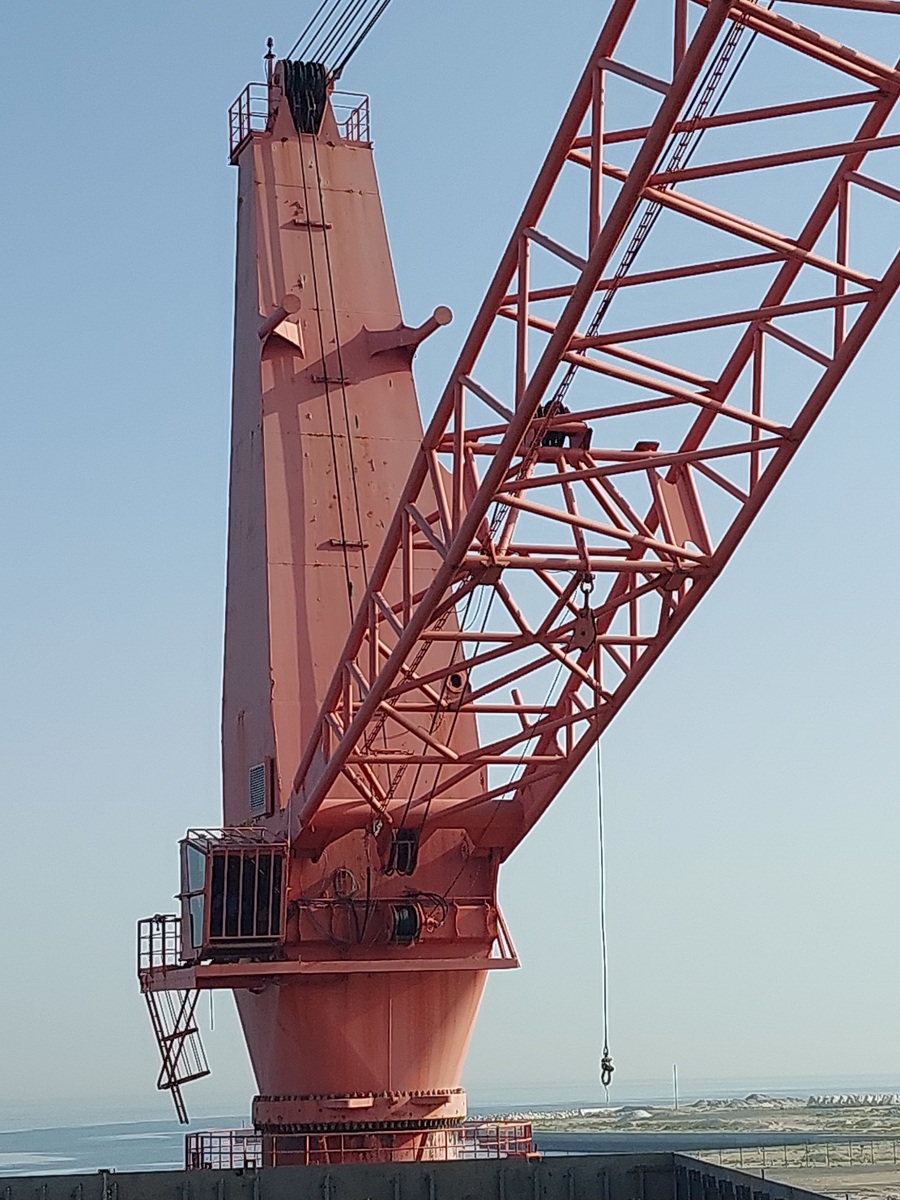

300T Pedestal Mounted Offshore Crane

Technical specifications

1. Main hoist can lift a maximum of 300mt SWL at a radius of between 7.5 - 11m.
2. The maximum radius of the main hoist tackle is 48.15m, with a remaining capacity of 57mt.
3. The auxiliary hoist tackle is designed to lift a maximum of 30mt SWL at a radius of between 9.2 - 53.5m.

Dimension

Crane

1. Total height
   1. Jib (0 degrees) = approx 22mts from slew bearing
   2. jib (85 degrees) = approx 55.6mts from slew bearing
2. Total width : approx 5.9mts
3. Tail swing : approx 4.9mts from centerline

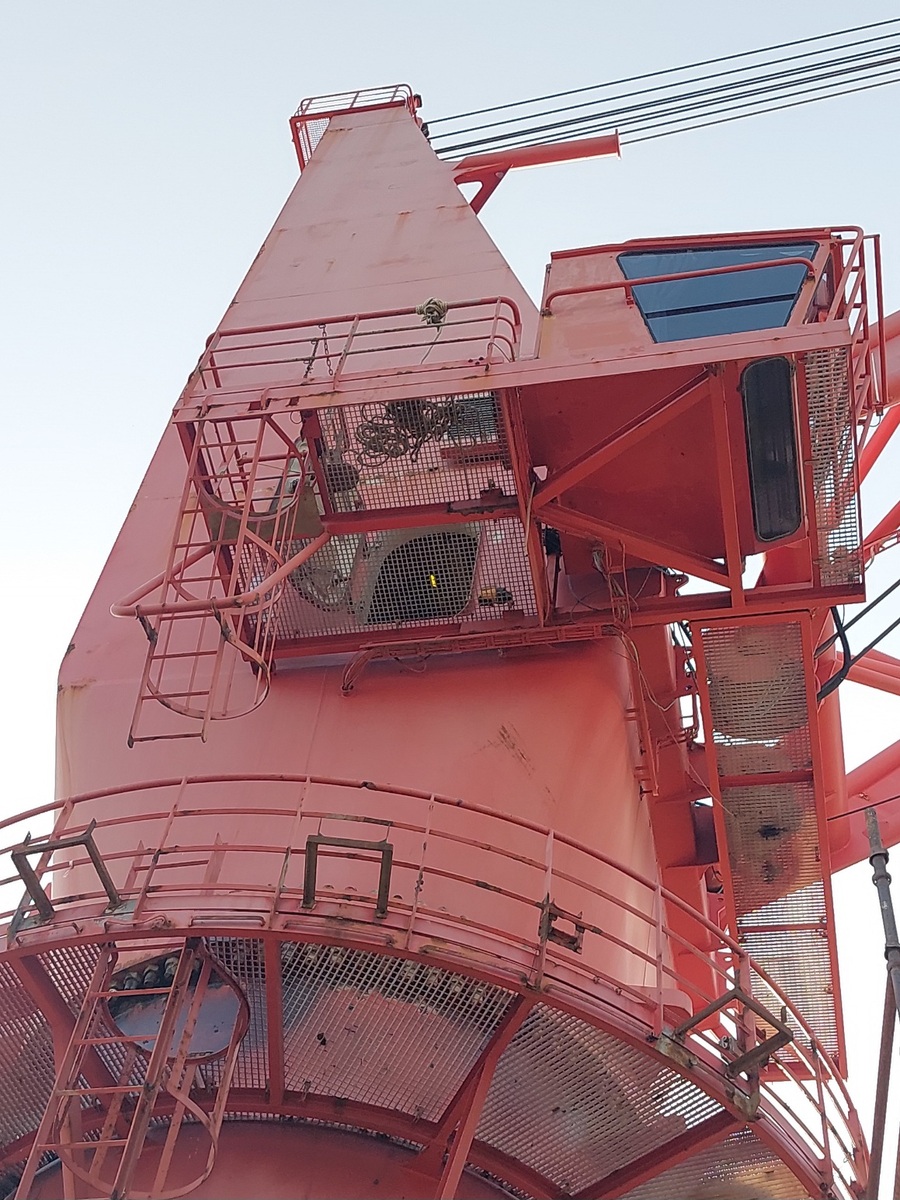

Crane house

1. Pivot height : approx 5mts from slew bearing
2. Height : approx 22mts from slew bearing
3. Diameter slew-bearing : approx 4mts

Jib

1. Length : approx 51.3mts from pivot to tip
2. Width at pivots : approx 4.6mts

Weight overview

1. Crane house (incl. equipment) : approx 62mt
2. Jib (incl. equipment, sheaves etc.) : approx. 49mt

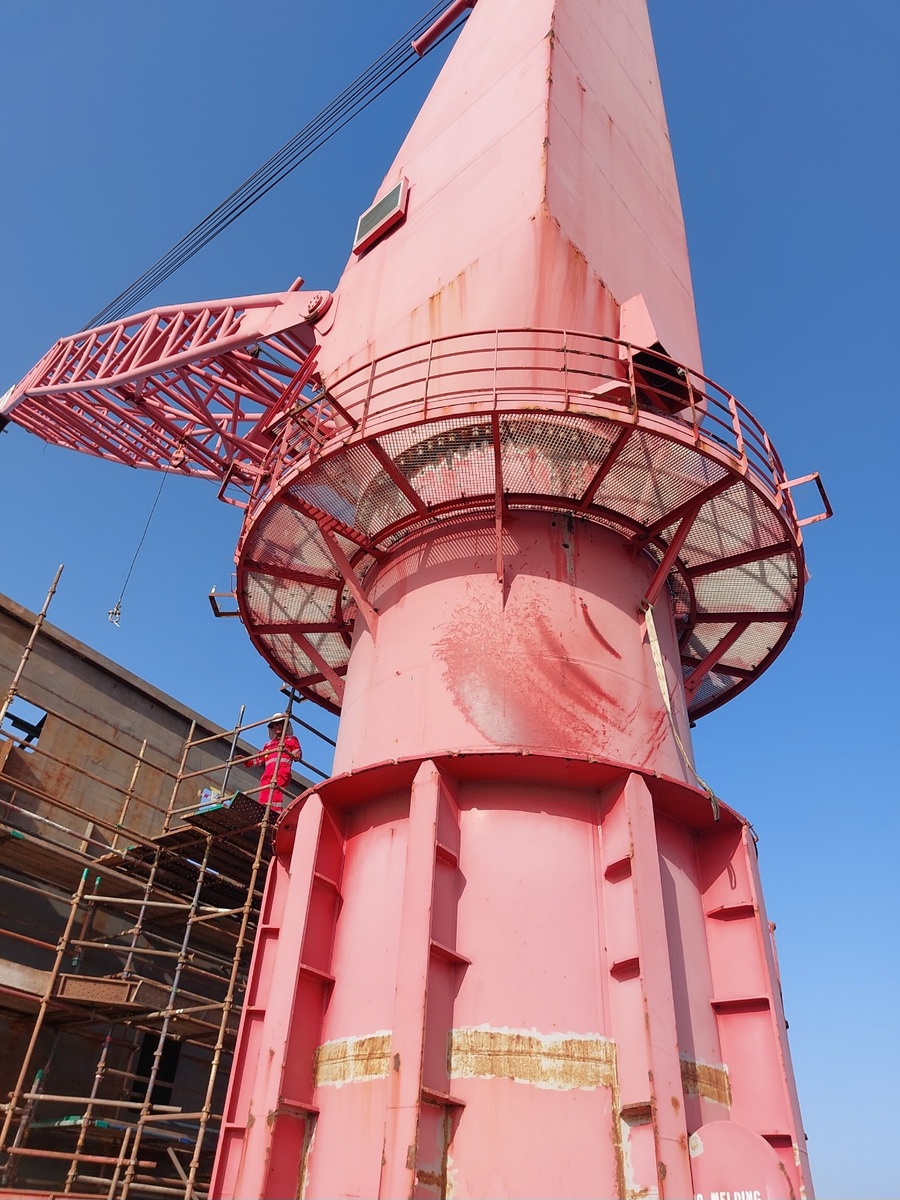

3. Pedestal : approx. 23mt
4. Rigging : approx. 32mt
5. Machinery (winches) : approx. 39mt
6. Drive system : approx. 10mt
7. General outfitting : approx 9mt

Working radii

1. Minimum radius 7.5 [m] 25 [ft]
2. Maximum radius 48.2  [m] 158 [ft]

Hook travel

1. 5 falls : approx. 70 [m]
2. 7 falls : approx. 50 [m]
3. 9 falls :  approx. 39 [m]

Contact us for further information on pricing and documentation related to the crane.
