Saab Seaeye Lynx ROV (Zone 2)

2012 Saab Seaeye Lynx ROV system comprising of:

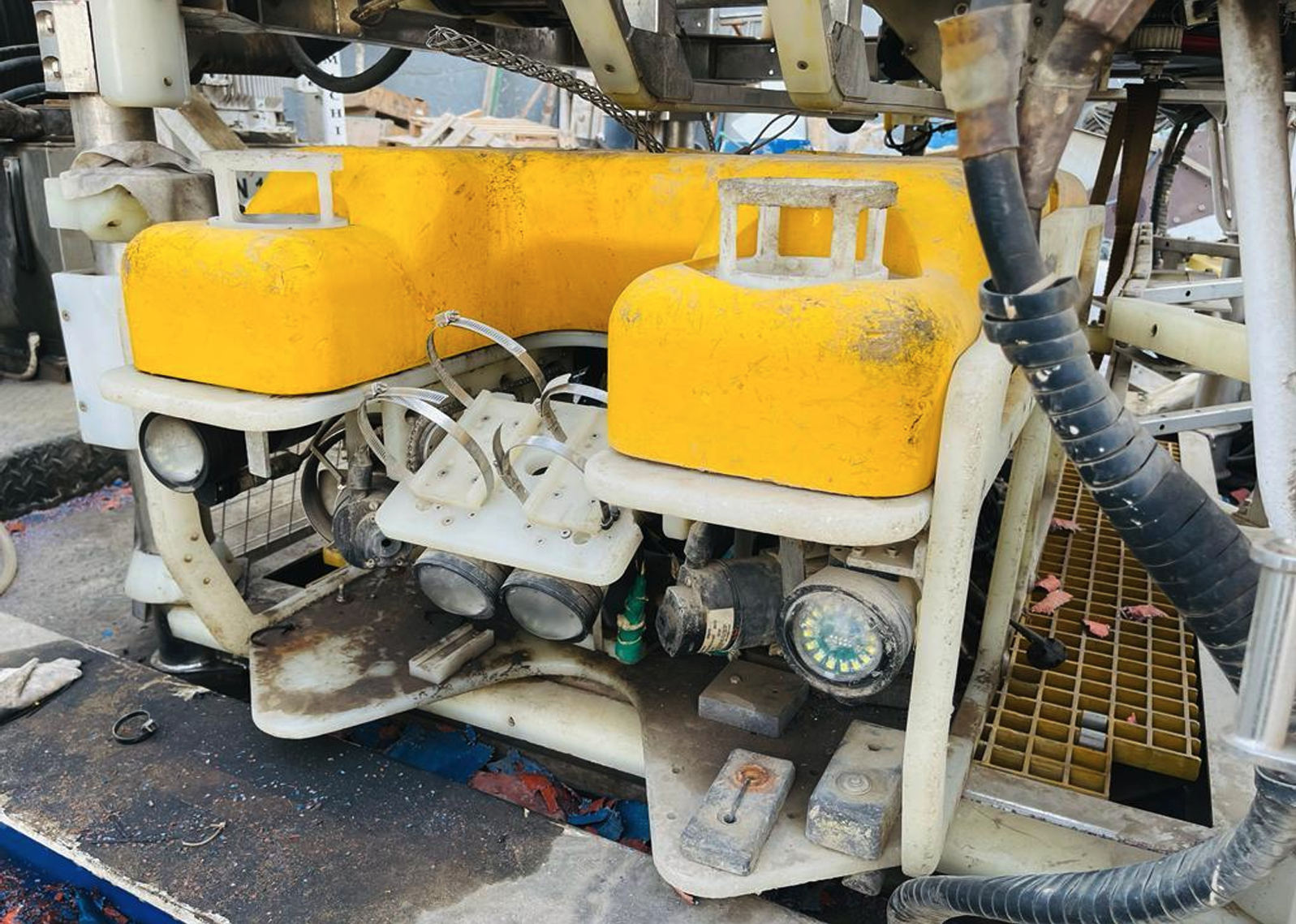

1. 2012 Seaeye Lynx with TMS

Standard Equipment:

• 1500m rated
• 34kg payload
• 4X SM4 250V DC horizontal vectored thrusters
• 2x SM4 250V DC vertical thrusters
• Magneto-resistive compass and solid state sensor
• Fibre optic multiplexers
• +-90º Tilt platform with 2x cameras fitted
• 600 Watts of lighting
• LED lamps
• Wide range of tooling skids
• Tritech Super Seaking DST Sonar – Arc Net

Surface Control Unit:

• AC and DC supply switching control
• DC current and voltage indication
• Control of video and video overlay
• A keypad for system configuration
• Plugs and sockets for system connections and interfaces for ancillary equipment
• ROV control system (via hand control unit)
• TMS control system (via SCU or foot switches)

TMS Spec:

• Seaeye Type 8 TMS
• Operating conditions up to and including Sea State 6
• Depth Rating 1500m
• Height 1833mm
• Width 1490mm
• Depth 1795mm
• Weight in Air 1075 Kg (without ROV)
• Telemetry Singlemode fiber RS232 -Gigabit Ethertnet
• Lighting 1x 150 W

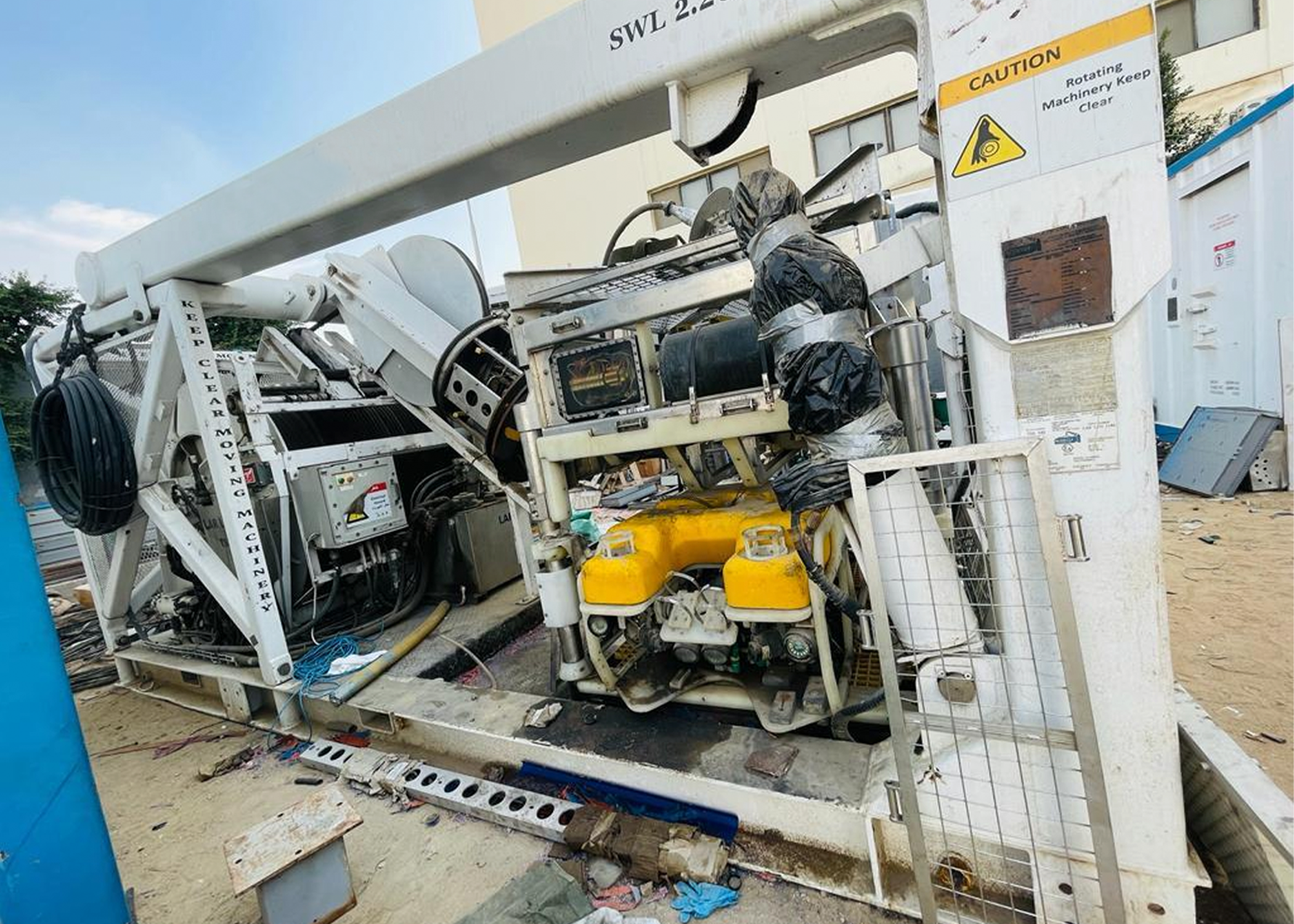

2. LARS System

• Type Fully integrated launch & recovery skid incorporating hydraulically powered A-Frame
• Manufacturer Tech-Safe Systems
• Safe working load 4400 Kg
• Deployed reach 3m
• Footprint skid (base) 6100mm x 2400mm
• Height 7100mm (max)
• Weight (Gross) 16800 Kg
• Umbilical length 1500m (tbc)
• Braking Sprung off for safety

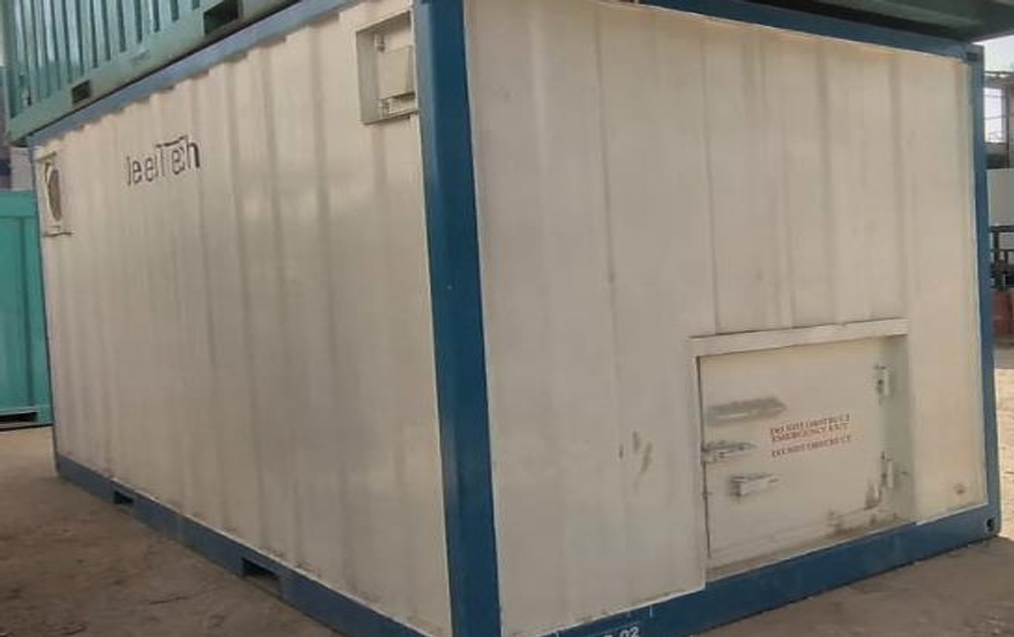

3. Control Van: 20ft container containing pilot control control desk panel with video wall

4. Stores Container: 10ft stores container (tbc)
