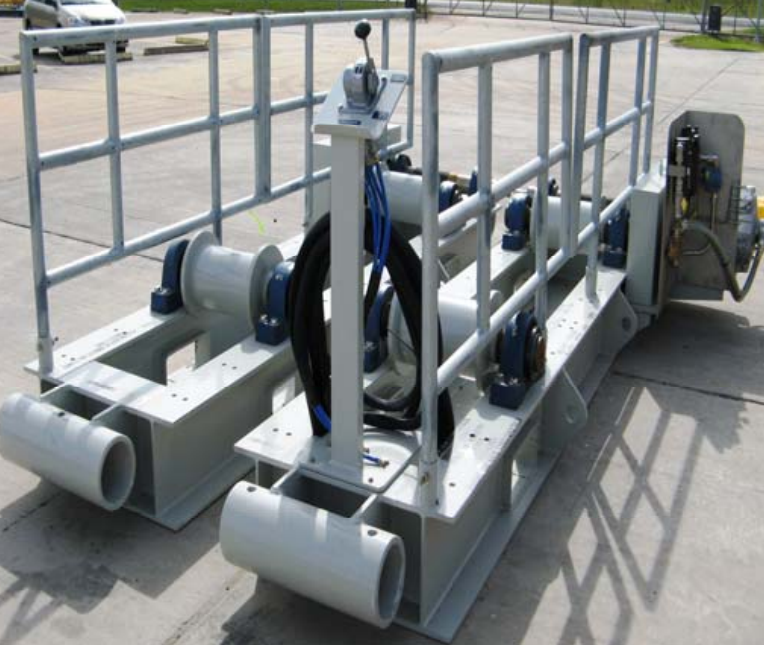

110T Under-Roller Set

110T Under-Roller Set with adjustable base frame to aid in spooling operations for non-powered storage reels.

Details

Assembled Maximum Dimensions and Weight

  • Dimensions (m): 6.07 (l) x 4.11 (w) x 1.30 (h)
  • Weight: 4,581 kg

Operational Capabilities

  • Maximum Overall Reel Length: 4.45 m
  • Maximum Flange Thickness: 0.30 m
  • Minimum Flange Diameter: 0.53 m
  • Maximum Flange Diameter:  5.03 m
  • Maximum Allowable Drum Weight: 99,790 kg

The under-roller set can be partially disassembled to fit into a standard 6 m (20 ft) container. Forklift guides and lifting eyes are provided to assist in setup and relocation of the under-roller set.

See attached specification sheet for further details.
