Cameron SSMC Wellhead System

The Standard Snapring Modular Compact (SSMC) Wellhead System is a total system designed to accommodate a variety of casing programs and working pressures, while using a maximum number of interchangeable components.

The SSMC wellhead has many technical advantages over a conventional wellhead system including: reduced height, enhanced safety, savings in rig time, through BOP operations, and a decrease in system cost. In addition, many components of the conventional wellhead are eliminated by using a single compact housing for multiple casing and tubing hangers.

This modular design, with all internal components interchangeable throughout, means 30% fewer parts and reduced inventories.

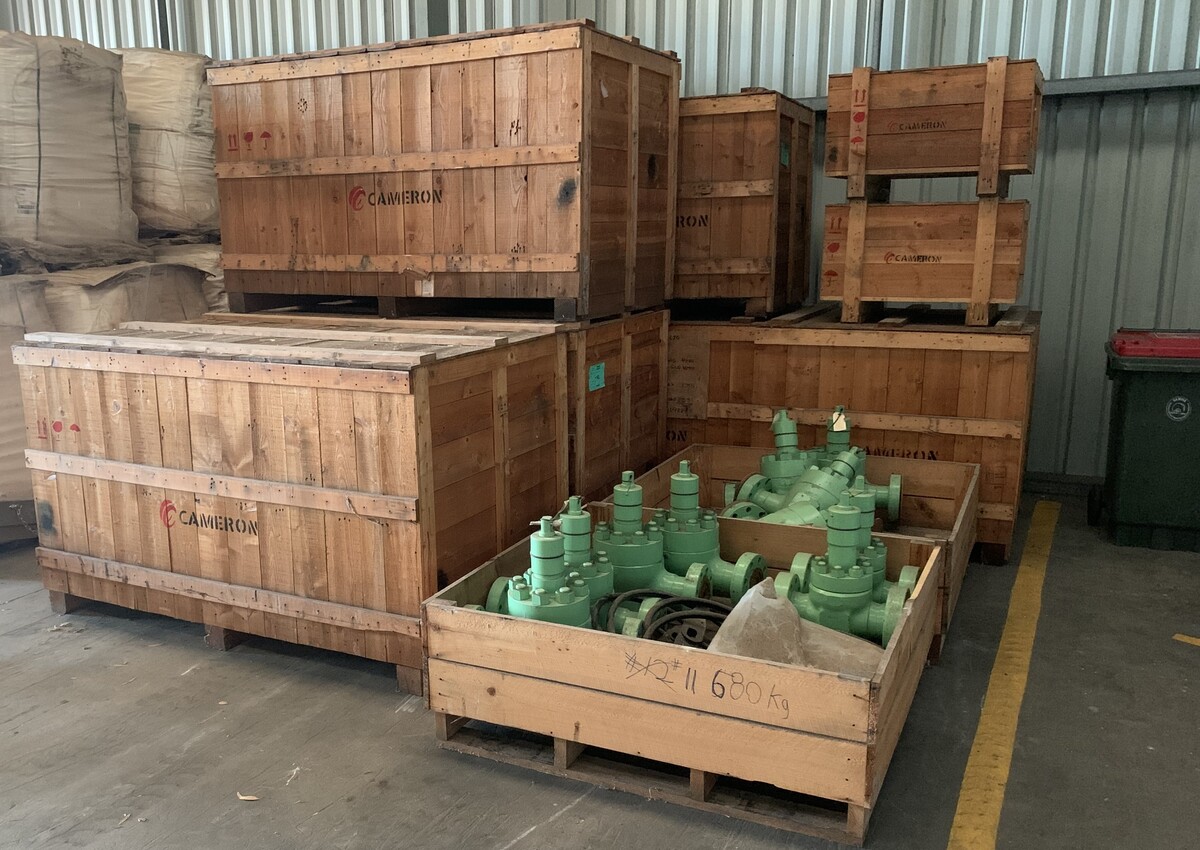

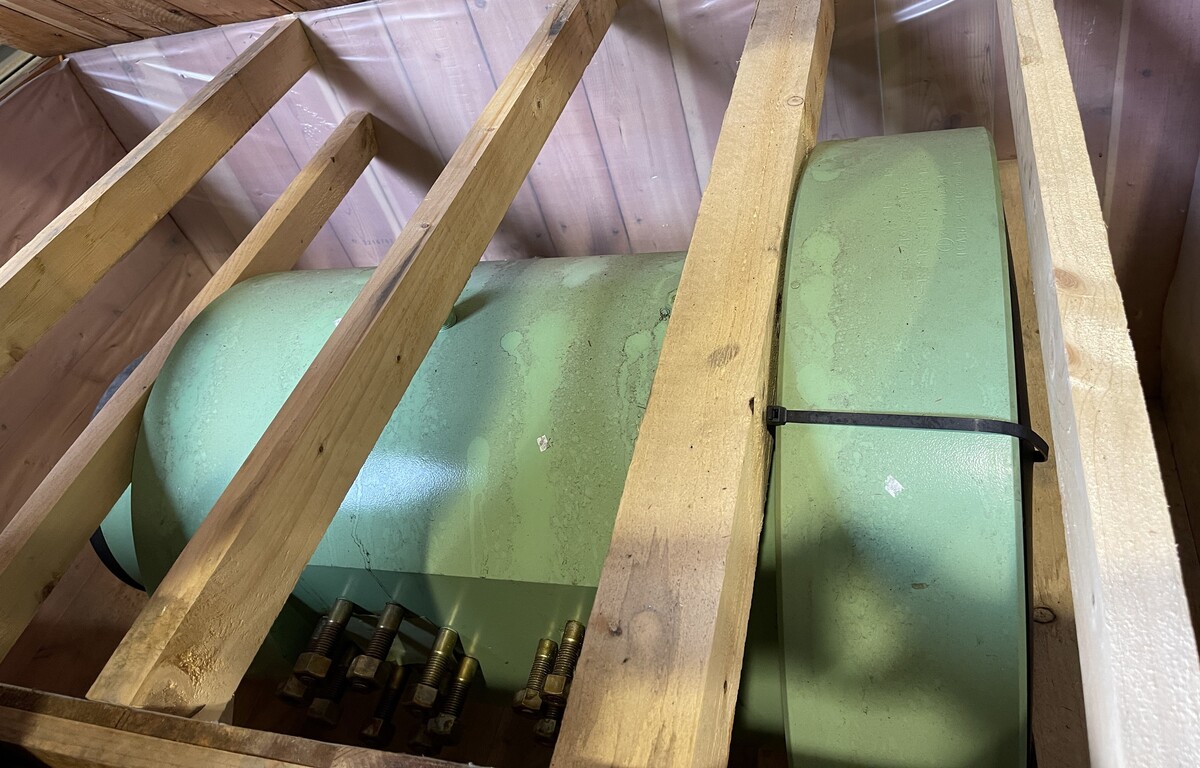

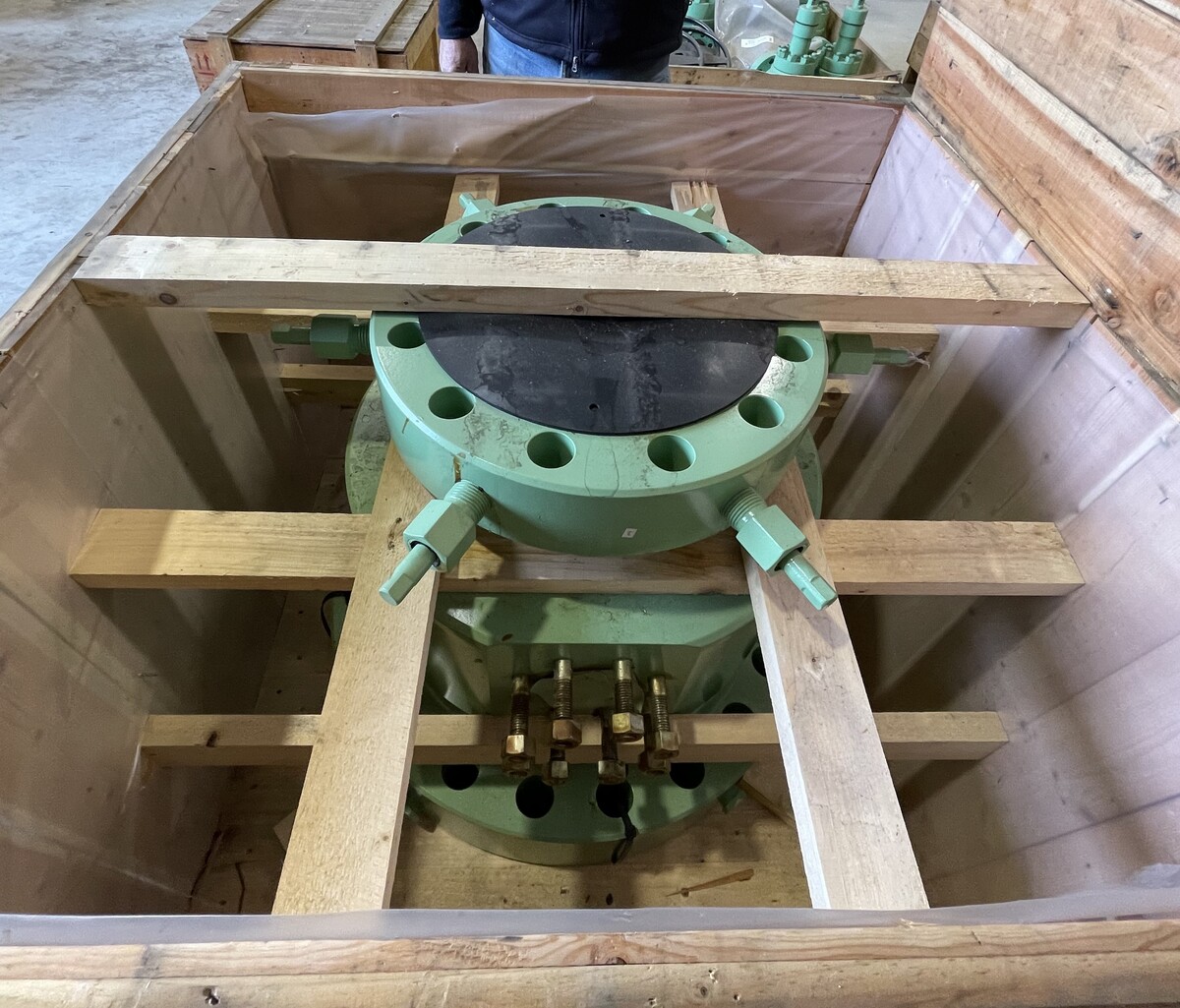

We have 2 complete systems available. Unused and preserved in storage. Backing of the OEM to go into service. Comes with Full COC documentation.

KEY DESIGN FEATURES:

• Year of Manufacture: 2014
• Identifiers: File Ref: RP-003045
• Storage Location: Western Australia
• Condition: Unused, stored & preserved.
• Working Pressure: 10,000PSI
• Casing Programme: 20” x 13-3/8” x 9-5/8” x 7”
• Trim: APIA DD-N Sour Service Trim
• Documentation: Rig Up Book, COCs, Stack-Up Drawings
• Running Gear: To be provided under Cameron Service Agreement
• Height: 2.1m(Top of 20” Conductor to Top Assy Flange Adapter)

A FULL LIST OF THE AVAILABLE ITEMS AS WELL AS THE RIG UP BOOK, COCS AND STACK-UP DRAWINGS ARE AVAILABLE.
