Single Basket LARS

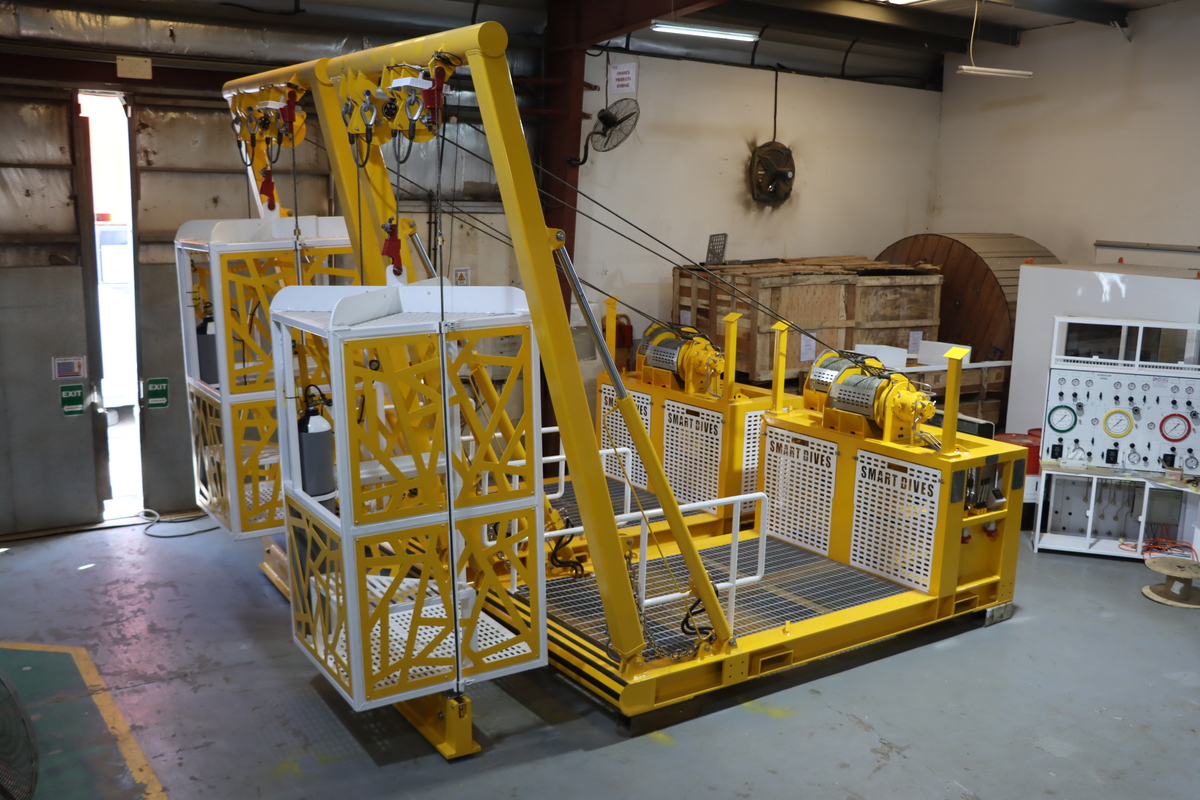

The Single Basket Diver Launch and Recovery System is designed in accordance with Lloyd’s Register and to the IMCA D018 standard. For further information and expected delivery timelines, reach out to us.

Details

Equipment specifications

  • Design: Lloyd S023 Design & IMCA D018
  • Certification: IMCA D023 & IMCA D018
  • LARS Assembly (Transport mode): 4700mm 2100mm 2100mm
  • LARS Assembly (On Board ship): 4700mm 2100mm 3780mm
  • Weight (for both): 4 ton
  • Depth Capability: 75 mts
  • Basket/Cage cylinder: 2x50lts at 200 Bar
  • Dimensions
    • Length: 4700mm
    • Width: 2100mm
    • Height: 3780mm
  • Weight: 4800kgs (HPU Not included)
  • HPU Electrical req: 380 - 440 V 3PH 50/60Hz
  • Oil Capacity: 2x100lts (per tank)
  • Hydraulic Working Pressure: 100Bar
  • Main life wire: 13mm dia.
  • Length: 150mts. Anti - Rotational
  • Clump Weight Wire: 13mm dia.
  • Length: 150mts Non - Rotational

Contact us for further information on pricing
