80T SAS SVH80 Pipelay Tensioner

Name: 80T SAS SVH80 Pipelay Tensioner
Brand: SAS Offshore
Availability: InStock

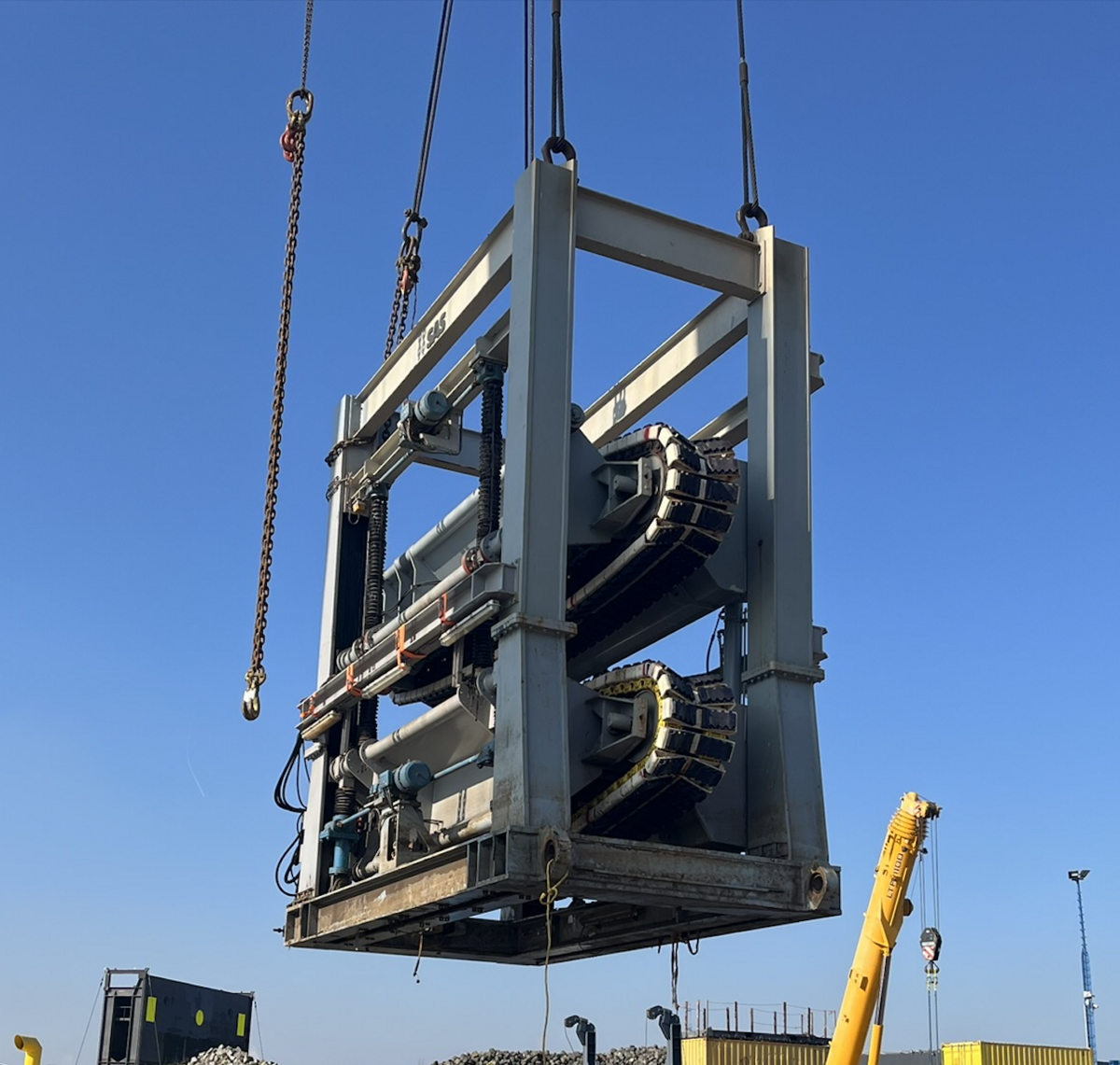

This second-hand 80T SAS SVH80 Vertical Hydraulic Pipe Tensioner is a high-performance, hydraulically operated system designed for pipe laying operations. It is fully operational and can be made available immediately for new projects.

Details

This tensioner was operating on a pipelay barge until 2024 and was recently decommissioned the barge was not going to be used for pipely going forward.
The tensioner is fully operational and can be made available immediately for new projects.
Full documentation is available upon request and inspection can be organised at short notice.

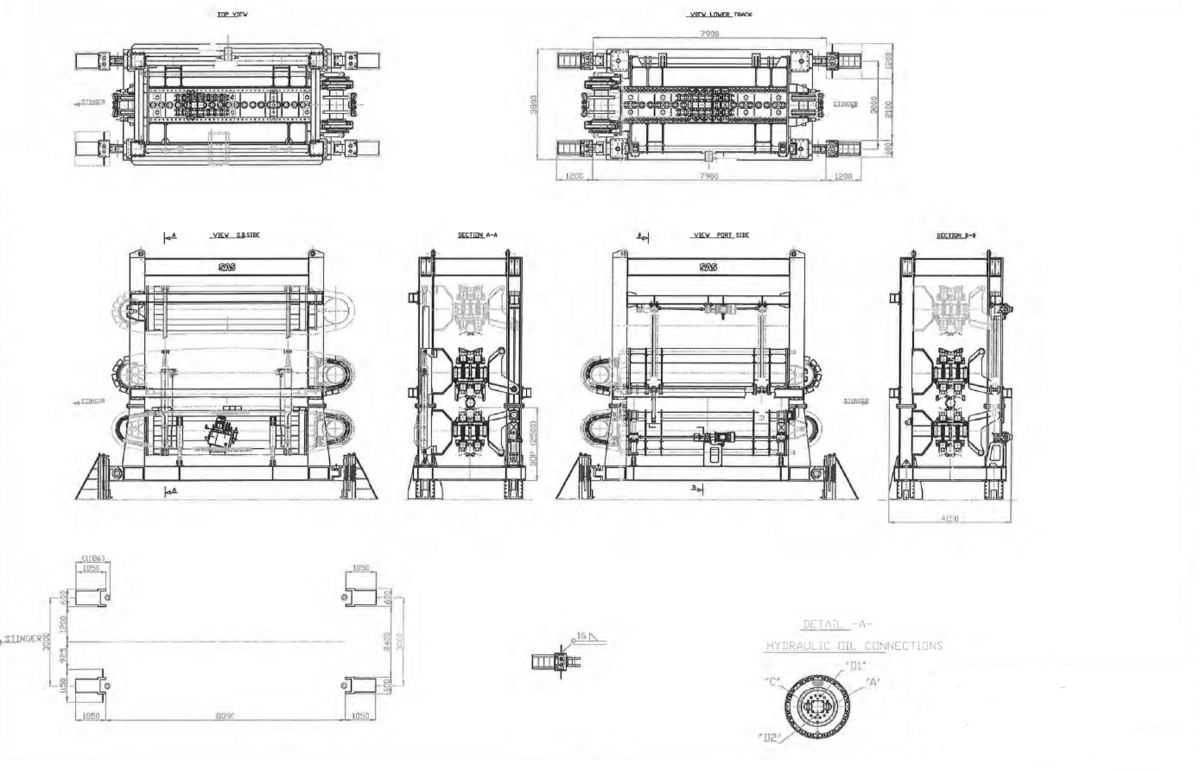

Technical specifications

Dimensions

Overall length: 10.3mts
Length of tracks: 8.1mts
Width: 3.8mts
Height: 8mts
Bottom of pipe: 2.5mts
Weight: 127metric tons
Length of contact between pipeline and pads on uninterrupted outer diameter: 5.1mts
Nominal maximum tension capacity: 80,000kgf

Power rating

Overall nominal electric power rating: 15 kW.
Voltage: 440 V
Frequency: 60 Hz
Power supply valves: 24 Vdc
Maximum operating pressure: 280 bar
Maximum pump flow: 76 Itr./min.
Pump capacity: 45 cc
Insulation of electric motors: IP56, F-class.
Hydraulic oil type:
- Shell Tellus, or equivalent, class 68, depending on the environmental condition of the operating area
