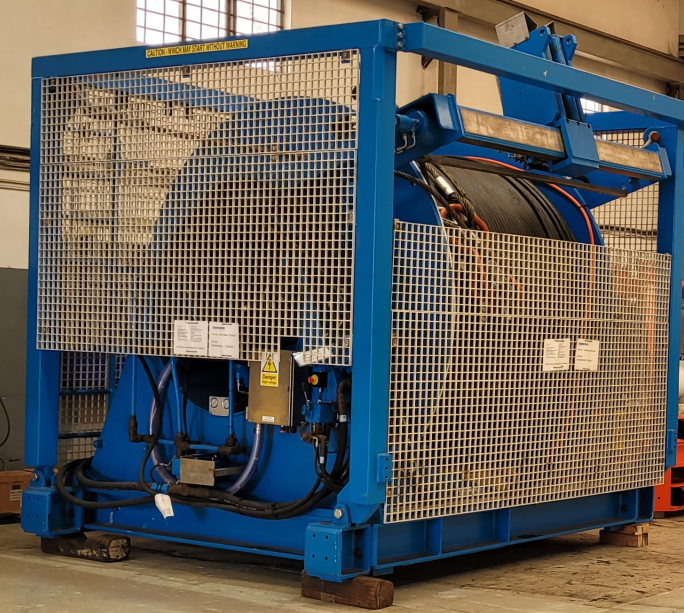

15T SWL Umbilical Winch

Hydraulic powered umbilical winch fitted with pendant control, static and rotating junction boxes, level-wind, and Lebus shells for Ø35.1 mm umbilical; presently fitted with 4,350m of Ø35.1 mm umbilical and with 18-pass slip rings.

Winch is set up for Active Heave Compensation/ Constant Tension operation by way of constant tension direction control valve and fitted encoder and digital sensors. The AHC/CT functionality can either be re-initiated (by procurement of a Scantrol M-Track AHC controller), or the Constant Tension circuit can easily be removed completely. 150 kW HPU required to power the winch can also be supplied.

Winch and associated equipment includes:

• 1 x Umbilical Winch (4350 m of Ø35.1 mm umbilical, 60 m/min, 15 Te line pull bare drum)
• 4100 m Armoured ROV Umbilical Cable (HV power and fibre-optic)
• 2 x Slip Ring Unit (18-pass electric and 2-pass SM fibre-optic)
• 1 x Umbilical Sheave (Ø1369 mm)

Winch Technical specifications:

• Safe working load: 15Te (line pull, bare drum)
• Cable diameter: 35.1mm
• Cable stored: 4200m
• Cable Layers: 14
• Drum diameter: 1577mm
• Drum Width: 1814mm (Flange diameter: 2800mm approx.)
• Maximum line speed: 60 m/min on top layer
• Dimensions: 3.29 x 3.50 x 3.68m (LWH) at minimum height, with level-wind in transport position
• Weight: 13 Te net (37 Te gross, including umbilical, hoses, ancillaries, etc)
• OEM warranty: to 21-Oct 2025

Contact us for further information on pricing.
