Commercial Dive and ROV Support Vessel

Custom-built aluminum V-Hull Landing Craft with heated enclosed cabin. The vessel is powered by an inboard Yanmar diesel and Mercruiser stern drive. To assist with operations it is equipped with a light duty gantry at the bow that extends to the outer limit of the ramp when lowered. Trailered and can be effectively launched at most standard boat launches or can be picked-up via crane utilizing welded lifting eyes.

Length: 8.2m

Breadth: 2.6m

Depth: 0.70m

Gross Tonnage: 4MT

Trailer and boat unladened: 3750 kgs

Max Speed: 16kn

Cabin Size

Length: 175cm

Width: 218cm

Height: 208cm

Bow ramp opening: 195cm

Fuel Cap: 350 liter diesel

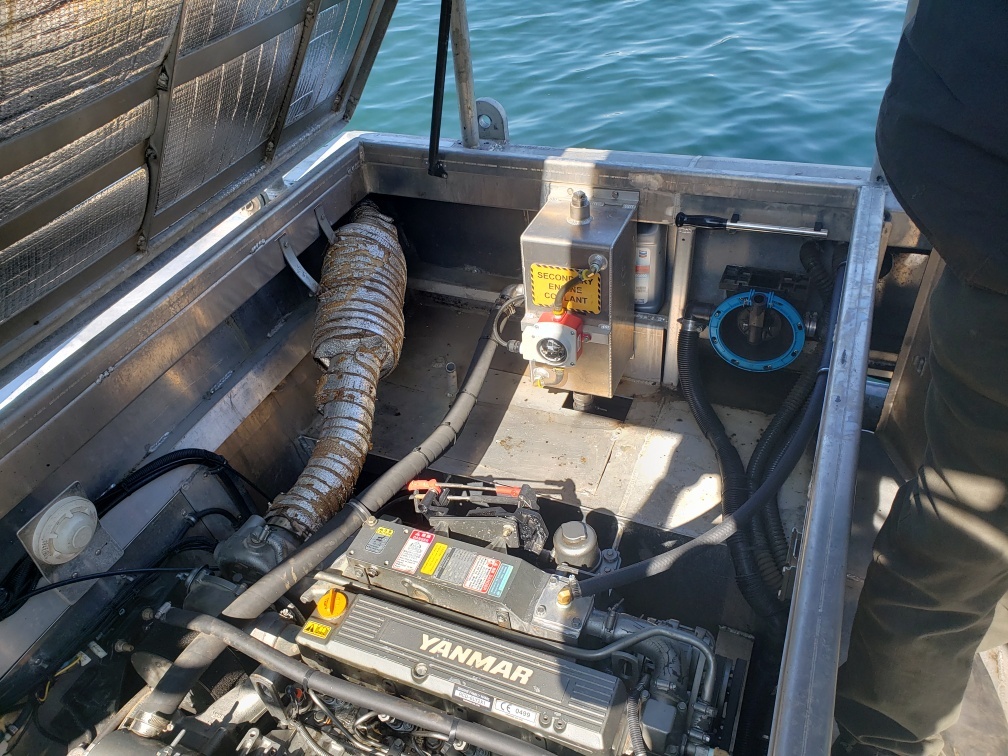

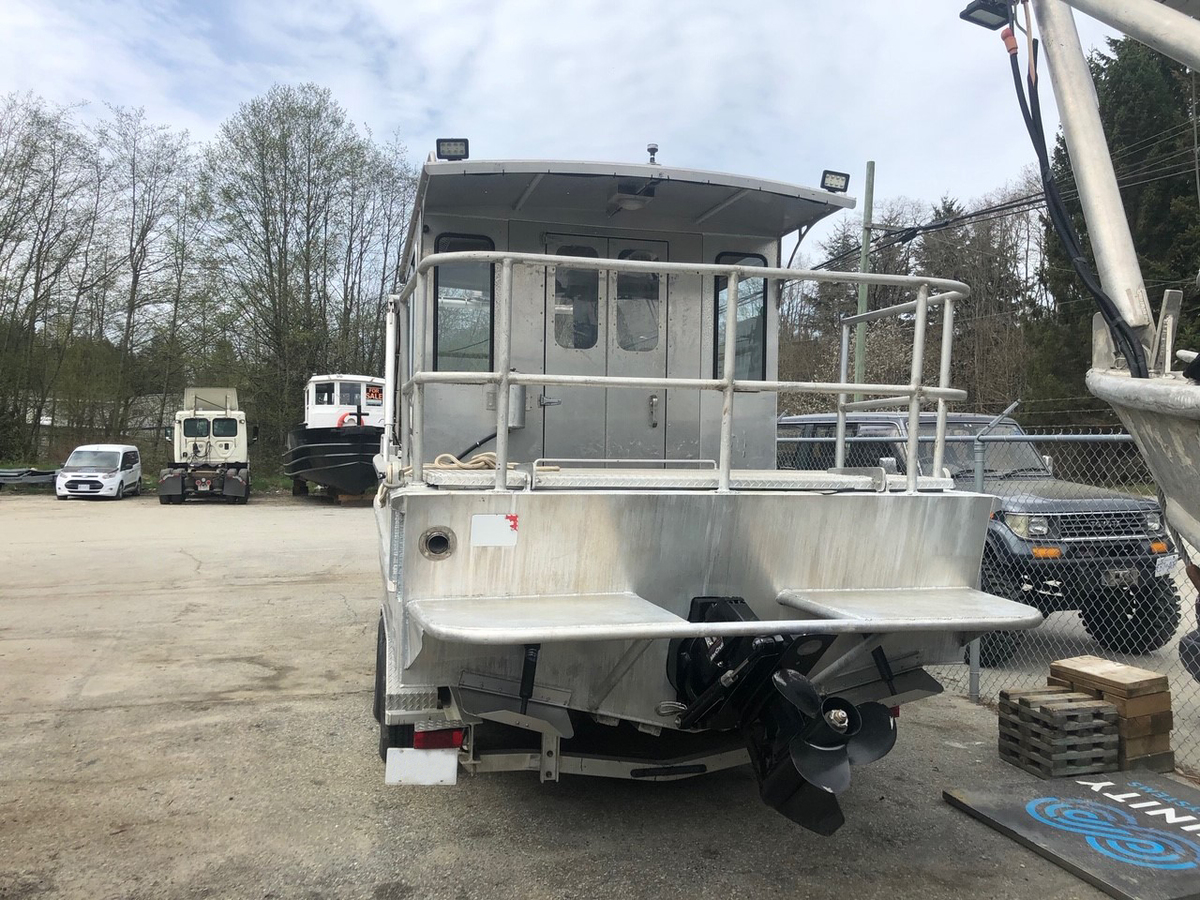

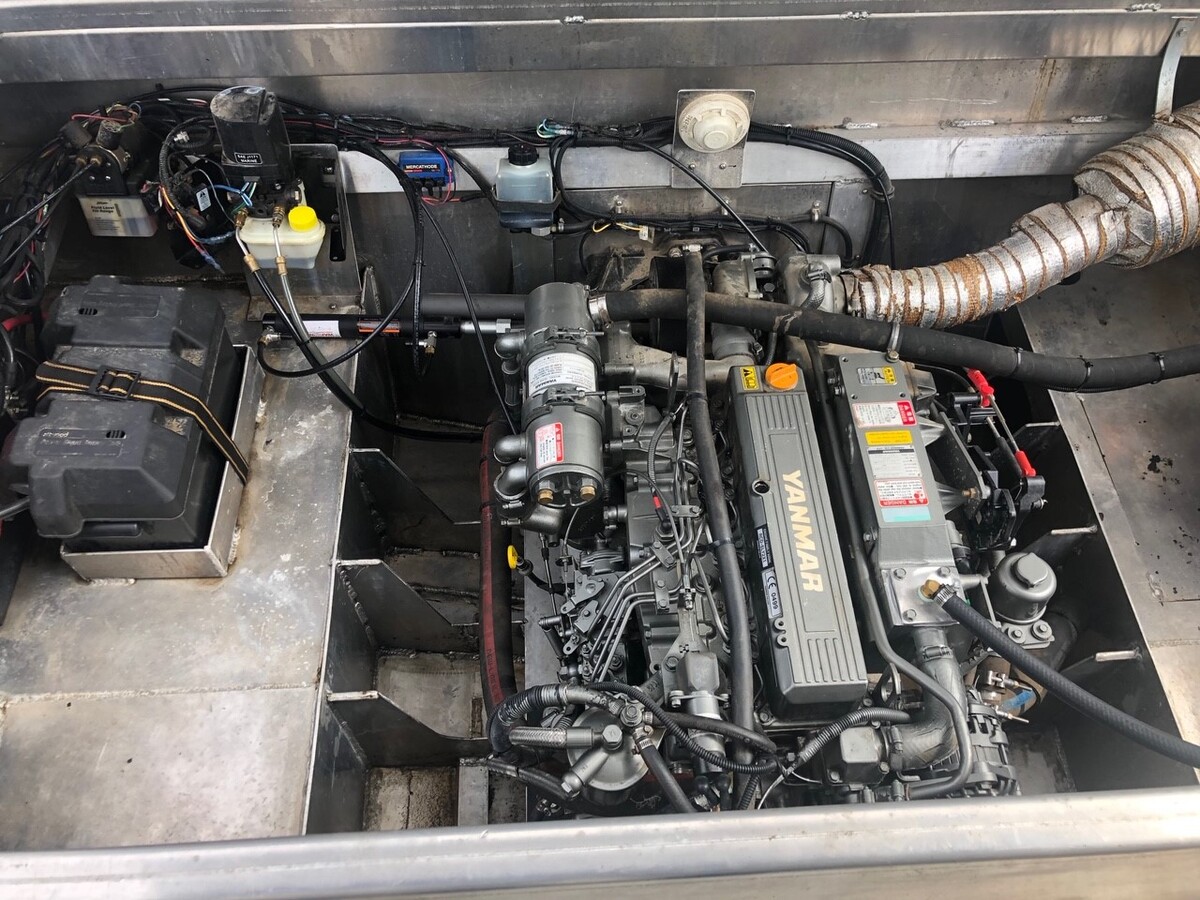

Propulsion: 240hp Yanmar Diesel with Mercruiser Stern Drive

Kicker: 20hp

3,000W 110V Inverter

Marine VHF

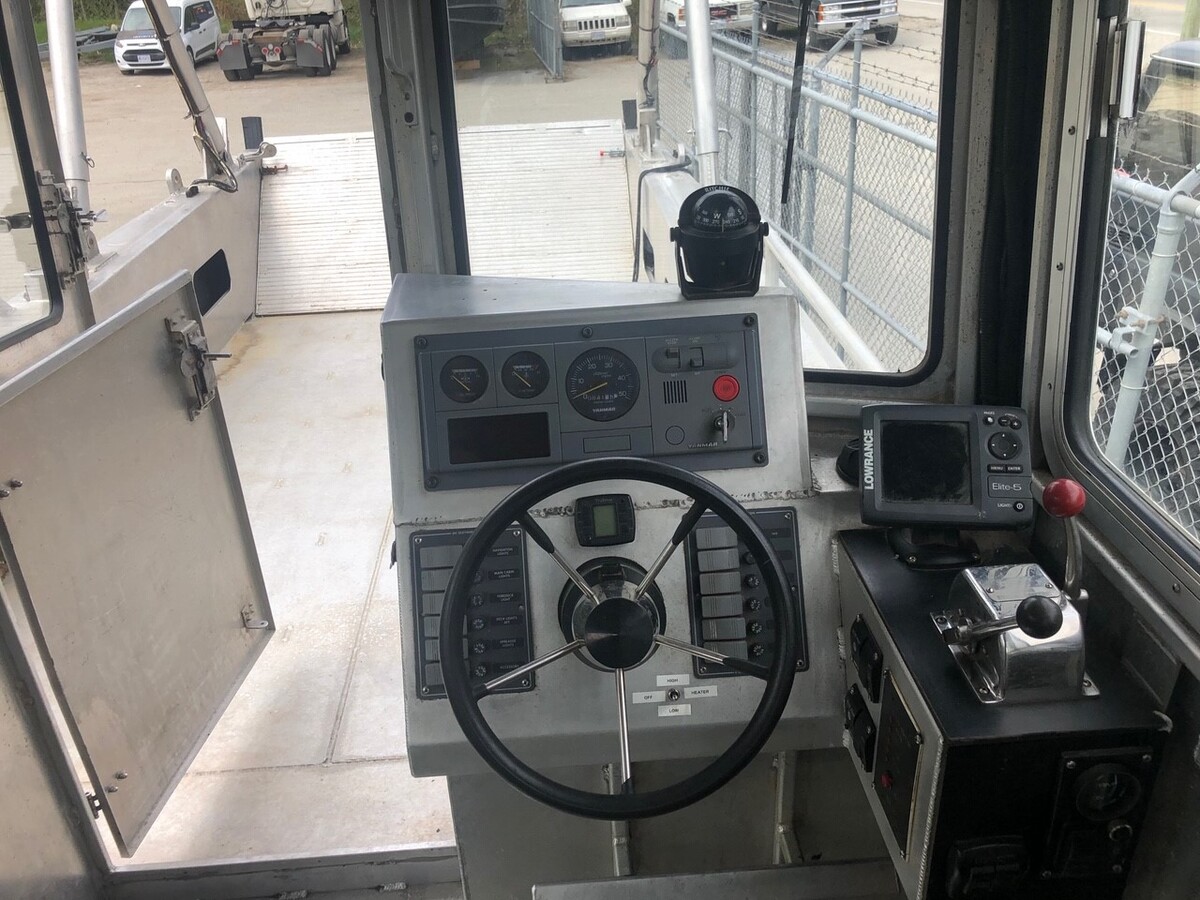

Garmin GPS/Plotter/Sonar

Diesel Bus Heater/Cabin

Crew cap 6

Capstan ~500lb cap

A-frame ~1500lb cap

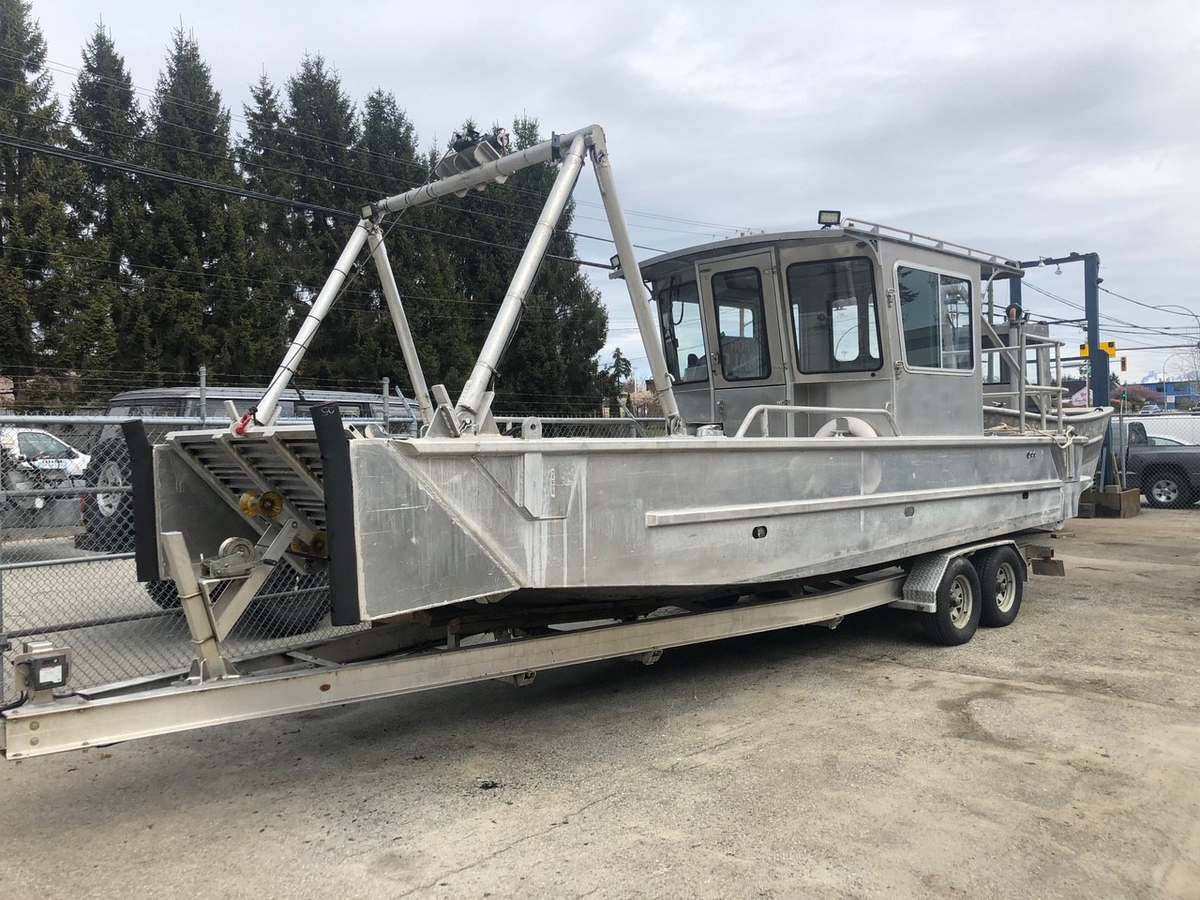

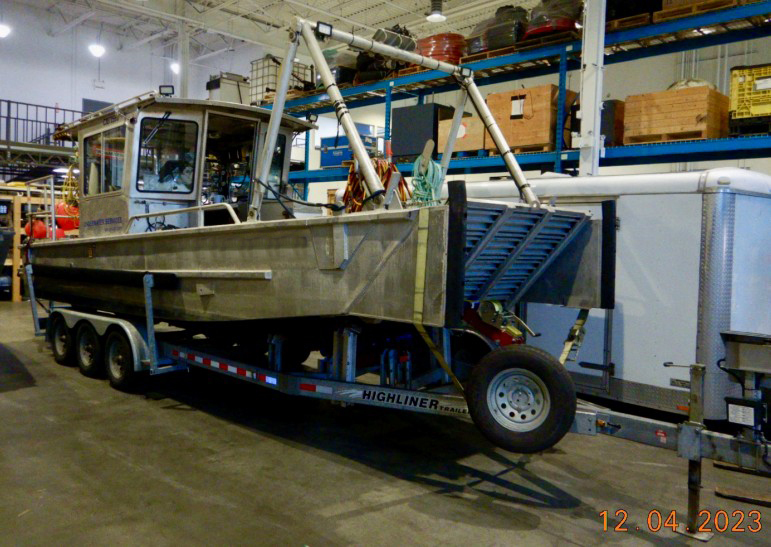

Currently the drive leg is working but will require servicing/replacement in the near future. Comes with fully serviced Highliner triple axle trailer shown in last photo.
