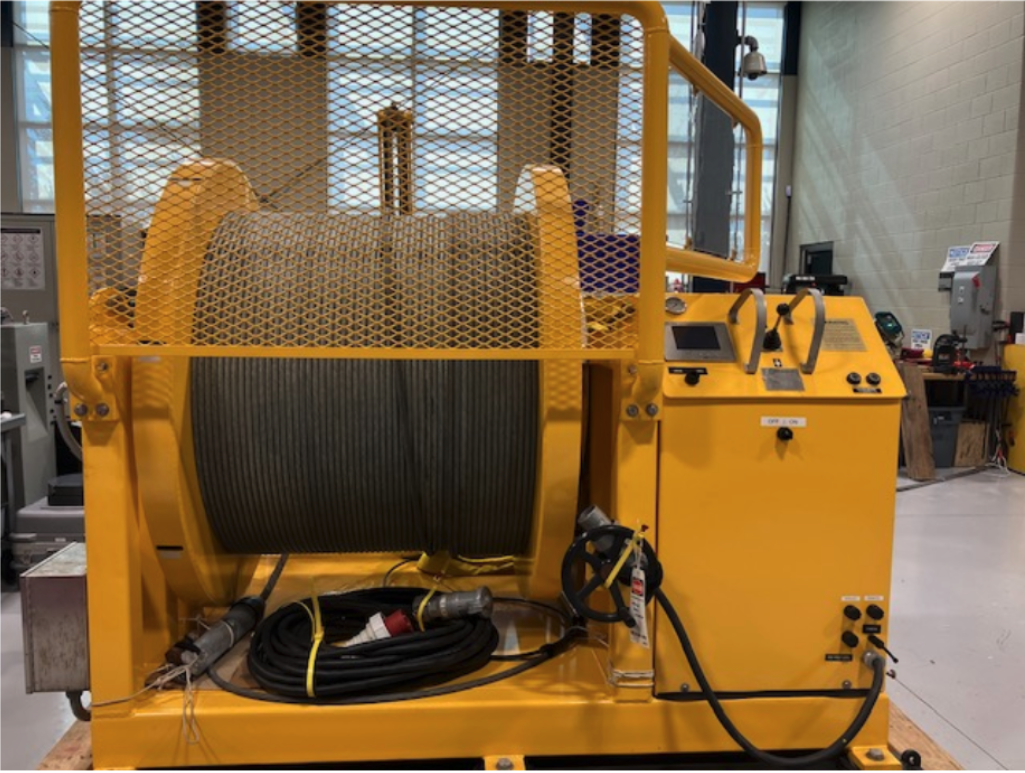

DT Marine/Okeanus ROV Winch

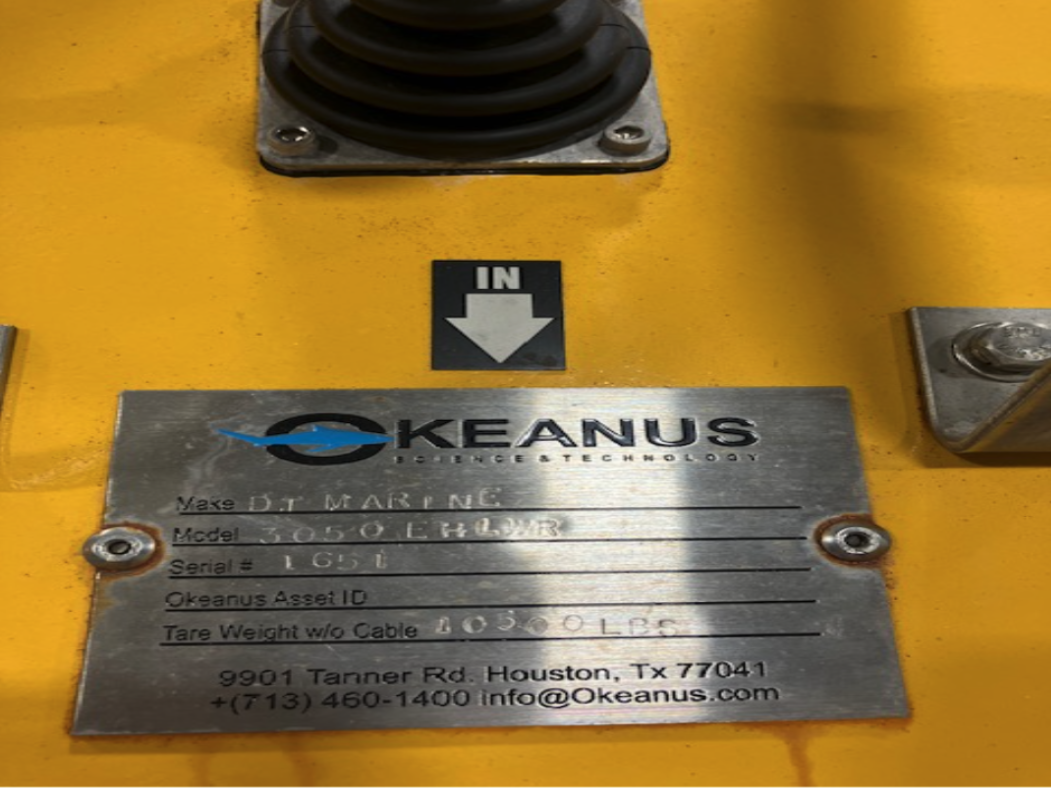

Model #: DT Marine/Okeanus 3050EHLWR

Specifications/Description:

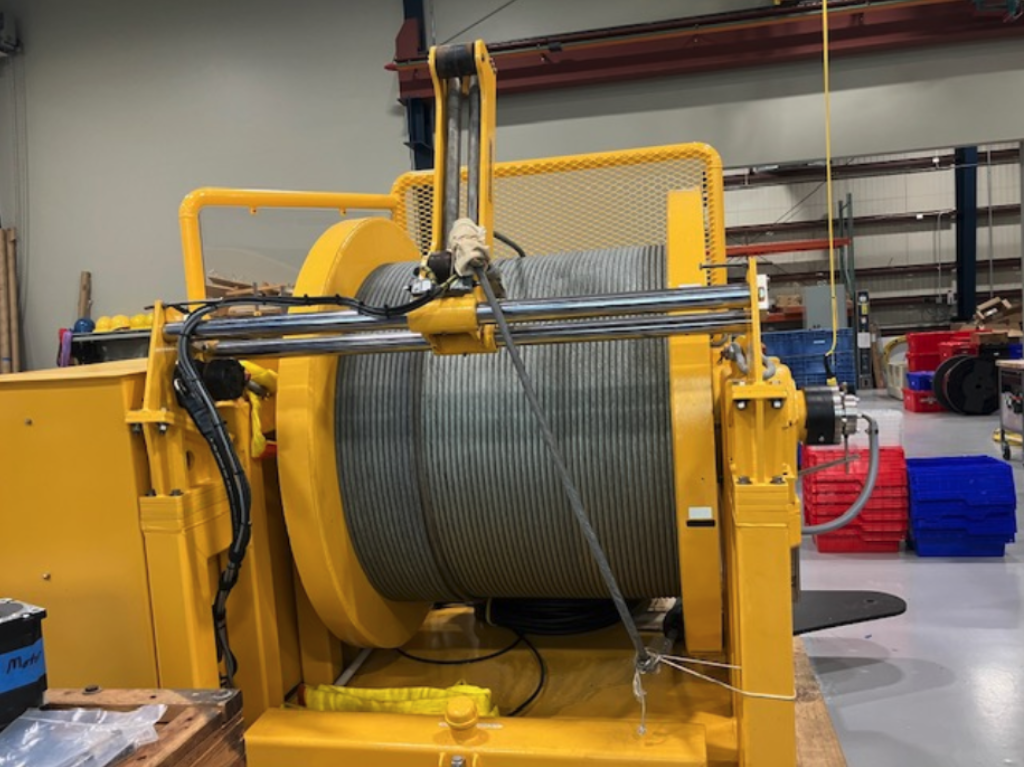

• Levelwind

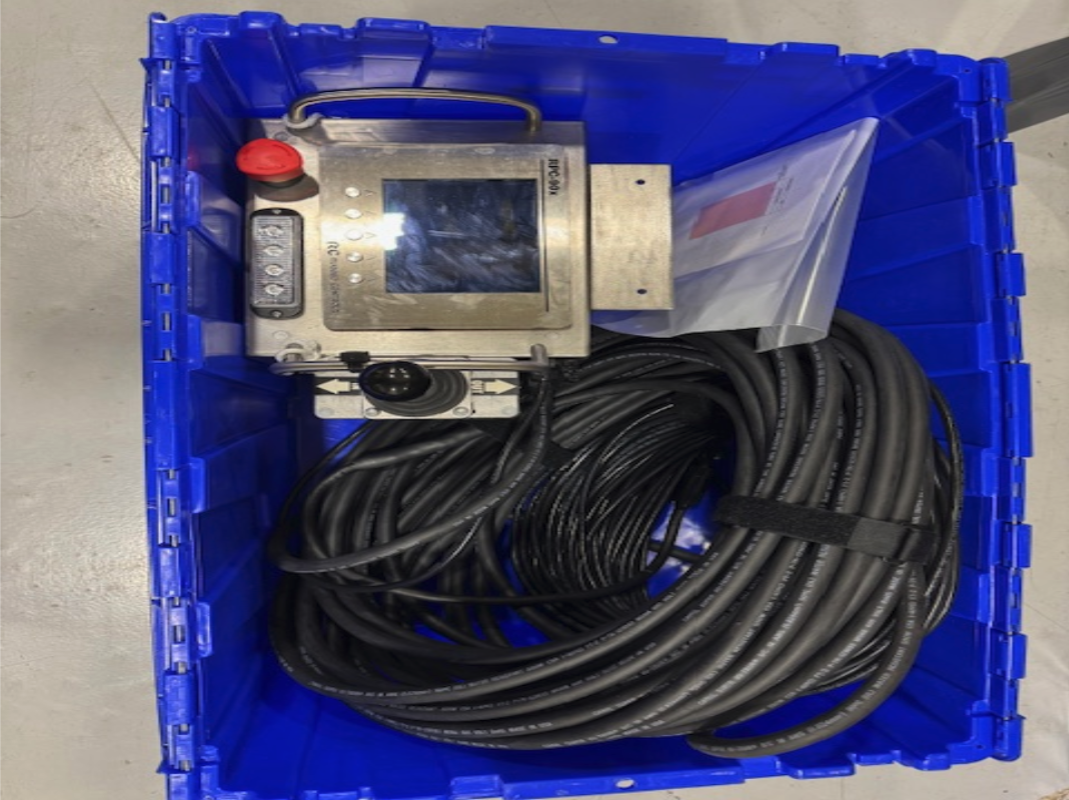

• Remote Control w/125’ of cable, with MCIL/MCBH connectors at cable end(s)
• 50’ Power Cord
• Soft Start
• 3 Gals of Hydraulic Oil (ISO 32 Hydraulic Oil)

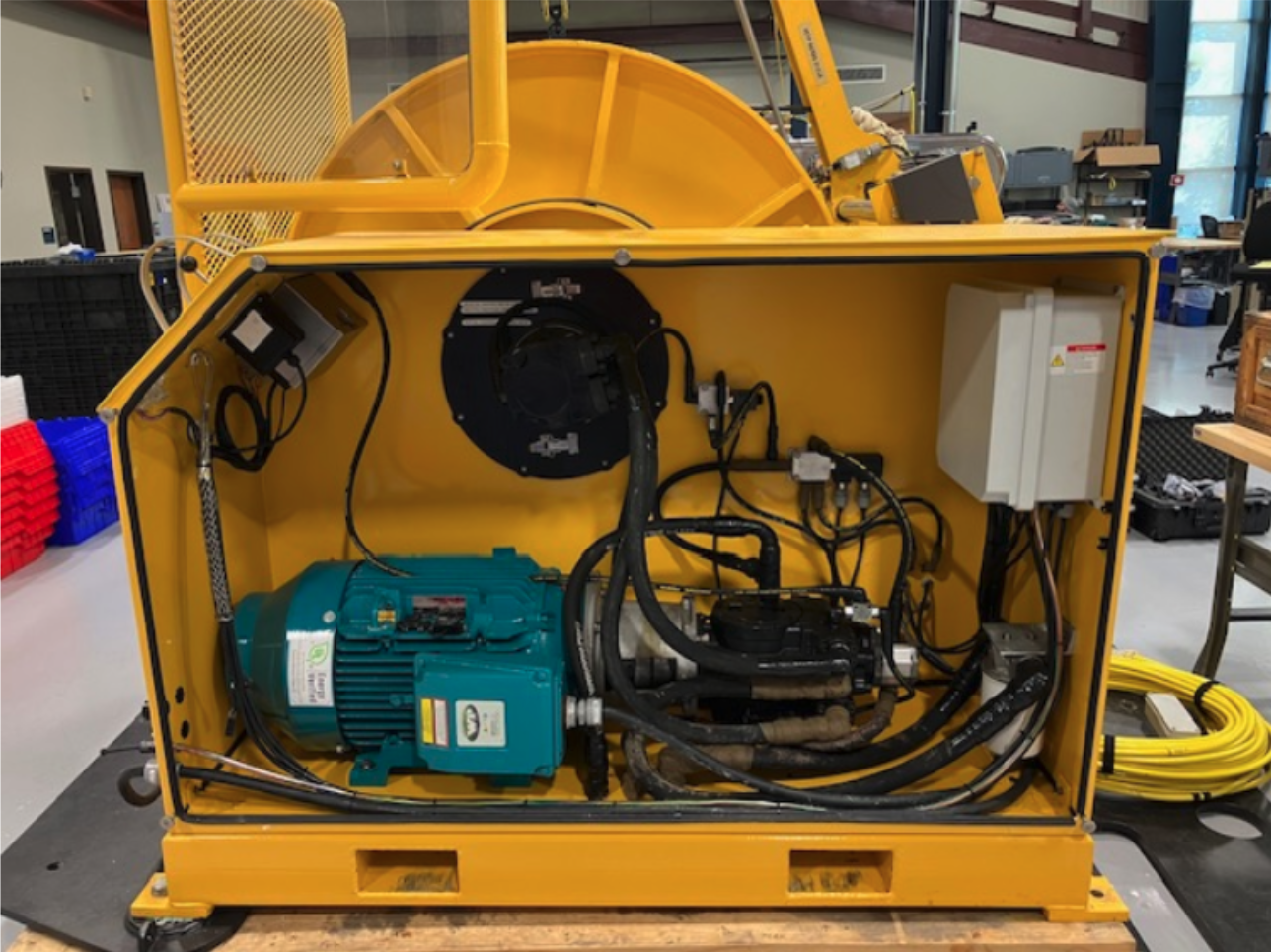

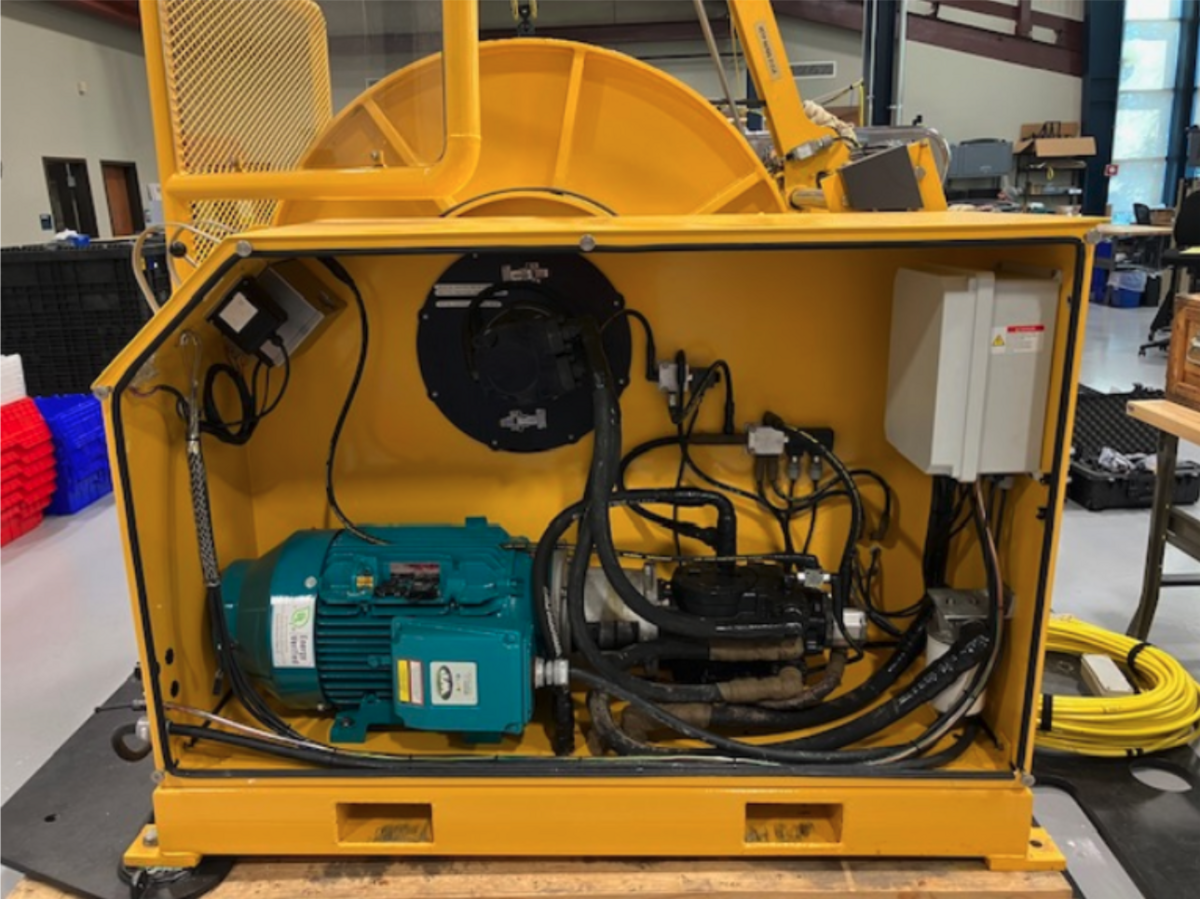

• 50 hp, 460 VAC, 3 Phase.  (65 Amp max nameplate)
• Bare drum rating - 130 fpm @ 9,000 lb. line pull (47.2 hp full load)

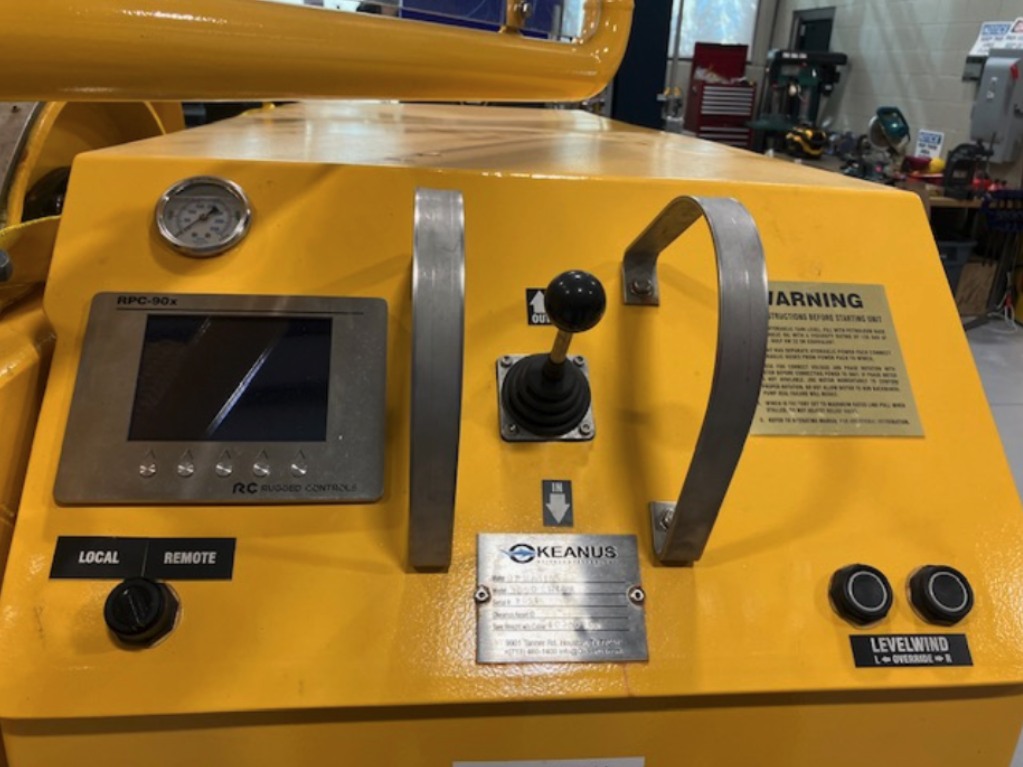

• LCI-90i Mounted Adjacent to Pressure Gauge and Local Control Lever.
• Drum Guard

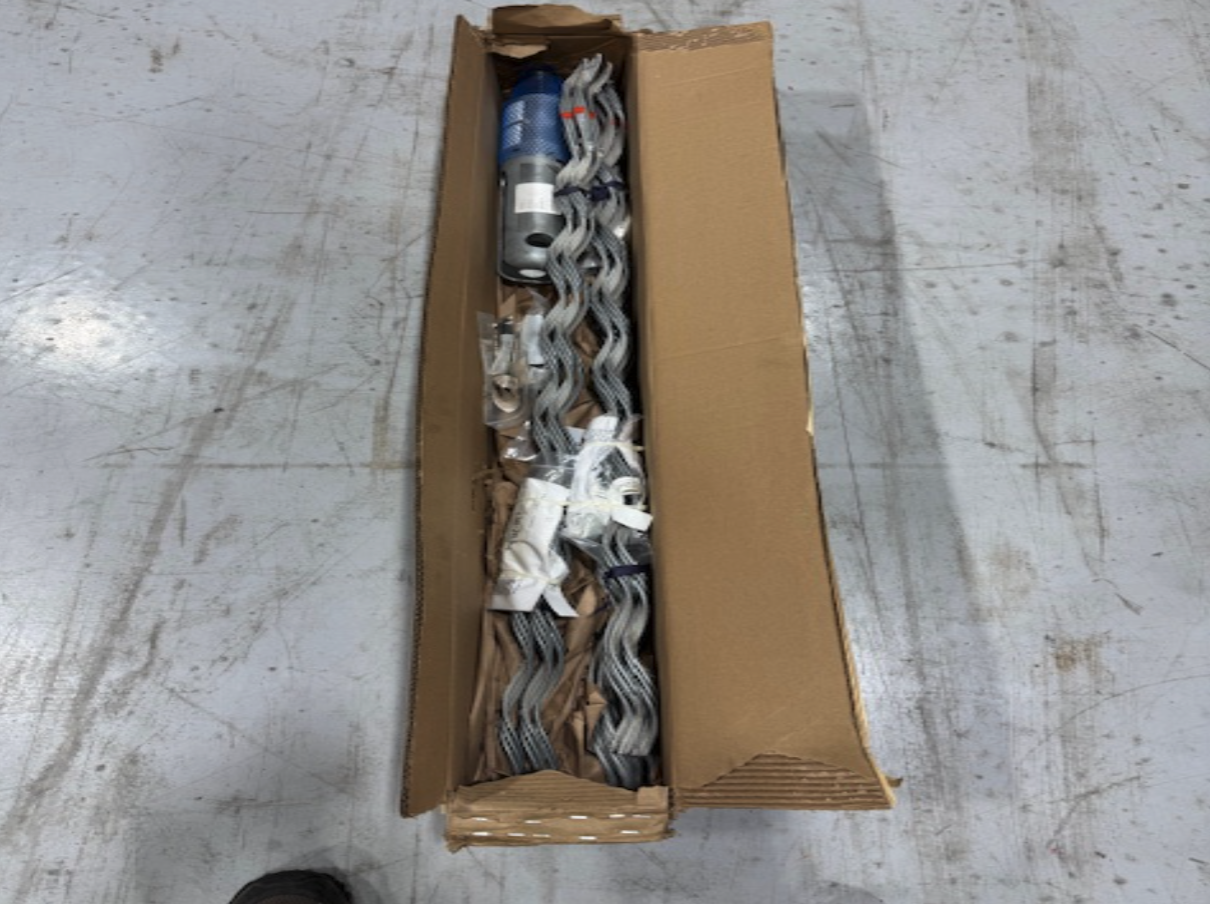

• 1,980m Rochester .680 Oceanographic Cable w/PMI Termination

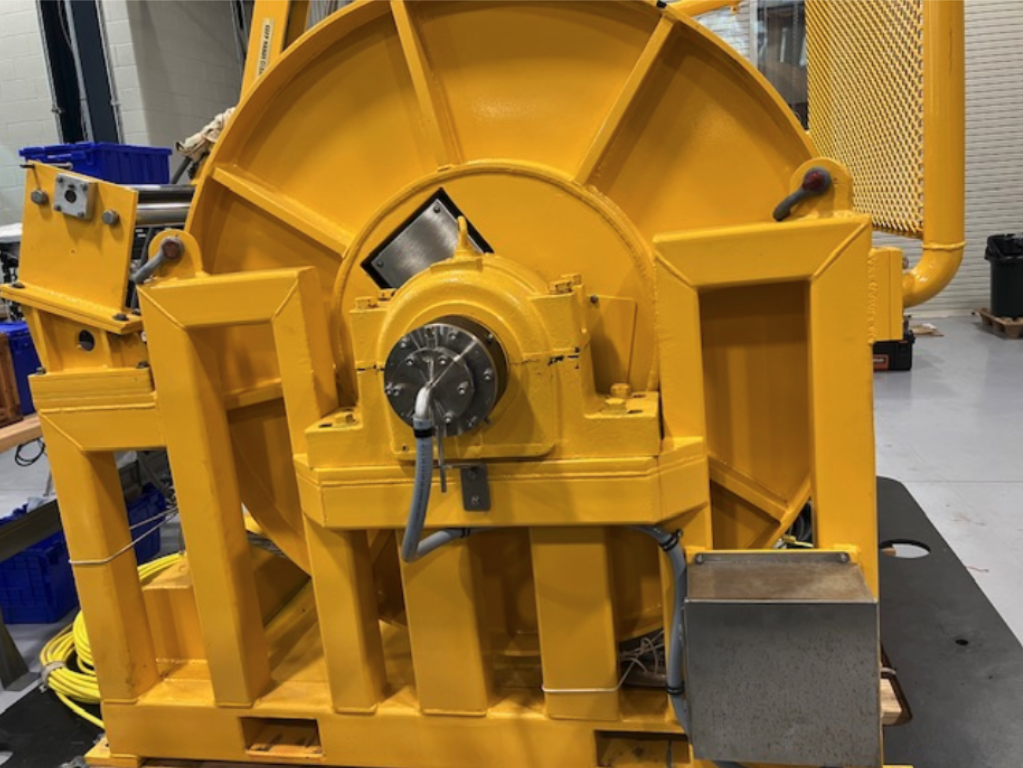

• Focal Slip Ring

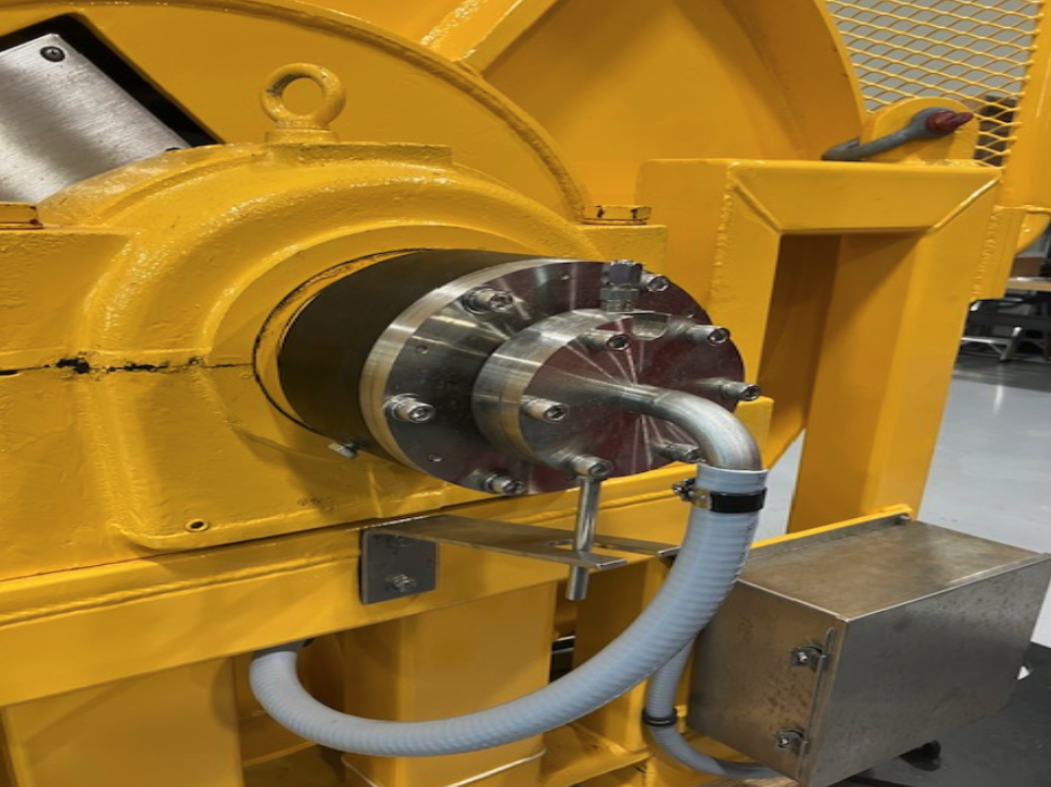

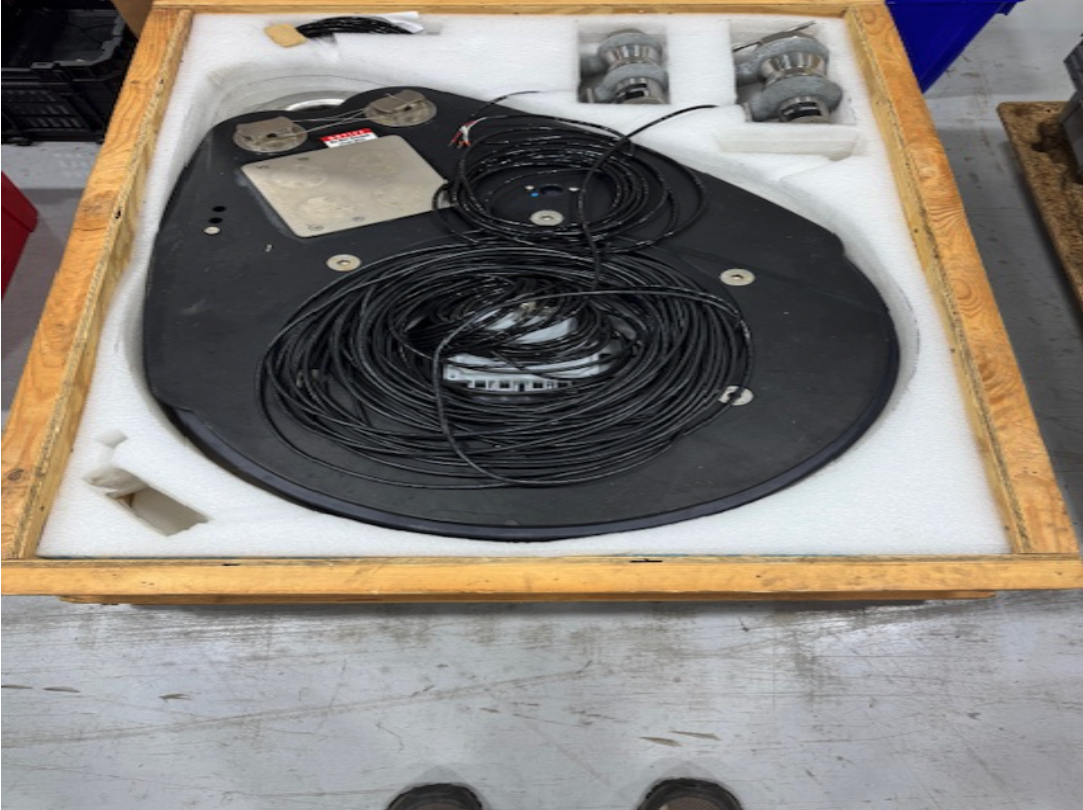

Focal Slip Ring:

• Model #: 176/291 Electro Optical Slip Ring Assembly
• Electrical: 4 Electrical Passes Rated at 3000 Volts, 20 Amps
• Fiber: 3 Single Mode Fiber Passes
• Other Details: Unit is Complete with Purge Fittings, Flange Adaptors and 10 Foot Pigtails on Each End

TE Rochester .680 Oceanographic Cable:

• Model/PN: A309063
• Quantity (Length): ~1,980m
