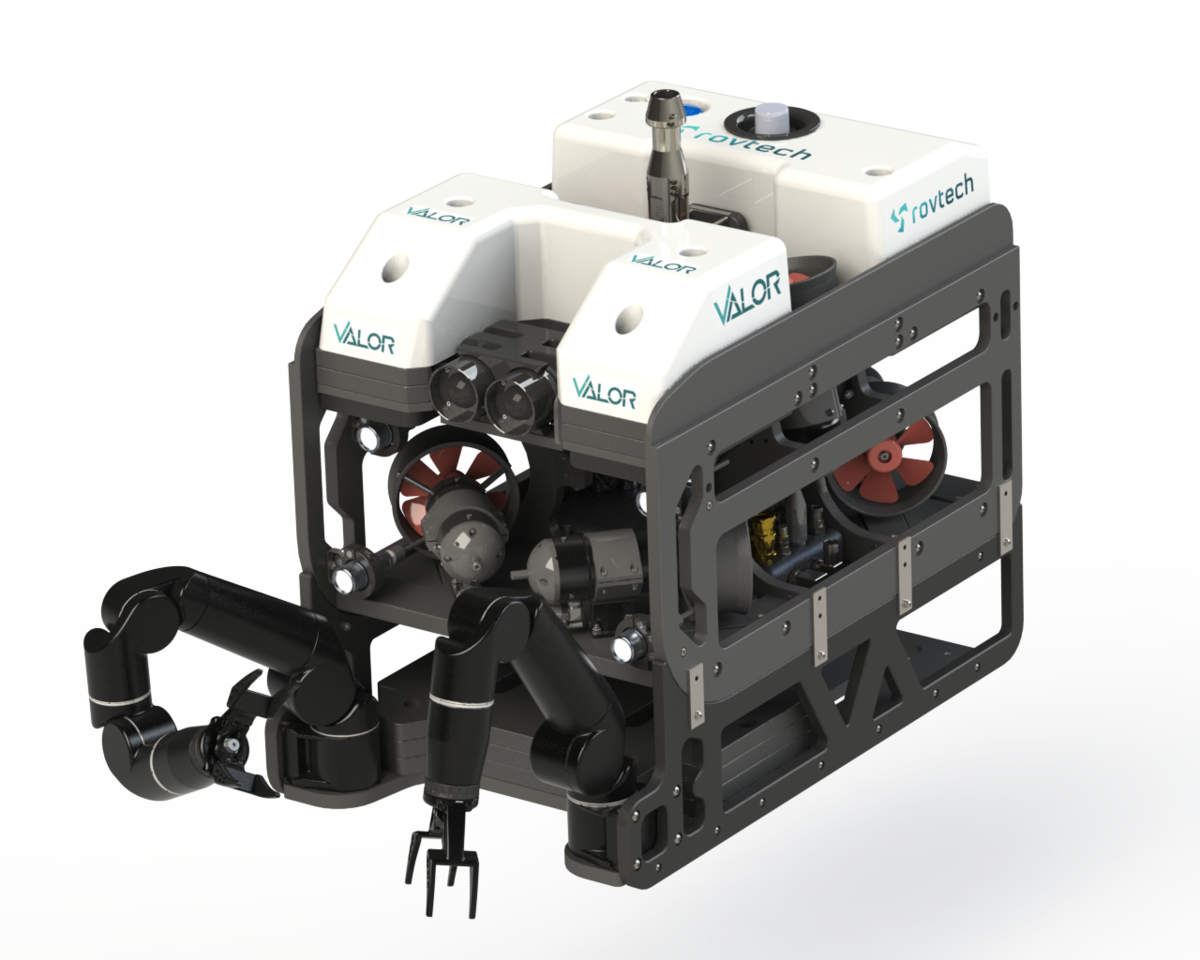

ROVTECH VALOR Digital-class ROV System

ROVTECH VALOR ROV provides a step change to what has traditionally been the limitations of observation/inspection Class ROVs. Its lightweight design, power, manoeuvrability, and unmatched ability to integrate several state-of-the-art sensors via 5+ Gbps data channels makes it an incredibly powerful tool for modern subsea operations.

Specifications:

• Depth Rating: 300m (upgradeable to 1000m)
• Dimensions: 860mm (L) x 600mm (W) x 565mm (H)
• Weight in Air: ~105kg | Max Payload: 21kg
• Thrust: 80kgf forward/lateral/backward, 50kgf vertical
• Thrusters: 6 total (4 horizontal @ 43°, 2 vertical @ 30°)
• Power: 10kW Base, 640V DC delivered to ROV
• Input Voltage: 415VAC / 480VAC ranges
• Lights: 4 x 2250 lumen dimmable LEDs
• Cameras: 2 x GigE + support for up to 5 IP, HD/SDi, PAL/NTSC
• Control: Auto Depth, Auto Heading, Auto Hover, Waypoint Nav
• Connectivity: 5 x user-configurable ports, 1Gbps Ethernet
• Topside Console: Dual HD Monitors, Joystick Control
• Tether: 300m with 6 power conductors and fiber

Designed to be customized, VALOR supports skids for laser scanning, dual manipulators, and cleaning tools meaning that it is a powerful option for adaptable subsea operations. Contact us for more information.
