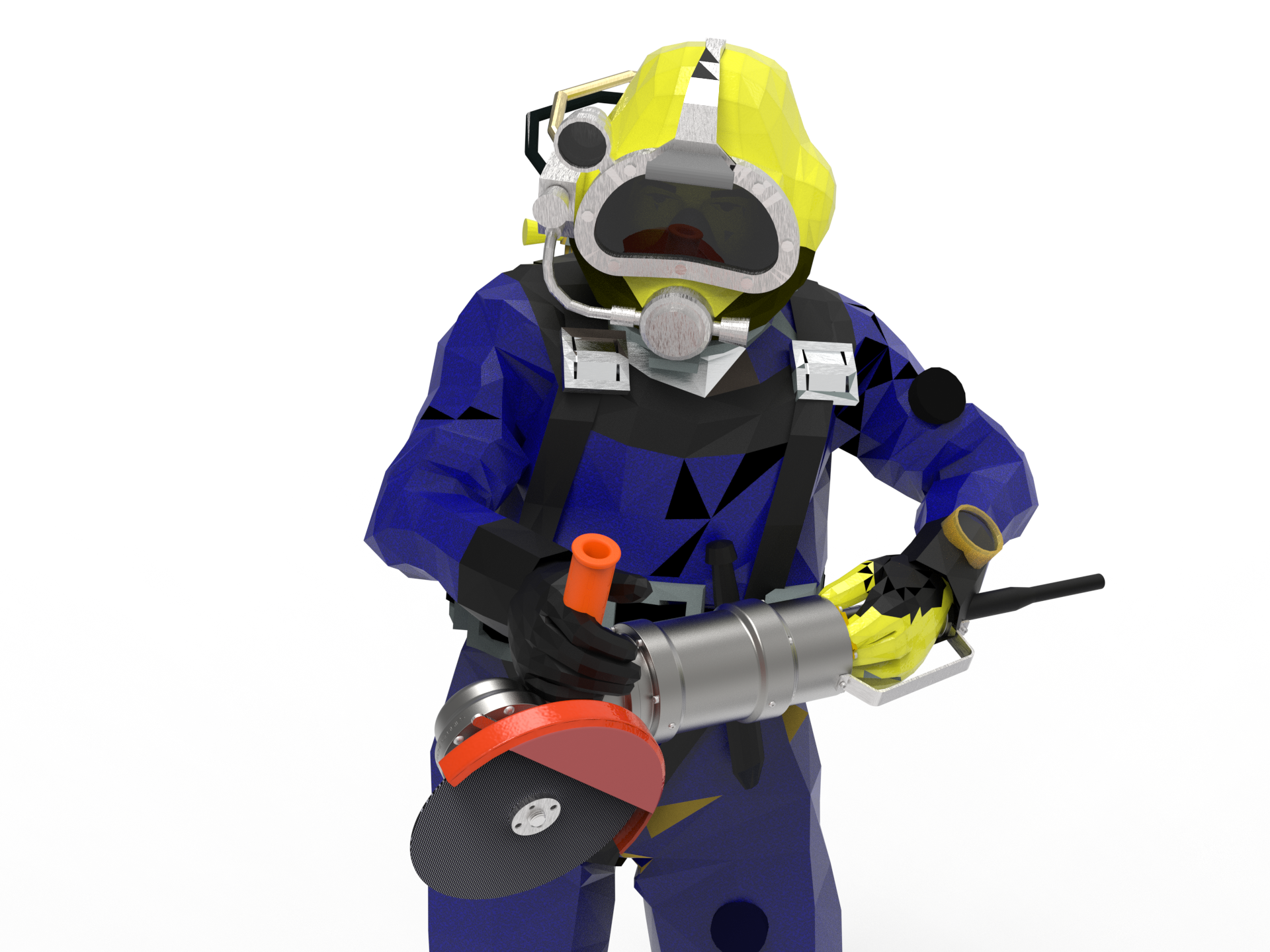

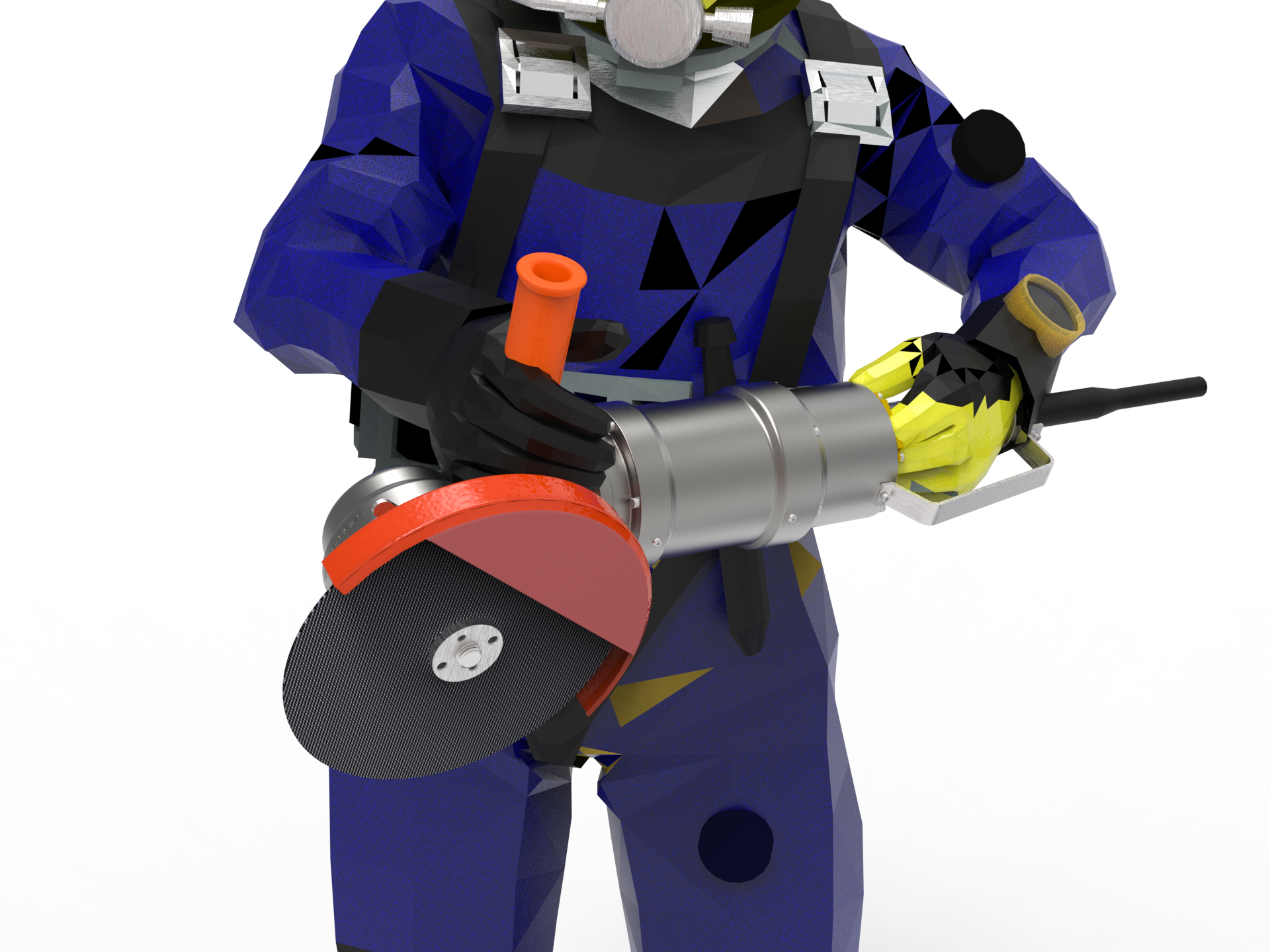

All-electric DivePAQ Grinder

 GENERAL DESCRIPTION

DivePAQ is a fully electric underwater tooling system. It replaces traditional hydraulic tools by offering high performance, modularity, and eco-friendly operation.

TOOL FUNCTIONS & ATTACHMENTS

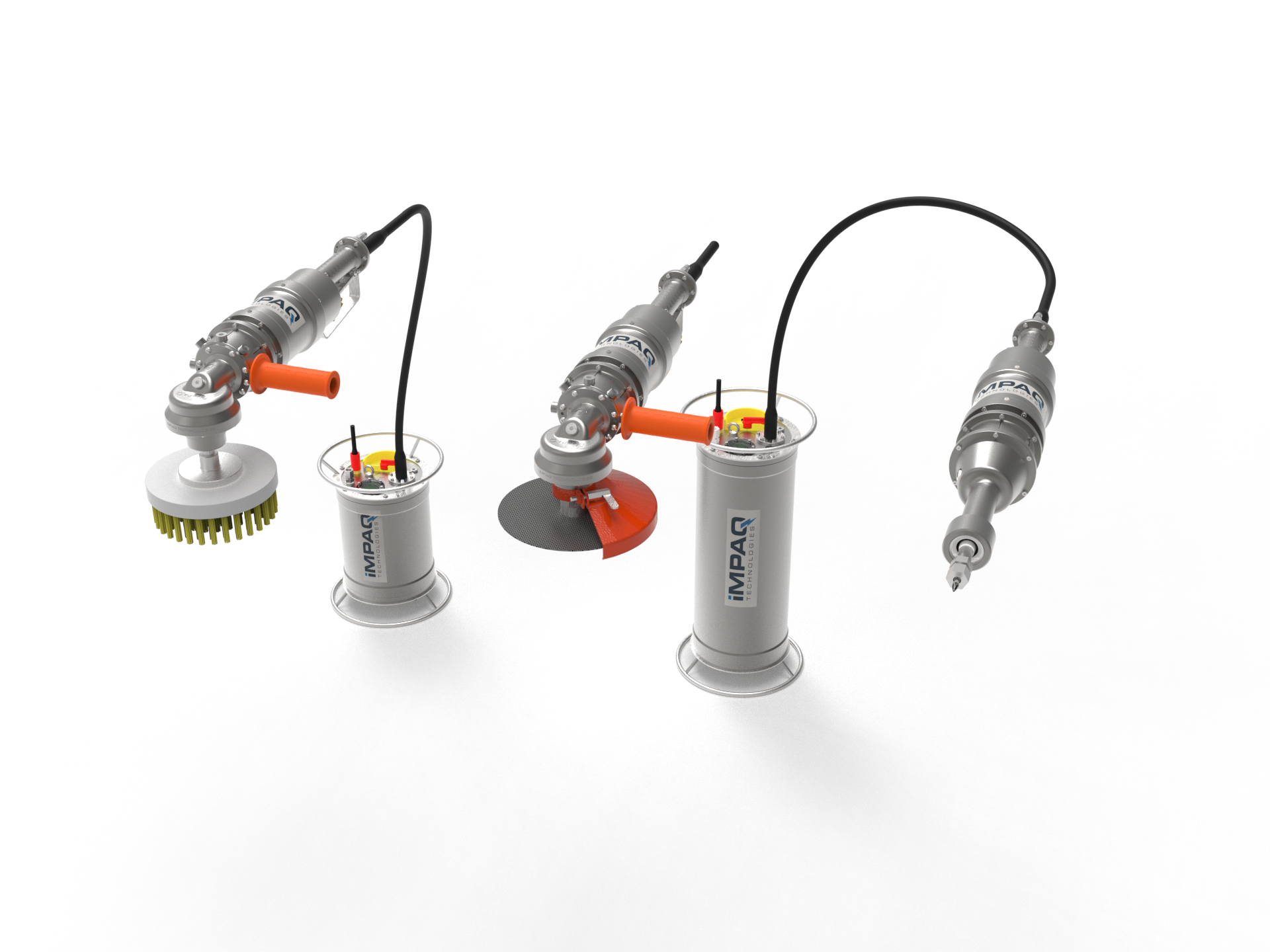

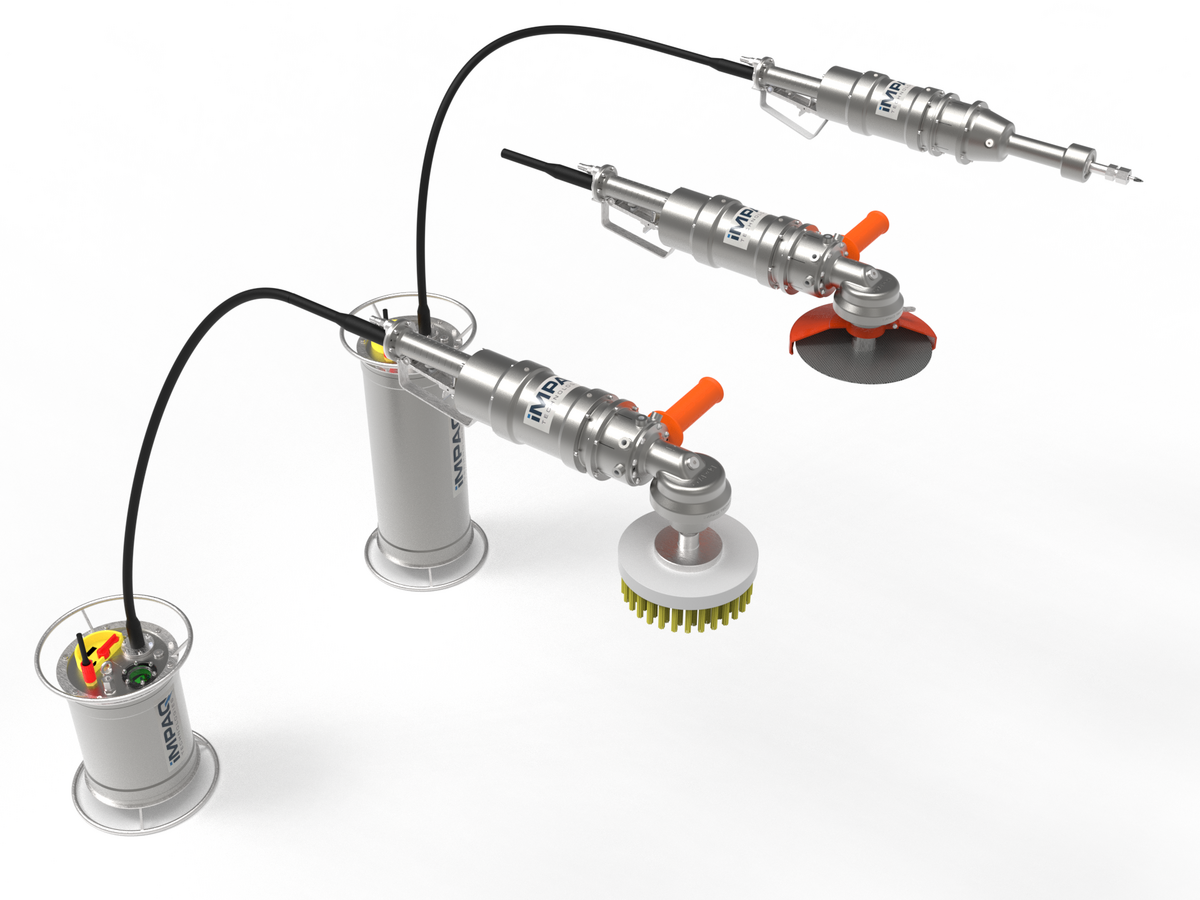

Multifunctional platform with interchangeable tool heads:

• Grinding disc: up to 9” (230 mm)
• Standard & diamond cutting discs: up to 9” (230 mm)
• Peanut grinding attachments (various configurations available)
• Custom tools available upon request

POWER SYSTEM & PERFORMANCE

• Power Supply: Fully electric via rechargeable battery pod
• Depth Rating: Up to 300 m
• Cable Length: Power cable allows up to 20 m excursion
• Runtime:
  • 20Ah battery pod – up to 45 minutes at full load
  • 70Ah battery pod – up to 150 minutes at full load
  • Custom battery sizes available

 ENVIRONMENTAL & SAFETY BENEFITS

• Zero hydraulic fluid – no pollution risk
• Green design, eco-conscious underwater operation
• No surface power required (when using battery pod)


Enables fast mobilization and reduces surface support infrastructure

SYSTEM FEATURES

• Fully electric (no high-pressure hydraulics)
• Wet mateable connector for in-situ battery changeout
• Hi-Speed / Lo-Speed switch for adapting to different tools
• Full proportional control
• Compact and portable for easy deployment
• More efficient than hydraulic equivalents
• Deep water capable
