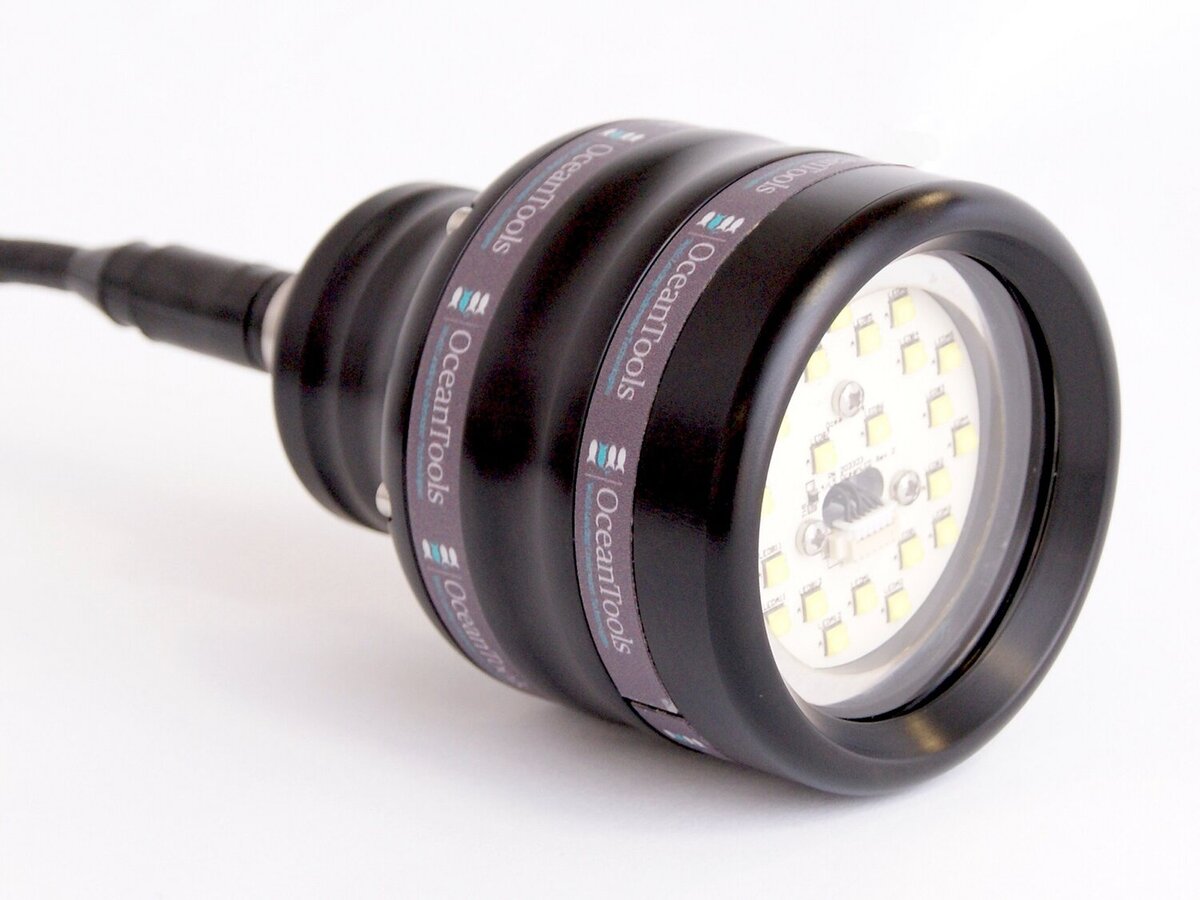

OceanTools L5 Subsea Light – 8000m, 24V

The OceanTools L5 is a high-performance subsea LED light designed for demanding underwater operations down to 8,000 meters. Built from titanium with a sapphire glass window, the L5 is engineered for durability, clarity, and long-term use in deepwater environments.

The L5 delivers up to 12,000 lumens of powerful LED illumination and is available in both wide flood and focused spot beam versions—making it suitable for a wide range of inspection, monitoring, and tooling tasks. Light output is consistent and bright, ideal for both video systems and real-time observation in dark or turbid waters.

The standard model operates on 24VDC and supports multiple control options including RS232, RS485, or analogue dimming, giving operators flexibility depending on system requirements. An AC-powered version is also available, operating at 120VAC using Triac control. This versatility allows the L5 to be easily integrated into ROVs, AUVs, and fixed installations.

Key Features:

• Up to 12,000 lumen light output
• Beam options: wide flood or focused spot
• Depth rated to 4,000m or 8,000m
• Control via RS232, RS485, or analogue (24VDC)
• 120VAC version with Triac control
• Titanium body and Subconn MCBH5MSS connector

Contact us for further information on pricing
