DART/ATEL Decompression Chambers

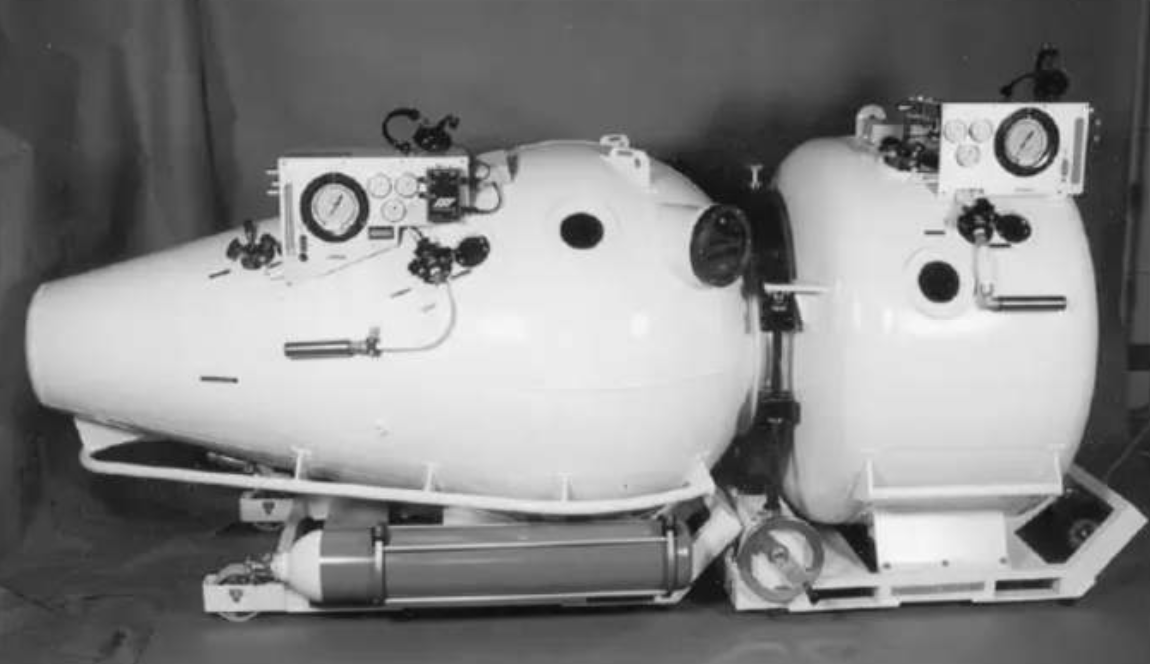

A.T.E.L. stands for Attachable Transportable Entrance Lock which is in fact an additional chamber compartment, which can be used in combination with the DART (Diver Attendant Recompression Transportable). The ATEL is provided with a special Stanag female flange, which makes it possible to mate with the DART giving a 2 compartment chamber.

Basic features of the D.A.R.T.:

• Stretcher for patient with securing straps
• Collapsible seat for attendant
• Medical lock with safety interlock device
• Internal lighting system
• Communication system
• Control panel with; Depth gauge, comms unit, flow meter
• Air control manifold (Inlet/outlet)
• Spare penetrators for additional equipment
• Rotating male Stanag flange
• Transport wheels, with locking system
• Wheeled lever for manual transportation of the D.A.R.T.
• Lifting eyes with sling

Basic features of the A.T.EL.:

• All controls for pressurization (air inlet/outlet)
• Communications module
• Control panel with depth gauge, flow meter, etc.
• All identical to the controls as installed on the D.A.R.T.
• Mating device for the D.A.R.T.
• Transport wheels, with locking system
• Main Dimensions of A.T.E.L.:
  • Overall Length:1100 mm
  • Overall Width: 1250 mm
  • Overall Height: 1400 mm
  • Diameter: 1200 mm
  • Door Opening: 600 mm
  • Weight: approx 230 Kg
• Material: Seawater resistant aluminium ALMG 4,5
