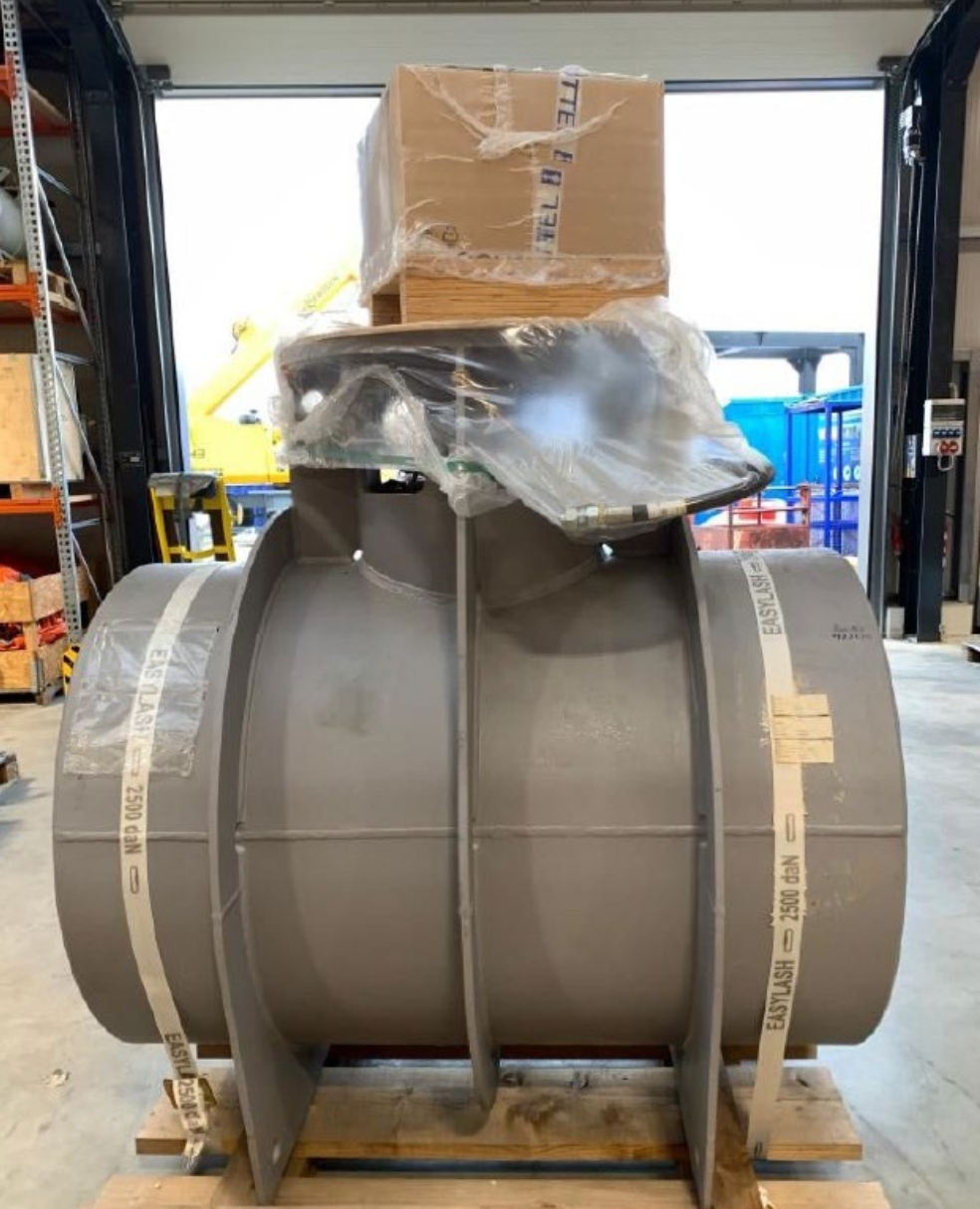

Schottel STT 170 TLK Transverse Thruster

Equipment details

• Model: Schottel STT 170 TLK
• Build Year: 2014
• Condition: New/Unused
• Nominal Input Power: 200 kW
• Nominal Input Speed: 1770 rpm
• Gear Reduction Ratio: 3.071 : 1
• Max. Short-Time Input Torque: 1888 Nm
• Propeller Diameter: 990 mm
• Propeller Material: GS-CUAI10Fe5Ni5-C (bronze alloy)
• Propeller Type: Fixed Pitch (FP), 3 blades
• Propeller Standard: ISO 484/2-1981 (Tolerance Class II)
• Tunnel Length: 1500 mm | Wall Thickness: 20 mm | Material: Shipbuilding Steel Grade A
• Weight (incl. propeller & oil header tank): ~1680 kg

Contact us for further details on pricing
