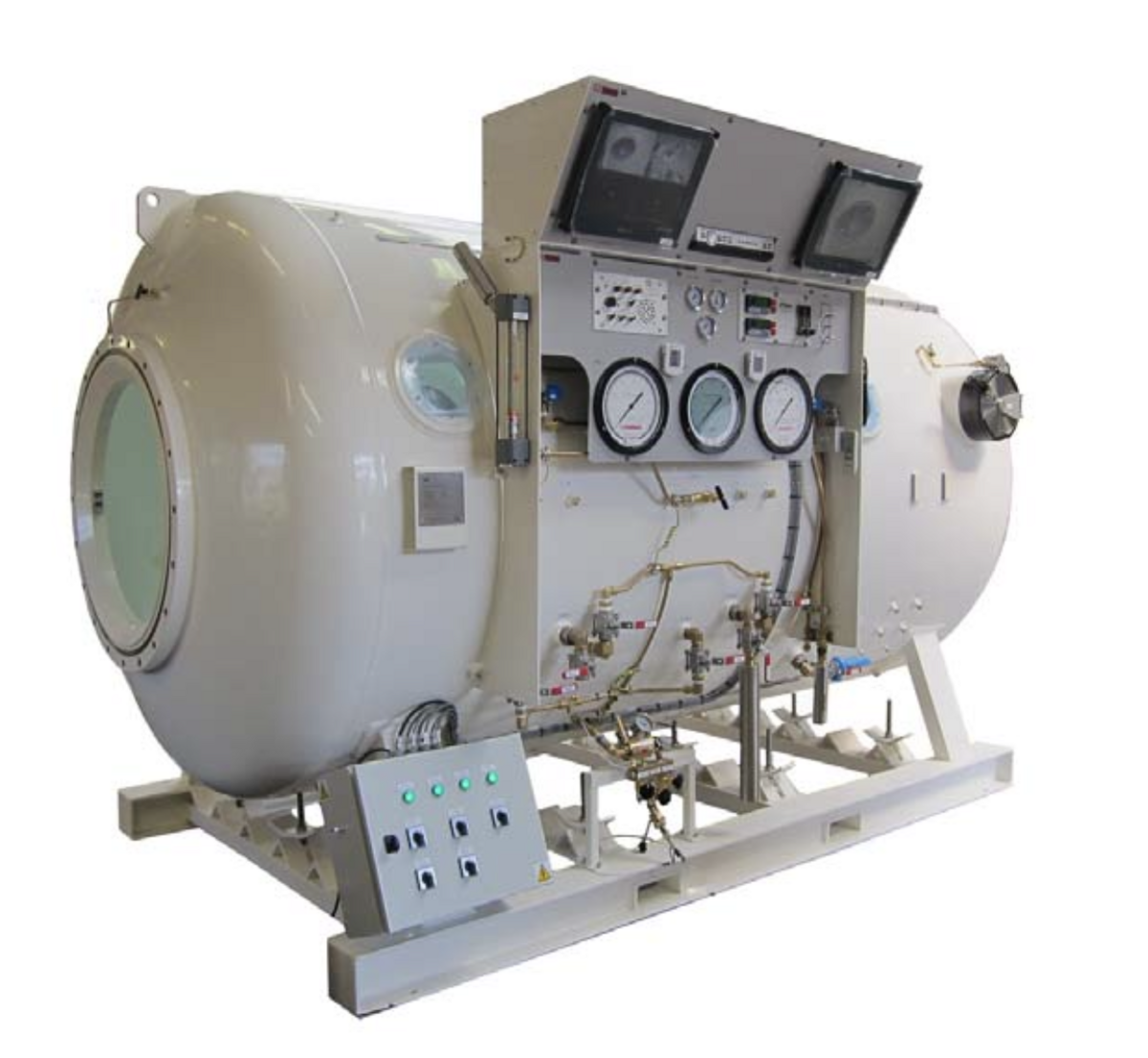

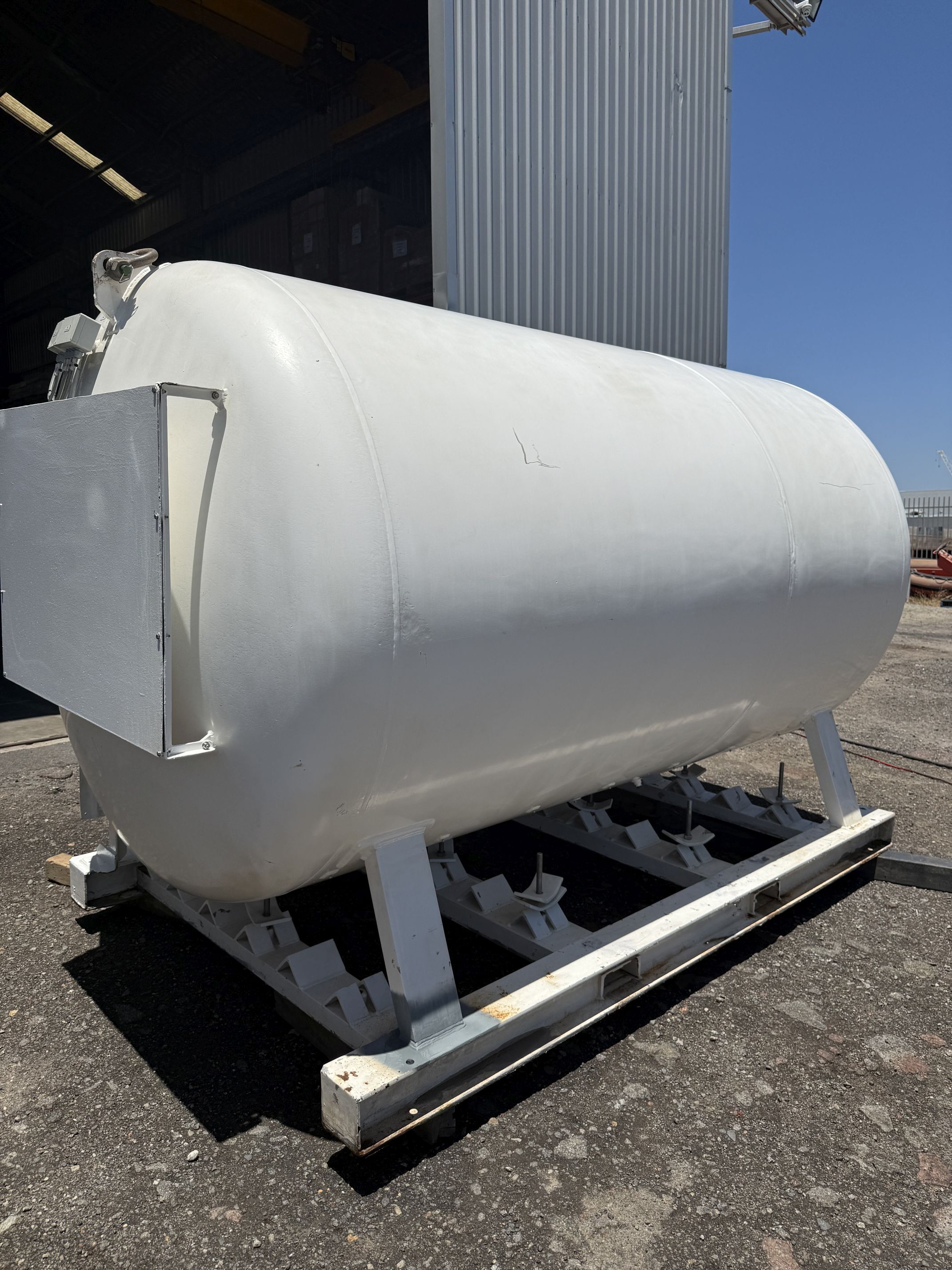

1800mm Hytech DDC with Twin-lock

System Overview

This ABS Classed Hytech Deco Chamber is a compact two-compartment DDC including:

• Main Chamber (MC)
• Entrance Lock (EL)

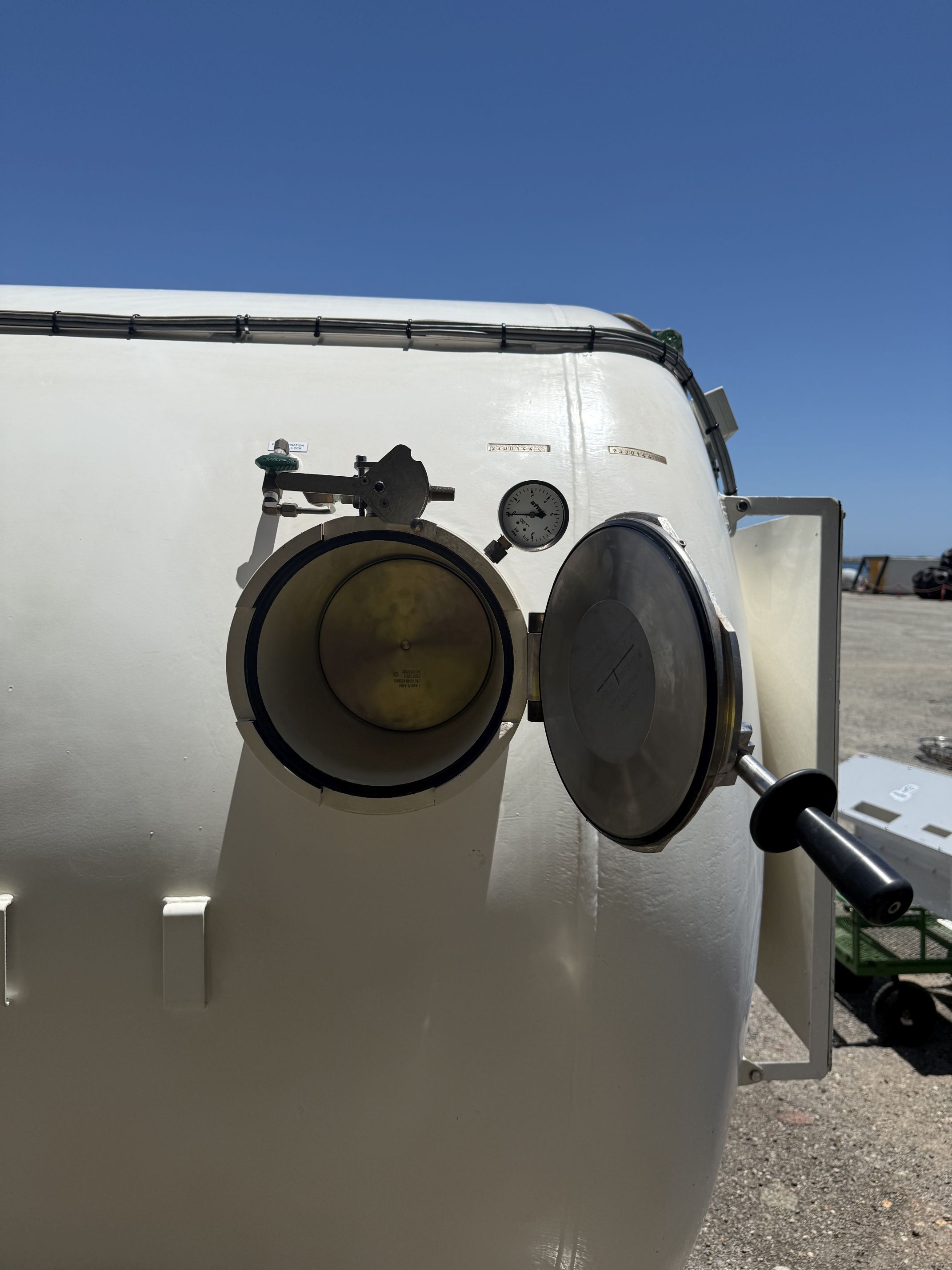

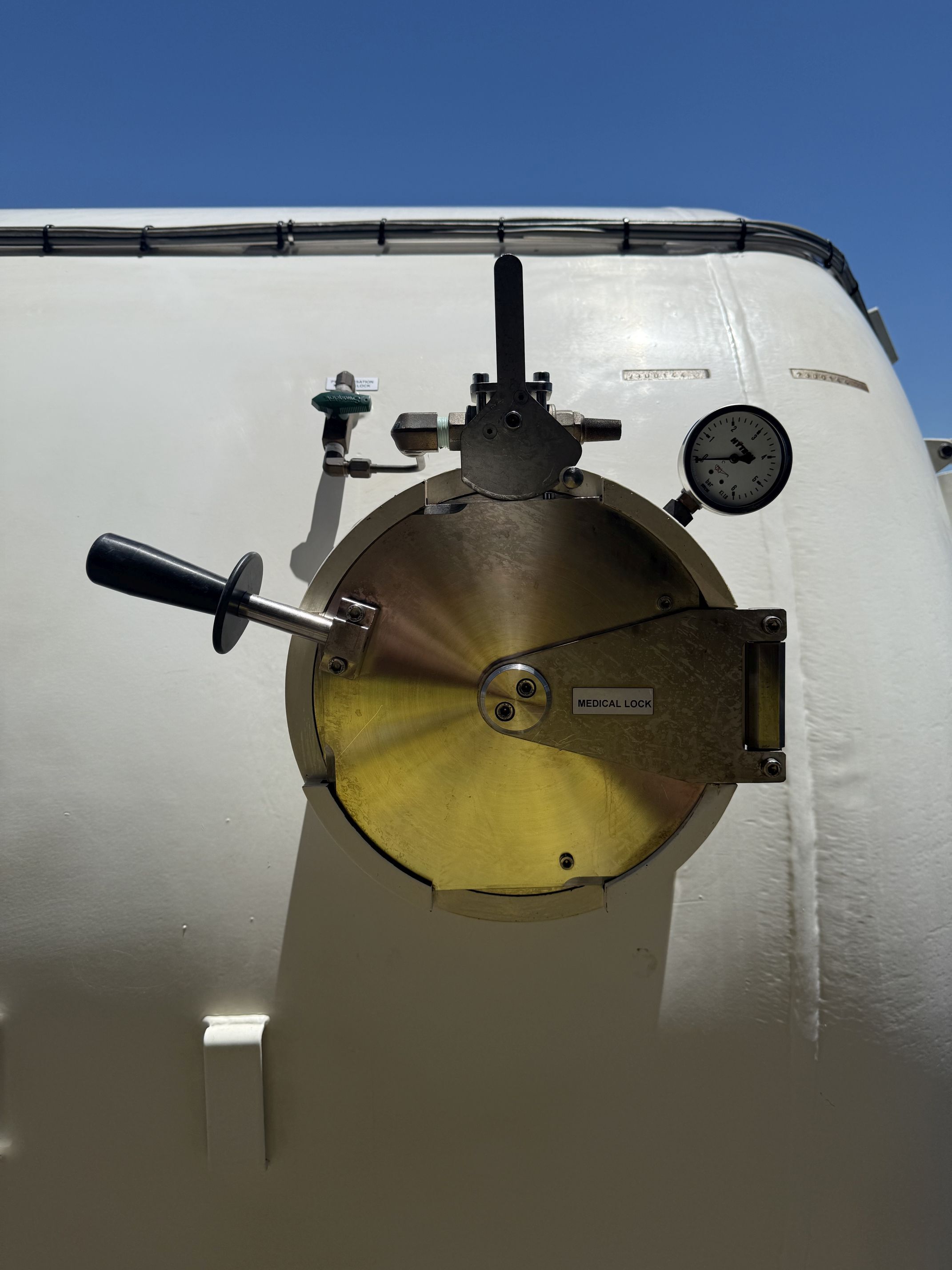

• Medical Lock allowing safe transfer of small items between compartments.

Note that this system is not a full dive control setup as it is just the chamber, the dive control elements remain on board its former host vessel.

Chamber Configuration

• Two-compartment DDC: Main Chamber + Entrance Lock
• Foldable stretchers, banks, internal lighting and cameras
• BIBS connections: 2 in EL, 4 in MC
• Two viewports, one per compartment

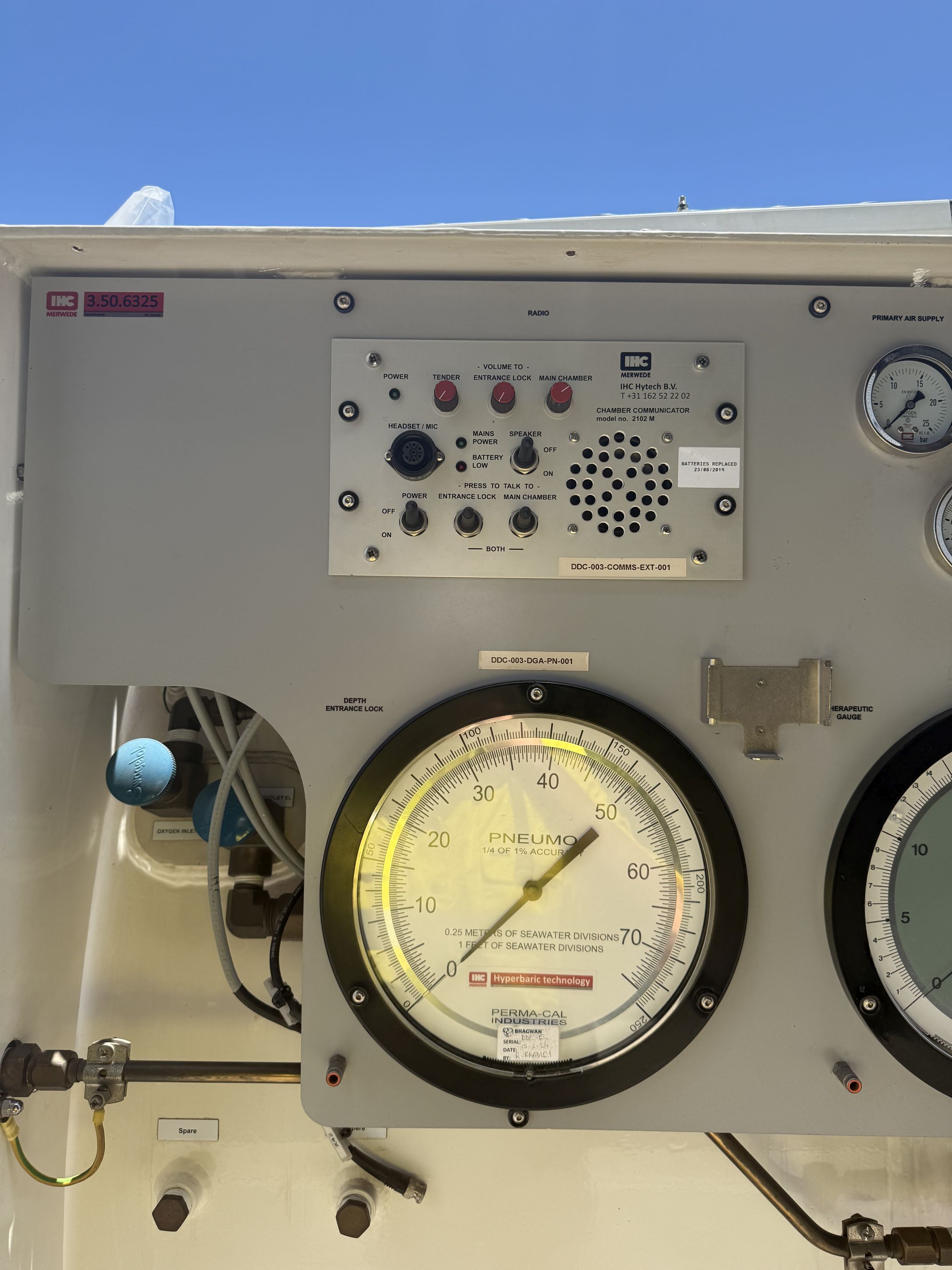

• Internal emergency telephones (battery-powered EX-type)

Specifications

• Overall length: ~3500 mm
• Diameter: ~1800 mm
• Weight: ~4000 kg (standard without options)
• Entrance Lock volume: 2.4 m³
• Main Chamber volume: 5.8 m³
• Working pressure: 5.0 bar (6 bar abs ≈ 50 msw)
• Test pressure: 7.5 bar
• Material: Boiler steel
• Certification: ABS

NOTE: The above description may not be entirely accurate, please contact us for further information.
